TruVision 81 Series IP

Camera Configuration

Manual

P/N 1073279-EN • REV A • ISS 12MAY17

2017 United Technologies Corporation.

Interlogix is part of UTC

Climate, Controls & Security, a unit of Un

ited

Technologies Corporation.

Trademarks and

patents

rade names used in this document may be trademarks or

registered trademarks of the manufacturers or vendors of the

respective products.

Manufacturer

Interlogix

2955 Red Hill Avenue, Costa Mesa, CA 92626

-5923, USA

Authorized EU manufacturing representative:

UTC

Building & Industrial Systems B.V.

Kelvinstraat 7, 6003 DH Weert, The Netherlands

Certification

Contact information

For contact

information, see www.interlogix.com or

www.utcfssecurityproducts.eu

Content

Introduction 2

Default settings to access the camera 2

Temporary Wi-Fi connection for camera installation 2

Network access 4

Checking web browser security level 4

Accessing the camera over the internet 5

Overview of the camera web browser 5

Camera configuration 7

Configuration panel overview 7

System time 11

System service 13

Network settings 14

Video/Audio 21

Image 24

Basic event 30

Smart event 38

Schedule settings 41

Storage management 45

Camera management 47

User management 47

Security 50

Maintenance 51

Camera operation 56

Logging on and off 56

Live view mode 57

Playing back recorded video 57

Snapshot 59

TruVision 81 Series IP Camera Configuration Manual 1

Introduction

This is the user manual for the following TruVision®IP camera models:

1080p IP Wi-Fi Desktop IR camera (2 MP):

RS-3230/3231

• TVQ-8101

1080p IP Wi-Fi Bullet IR camera (2 MP):

RS-3250/3251

• TVB-8101

Default settings to access the camera

Default credentials

The camera comes with a user account with administrative rights for configuring all

options on the camera. The user name is “admin” and the password is “1234.” For

enhanced security, we highly recommend changing the default password during initial

setup.

Default network settings

The network settings are:

• IP address (in a network without a DHCP server): 192.168.1.70

• IP address (when using a temporary Wi-Fi connection for installation): 192.168.2.70

• Subnet mask: 255.255.255.0

• Gateway address: 192.168.1.1

Ports used:

Browser TruVision Navigator

RTSP: 554 RTSP: 554

HTTP: 80 Server/client control port: 8000

Temporary Wi-Fi connection for camera installation

See the Installation Guide for instructions on using the temporary Wi-Fi connection for

setup (recommended method). Please note the following when using the temporary

Wi-Fi connection:

• The LED(s) on the camera blink slowly to indicate that the camera is in the default

setup mode and requires attention.

• The temporary Wi-Fi connection is disabled and setup is interrupted after

connecting an Ethernet cable to the camera. The camera LED(s) stop blinking and

the camera SSID is no longer broadcast.

2 TruVision 81 Series IP Camera Configuration Manual

• The temporary Wi-Fi connection becomes available and setup can continue after

disconnecting an Ethernet cable from the camera.

• Cameras are identifiable on the Wi-Fi network by their unique SSID address, which

is comprised of the camera's model number plus serial number.

• Cameras have WPA2-PSK Wi-Fi security settings enabled by default. The camera's

serial number is the unique default wireless password.

• 192.168.2.70 is used for the default camera IP address and 192.168.2.71 is

assigned to the client. Only one client and IP address are assigned, so only one

user at a time can access the camera in temporary Wi-Fi mode.

TruVision 81 Series IP Camera Configuration Manual 3

Network access

This manual explains how to configure the camera over the network with a web

browser.

TruVision IP cameras can be configured and controlled using Microsoft®Internet

Explorer®(IE) and Apple®Safari®. The procedures described use the Microsoft Internet

Explorer (IE) web browser.

Checking web browser security level

When using the web browser interface, ActiveX controls can be installed to connect and

view video using Internet Explorer. However, data such as video and images cannot be

downloaded due to the increased security measure. Check the security level of the PC

to enable interaction with the cameras over the web and, if necessary, modify the

Active X settings.

Configuring IE ActiveX controls

Confirm the ActiveX settings of the web browser.

To change the web browser’s security level:

1. In Internet Explorer, click Internet Options on the Tools menu.

2. On the Security tab, click the zone to be assigned to a website under “Select a web

content zone to specify its security settings.”

3. Click Custom Level.

4. Change the ActiveX controls and plug-ins options that are signed or marked as

safe to Enable. Change the ActiveX controls and plug-ins options that are

unsigned to Prompt or Disable. Click OK.

—or—

Under Reset Custom Settings, click the security level for the whole zone in the

Reset To box, and then select Medium. Click Reset, and then click OK in the

Internet Options Security tab window.

5. Click Apply in the Internet Options Security tab window.

Windows users

Internet Explorer for Windows®operating systems have increased security measures to

protect a PC from malicious software.

To ensure complete functionality of the Windows web browser interface, do the

following:

• Run IE as an administrator in the workstation

• Add the camera’s IP address to the IE’s list of trusted sites

4 TruVision 81 Series IP Camera Configuration Manual

To add the camera’s IP address to Internet Explorer’s list of trusted sites:

1. Open Internet Explorer.

2. Click Tools, and then click Internet Options.

3. Click the Security tab, and then select the Trusted sites icon.

4. Click the Sites button.

5. Deselect the Require server verification (https:) for all sites in this zone check

box.

6. Type the IP address in the Add this website to the zone box.

7. Click Add, and then click Close.

8. Click OK in the Internet Options dialog window.

9. Connect to the camera for full browser functionality.

Accessing the camera over the internet

Use the web browser to access and configure the camera over the internet.

We recommend changing the administrator password after setup is complete. Only

authorized users should be able to modify camera settings. See “User management” on

page 47 for further information.

To access the camera online:

1. In the web browser enter the camera’s IP address (default is 192.168.1.70). Use the

TruVision Device Finder tool, a feature of the TruVision Device Manager included on

the CD, to find the IP address of the camera and assign it a new address on the

local network (if necessary).

The Login dialog box appears.

Note: Ensure that the Active X controls are enabled.

2. Type the user name and password.

User name: admin

Password: 1234

3. Click Login.

The web browser window appears in live view mode.

Overview of the camera web browser

Use the camera web browser to view, record, and play back recorded videos as well as

manage the camera from any PC with access to the same network as the camera. The

browser’s easy-to-use controls provide quick access to all camera functions.

If there is more than one camera connected over the network, open a separate web

browser window for each individual camera.

TruVision 81 Series IP Camera Configuration Manual 5

Name

Description

1. Live view tab Click to view live video.

2. Playback tab Click to play back video.

3. Snapshot tab Click to search for snapshots.

4. Configuration tab Click to display the configuration window for setting up the camera.

5. Viewer View live video. Time, date, and camera name are displayed here.

6. Current user Displays current user logged on.

7. Logout Click to log out from the system. This can be done at any time.

8. Aspect ratio Click this drop-down list to select an aspect ratio (4:3, 16:9,

Original, or Auto) and adjust the layout of the live view.

9. Stream type Click this drop-down list to select main stream or sub stream.

10. Plug-in switch Click this drop-down list to select the plug-in.

For IE users, web components and QuickTime are selectable. For

non-IE users, web components, QuickTime, VLC, or MJPEG are

selectable if they are supported by the web browser.

11. Bi-directional audio Turn the microphone on or off.

12. Start/stop live view Click to start/stop live view.

13. Snapshot Click to take a snapshot of the video. The snapshot will be saved to

the default folder in JPEG or BMP format.

14. Start/stop recording Click to record live video.

15. Digital zoom Click to enable digital zoom.

16. Audio Adjust the volume.

17. PTZ controls Direction actions, zoom, focus, iris, light, and wiper control.

6 TruVision 81 Series IP Camera Configuration Manual

Camera configuration

This chapter explains how to configure the cameras using a web browser.

After the camera hardware has been installed, configure the camera’s settings using

the web browser. Administrator rights are required to configure the cameras over the

internet.

The camera web browser permits configuration of the camera remotely using a PC.

Web browser options may vary depending on camera model.

Configuration panel overview

Use the Configuration panel to configure the server, network, camera settings, alarms,

users, transactions, and other parameters such as upgrading the firmware.

This section contains images and descriptions of each of the configuration panel

windows.

Local

Use the Local window to manage the protocol type, live view performance, and local

storage paths. In the Configuration panel, click Local to display the local configuration

window.

Parameters Description

Live View Parameters

Protocol

Specifies the network protocol used.

Options include: TCP, UDP, MULTICAST, and HTTP.

Live View Performance

Specifies the transmission speed.

Options include: Shortest Delay or Auto.

Rules

Specifies Live View display rules. Select Enable to tag a

moving object with green rectangles.

TruVision 81 Series IP Camera Configuration Manual 7

Parameters Description

Image Format

Choose the image format for a snapshot: JPEG or BMP.

Record File Settings

Record F

ile Size Specifies the maximum file size.

Options include: 256M, 512M, and 1G.

Save

Record Files to Specifies the directory for recorded files.

Save

Downloaded Files to Specifies the directory for downloaded files.

Picture and Clip Settings

During live view, s

ave

napshots to Specifies the directory for saving snapshots in live view mode.

During playback, s

ave

napshots to Specifies the directory for saving snapshots in playback mode.

10.

Save Clips To

Specifies the directory for saving video clips in playback mode.

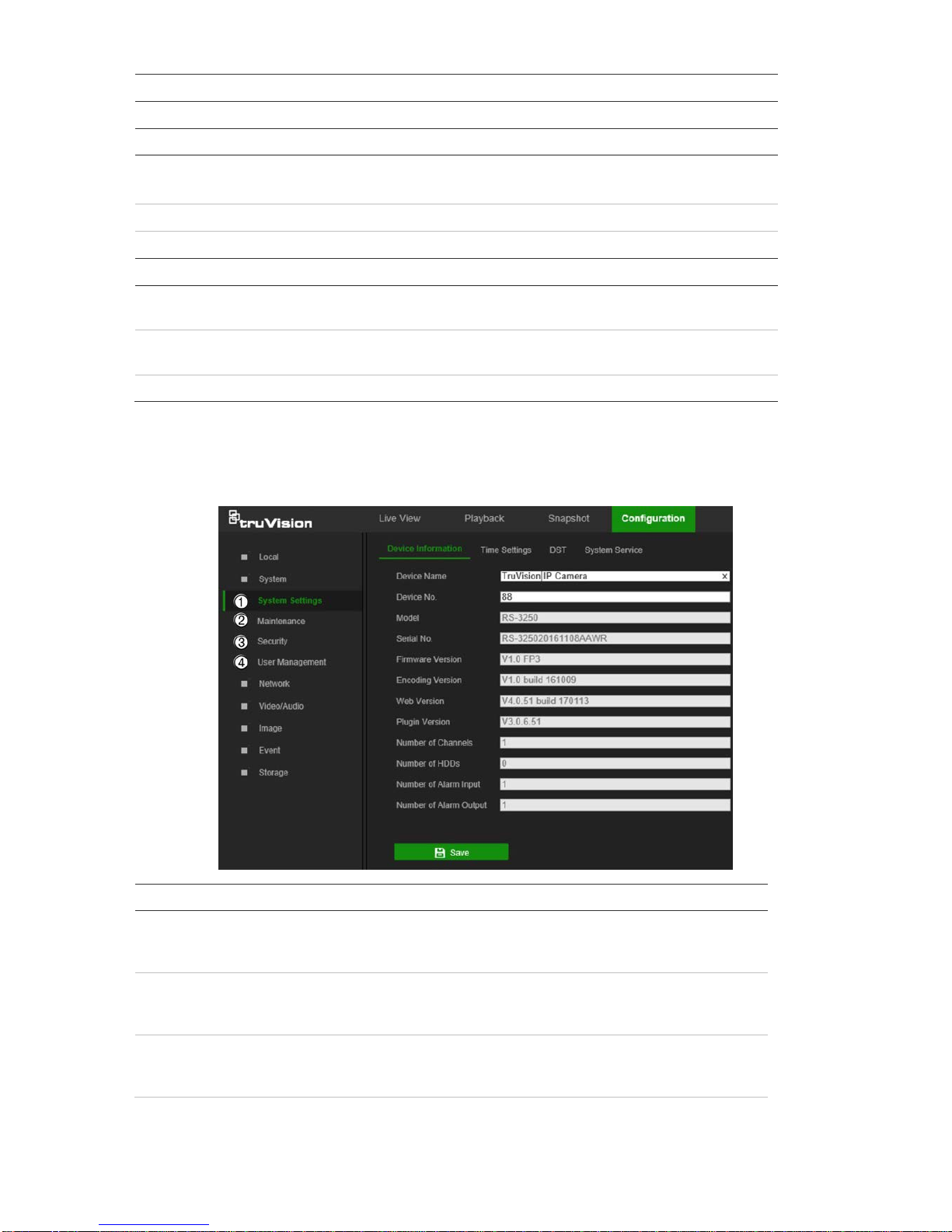

System

Use the System window to configure basic device information, system time, users,

security settings, and other parameters such as upgrading the firmware.

System submenus Description

System

settings Defines device basic information including

SN and the current firmware

version and time settings (see “System time” on page 9). Also contains

camera hardware options (see “System service” on page 13).

Maintenance

Perform functions such as device reboot, set to default, export and

import configuration files, and firmware upgrade. Also contains an

exportable event log list. See “Maintenance” on page 51.

Security

Defines who can use the camera, their passwords and access

privileges, RTSP authentication, IP address filter, and login lock. See

“Security” on page 50.

8 TruVision 81 Series IP Camera Configuration Manual

Altri manuali per UltraSync RS-3230

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Interlogix Telecamera IP

Interlogix

Interlogix FW5.1 Manuale utente

Interlogix

Interlogix TVB-2203 Manuale utente

Interlogix

Interlogix TruVision Line Foglio di istruzioni

Interlogix

Interlogix TruVision Line Manuale utente

Interlogix

Interlogix VD-IP-XP4DNP Manuale utente

Interlogix

Interlogix TruVision Bullet IR TVC-BIR6-SR Manuale utente

Interlogix

Interlogix TruVisioin 12 Series Manuale utente

Interlogix

Interlogix UltraSync RS-3230 Manuale utente

Interlogix

Interlogix TruVision 11 Series Manuale utente

Interlogix

Interlogix TruVision TVA-1101 Foglio di istruzioni

Interlogix

Interlogix UVD-IP-XP4DNR-VA2 Manuale utente

Interlogix

Interlogix TruVision TVP-1101 Foglio di istruzioni

Interlogix

Interlogix TVB-1101 Foglio di istruzioni

Interlogix

Interlogix TruVision Line Manuale utente

Interlogix

Interlogix TruVision Series TVQ-8101 Manuale utente

Interlogix

Interlogix TruVision TVC-1201 Foglio di istruzioni

Interlogix

Interlogix TruVision Line Foglio di istruzioni

Interlogix

Interlogix TruVision TVB-4409 Manuale

Interlogix

Interlogix TVB-5302 Foglio di istruzioni

Interlogix

Interlogix 1073033-EN Manuale utente

Interlogix

Interlogix TruVision 12 Series Manuale utente

Interlogix

Interlogix TruVision TVB2406 Manuale utente

Interlogix

Interlogix TruVision TVF-5201 Foglio di istruzioni

Interlogix

Interlogix TruVision Line Foglio di istruzioni

Manuali Telecamera IP popolari di altre marche

FLIR

FLIR Exx series Manuale utente

Avigilon

Avigilon H4A-BO1-IR Manuale utente

Digital Watchdog

Digital Watchdog DWCA-C128-64 Manuale utente

ShareTech

ShareTech AV1 Manuale utente

Ezviz

Ezviz C6C Manuale utente

Melchioni

Melchioni UCAM 2015 Manuale utente

Geutebruck

Geutebruck G-Cam/ESD-4630 Manuale utente

Arecont Vision

Arecont Vision MegaBall AV3146DN-3310-D-LG Manuale utente

Mitel

Mitel 6800i Series Manuale di servizio

Vitek

Vitek VTC-IR403-212NP Manuale utente

THOMSON

THOMSON DSC - 323W Manuale utente

AVer

AVer FB2027 Manuale utente

ENFORCER

ENFORCER EV-T5105-N2SQ Manuale utente

Wansview

Wansview NC543 Manuale utente

Eneo

Eneo MCB-64A0003M0A Manuale utente

deView electronics

deView electronics CBDNI36F Manuale utente

Swann

Swann SwannEye Manuale utente

LevelOne

LevelOne IP CamSecure Manuale utente
