TruVision Outdoor IP
Cameras Quick Start
Guide
P/N 1072588A-EN • REV 1.0 • ISS 27AUG12
Copyright © 2012 UTC Fire & Security. All rights reserved.
Contact
information
See www.interlogix.com or
www.utcfssecurityproducts.eu.
TruVision Outdoor IP Cameras 3 EN
Content
Introduction 3
Package contents 3
Installation environment 4
Camera descriptions 4
Setting up the camera 5
Connecting the devices 6
Accessing the camera over the internet 7
Overview of the camera Web browser 8
Network and streaming configuration 9
Specifications 11
Introduction
This pocket guide provides basic information on installing the TruVision
Outdoor IP dome and bullet cameras.
For detailed information on installing and using the cameras, please
refer to the user manual.
Camera models:
TVC-N225E-2M-N(-P) (IP bullet camera)
TVC-M1245E-2M-N(-P) (1.3MPX WDR bullet camera)
TVD-N225E-2M-N(-P) (IP dome camera)
TVD-M1245E-2M-N(-P) (1.3MPX WDR dome camera)
Package contents
The camera is shipped with the following items:
Camera
Hex wrench
Video cable for testing (except bullet cameras)
EN 4 TruVision Outdoor IP Cameras
User manual
Quick start guide
CD with user manual and TruVision Device Finder.
Installation environment
Refer to the user manual for detailed information.
Camera descriptions

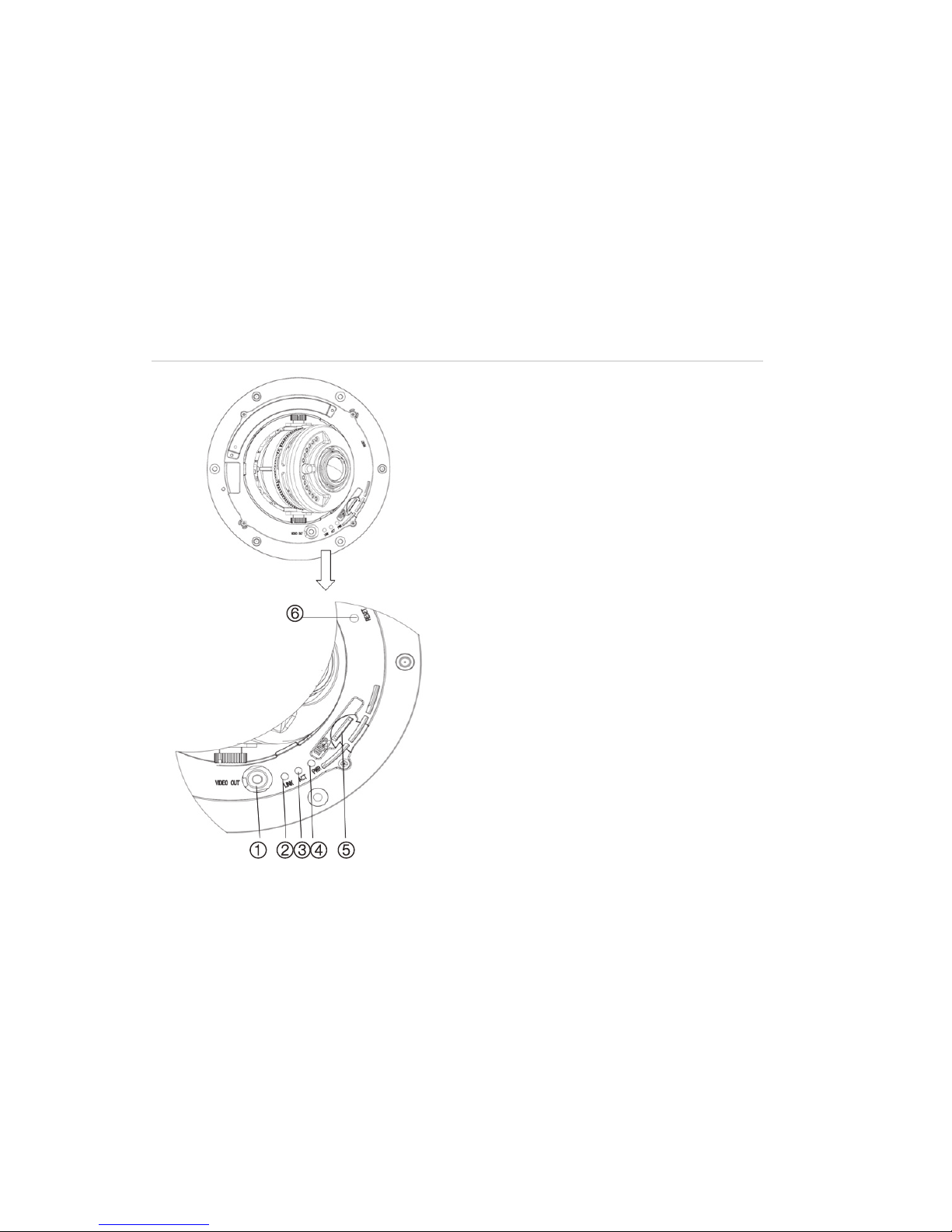

Figure 1: Outdoor IP dome cameras
1. Video output interface
2. LINK LED: The yellow LED is lit
when the network is connected.
3. ACT LED: The blue LED blinks
when the network is correctly
functioning.
4. PWR LED: The red LED is lit
when the camera is powered
up.
5. Micro SD slot
6. Reset switch.
TruVision Outdoor IP Cameras 5 EN

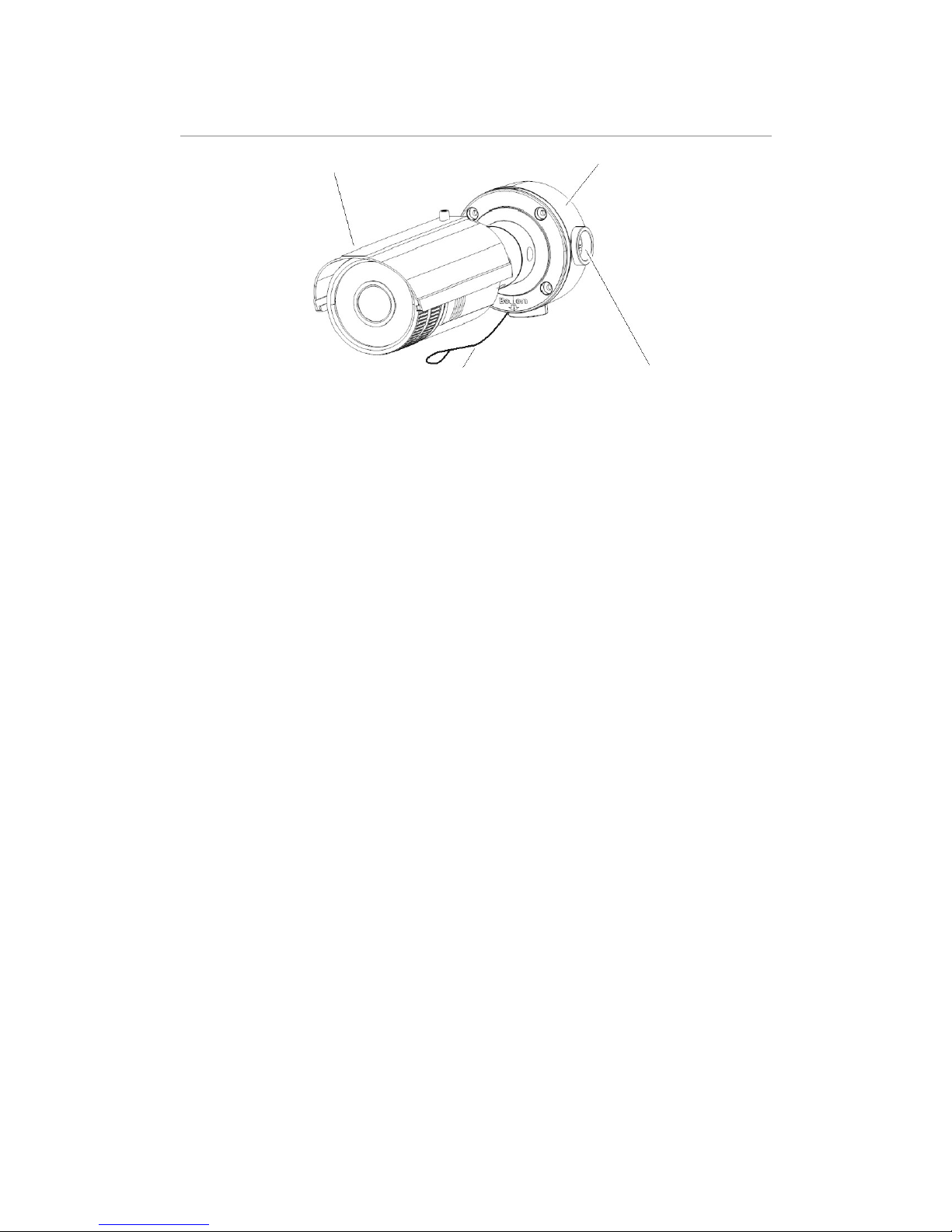

Figure 2: Outdoor IP bullet cameras
Sun shield Mountin
g
bracket
Safety cable Threaded knockout
for cable access
Setting up the camera
Note: If the light source where the camera is installed experiences
rapid, wide variations in lighting, the camera may not operate as
intended.
For detailed instructions, please refer to the user manual.
To quickly put the camera into operation:
1. Prepare the mounting surface.
2. Connect the required cables to the camera.
3. Mount the camera on the mounting surface using the appropriate
fasteners.
4. Set up the camera’s network and streaming parameters so that the
camera can be controlled over the network.
5. Program the camera to suit its location.
EN 6 TruVision Outdoor IP Cameras
Connecting the devices
Figure 3: Outdoor IP dome camera connections
1. Power supply: Connect +24 VAC power supply.
2. Ethernet RJ45 PoE/PoE+ port: Connect to network devices.
Figure 4: Outdoor IP bullet camera connections
1. Power supply: Connect +12 VDC power supply.
2. Ethernet RJ45 PoE port: Connect to network devices.
Accessing the SDHC card
Insert an SDHC card up to 32GB for local storage in the dome
cameras (see Figure 1, item 5). The card is not supplied with the
camera.
TruVision Outdoor IP Cameras 7 EN
Video and log files stored on the SDHC card can only be accessed via
the Web browser. You cannot access the card using TruVision
Navigator or a recording device.
Note: There is no SDHC card slot in the bullet cameras.
Accessing the camera over the internet
Use the camera web browser to access and configure the camera over
the internet. Only one camera is accessible from a single web browser
window.
To access the camera online:
1. In the Web browser enter the camera’s IP address (default is
192.168.1.70). The Login dialog box appears.
Note: Ensure that the Active X controls are enabled.
2. Enter your user name and password.
User name: admin
Password: 1234
3. Click OK. The web browser window appears in live view mode.
See Figure 5.
EN 8 TruVision Outdoor IP Cameras
Overview of the camera Web browser
Figure 5: Camera Web browser interface
Item Name Description
1. PTZ controls For autofocus.
Note: Only the zoom function is
available for fixed IP cameras with
motorized lens.
2. Live view Click to view live video.
3. Playback Click to play back video.
4. Log Click to search for event logs. There
are four main information types: All,
Alarm, Notification and Operation
5. Configuration Click to display the configuration
screen for setting up the camera.
6. Viewer Click to view live or play back video.
7. Current user Displays current user logged on.
8. Exit Click to log out from the system.
9. Full screen Click to view as full screen.
TruVision Outdoor IP Cameras 9 EN
Item Name Description
10. Start/stop live view Click to start/stop live view.
11. Capture Click to take a snapshot of the video.
The snapshot will be saved to the
default folder in jpeg format.
12. Start/stop
recording
Click to record live video.
13. Video image
settings
Click to adjust video image settings
such as brightness, contrast,
saturation, hue and exposure time.
14. e-PTZ Click to enable/disable e-PTZ.
When enabled, scroll on the mouse
wheel to zoom in and out of an image
on-screen.
Network and streaming configuration
In the camera Web browser screen click the Configuration button on
the toolbar to display the configuration screen. See Figure 6.
Figure 6. Configuration screen
Refer to the User Manual for detailed information on configuring the
cameras. See Table 1 on page 10 for an overview of the configuration
parameters.
Note: The On-screen display (OSD) menus are in English only.
EN 10 TruVision Outdoor IP Cameras
Table 1: Overview of the configuration parameters
Configuration folders Description
Local configuration Defines the network type, display mode and
local storage paths.
Basic information Defines the camera name and RS-485 bus
ID. This screen also displays the MAC
address, device type, device SN and the
current firmware version.
Channel parameters Defines the OSD properties of camera
information, recording parameters and
schedules, motion detection parameters,
image quality, alarm responses, and overlay
text.
Network parameters Defines the network parameters required to
access the camera over the internet.
Deployment time Defines the schedules during which events
are registered.
User management Defines who can use the camera, their
passwords and access privileges.
HDD management Defines how to format the SDHC card used
in the camera.
Remote upgrade Defines how to upgrade the camera’s
firmware.
Default Restores default settings.
Reboot device Reboots the camera.
