Interlogix TVB-WBS Manuale utente

Interlogix is part of UTC Climate, Controls & Security, a unit of United Technologies Corporation.

TVB-WBS Stainless Steel Bullet (Box Camera

Housing) Wall Mount Installation Instructions

Specifications

Dimensions

: 412.5 × 140 × 228 mm

(16.24 × 5.51 × 8.98 in.)

412.5 mm (16.24 in.)

140 mm (5.51 in.)

228 mm

(8.98 in.)

200 mm

(7.87 in.)

145 mm

5.71 in.)

Weight:

3.80 kg (8.38 lb.)

ccessories:

Expansion anchors: 4

pcs

Used to

install the TVB-WBS stainless steel wall mount to the

mounting surface.

Screw

A: 4 pcs

Used to install the

stainless steel bullet camera to the TVB-WBS

wall mount

Supported cameras

The stainless steel wall mount can be used with following

cameras:

Stainless Steel Bullet (Box

Camera Housing) Camera:

TVB-5801, TVB-5802

Installation

To install the stainless steel bullet (box camera housing)

camera to the TVB-WBS:

1. Mark and drill the mounting holes for the expansion

anchors in the mounting surface. Hammer the supplied M8

expansion anchors into the mounting holes.

2. The wall mount allows you to adjust the position of the

camera by using the pan (2) and tilt (1) adjust brackets.

You may not need to use all the screws provided to lock

the camera into position, depending on the amount of

range required.

Note: If preferred mount the bullet (box camera housing)

on the wall mount without removing the universal joint

base (2). Use screw A as shown in step 5.

3. Remove the eight screws that attach the tilt bracket (1) to

the pan bracket (2)

2 / 2 P/N 1073411-EN • REV B • ISS 23APR18

4. Route the cable harness through the cable access hole in

the wall mount.

5. Secure the housing base (1) to the tilt bracket (2) using

screw A (3), as shown below.

6. Loosen the three pan adjustment screws (1) and rotate the

camera housing to the proper location).

7. Once the camera is pointing towards the targeted scene,

tighten the pan adjustment screws. Install the camera

housing on the wall mount by matching up the pan and tilt

brackets, as shown. Use two of the screws to attach the

brackets together, using the non-slotted screw holes. The

other screws are used to set the tilt angle. Depending on

the tilt angle required, all the screws may not be needed.

Once the tilt angle is set, tighten the tilt adjustment screws

to lock the position in place.

Legal and regulatory information

Trademarks and

patents

The trade names used in this document may be

trademarks or registered trademarks of the

manufacturers or vendors of the respective

products.

Manufacturer

Interlogix.

2955 Red Hill Avenue, Costa Mesa, CA 92626

5923, USA

Authorized EU manufacturing representative:

UTC Fire & Security B.V.

Kelvinstraat 7, 6003 DH Weert, The Netherlands

Certification

Product warnings

and disclaimers

THESE PRODUCTS ARE INTENDED FOR

SALE TO AND INSTALLATION BY QUALIFIED

PROFESSIONALS. UTC FIRE & SECURITY

CANNOT PROVIDE ANY ASSURANCE THAT

ANY PERSON OR ENTITY BUYING ITS

PRODUCTS, INCLUDING ANY “AUTHORIZED

DEALER” OR “AUTHORIZED RESELLER”, IS

PROPERLY TRAINED OR EXPERIENCED TO

CORRECTLY INSTALL FIRE AND SECURITY

RELATED PRODUCTS.

For more information on warranty disclaimers and

product safety information, please check

www.firesecurityproducts.com/policy/product-

warning/ or scan the following code:

Contact

information and

manuals

For contact information go to: www.interlogix.com

or www.firesecurityproducts.com

To get translations for this and other product

manuals go to: www.firesecurityproducts.com

Indice

Altri manuali Interlogix Telecamera di sicurezza

Interlogix

Interlogix TruVision TVB-4402 Manuale utente

Interlogix

Interlogix UVD-XP3DNR Istruzioni per il montaggio

Interlogix

Interlogix UltraView UVD-6130VE-2-P Manuale utente

Interlogix

Interlogix TruVision TVA-1101 Manuale utente

Interlogix

Interlogix TVB-5501 Manuale utente

Interlogix

Interlogix UltraView IP PTZ 36X Manuale utente

Interlogix

Interlogix TruVision 4 IP Series Foglio di istruzioni

Interlogix

Interlogix UVC-XP4DN-HR-P Manuale utente

Interlogix

Interlogix Ultra View UVD-6120VE-2 Manuale utente

Interlogix

Interlogix TruVision TVD-6120VE-2 Manuale utente

Interlogix

Interlogix UltraView UVC-6130-1-N Manuale utente

Interlogix

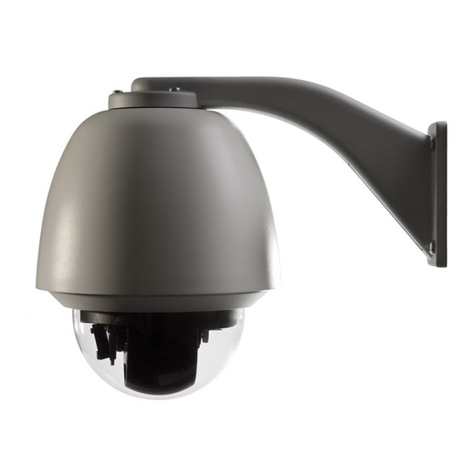

Interlogix TruVision Line Manuale
