Intermec PM4I Manuale utente

Installation

Instructions

RFID Kit

(Gen 2, 869/915

MHz)

for the EasyCoder®

PM4i Printer

ii RFID Kit (Gen 2, 869/915 MHz) Installation Instructions

Intermec Technologies Corporation

Corporate Headquarters

6001 36th Ave. W.

Everett, WA 98203

U.S.A.

www.intermec.com

e information contained herein is proprietary and is provided solely

for the purpose of allowing customers to operate and service Intermec-

manufactured equipment and is not to be released, reproduced, or used

for any other purpose without written permission of Intermec.

Information and speciﬁcations contained in this document are subject to

change without prior notice and do not represent a commitment on the

part of Intermec Technologies Corporation.

reserved.

e word Intermec, the Intermec logo, Norand, ArciTech, CrossBar,

Data Collection Browser, dcBrowser, Duratherm, EasyADC, EasyCoder,

EasyLAN, Enterprise Wireless LAN, EZBuilder, Fingerprint, i-gistics,

INCA (under license), InterDriver, Intermec Printer Network Manager,

IRL, JANUS, LabelShop, Mobile Framework, MobileLAN, Nor*Ware,

Pen*Key, Precision Print, PrintSet, RoutePower, SmartSystems, TE 2000,

Trakker Antares and Virtual Wedge are either trademarks or registered

trademarks of Intermec Technologies Corporation.

roughout this manual, trademarked names may be used. Rather than

put a trademark (™ or ®) symbol in every occurrence of a trademarked

name, we state that we are using the names only in an editorial fashion,

and to the beneﬁt of the trademark owner, with no intention of infringe-

ment.

ere are U.S. and foreign patents pending.

Torx is a registered trademark of Camcar Division of Textron Inc.

RFID Kit (Gen 2, 869/915 MHz) Installation Instructions iii

Patent Information

is product is covered by one or more of the following U.S. patents:

4,739,328; 4,786,907; 4,864,158; 4,888,591; 4,999,636; 5,030,807;

5,055,659; 5,280,159; 5,504,485; 5,521,601; 5,550,547; 5,673,037;

5,763,867; 5,777,561; 5,825,045; 5,828,318; 5,828,693; 5,850,181;

5,850,187; 5,942,987; 5,995,019; 6,078,251; 6,121,878; 6,122,329;

6,172,596; 6,195,053; 6,249,227; 6,280,544; 6,286,762; 6,286,763;

6,288,629; 6,360,208; 6,384,712; 6,404,325; 6,429,775; 6,486,769;

6,501,807; 6,525,648; 6,639,509; 6,645,327; 6,677,852; 6,768,414;

6,784,789; 6,816,063.

ere may be other U.S. and foreign patents pending.

FCC Notice (United States of America)

WARNING

is equipment generates, uses, and can radiate radio frequency energy

and if not installed and used in accordance with the instructions manual,

may cause interference to radio communications. It has been tested and

found to comply with the limits for a Class A computing device pursu-

ant to Subpart J of Part 15 of FCC Rules, which are designed to provide

reasonable protection against such interference when operated in a com-

mercial environment. Operation of this equipment in a residential area

is likely to cause interference in which case the user at his own expense

will be required to take whatever measures may be required to correct the

interference. e radio is compliant with FCC Part 15 section 247.

iv RFID Kit (Gen 2, 869/915 MHz) Installation Instructions

Declaration of Conformity (CE)

We,

Intermec Printer AB

Flöjelbergsgatan 1C

Box 123

S-431 22 Mölndal

Sweden

declare under our sole responsibility1that the product

RFID Kit (Gen 2, 869/915 MHz)

to which this declaration relates

is in conformity with the following standards

Safety:

EN 60 950

RTTE/EMC:

EN 300 220-3

EN 301 489-3

EMC:

Based upon EN 61000-6-4:2001 Generic Emissions Standard

Based upon EN 61000-6-2:2001 Generic Immunity Standard

following the provisions of Directives 89/336/EEC, 73/23/EEC and 2004/108/EC

Limitations:

Product is for operation under a general licence or licence exemption in

the following countries only: Austria, Belgium, Denmark, Finland, France,

Germany, Greece, Ireland, Luxembourg, e Netherlands, Portugal, Spain,

Sweden, United Kingdom, Norway, Switzerland.

Mölndal 2005-11-14

................................................................

Per-Ove Jacobsson

Site Manager

1 /. Intermec assumes no responsibility regarding the CE Directive if the

printer is handled, modiﬁed, or installed in other manners than those described

in the manuals.

RFID Kit (Gen 2, 869/915 MHz) Installation Instructions v

Contents

About ese Instructions .............................................................. vi

Printer Firmware Recommendations ............................................. vi

Limitations ................................................................................... vi

Contents of Installation Kit............................................................1

Step-by-Step Instructions ...............................................................2

vi RFID Kit (Gen 2, 869/915 MHz) Installation Instructions

About These Instructions

ese instructions describe the physical installation of an RFID Kit

(Gen 2, 869/915 MHz) in the Intermec EasyCoder PM4i printer. For a

complete list of RFID commands and functionality, please refer to the

reference manual for your operating system (IPL or Fingerprint).

e internal RFID radio module operates on the UHF band at 869 or 915

MHz depending on region.

e RFID Kit (Gen 2, 869 MHz) uses an EPCglobal

Gen 2-certiﬁed IM5 Module (86X MHz RFID

frequency band).

e RFID Kit (Gen 2, 915 MHz) uses an EPCglobal

Gen 2-certiﬁed IM5 Module (915 MHz RFID

frequency band).

Printer Firmware Recommendations

To ensure complete functionality, your printer should be ﬁtted with

either Intermec Fingerprint v8.70 (or later) or IPL v2.70 (or later).

Limitations

is device is intended for use in the EasyCoder PM4i

printer only.

e device is country/region speciﬁc and must be ordered

for the correct country/region. Use of this device in other

regions than shown on the device home page/test label may

violate applicable law.

RFID Kit (Gen 2, 869/915 MHz) Installation Instructions 1

Contents of Installation Kit

I/O Board Paper Guide with RFID Antenna

and cable

IM5 Reader Module

IM5 Data Cable IM5 Power Cable Bracket assy

RSMA/SMA to

MMCX Adapter

Cable

Two Hexagon

Lock Nuts

Five MRT 4x6

Screws

Two MRT

4x16 Screws

Spacer Screw

(20mm)

Spacer Screw

(10mm)

ree RSMA/

SMA Termina-

tion Plugs

Cable Tie

Dual Slot I/O Bus

Cable

RFID Label

Two MRT

3x5 Screws

2 RFID Kit (Gen 2, 869/915 MHz) Installation Instructions

Step-by-Step Instructions

e installation described in this section must only be

performed by an authorized service technician. Intermec

assumes no responsibility for personal injury or damage

to the equipment if the installation is performed by an

unauthorized person.

Take precautions against electrostatic discharges, for

example by wearing grounded wrist straps.

Before you begin, make sure the printer has been switched

oﬀ and the power cord and communication cables are

disconnected.

Note: is installation requires a #T10 and a #T20 Torx

screwdriver, a straight-slot screwdriver and an 8mm socket

wrench.

RFID Kit (Gen 2, 869/915 MHz) Installation Instructions 3

Turn the LSS adjustment screw counterclockwise to move the position of the Label

Stop Sensor so that it does not obstruct the small hole leading into the electronics

compartment.

Open the printer’s side door.

4 RFID Kit (Gen 2, 869/915 MHz) Installation Instructions

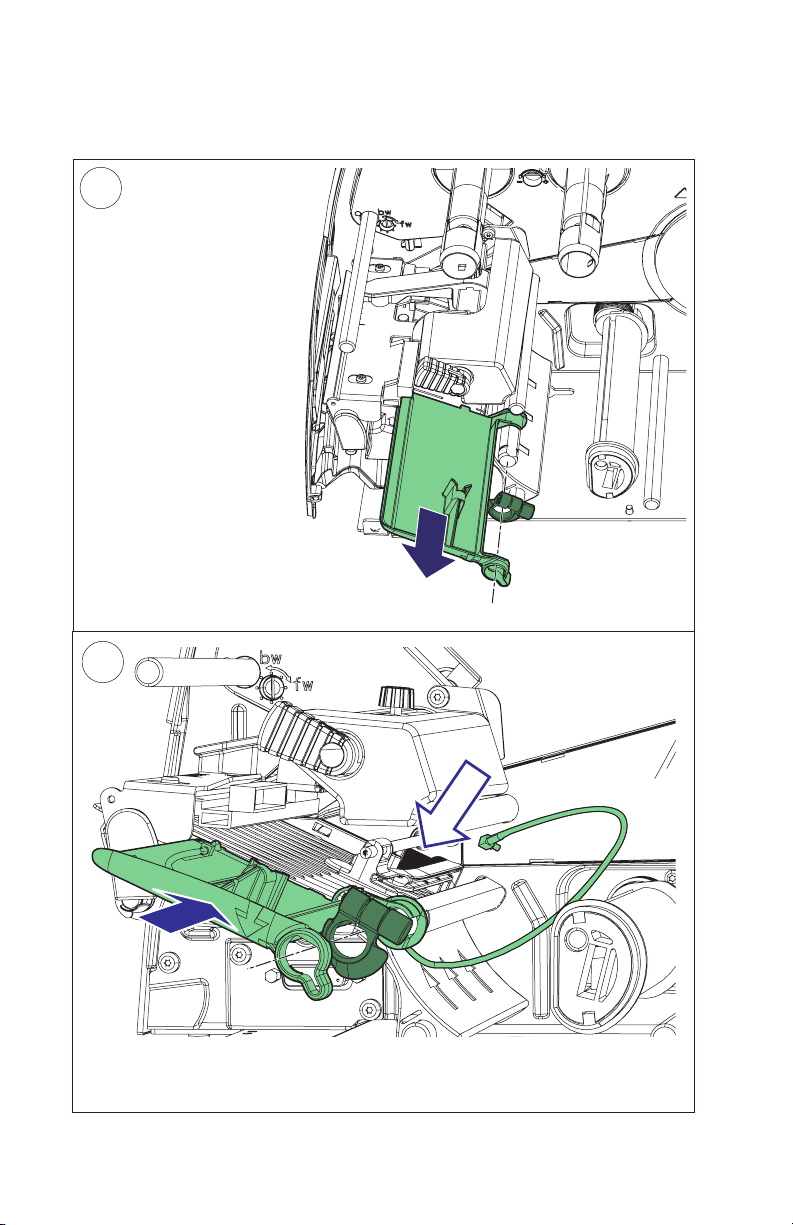

Route the antenna connection cable through the opening in the center deck. Slide

the replacement paper guide (with antenna) and the edge guide onto the shaft.

Carefully slide the upper

paper guide out along the

support shaft. Loosen the

edge guide and remove

both items from the shaft.
