Jabra MOVE WIRELESS Manuale utente
jabra.com/movewireless
User Manual
JABRA MOVE WIRELESS
2
JABRA MOVE WIRELESS
1. WELCOME........................................3
2. WHAT’S IN THE BOX...................... 4
3. HOW TO WEAR................................5
3.1 HEIGHT ADJUSTMENT
4. HOW TO CHARGE........................... 6
4.1 BATTERY STATUS
5. HOW TO CONNECT..........................7
5.1 BLUETOOTH CONNECT TO A NEW OR SECOND
MOBILE DEVICE
5.2 CONNECT TO 3.5 MM JACK CONNECTOR
6. HOW TO USE ................................. 9
6.1 MUSIC & CHAT
6.2 TURN HEADPHONES ON/OFF
6.3 MULTIPLE CALL HANDLING
6.4 VOICE GUIDANCE
7. SUPPORT.......................................13
7.1 FAQ
7.2 FACTORY RESET
7.3 HOW TO CARE FOR YOUR HEADPHONES
8. TECHNICAL SPECIFICATIONS ........14
3
JABRA MOVE WIRELESS
1. WELCOME
Thank you for purchasing the Jabra Move Wireless.
We hope you will enjoy it!
JABRA MOVE WIRELESS FEATURES
Premium wireless sound experience - amplifies
without distortion. Brings out the depth and
clarity of your music
Seals the sound - angled earcups allow you to
hear all the music
Easily connect with any device via Bluetooth 4.0
Life proof - lightweight, comfortable
headphones built & tested for life on the move
Premium materials - stainless steel
Wired option - detachable cord for when you
need to be wired
4
JABRA MOVE WIRELESS
2. WHAT’S IN THE BOX
Audio cable
Micro-USB cable
On/Off/
Pairing
switch
Volume up
button
3.5 mm Jack
Connector
Micro-USB Port
(charging only)
Battery and
Connection
Status Lights
Adjustable
Headband
Multi-function
button
Volume down
button
5
JABRA MOVE WIRELESS

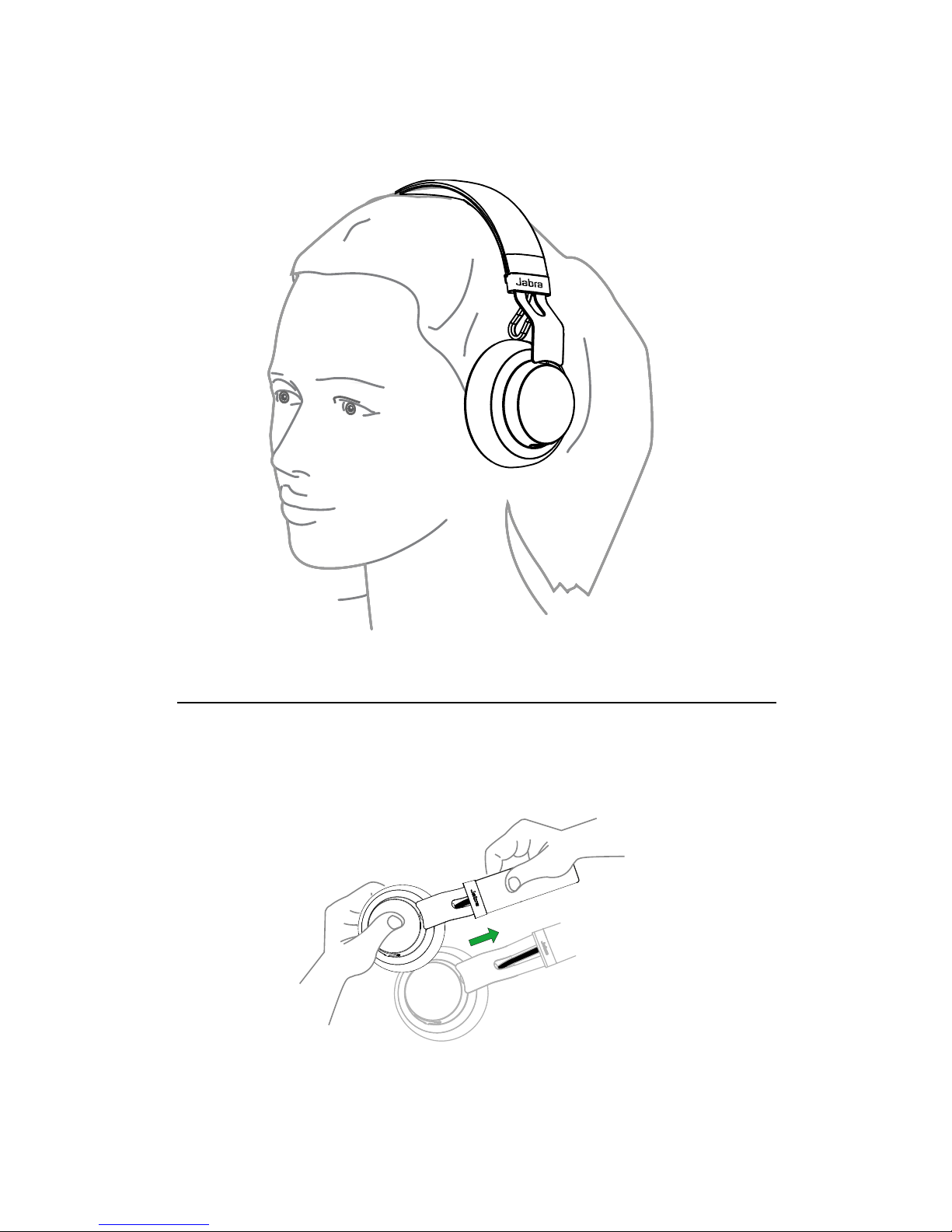

3. HOW TO WEAR
3.1 HEIGHT ADJUSTMENT
Get the perfect fit by adjusting the headband, as
illustrated.
6
JABRA MOVE WIRELESS
4. HOW TO CHARGE
Plug the headphones into any available USB port
on your PC using any micro-USB cable.
4.1 BATTERY STATUS
Tap the Multi-function button when not on a call to
see the battery status. It takes 1-2 hours to fully
charge the headphones.
LED COLOR BATTERY LEVEL
Green Medium/High
Red Low
Flashing red Critically low
7
JABRA MOVE WIRELESS
5. HOW TO CONNECT
The Jabra Move Wireless will automatically attempt
to Bluetooth connect to a mobile device whenever
it is powered on (unless already connected to a
Bluetooth device). Simply follow the voice-guided
connection instructions.
5.1 BLUETOOTH CONNECT TO A NEW OR
SECOND MOBILE DEVICE
1. Hold the On/Off/Pairing switch in the Pairing
position for 3 secs.
2. Pairing mode will be announced in the
headphones, and the Bluetooth light will flash
blue.
3. Follow the voice-guided instructions to connect
to your Bluetooth device.
8
JABRA MOVE WIRELESS
NOTE: If two mobile phones have been connected to the
Jabra Move Wireless, you may need to select which
phone will be used for calls/music. Simply open the
Bluetooth menu on the mobile phone you wish to use
for calls/music and select the Jabra Move Wireless from
the list of devices.

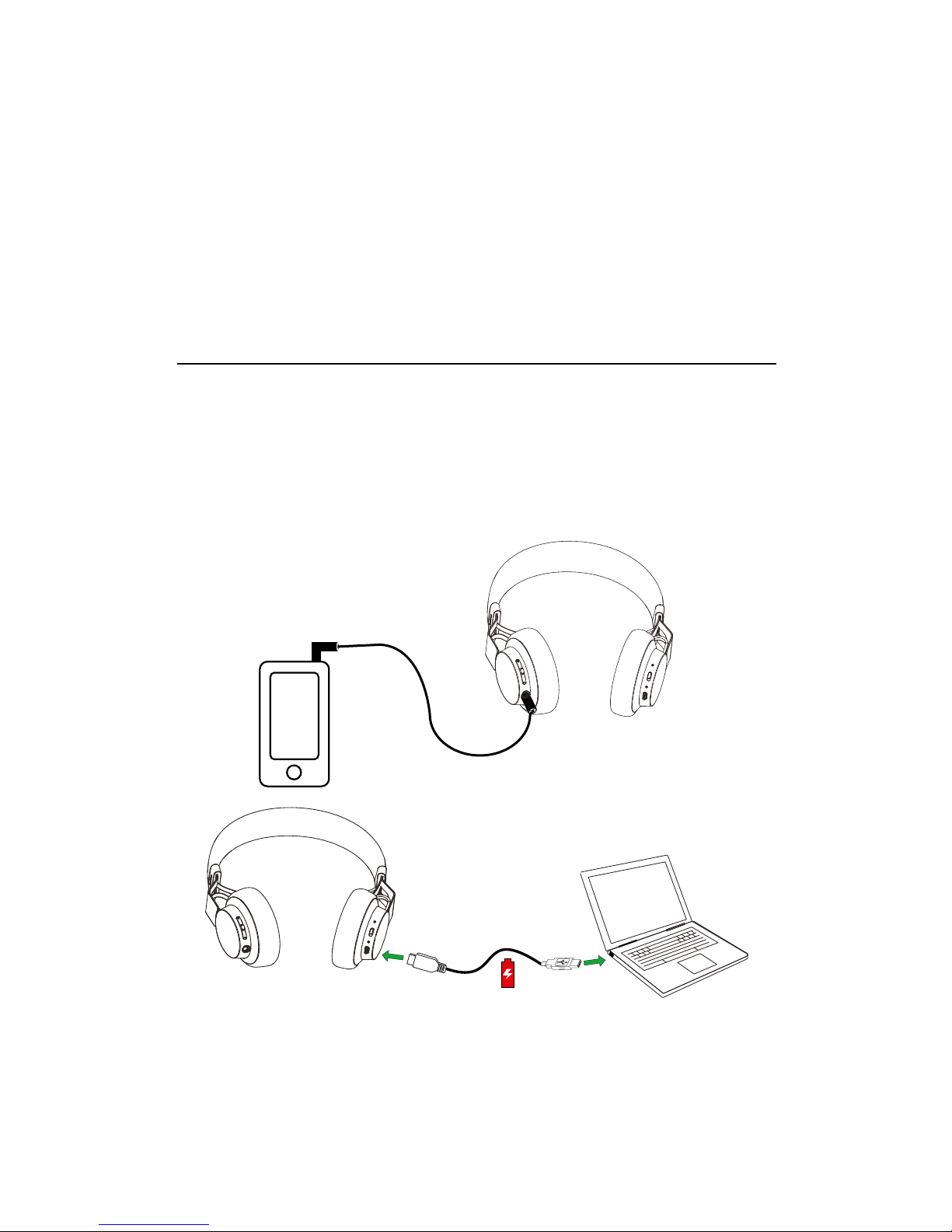

5.2 CONNECT TO 3.5 MM JACK CONNECTOR
Connect the headphones to a 3.5 mm jack
connector on your mobile device or PC using the
supplied audio cable.
NOTE: Bluetooth connections are disabled when
connected to the 3.5 mm Jack Connector.
9
JABRA MOVE WIRELESS
6. HOW TO USE
6.1 MUSIC & CHAT
The buttons on the headphones enable you to
control your music and phone calls.
On/Off/
Pairing
switch
Volume up
button
Multi-function
button
Volume down
button
10
JABRA MOVE WIRELESS
FUNCTION HOW TO DO IT
Pause/play music Tap the Multi-function
button
Adjust volume Tap the Volume up or
Volume down button
Skip track
Press and hold either the
Volume up or Volume
down button
Battery status
Tap the Volume up or
Volume down button,
when not on a call
Answer/end call Tap the Multi-function
button
Reject call Press and hold (1 sec) the
Multi-function button
Redial last number Double-tap the Multi-
function button
