JABRA®DRIVE

USER MANUAL

english

JABRA DRIVE

Contents

THANK YOU....................................................2

ABOUT YOUR JABRA DRIVE ....................................2

WHAT YOUR JABRA DRIVE CAN DO.............................3

HOW TO PRESS THE BUTTONS .................................4

WHAT THE LIGHT MEANS ......................................4

GETTING STARTED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

CHARGING YOUR JABRA DRIVE ................................5

TURNING YOUR JABRA DRIVE ON AND OFF ....................6

PAIRING YOUR JABRA DRIVE WITH YOUR PHONE ...............6

CONNECTING WITH YOUR PHONE AUTOMATICALLY............7

PLACING JABRA DRIVE IN YOUR VEHICLE.......................8

ADDITIONAL FEATURES ........................................8

HOW TO HANDLE CALLS FROM A SINGLE PHONE ..............9

HOW TO HANDLE CALLS FROM TWO MOBILE PHONES........10

TROUBLESHOOTING & FAQ ...................................11

NEED MORE HELP? ...........................................12

TAKING CARE OF YOUR JABRA DRIVE..........................13

GLOSSARY ....................................................14

english

JABRA DRIVE

tHAnK YoU

Thank you for purchasing the Jabra DRIVE Bluetooth® in-car

speakerphone. We hope you enjoy it! This instruction manual

will get you started and ready to make the most of your in-car

speakerphone.

ABoUt YoUR JABRA DRIVe

A Status light

B Answer/end button

C Volume control

D Integrated Visor Clip

E Microphone

F On/o switch

G Micro USB charging connector

english

JABRA DRIVE

WHAt YoUR JABRA DRIVe CAn Do

Your Jabra DRIVE lets you do all this:

- Answer calls

- End calls

- Reject calls*

- Voice dialing*

- Last number redial*

- Mute

- Third party calling*

- Adjust volume

- Transmit mobile music, podcasts and directions from a GPS app

- Advanced Multiuse™ – Stay connected to two active Bluetooth

devices at the same time

Specications

- Talk time up to 20 hours/Standby time up to 30 days

- Charging time approximately 2 h. 30 min.

- Digital sound enhancement via DSP technology

- Noise cancellation through DSP

- Echo cancellation through DSP

- A2DP (Advanced Audio Distribution Profile) for transmitting

music, podcasts and directions from a GPS app on your phone

- Jabra Status Light (battery status, call status, connection status)

- Size: H104 mm W56 mm D18 mm

- Weight 100 grams

- Operating range up to 10 meters (approximately 33 feet)

- Supported Bluetooth profiles: HFP, HSP, A2DP

- Bluetooth specification version 3.0

- e-SCO for enhanced audio quality

- Rechargeable battery with charging option from car charger or

via USB cable

* Phone dependent

english

JABRA DRIVE

HoW to PRess tHe BUttons

Instruction Duration of press

Tap Press briey

Double Tap 2 quickly repeated taps

Press Approx. 1-2 seconds

Press and hold Approx. 5 seconds

WHAt tHe LIGHt MeAns

Status Light Speakerphone Status

The status light behind the

answer/end button ashes

rapidly blue

Pairing mode

The status light turns solid

blue and goes into standby

light mode

Connected

The status light ashes blue

every 2nd second

Standby/Idle

The status light ashes blue

every second

Incoming call

The status light turns solid

blue

Active call

The status light is ashing red There is less than 30 min. talk

time left

The status light turns red The unit is charging

The status light turns green Fully charged or the charging

level is between 70% and fully

charged

english

JABRA DRIVE

GettInG stARteD

You should follow three steps before using your speakerphone

1 Charge your Jabra DRIVE

2 Turn your Jabra DRIVE on

3 Pair your Jabra DRIVE with your mobile phone

The Jabra DRIVE is easy to operate. The answer/end button on the

speakerphone performs dierent functions depending on how

long you press it.

CHARGInG YoUR JABRA DRIVe

Make sure that your speakerphone is fully charged for two hours

before you start using it.

Use the USB cable to connect Jabra DRIVE to the car charger. Plug

the car charger into your car’s power outlet. The status light will

light up red while charging. When fully charged the status light

turns green. Jabra DRIVE can be charged outside your car by only

using the USB cable. Use only the charger provided in the box - do

not use chargers from any other devices as this may damage your

speakerphone.

Please note: The lifetime of the battery will be signicantly

reduced if your device is left uncharged for a long period. We

therefore recommend that you recharge your device at least once

a month.

english

JABRA DRIVE

tURnInG YoUR JABRA DRIVe on AnD oFF

Slide the on/o switch to turn the speakerphone on or o.

Sleep mode and Auto OFF

When not connected to a phone, the speakerphone turns o

automatically after 10 minutes. Use the on/o switch to turn the

speakerphone on again.

On/O

PAIRInG YoUR JABRA DRIVe WItH YoUR PHone

Jabra DRIVE is connected to a mobile phone using a procedure

called‘pairing’. By following a few simple steps, a phone can be

paired with the speakerphone in a matter of minutes.

1 Activate Bluetooth® on your mobile phone

Please check the manual for your mobile phone.

2 Put the speakerphone in pairing mode

When you turn on your Jabra DRIVE for the rst time, the

speakerphone will automatically start up in pairing mode – i.e.

it can be detected by your phone. When the speakerphone is in

pairing mode the status light will ash rapidly blue.

3 Set your Bluetooth® phone to‘search’ for the JABRA DRIVE

Follow your phone’s instruction guide. First make sure that

Bluetooth® is activated on your mobile phone. Then set your

phone to search for devices. This usually involves going to a‘setup,’

‘connect’or ‘Bluetooth®’ menu on your phone and selecting the

option to‘search’ or‘add’a Bluetooth® device.*

* Phone dependent

english

JABRA DRIVE

4 Your phone will nd the Jabra DRIVE

Your phone will nd the speakerphone under the name “JABRA

DRIVE”. Your phone then asks if you want to pair with the JABRA

DRIVE. Accept by pressing‘Yes’or ‘OK’ on the phone and/or

conrm with the passkey or PIN = 0000 (4 zeros). Your phone will

conrm when pairing is complete.

CONNECTIVITY

SELECT

MobilSurf

BLUETOOTH

Infrared port

Wap options

Synchronization

Networks

DEVICES FOUND

Jabra DRIVE

Passkey:

****

HANDSFREE

SELECT

Jabra DRIVE

added.

The handsfree is

now ready for use

SELECT

Manual pairing mode

If you wish to use the speakerphone with a dierent phone, or

if the pairing process was interrupted, you can manually set the

speakerphone to pairing mode.

Turn the speakerphone on. Press and hold the answer/end button

for approximately 5 seconds until the status light stars blinking

rapidly blue. Then repeat steps 2. and 3. in the above pairing

guide.

ConneCtInG WItH YoUR PHone AUtoMAtICALLY

Pairing is only needed the rst time a speakerphone and phone

are used together. When the speakerphone and phone have

been paired once they will automatically connect when the

speakerphone is on and Bluetooth® is activated on the phone. The

speakerphone can be used when it is “connected”to the phone. If

the devices are paired, but do not immediately connect, tap the

answer/end button.

english

JABRA DRIVE

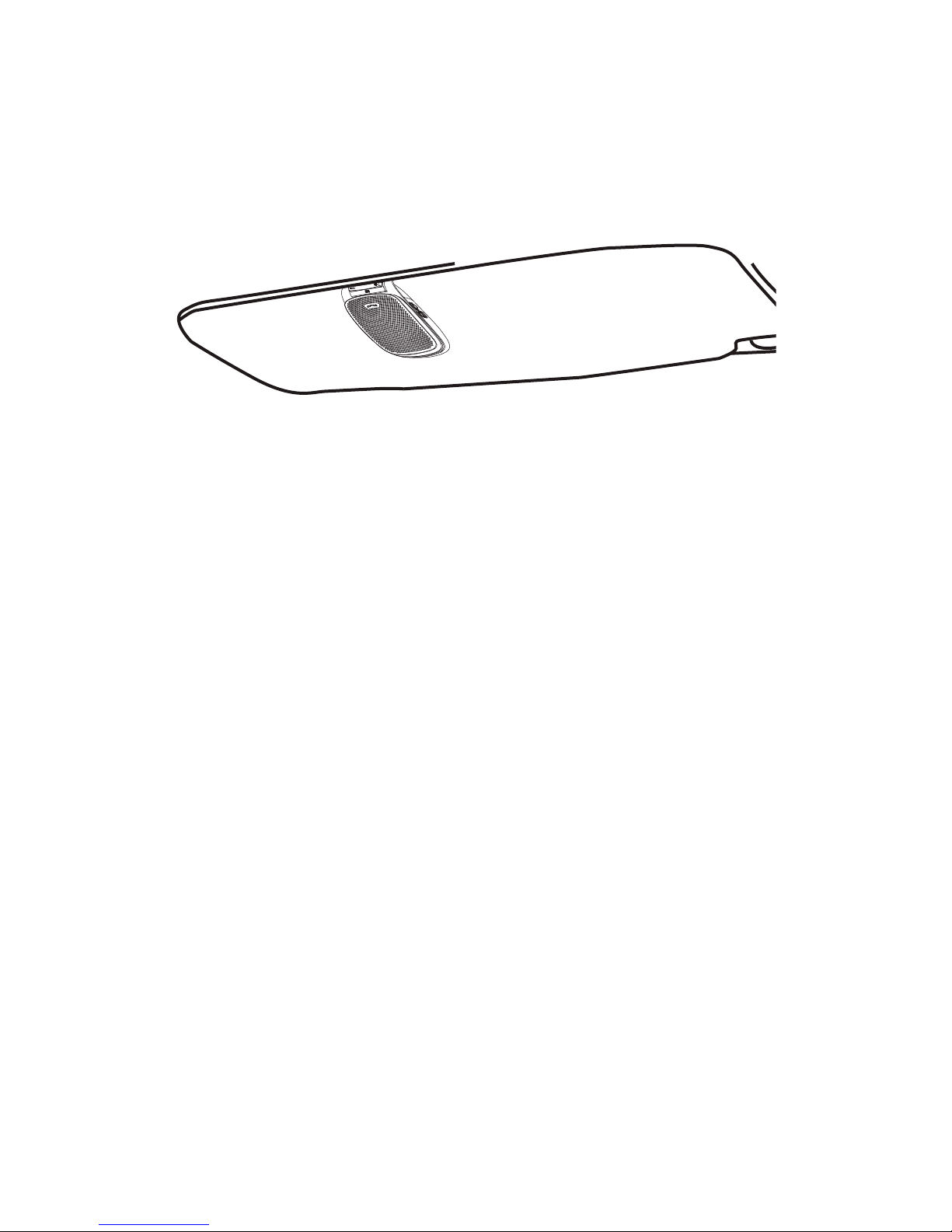

PLACInG JABRA DRIVe In YoUR VeHICLe

The Jabra DRIVE sits discreetly and conveniently on the sun visor

using the integrated metal clip. The product can be easily taken

on and o the sun visor. For optimal sound quality place the Jabra

DRIVE right in front of you and speak directly into the speakerphone.

ADDItIonAL FeAtURes

Play music and GPS directions*

Make sure that the speakerphone and mobile phone are

connected. When you play music or GPS application directions

from your mobile phone it will automatically transfer to your

speakerphone. If your phone does not allow this feature, press the

answer/end button to transfer the music to the speakerphone.

Music or GPS directions will automatically be paused when you

have an incoming call. When the call is ended it will start playing

again.

Easy Voice Guidance**

- Easy voice guidance informs you about your connection and

low battery status.

- Connected is announced when the in-car speakerphone

reconnects with your phone.

- Low battery is announced every 10th min when there is less than

30 min. talk time on your Jabra DRIVE.

Advanced Multiuse™

- Jabra DRIVE can be connected to two mobile devices at the

same time. To learn more about Advanced Multiuse™ please go

to the HOW TO HANDLE CALLS FROM TWO MOBILE PHONES

section

* Phone dependent

** Available ONLY in English

english

JABRA DRIVE

HoW to HAnDLe CALLs FRoM A sInGLe PHone

Function How to perform

Single call

Answer or end a call Tap the answer/end button

on your speakerphone to

answer or end a call

Make a call The call will automatically

transfer to your

speakerphone*. If not tap the

answer/end button

Reject a call* Double tap the answer/end

button to reject the incoming

call

Redial last number* Double tap the answer/

end button when the

speakerphone is on and not

used

Mute Long press the volume down

button. A sound will indicate

that the speakerphone is

on mute every 10 seconds

until the speakerphone is

un-muted

Un-mute Long press the volume

down button. A short sound

will indicate that your

speakerphone is un-muted

Adjust volume Tap volume + or volume- to

adjust the volume level. A

short sound will indicate

when the volume level is at its

highest or lowest limit

* Phone dependent

Altri manuali per DRIVE

Indice

Altri manuali Jabra Telefono

Jabra

Jabra SP500 - Bluetooth hands-free Speakerphone Manuale utente

Jabra

Jabra BHF-300 Manuale utente

Jabra

Jabra CRUISER Manuale utente

Jabra

Jabra 520 OC Manuale utente

Jabra

Jabra Speak 810 Manuale utente

Jabra

Jabra GN 4170 Manuale utente

Jabra

Jabra FREEWAY Manuale utente

Jabra

Jabra CRUISER Manuale utente

Jabra

Jabra SPEAK 510 Manuale utente

Jabra

Jabra SPEAK 410 Manuale utente

Jabra

Jabra SP500 - Bluetooth hands-free Speakerphone Manuale utente

Jabra

Jabra SP200 - QUICKSTART GUIDE 1 Manuale utente

Jabra

Jabra Speak 710 Manuale utente

Jabra

Jabra GN 7100 Manuale utente

Jabra

Jabra Speak 510+ MS Manuale utente

Jabra

Jabra SP5050 - Bluetooth hands-free Speakerphone Manuale utente

Jabra

Jabra FREEWAY Manuale utente

Jabra

Jabra GN 7100 Manuale di istruzioni

Jabra

Jabra SP200 - QUICKSTART GUIDE 1 Manuale utente

Jabra

Jabra SP5050 - Bluetooth hands-free Speakerphone Manuale utente

Jabra

Jabra SPEAK410 Manuale utente

Jabra

Jabra SP100 Manuale utente

Jabra

Jabra speakerphone Manuale utente

Jabra

Jabra SP200 - QUICKSTART GUIDE 1 Manuale utente

Manuali Telefono popolari di altre marche

GE 2-9480 Manuale utente

Geemarc

Geemarc PHOTOPHONE 155 Manuale utente

D-Link

D-Link DWR-720/PW Manuale utente

Interquartz

Interquartz Gemini IQ333 Manuale utente

SSS Siedle

SSS Siedle HT 840-0 Manuale utente

Motorola

Motorola TITANIUM Manuale utente

Panasonic

Panasonic ICX Manuale utente

LG H870DS Manuale utente

Samsung

Samsung GT-I9500 Manuale utente

AT&T

AT&T Trimline 205 Manuale utente

Selta

Selta zenyth 600 Manuale utente

Doro

Doro AFTI 20 Manuale utente

UNIQCELL

UNIQCELL A1 Manuale utente

Panasonic

Panasonic KX Series Manuale utente

BT Decor 425 Manuale utente

NEC

NEC SV8500 Manuale utente

Teledex

Teledex PEARL Manuale utente

Ericsson

Ericsson Dialog 3213 Manuale utente
