Jacuzzi Amiga 9180 Manuale utente

amiga™ whirlpool bath and soaking bath

never has there been a friend—an “amiga”—so comforting, so indulging: the amiga™ whirlpool bath.

Your best friend at the end of any

long day, the Amiga™ a simple,

enveloping form.

features:

• 3 fully adjustable TheraPro™ jets with a

maximum ﬂow rate of 30 GPM per jet

• 4 directionally adjustable AccuPro™ jets

• Sculpted armrest

• Contoured backrest

• Energy-efﬁcient, self-draining pump

• Patented Silent Air™ induction system

• Slip-resistant bottom

• Exclusive Tru-Level™ self-leveling base system

• Drain included on whirlpool baths

amiga™ whirlpool bath

model number: N890 – RH, N888 – LH

exterior dimensions:

72" long x 36" wide x 20¾" high

interior dimensions:

45" long x 22" wide

# of Jets/type of Jets:

3 TheraPro™ Jets,

4 AccuPro™ Body and Side Jets

operating gallons:

50 gallons

Detail: The Amiga™ whirlpool bath includes three

exclusive Jacuzzi®TheraPro™ massaging jets and a

sculpted armrest.

amiga™ soaking bath

model number: 9180

exterior dimensions:

72" long x 36" wide x 20¾" high

interior dimensions:

45" long x 22" wide

Amiga™ Whirlpool Bath

Model: N890, N888

Amiga™ Bath

Model: 9180

Installation Notes

Refer to installation instructions included with ﬁxture before beginning installation.

Please conﬁrm product availability and speciﬁcations before commencing with any

installation work.

PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE

WITHOUT NOTICE.

Electrical Components and Electrical Speciﬁcations do not apply to non-jetted baths.

Ordering Information

Product Code:

N890 Amiga™ Whirlpool Bath

Right Hand

N888 Amiga™ Whirlpool Bath

Left Hand

9180 Amiga™ Bath

• Right and Left Hand Drain Location

• Accessories / Hardware:

HTC Jet Trim Kit: #D095

2 x BMH Jet Trim Kit: #J869

• Trim Kit Finishes Available:

(827) – Chrome

(898) – Brushed Chrome

(815) – Satin Nickel

(829) – Bright Brass

(805) – Platinum

(826) – Brushed Nickel

(845) – Oil Rubbed Bronze

Technical Speciﬁcations

Dimensions

72” L x 36” W x 20-3/4” H

(1829) mm L x (914) mm W x (533) mm H

Drain/Overﬂow

A: 16-7/8” (429 mm) B: 14” (356 mm)

Cutout

70” x 34”

Total Weight

N890, N888: 772 lb. (351 kg) / 43 lb/sq. ft. (209 kg/m2)

9180: 738 lb. (335 kg) / 41 lb/sq. ft. (200 kg/m2)

Operating Gallonage

50 U.S. Gal. (186 Liters)

Product Weight

N890, N888: 105 lb. (48 kg)

9180: 71 lb. (32 kg)

Skirt Mounting

Optional U-Frame

Electrical Speciﬁcations Models N890, N888 only

Requires a dedicated GFCI protected separate circuit.

Motor/Pump: 120 VAC, 15 AMP, 60 Hz.

RapidHeat™: 120 VAC, 15 AMP, 60 Hz.

Heater (Optional) Models N890, N888 only

Requires a dedicated GFCI protected separate circuit.

RapidHeat™: P/N S750000

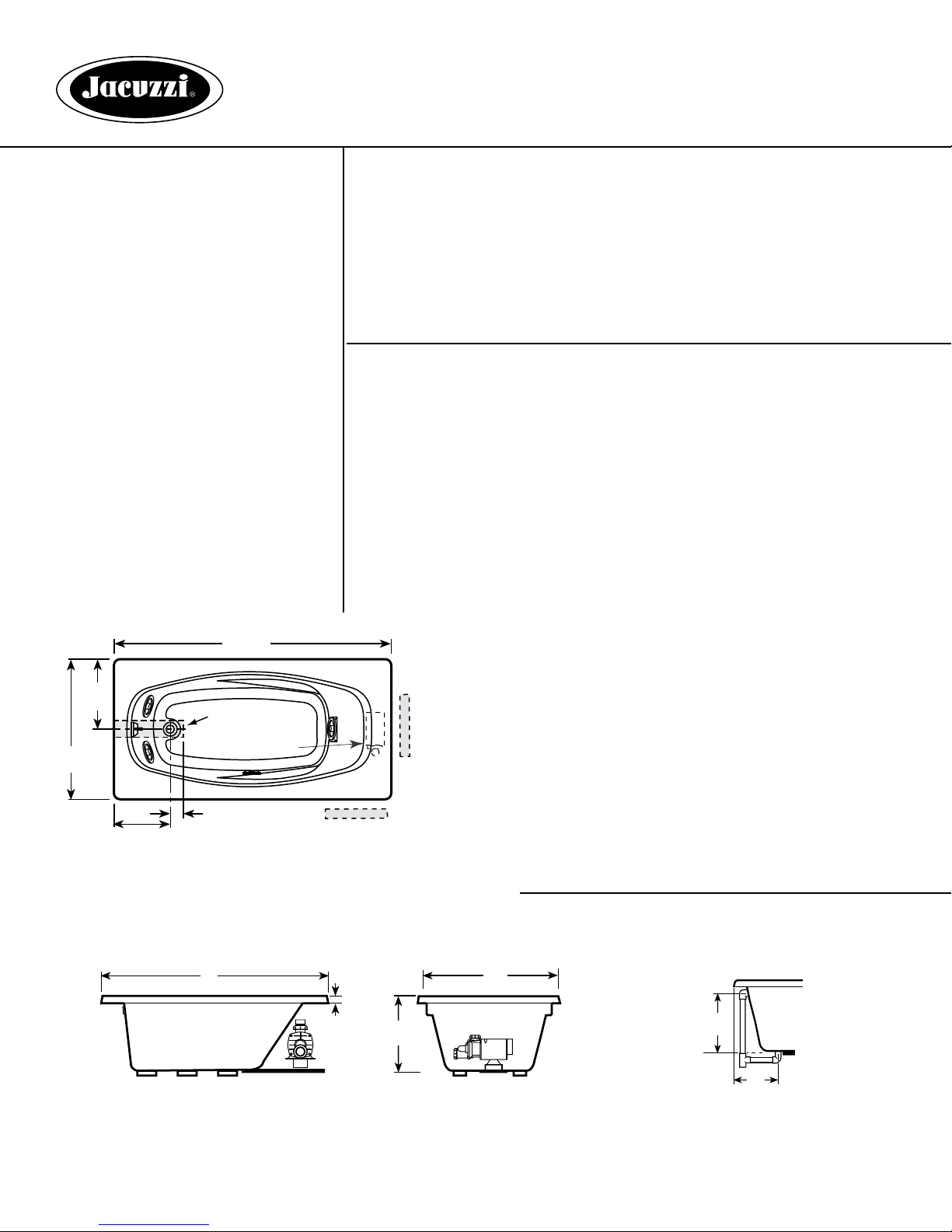

72''

18''

36''

2''

16'' x 4''*

14'' Opt. Service

Access

12" H x 18" L

Service Access

Motor

END VIEW

SIDE VIEW

#FR07 12/06

DRAIN/OVERFLOW

Product Shown: Amiga™ Whirlpool Bath Left Hand Shown Model: N888

* Measurements inside unit represent cutout in ﬂoor to allow for drain/overﬂow.

Minimum Service Access dimensions given.
