Jacuzzi Capella EM90 Manuale utente

capella™ plus whirlpool bath

like the fabled irish tower of kings that shares its name, the Capella™ whirlpool bath is itself a singularly regal experience in an everyday world.

Detail: The Capella™ Plus whirlpool bath places

Jacuzzi‘s Magic Touch®controls right in reach.

Perfectly positioned AccuPro™ jets massage away

cares as you recline against Capella‘s backrest.

Cozy up to the Capella™ plus whirlpool

bath‘s corner conﬁguration and linger as four

TheraPro™ jets, four directionally adjustable

back jets and one indulgent foot jet massage

away the cares of the day. Simple styling

makes Capella™ simply appropriate for most

any décor—and simply stunning in modern

contemporary homes. Available with and

without an integral skirt and as a soaking tub

for added versatility.

features:

• 4 fully adjustable TheraPro™ jets with a

maximum ﬂow rate of 30 GPM per jet

• 4 directionally adjustable AccuPro™

back jets

• 1 directionally adjustable AccuPro™ foot jet

• Energy-efﬁcient, self-draining pump

• Patented Silent Air™ induction system

• Slip-resistant bottom

• Exclusive Tru-Level™ self-leveling base system

• RapidHeat™ heater standard

• Electronic on/off control with

temperature readout

• Chromatherapy underwater lighting

• PrO

™

Ozone Sanitation System standard

Capella™ Plus whirlpool bath

model number: EM90

exterior dimensions:

60" long x 60" wide x 20½" high

interior dimensions (at bottom):

50" long x 34" wide

# of Jets/type of Jets:

4 TheraPro™ Jets, 4 AccuPro™

Back Jets,1 AccuPro™ Foot Jet

operating gallons:

83 gallons

Capella™ Plus Whirlpool Bath

Model: EM90, EN00

Installation Notes

Refer to installation instructions included with ﬁxture before beginning installation.

Please conﬁrm product availability and speciﬁcations before commencing with any

installation work.

PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE

WITHOUT NOTICE.

Ordering Information

Product Code:

EM90 Capella™ Plus Whirlpool Bath

Right Hand

EN00 Capella™ Plus Whirlpool Bath

Left Hand

• Center Drain Location

• Accessories / Hardware:

Trip-Lever Drain Kit #X559

Rotary Drain Kit, 26” Cable #8730

HTC Jet Trim Kit: #D095

BMH Jet Trim Kit (3 Req’d): #J869

• Trim Kit Finishes Available:

(827) – Chrome

(898) – Brushed Chrome

(815) – Satin Nickel

(829) – Bright Brass

(805) – Platinum

(826) – Brushed Nickel

(845) – Oil Rubbed Bronze

Technical Speciﬁcations

Dimensions

60” L x 60” L x 20-1/2” H

(1524 mm) L x (1524 mm) L x (521 mm) H

Drain/Overﬂow

A: 18” (457 mm) B: 12-1/8” (308 mm)

Cutout

See Illustrations Below

Total Weight

1177 lb (535 kg) / 47.8 lb/ft2(233 kg/m2)

Operating Gallonage

MIN: 55 U.S. gal (208 liters)

MAX: 90 U.S. gal (341 liters)

Product Weight

130 lb (59 kg)

Skirt Mounting

Optional

Electrical Speciﬁcations

Requires a dedicated GFCI protected separate circuit.

Motor/Pump: 120 VAC, 15 AMP, 60 Hz.

RapidHeat™: 120 VAC, 15 AMP, 60 Hz.

Heater (Standard)

Requires a dedicated GFCI protected separate circuit.

RapidHeat™: P/N S750000

#BW07 01/07

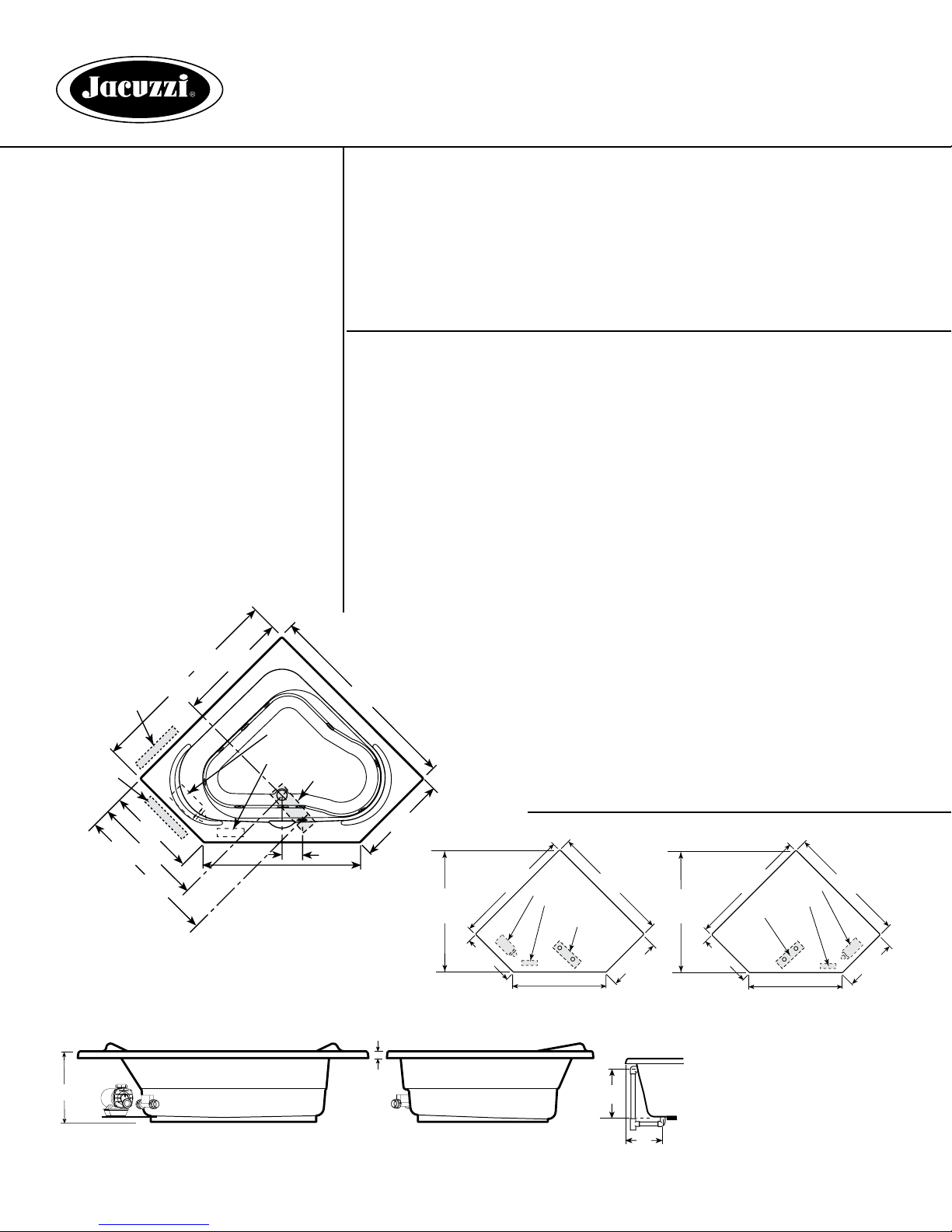

DRAIN/OVERFLOW

Product Shown: Capella™ Left Hand Motor Plus Whirlpool Bath LH Model: EN00

* Measurements inside unit represent cutout in ﬂoor to allow for drain/overﬂow.

Minimum Service Access dimensions given.

CAPELLA™ 60 PLUS , Left Hand

27"

46-5/8"

27"

60"

43-1/8"

60"

34-15/16"

14" X 4"

33-1/2"

Motor

Service

Access

Opt.

Service

Access

Heater

Motor

Heater

25-5/8"

45-3/7"

25-5/8"

58" 58"

Drain Cutout

(651 mm)

(1162 mm)

(1473 mm)

(651 mm)

Ref.

59-1/8"

(1473 mm)

(1502 mm)

CAPELLA™ 60 PLUS, Left Hand

CUTOUT

SIDE VIEW END VIEW

2”

CAPELLA™PLUS LEFT HAND MOTOR

(50,8 mm)

(Suction Heater)

(Motor)

CAPELLA™ 60 PLUS, Right Hand

CUTOUT

Motor

Heater

25-5/8"

45-3/7"

25-5/8"

58" 58"

Drain Cutout

(651 mm)

(1162 mm)

(1473 mm)

(651 mm)

Ref.

59-1/8"

(1473 mm)

(1502 mm)
