gallery™ 6 oval undermount whirlpool bath

like its namesake, the gallery™ whirlpool bath is a place of reverence—a haven suited for quiet reﬂection.

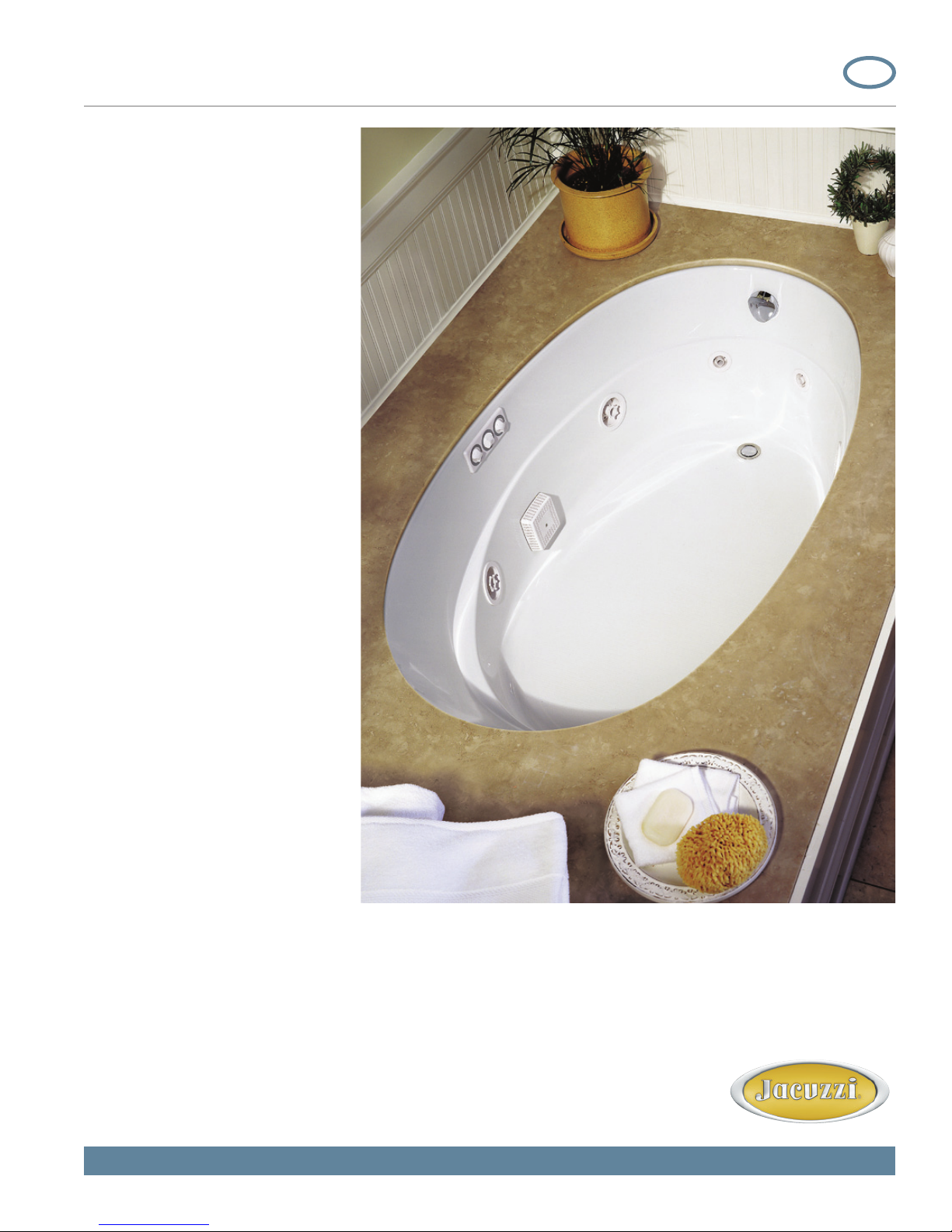

The Gallery™ whirlpool bath is a work of

art—a clean, stylish oval of relaxation, ideal

for quiet contemplation.

features:

• 4 fully adjustable TheraPro®jets

• 2 directionally adjustable

AccuPro™ foot jets

• 1 directionally adjustable AccuPro™

lumbar jet

• Installation ﬂexibility.

Can be undermounted or dropped in.

• Sculpted armrest

• Contoured backrest

• Energy-efﬁcient, self-draining pump

• Patented Fixed Air Flow System

• Slip-resistant bottom

• Exclusive Tru-Level™ self-leveling

base system

• Drain included

gallery™ 6 oval undermount

whirlpool bath

model number: X315 – LH, X320 – RH

exterior dimensions:

72" long x 42" wide x 20½" high

interior dimensions (at bottom:

50" long x 28" wide

# of Jets/type of Jets:

4 TheraPro®Jets,

1 AccuPro™ Lumbar Jet,

2 Directionally Adjustable AccuPro™

Foot Jets

operating gallons:

62 gallons

Gallery™ 6 Oval Undermount Whirlpool Bath

Model: X315, X320

Installation Notes

Refer to installation instructions included with ﬁxture before beginning installation.

Please conﬁrm product availability and speciﬁcations before commencing with any

installation work.

PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE

WITHOUT NOTICE.

Ordering Information

Product Code:

X315 Gallery™ 6 Oval Undermount

Whirlpool Bath Left Hand

X320 Gallery™ 6 Oval Undermount

Whirlpool Bath Right Hand

• Right and Left Hand Drain Location

• Accessories / Hardware:

TheraPro™ Jet Rings Kit #D095

AccuPro™ Jet Rings Kit #P556

Trip-Lever Drain Kit: #X559

Rotary Drain Kit, 26” Cable: #8730

• Trim Kit Finishes Available:

(827) – Chrome

(898) – Brushed Chrome

(815) – Satin Nickel

(829) – Bright Brass

(805) – Platinum

(826) – Brushed Nickel

(845) – Oil Rubbed Bronze

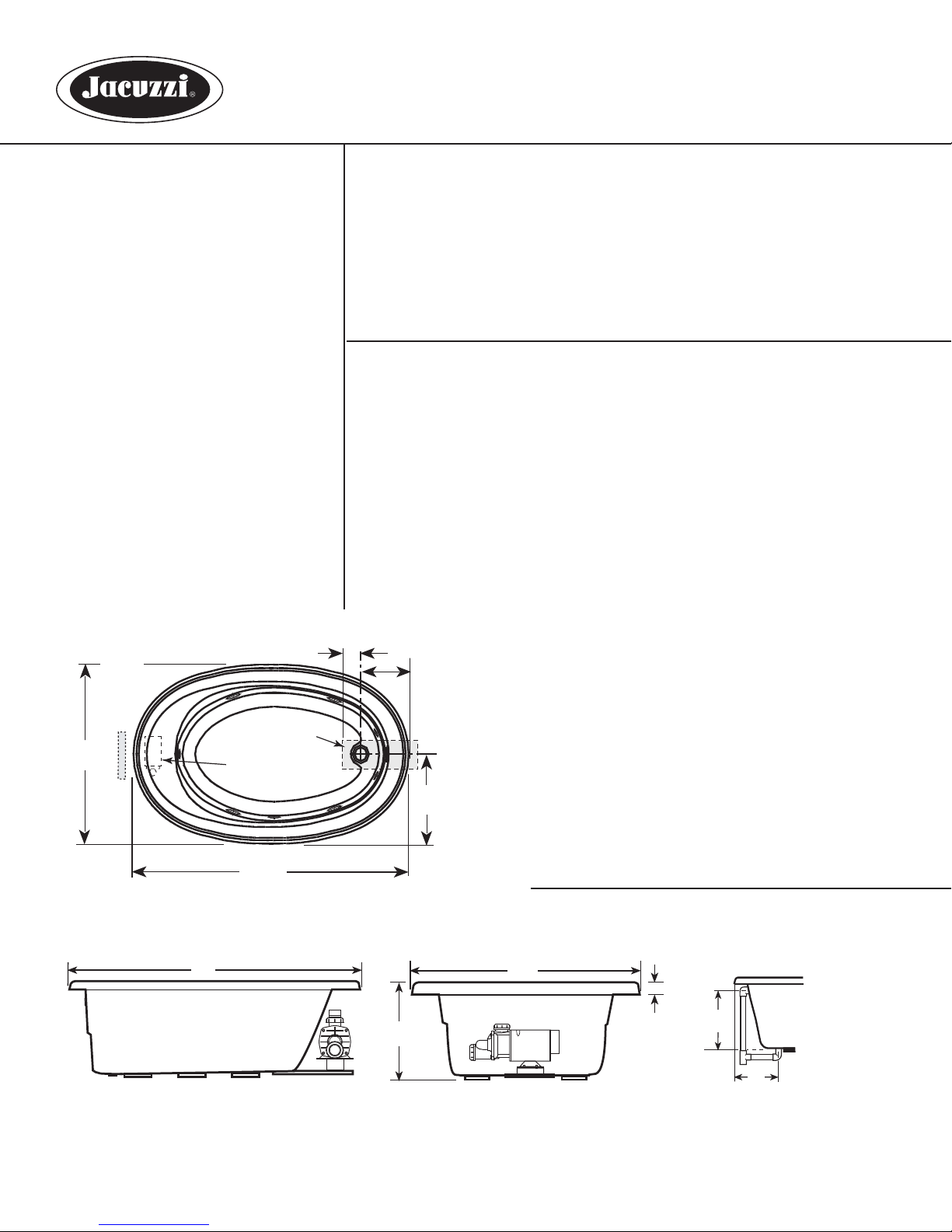

Technical Speciﬁcations

Dimensions

72” L x 42” W x 20-1/2” H

(1829 mm) L x (1067 mm) W x (521 mm) H

Drain/Overﬂow

A: 16” (406 mm) B: 11-1/2” (292 mm)

Cutout

Template Provided: P/N X302000

Total Weight

871 lb (395 kg) / 42 lb/sq. ft. (203 kg/m2)

Operating Gallonage

62 U.S. Gal. (235 Liters)

Product Weight

105 lb (48 kg)

Skirt Mounting

Not Available

Electrical Speciﬁcations

Requires a dedicated GFCI protected separate circuit.

Motor/Pump: 120 VAC, 15 AMP, 60 Hz.

RapidHeat™: 120 VAC, 15 AMP, 60 Hz.

Heater (Optional)

Requires a dedicated GFCI protected separate circuit.

RapidHeat™: P/N S750000

21"

12-1/2"

14" x 4"

72"

42" Motor

12" H x 18" L

Service Access

SIDE VIEW

H2''

END VIEW

#FR57 06/07

DRAIN/OVERFLOW

Product Shown: Gallery™ 6 Oval Undermount Whirlpool Bath Right Hand Shown Model: X320

* Measurements inside unit represent cutout in ﬂoor to allow for drain/overﬂow.

Minimum Service Access dimensions given.
