Jacuzzi Elara 6636 Manuale utente

If you enjoy soaking in a warm, soothing tub surrounded by gently moving

water, or if you prefer an invigorating foot and back massage, the Elara™ tub is

right for you.

FEATURES:

 

 

 

 

 

 

 

 

 

 

 

 3



Elara™6636 |

Elara™

with





DX60 (Right-hand)



66" long x 36" wide x

26" high



4 TheraPro™

6 AccuPro™ Back Jets

2 AccuPro™ Foot Jets



75-83 gallons

Technical Speciﬁcations

DIMENSIONS

66” L x 36” W x 26” H

(1676 mm) L x (914 mm) W x (660 mm) H

DRAIN/OVERFLOW

A: 18-1/2” (470 mm) B: 9.6” (244 mm)

CUTOUT

64” (1626 mm) x 34” (864 mm) & undermount template DQ51000

TOTAL WEIGHT

847 lb. (384 kg) / 51.3 lb/ft2(250 kg/m2)

OPERATING GALLONAGE

79 U.S. Gal. (299 Liters)

Min. 75 U.S. Gal. (284 liters)

Max. 83 U.S. Gal. (314 liters)

PRODUCT WEIGHT

164 lb. (74 kg)

SKIRT MOUNTING

Not Available

ELECTRICAL SPECIFICATIONS

Requires a dedicated GFCI protected separate circuit.

Blower: 120VAC, 20AMP, 60 Hz.

Motor/Pump and RapidHeat™: 240VAC, 20AMP, 60 Hz.

HEATER (STANDARD)

Requires a dedicated GFCI protected separate circuit.

RapidHeat™: P/N BN60000

INSTALLATION NOTES

Refer to installation instructions included with ﬁxture before

beginning installation. Please conﬁrm product availability and

speciﬁcations before commencing with any installation work.

PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT

TO CHANGE WITHOUT NOTICE.

#FR98000 01/08

Elara™6636

SALON™SPA

DX60 Elara™ 6636 Salon™ Spa with Chromatherapy —

Right Hand

• Right Hand Drain Location

• Accessories / Hardware:

TheraPro™ Jet Rings Kit: #D095

AccuPro™ 2 Jet Rings Kit: # P556

Sch 40, Rotary Drain Kit: #DA34

• Trim Kit Finishes Available:

(827) – Chrome

(898) – Brushed Chrome

(815) – Satin Nickel

(829) – Bright Brass

(805) – Platinum

(826) – Brushed Nickel

(845) – Oil Rubbed Bronze

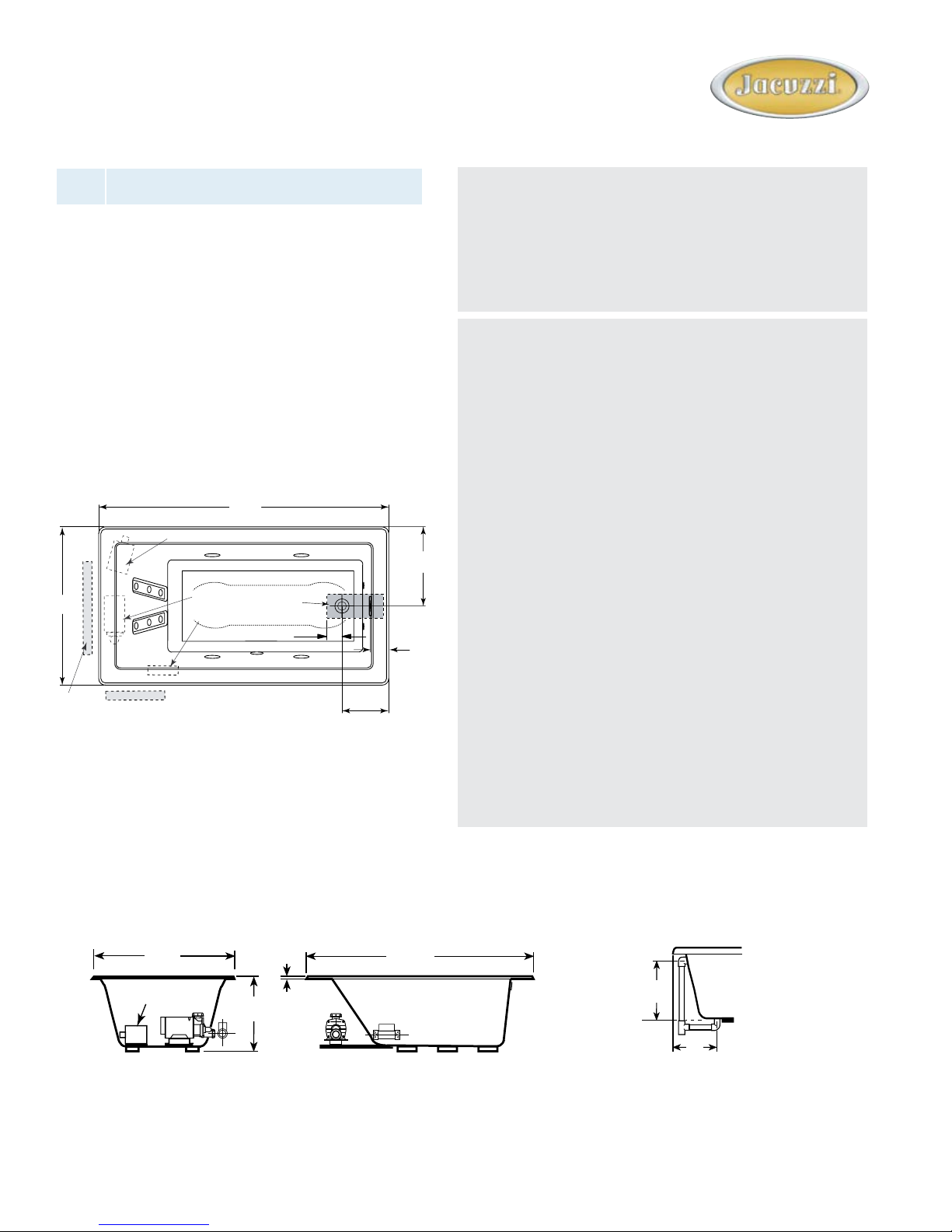

36"

18 "

4.2"

9.6"

12" x 4"

Motor

Opt. Service

Access

12" H x 24" L

Service Access

Heater

Blower

END VIEW

26"

36"

SIDE VIEW

66"

1/2"

(13 mm)

(Motor)

(Inlet Heater)

(Blower)

DRAIN/OVERFLOW

Product Shown: Elara™ 6636 Salon™ Spa with

Chromatherapy Right Hand Model: DX60

* Measurements inside unit represent cutout in ﬂoor

to allow for drain/overﬂow.

Minimum Service Access dimensions given.
