Jacuzzi Tara N820 Manuale utente

tara™ whirlpool bath and soaking bath with integral skirt

like the fabled Irish tower of kings that shares its name, the tara™ whirlpool bath is itself a singularly regal experience in an everyday world.

Cozy up to the Tara™ whirlpool bath’s

corner conﬁguration and linger as you

massage away the cares of the day.

features:

• 4 Fully adjustable TheraPro™ jets

• 2 Directionally adjustable AccuPro™ lumbar jets

• 1 Directionally adjustable AccuPro™ foot jet

• Exclusive Tru-Level™ base system

• Slip-resistant bottom

• Patented Silent Air™ Induction system

• Integral skirt

• Drain included on whirlpool baths

tara™ whirlpool bath

with integral skirt

model number: N820 RH Pump

exterior dimensions:

60" long x 60" wide x 20¾" high

interior dimensions (at bottom):

45" long x 40" wide

# of Jets/type of Jets:

4 TheraPro™ Jets,

2 AccuPro™ Lumbar Jets,

1 AccuPro™ Foot Jet

operating gallons:

74 gallons

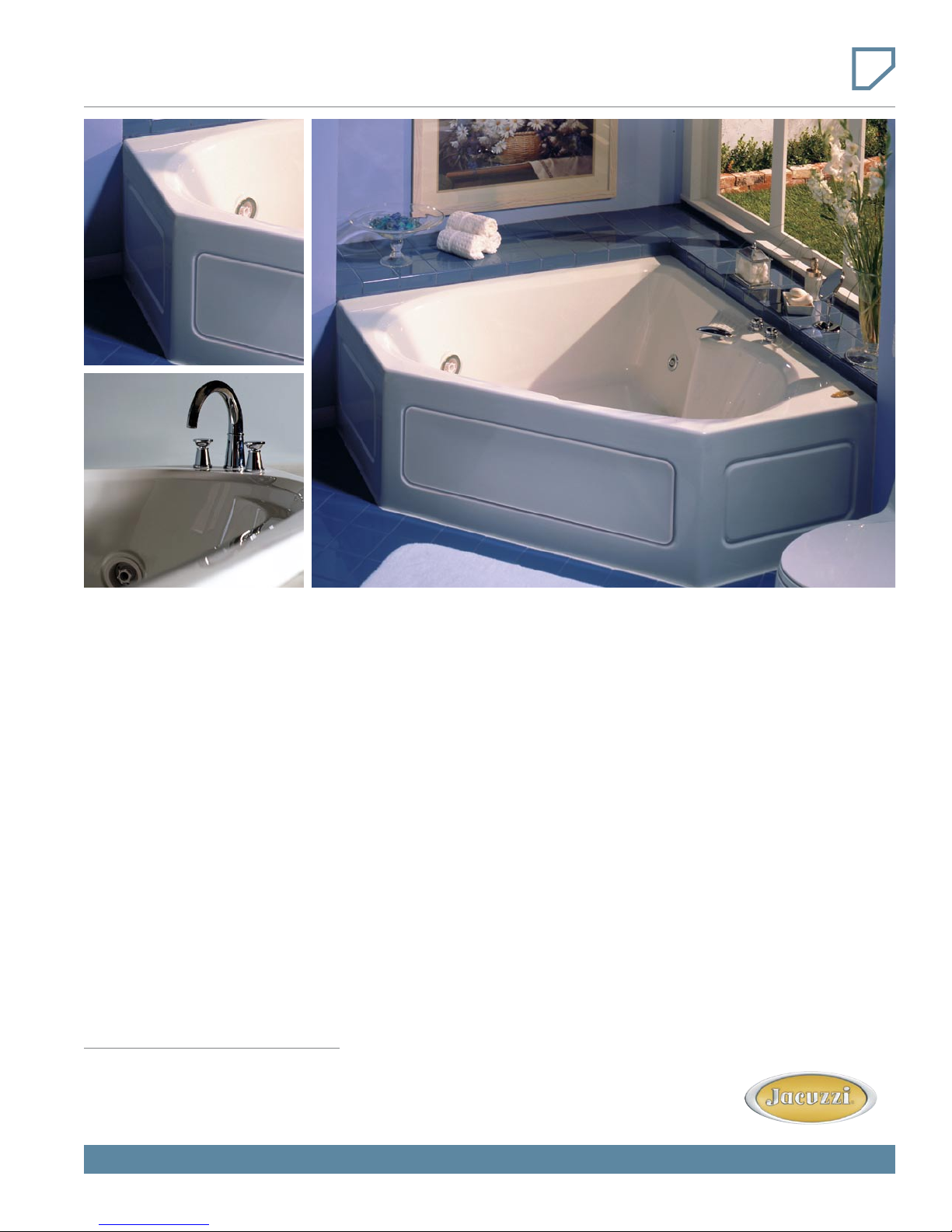

Detail: The Tara™ whirlpool bath places Jacuzzi‘s

Magic Touch®controls right in reach. Perfectly

positioned AccuPro™ jets massage away cares as

you recline against Tara‘s backrest.

tara™ soaking bath

with integral skirt

model number: N821

exterior dimensions:

60" long x 60" wide x 20¾" high

interior dimensions:

45" long x 40" wide

Tara™ Corner Whirlpool Bath w/Integral Skirt

Model: N820

Tara™ Corner Bath with Integral Skirt

Model: N821

Installation Notes

Refer to installation instructions included with ﬁxture before beginning installation.

Please conﬁrm product availability and speciﬁcations before commencing with any

installation work.

PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE

WITHOUT NOTICE.

Electrical Components and Electrical Speciﬁcations do not apply to non-jetted baths.

Ordering Information

Product Code:

N821 Tara™ Corner Bath

w/Integral Skirt

N820 Tara™ Corner Whirlpool Bath

w/Integral Skirt Right Hand

• Center Drain Location

• Accessories / Hardware:

Trip-Lever Drain Kit #X559

Rotary Drain Kit, 26” Cable #8730

4 X HTC Jet Trim Kit: #D095

2 X BMH Jet Trim Kit: #J869

• Trim Kit Finishes Available:

(827) – Chrome

(898) – Brushed Chrome

(815) – Satin Nickel

(829) – Bright Brass

(805) – Platinum

(826) – Brushed Nickel

(849) – Oil Rubbed Bronze

Technical Speciﬁcations

Dimensions

60” L x 60” L x 20-3/4” H

(1524 mm) L x (1524 mm) L x (527 mm) H

Drain/Overﬂow

A: 16” (406 mm) B: 12-3/8” (314 mm)

Cutout

Total Weight

N820: 999 lb (453 kg) / 40 lb/sq. ft. (195 kg/m2)

N821: 957 lb (434 kg) / 38 lb/sq. ft. (187 kg/m2)

Operating Gallonage

74 U.S. Gal. (280 Liters)

87 U.S. Gal. (329 Liters)

Product Weight

N820: 133 lb (60 kg)

N821: 91 lb (41 kg)

Skirt Mounting

Integral

Electrical Speciﬁcations Model N820 only

Requires a dedicated GFCI protected separate circuit.

Motor/Pump: 120 VAC, 15 AMP, 60 Hz.

RapidHeat™: 120 VAC, 15 AMP, 60 Hz.

Heater (Optional) Model N820 only

Requires a dedicated GFCI protected separate circuit.

RapidHeat™: P/N S750000

- 2" x 4" Stud

- Junction Box

27-1/4"

35"

44"

60"

46"

27-1/4"

35"

14" x 4"

Motor

FRONT VIEW SIDE VIEW

#FS27 12/06

Product Shown: Tara™ Corner Whirlpool Bath with Integral Skirt Model: N820

* Measurements inside unit represent cutout in ﬂoor to allow for drain/overﬂow.

DRAIN/OVERFLOW
