capella® 55 whirlpool bath and soaking bath

to the Italians, “la capella”—the chapel—is a sacred place. step into our capella®whirlpool, and you’ll understand.

capella®55

whirlpool bath

model number: 9590 - RH

exterior dimensions:

55" long x 55" wide x 20¼" high

interior dimensions:

44" long x 32" wide(mid) x 28"

wide(end)

# of Jets/type of Jets:

4 TheraPro™ Jets,

2 AccuPro™ Foot Jets,

1 AccuPro™ Lumbar Jet

operating gallons:

54 gallons

capella®55

soaking bath

model number: C800

exterior dimensions:

55" long x 55" wide x 20¼" high

interior dimensions:

44" long x 32" wide

The Capella’s®unique corner conﬁguration

allows for roomy relaxation.

features:

• Sculpted armrest

• Contoured backrest

• 4 Fully adjustable TheraPro™ jets with max

ﬂow rate of 30 GPM per jet

• 2 AccuPro™ foot jets

• 1 Directionally adjustable AccuPro™ lumbar jet

• Exclusive Tru-Level™ base system

• Slip-resistant bottom

• Patented Silent Air™ Induction system

• Drain included on whirlpool baths

Capella® 55 Whirlpool Bath

Model: 9590

Capella™ 55 Bath

Model:C800

Installation Notes

Refer to installation instructions included with ﬁxture before beginning installation.

Please conﬁrm product availability and speciﬁcations before commencing with any

installation work.

PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE

WITHOUT NOTICE.

Electrical Components and Electrical Speciﬁcations do not apply to non-jetted baths.

Ordering Information

Product Code:

9590 Capella® 55 Whirlpool Bath

Right Hand

C800 Capella® 55 Bath

• Center Drain Location

• Accessories / Hardware:

Trip-Lever Drain Kit: #X559

Rotary Drain Kit, 26” Cable: #8730

Trim Kit: 4 X HTC Jet Rings #D095

Trim Kit: 2 X BMH Jet Rings #J869

• Trim Kit Finishes Available:

(827) – Chrome

(898) – Brushed Chrome

(815) – Satin Nickel

(829) – Bright Brass

(805) – Platinum

(826) – Brushed Nickel

(845) – Oil Rubbed Bronze

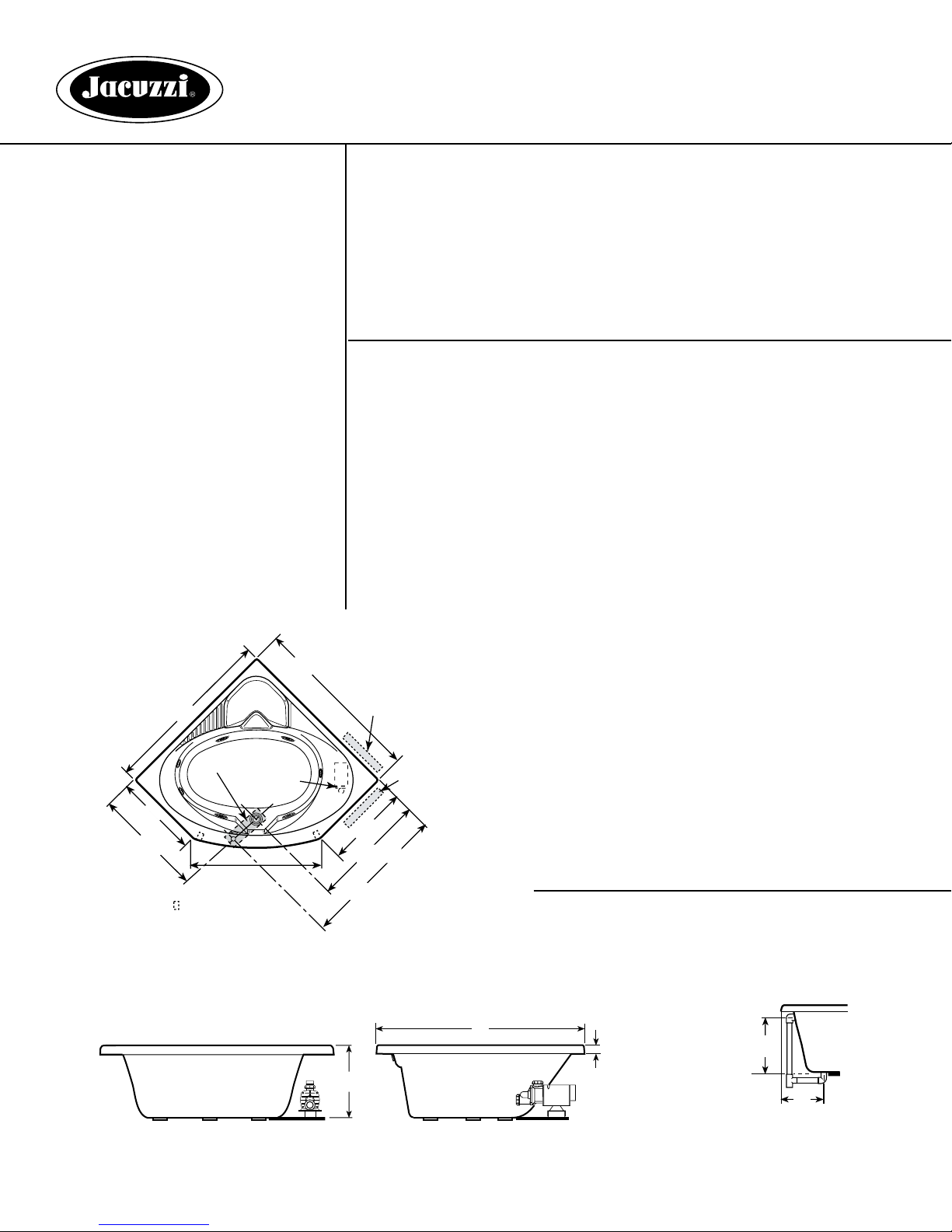

Technical Speciﬁcations

Dimensions

55” L x 55” L x 20-1/4” H

(1397 mm) L x (1397 mm) L x (514 mm) H

Drain/Overﬂow

A:17-1/2” (445 mm) B: 9-5/8” (245 mm)

Cutout

Template Provided: P/N DA24000

Total Weight

9590: 791 lb (359 kg) / 38 lb/sq. ft. (184 kg/m2)

C800: 760 lb (345 kg) / 36 lb/sq. ft. (177 kg/m2)

Operating Gallonage

54 U.S. Gal. (204 Liters)

Max. 72 U.S. Gal. (273 Liters)

Product Weight

9590: 116 lb (53 kg)

C800: 85 lb (39 kg)

Skirt Mounting

Optional

Electrical Speciﬁcations Model 9590 only

Requires a dedicated GFCI protected separate circuit.

Motor/Pump: 120 VAC, 15 AMP, 60 Hz.

RapidHeat™: 120 VAC, 15 AMP, 60 Hz

Heater (Optional) Model 9590 only

Requires a dedicated GFCI protected separate circuit.

RapidHeat™: P/N S750000

55"

27"

39 1/2"

36 1/2"

44 1/2"

36 1/2"

12" x 4"

- 2" x 4" Stud

Motor

12" H x 18" L

Service Access

Opt.

Service

Access

SIDE VIEW END VIEW

#FQ85 12/06

Product Shown: Capella® 55 Corner Whirlpool Bath Model: 9590

* Measurements inside unit represent cutout in ﬂoor to allow for drain/overﬂow.

Minimum Service Access dimensions given.

DRAIN/OVERFLOW
