opalia™whirlpool bath and soaking bath

ops—the roman goddess of abundance. opalia—the day to celebrate life’s bounty: beauty, luxury, wealth of all kinds.

Detail: The Opalia™ whirlpool bath features deep

dimensions—for deepest relaxation—and classic

detailing appropriate for most any décor.

The Opalia™ whirlpool bath. Celebrate life,

renewal honor indulgence here.

features:

• 4 fully adjustable TheraPro™ jets

• 2 directionally adjustable AccuPro™ jets

• Sculpted armrest and contoured backrest

• Electronic on/off controls

• Drain included on whirlpool baths

opalia™ whirlpool bath

model number: BN00 (RH pump),

BN05 – (LH pump)

exterior dimensions:

72" long x 44" wide x 22¼" high

interior dimensions (at bottom):

47" long x 28" wide

# of Jets/type of Jets:

4 TheraPro™Jets

2 AccuPro™ Back Jets

operating gallons:

70 gallons

opalia™ soaking bath

model number: 9635

exterior dimensions:

72" long x 44" wide x 22¼" high

interior dimensions:

47" long x 28" wide

Opalia™ Whirlpool Bath

Model: BN00, BN05

Opalia™ Bath

Model: 9635

Installation Notes

Refer to installation instructions included with ﬁxture before beginning installation.

Please conﬁrm product availability and speciﬁcations before commencing with any

installation work.

PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE

WITHOUT NOTICE.

Electrical Components and Electrical Speciﬁcations do not apply to non-jetted baths.

Ordering Information

Product Code:

BN05 Opalia™ Whirlpool Bath

Left Hand

BN00 Opalia™ Whirlpool Bath

Right Hand

9635 Opalia™ Bath

• Center Drain Location

• Accessories / Hardware:

Trip-Lever Drain Kit #X559

Rotary Drain Kit, 26” Cable #8730

Trim Kit: 2 BMH Jet Rings #J869

Trim kit: 4 HTC Jet Rings #D095

• Trim Kit Finishes Available:

(827) – Chrome

(898) – Brushed Chrome

(815) – Satin Nickel

(829) – Bright Brass

(805) – Platinum

(826) – Brushed Nickel

(849) – Oil Rubbed Bronze

Technical Speciﬁcations

Dimensions

72” L x 44” W x 22-1/4” H

(1829 mm) L x (1118 mm) W x (565 mm) H

Drain/Overﬂow

A: 18-3/4” (476 mm) B: 12” (305 mm)

Cutout

Template Provided P/N P186000

Total Weight

BN00: 978 lb (445 kg) / 45 lb/sq. ft. (217 kg/m2)

BN05: 945 lb (429 kg) / 45 lb/sq. ft. (217 kg/m2)

9635: 945 lb (429 kg) / 43 lb/sq. ft. (210 kg/m2)

Operating Gallonage

70 U.S. Gal. (265 Liters)

Product Weight

BN00, BN05: 145 lb (66 kg)

9635: 112 lb (51 kg)

Skirt Mounting

Not Available

Electrical Speciﬁcations Models BN00, BN05 only

Requires a dedicated GFCI protected separate circuit.

Motor/Pump: 120 VAC, 15 AMP, 60 Hz.

RapidHeat™: 120 VAC, 15 AMP, 60 Hz.

Heater (Optional) Models BN00, BN05 only

Requires a dedicated GFCI protected separate circuit.

RapidHeat™: P/N S750000

4" 36"

44"

32"

12"

72"

13" X 4"

Motor

12" H x 18" L

Service Access

4-11/16"

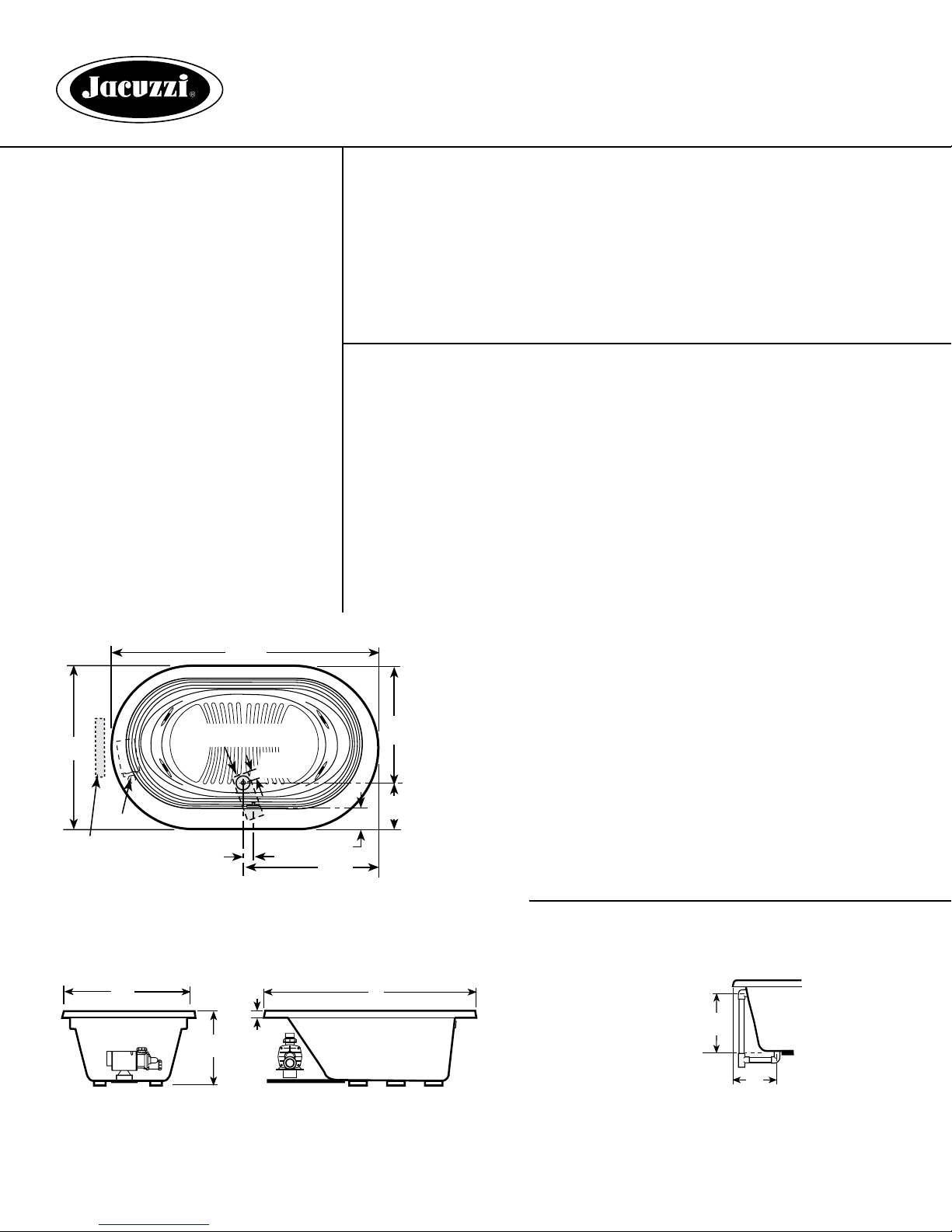

END VIEW

SIDE VIEW

#FS04 12/06

DRAIN/OVERFLOW

Product Shown: Opalia™ Whirlpool Bath Left Hand Shown Model: BN05

* Measurements inside unit represent cutout in ﬂoor to allow for drain/overﬂow.
