Allusion®7242

SALON™ SPA with

ILLUMATHERAPY™

MODEL NUMBER:

BT60

EXTERIOR DIMENSIONS:

72" long x 42" wide x

26" high

# OF JETS/TYPE OF JETS:

4 TheraPro™ Jets

6 AccuPro™ Jets

OPERATING GALLONS:

87 gallons

An allusion is a “hint,” a “reference.” The Allusion®

Salon™ Spa bath is a true glimpse of the good life. With

clean, contemporary, minimalist lines, the Allusion®

family of products makes astriking statement — one

that speaks to more than a hint of style.

FEATURES:

• Multi-speed motor

• 4 fully adjustable TheraPro™ jets

• 6 fully adjustable AccuPro™ jets

• 800 watt variable speed heated air blower

• Bottom air channels for maximum massage

• 256 color Chromatherapy lighting system

• Optional Illumatherapy

• Drain-assist purge system

• Water-level sensor

• RapidHeat™ inline heater

• PrO3

™ Ozone Sanitation System standard

Allusion®7242 |SALON™ SPA BATH

Allusion®7242

SALON™ SPA with

CHROMATHERAPY

MODEL NUMBER:

BK10

EXTERIOR DIMENSIONS:

72" long x 42" wide x

26" high

# OF JETS/TYPE OF JETS:

4 TheraPro™ Jets

6 AccuPro™ Jets

OPERATING GALLONS:

87 gallons

Allusion®7242

SALON™ SPA BATH

Technical Speciﬁcations

DIMENSIONS

72” L x 42” W x 26” H

(1829 mm) L x (1067 mm) W x (660 mm) H

DRAIN/OVERFLOW

A: 17-3/8” (441 mm) B: 11-15/16” (210 mm)

CUTOUT

Template Provided Part Number: BY20000

TOTAL WEIGHT

1246 lb (565 kg) / 59 lb/sq. ft. (290 kg/m2)

OPERATING GALLONAGE

87 U.S. Gal. (329 Liters)

Min. 75 U.S. Gal. (284 Liters)

Max. 99 U.S. Gal. (375 Liters)

PRODUCT WEIGHT

240 lb (109 kg)

SKIRT MOUNTING

Not Available

ELECTRICAL SPECIFICATIONS

All require a dedicated GFCI protected separate circuit(s).

Blower: 120VAC, 20AMP, 60 Hz. .

Motor/Pump and RapidHeat™: 240VAC, 20AMP, 60 Hz.

HEATER (STANDARD)

RapidHeat™: P/N BN60000

INSTALLATION NOTES

Refer to installation instructions included with ﬁxture before

beginning installation. Please conﬁrm product availability and

speciﬁcations before commencing with any installation work.

PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT

TO CHANGE WITHOUT NOTICE.

Product Shown: Allusion®7242 Salon™Spa

Right Hand (BK10) Shown.

* Measurements inside unit represent cutout in

ﬂoor to allow for drain/overﬂow.

Minimum Service Access dimensions given.

#FR12000 10/07

BK10 Allusion®7242 Salon™Spa Right Hand with

Chromatherapy lighting

BT60 Allusion®7242 Salon™Spa Right Hand with

Illumatherapy™ jet lighting

• Center Drain Location

• Accessories / Hardware:

HTC Jet Trim Kit: #D095

** See Install manual for installations instructions.

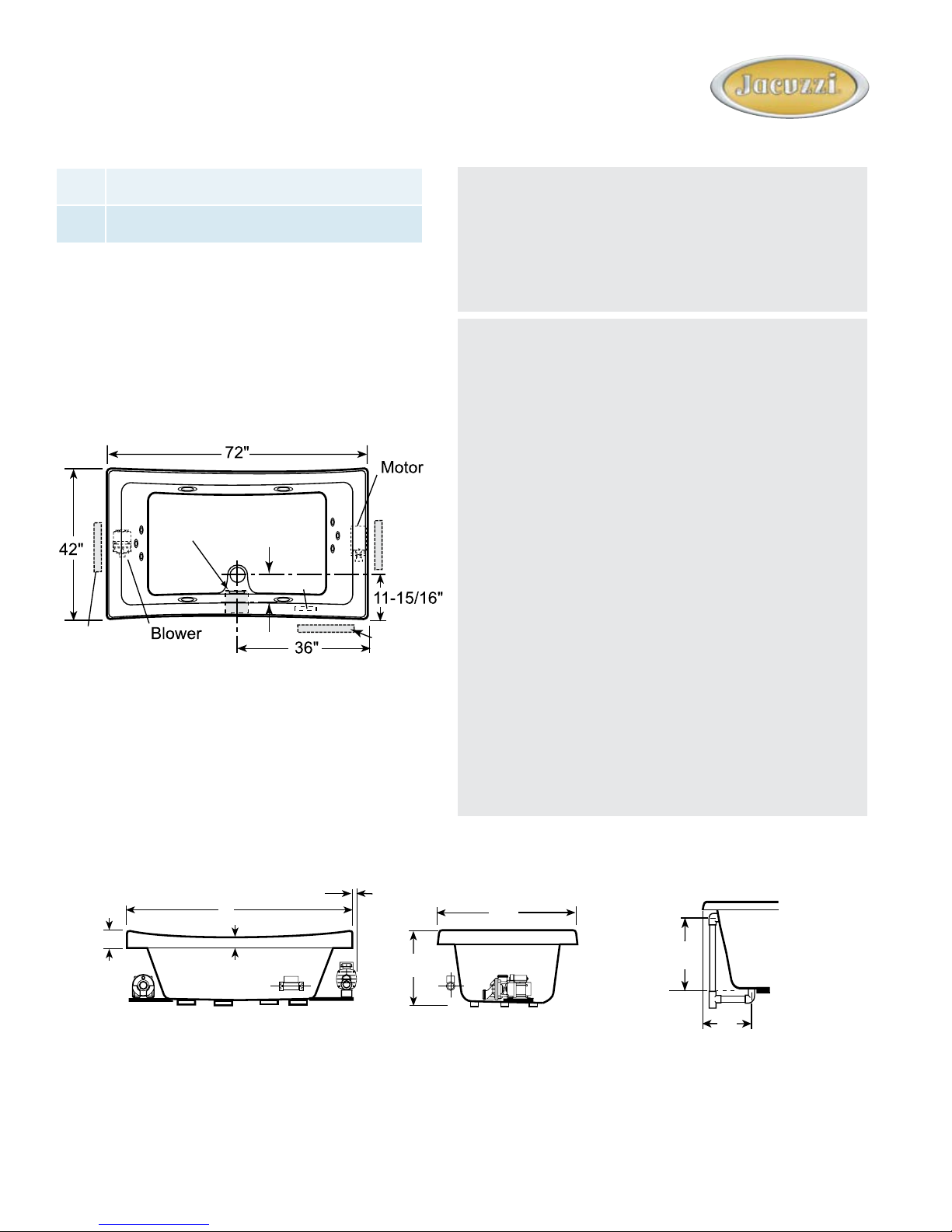

5" x 5" 8-1/2"

Heater

12" H x 18" L

Service Access

Opt. Service

Access

12" H x 18" L

Service Access

(Blower)

(Motor)

END VIEW

SIDE VIEW

ALLUSION SIDE END

(Heater)

MAX 1/2"**

DRAIN/OVERFLOW
