majora® 5 whirlpool bath and soaking bath

this is majora®—“large” to the spanish-speaking. also a whirlpool bath of immense quality—a truly grand experience.

The Majora®offers a deep, oval well with

six jets for larger than life restoration,

muscle therapy and invigoration.

features:

• 4 fully adjustable TheraPro™ jets

• 2 directionally adjustable AccuPro™ jets

• Sculpted armrest and backrest

• Integral handrails

• Built-in tile ﬂange and integral skirt with

access panels on skirted models

• Electronic on/off controls

• Drain included on whirlpool baths

majora®5 whirlpool bath

model number: H538 – RH, H537 – LH

exterior dimensions:

60" long x 42" wide x 19½" high

interior dimensions (at bottom):

36" long x 27" wide

# of Jets/type of Jets:

4 TheraPro™ Jets,

2 AccuPro™ Lumbar Jets

operating gallons:

46 gallons

majora®5 soaking bath

model number: H539

exterior dimensions:

60" long x 42" wide x 19½" high

interior dimensions (at bottom):

36" long x 27" wide

Majora® 5 Whirlpool Bath

Model: H537, H538

Majora® 5 Bath

Model: H539

Installation Notes

Refer to installation instructions included with ﬁxture before beginning installation.

Please conﬁrm product availability and speciﬁcations before commencing with any

installation work.

PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE

WITHOUT NOTICE.

Electrical Components and Electrical Speciﬁcations do not apply to non-jetted baths.

Ordering Information

Product Code:

H538 Majora® 5 Whirlpool Bath

Right Hand

H537 Majora® 5 Whirlpool Bath

Left Hand

H539 Majora® 5 Bath

• Right and Left Hand Drain Location

• Accessories / Hardware:

Trip-Lever Drain Kit #X559

Rotary Drain Kit, 26” Cable #8730

HTC Jet Trim Kit: #D095

BMH Jet Trim Kit: #J869

• Trim Kit Finishes Available:

(827) – Chrome

(898) – Brushed Chrome

(815) – Satin Nickel

(829) – Bright Brass

(805) – Platinum

(826) – Brushed Nickel

(849) – Oil Rubbed Bronze

Technical Speciﬁcations

Dimensions

60” L x 42” W x 19-1/2” H

(1524 mm) L x (1067 mm) W x (495 mm) H

Drain/Overﬂow

A: 15” (381 mm) B: 8-3/4” (222 mm)

Cutout

58” x 40”

Total Weight

H537, H538: 728 lb (330 kg) / 42 lb/sq. ft. (203 kg/m2)

H539: 703 lb (319 kg) / 40 lb/sq. ft. (196 kg/m2)

Operating Gallonage

46 U.S. Gal. (172 Liters)

Product Weight

H537, H538: 95 lb (43 kg)

H539: 70 lb (32 kg)

Skirt Mounting

Not Available

Electrical Speciﬁcations Models H537, H538 only

Requires a dedicated GFCI protected separate circuit.

Motor/Pump: 120 VAC, 15 AMP, 60 Hz.

RapidHeat™: 120 VAC, 15 AMP, 60 Hz.

Heater (Optional) Models H537, H538 only

Requires a dedicated GFCI protected separate circuit.

RapidHeat™: P/N S750000

42"

60"

21"

8-3/4"

10" x 4"*

Motor

12" H x 18" L

Service Access

Opt. Service Access

4-3/8"

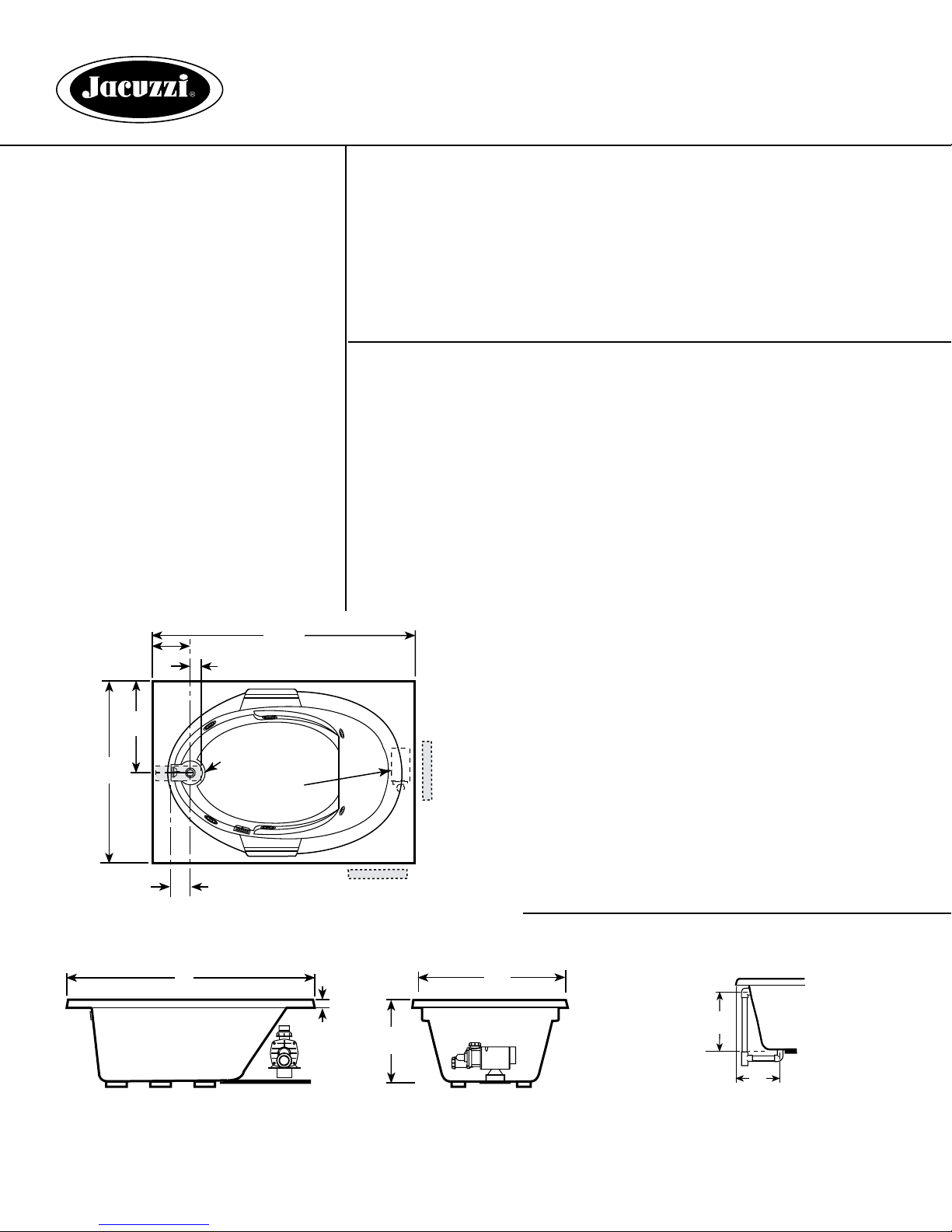

END VIEW

SIDE VIEW

#FR62 12/06

DRAIN/OVERFLOW

Product Shown: Majora® 5 Whirlpool Bath Left Hand Model: H537

* Measurements inside unit represent cutout in ﬂoor to allow for drain/overﬂow.

Minimum Service Access dimensions given.
