Jacuzzi Real EH85 Manuale utente

Imagine the essence of centuries of

opulence, captured for a lap-of-luxury

experience all your own. Our Reál®

whirlpool delivers magniﬁcence,

beautifully, functionally with an

embracing hourglass shape.

features:

• 4 fully adjustable PowerPro® jets

• 4 rotating neck jets

• 2 directionally adjustable foot jets

• Sculpted armrests

• Multi-speed motor

• RapidHeat™ inline heater

• 256 Chromatherapy lighting system

• Wave Pulse™ system

• Water level sensor

• All-in-one electronic control panel

• PrO

™

Ozone Sanitation System standard

réal® whirlpool bath

model number: EH85

exterior dimensions:

72" long x 42" wide x 23" high

interior dimensions:

45" long x 24" wide

# of Jets/type of Jets:

4 PowerPro®Jets

4 AccuPro™ Rotating Neck Jets

2 AccuPro™ Foot Jets

operating gallons:

90 gallons

réal®whirlpool bath

royal. kingly. réal, to the Spanish. a truly regal experience in contoured elegance—time-honored styling, gentle curves.

Detail: Softly curving lines and sculpted armrests make

the Réal®whirlpool bath a beautiful place to relax

and revitalize. Jacuzzi’s exclusive Magic Touch™ control

system puts a customized bath right at your ﬁngertips.

Real® Whirlpool Bath

Model: EH85

Installation Notes

Refer to installation instructions included with ﬁxture before beginning installation.

Please conﬁrm product availability and speciﬁcations before commencing with any

installation work.

PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE

WITHOUT NOTICE.

Ordering Information

Product Code:

EH85 Real™ Whirlpool Bath

Right Hand

• Center Drain Location

• Accessories / Hardware:

Rotary Drain Kit, 30” Cable #K606

Trim Kit: 2 BMH Jet Rings #J869

2 X Trim Kit: 2 Neck Jet Rings #P556

Trim Kit: 4 HTA Jet Rings, 3 Control Panel

overlays #P205

• Trim Kit Finishes Available:

(827) – Chrome

(898) – Brushed Chrome

(815) – Satin Nickel

(829) – Bright Brass

(805) – Platinum

(826) – Brushed Nickel

(849) – Oil Rubbed Bronze

Technical Speciﬁcations

Dimensions

72” L x 42” W x 23” H

(1829 mm) L x (1067 mm) W x (584 mm) H

Drain/Overﬂow

A: 20 “ (508 mm) B: 14” (356 mm)

Cutout

70” x 40”

Total Weight

1130 lb (513 kg) / 54 lb/sq. ft. (264 kg/m2)

Operating Gallonage

90 U.S. Gal. (341 Liters)

Product Weight

130 lb (59 kg)

Skirt Mounting

Not Available

Electrical Speciﬁcations

Requires a dedicated GFCI protected separate circuit.

Motor/Pump: 120 VAC, 20 AMP, 60 Hz.

RapidHeat™: 120 VAC, 15 AMP, 60 Hz.

Heater (Standard)

Requires a dedicated GFCI protected separate circuit.

RapidHeat™: P/N S750000

† Add 1/4” to this dimension when roughing-in for 3-wall niche.

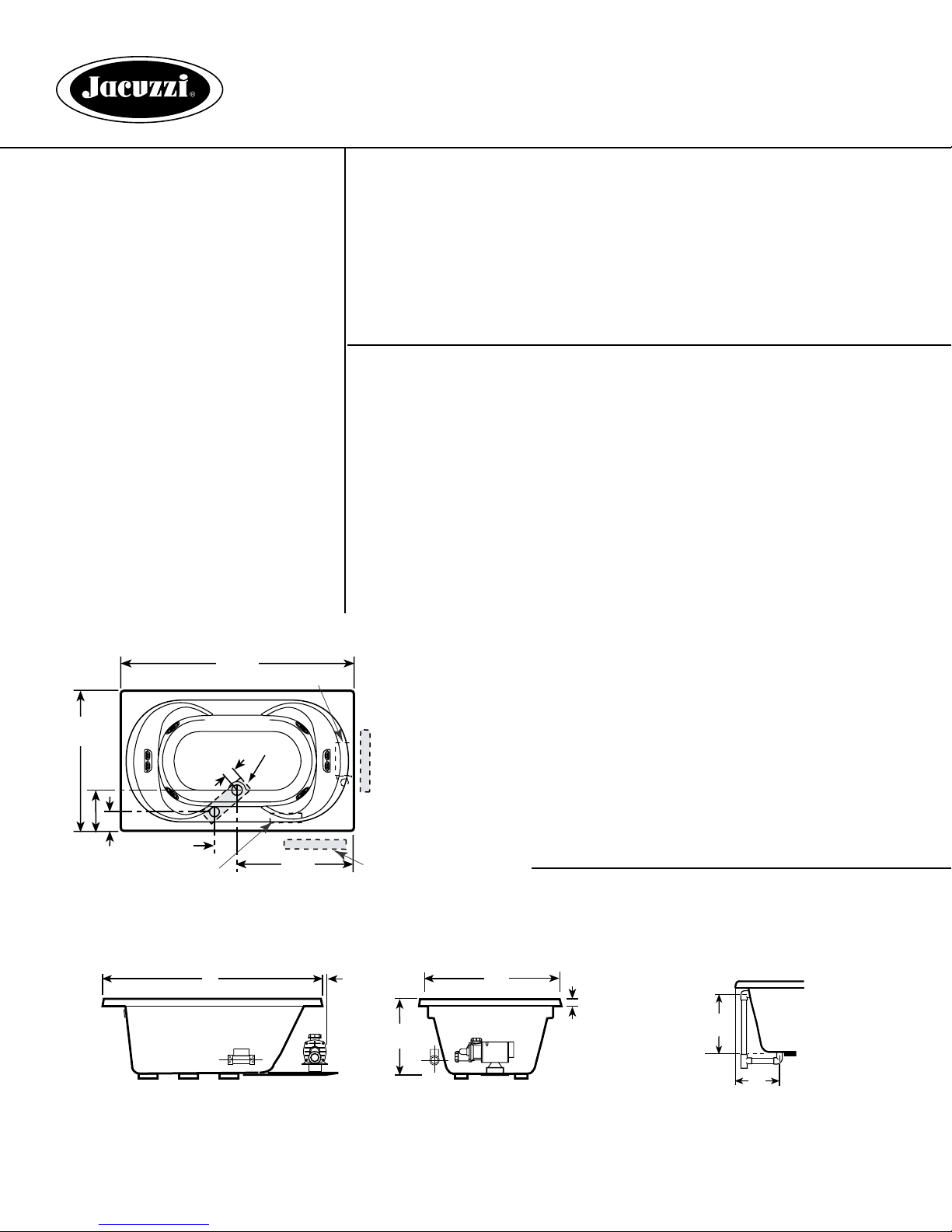

10-1/2" 36"

14"

5-1/4"

42"

72"

18" x 4"*

Motor

Opt. Service

Access

12" H x 18" L

Service Access

Heater

END VIEW

SIDE VIEW

(Motor)

(Heater)

REÁL™, Right Hand

(51 mm)

MAX. 1/2"

#FS09 12/06

DRAIN/OVERFLOW

Product Shown: Real™Whirlpool Bath Right Hand Shown Model: EH85

* Measurements inside unit represent cutout in ﬂoor to allow for drain/overﬂow.

Minimum Service Access dimensions given.
