JBL JBL CENTER Manuale utente

• •.... HI 3BL500,

3BLS00,

3BL Center

simpte set-up guide

thank you for choosing3BC For over 50 years, 3BL has

been invo[ved in every aspect of musicat and fi[m recording and

reproduction, from Uve performances to monitoring the recordings

you pray in your home, car, or office.

We're confident that the JBL toudspeakers you have

chosen wi[[ provide every note of enjoyment that you expected -

and that when you think about purchasing additionat audio

equipment for your home, car, or office, you wi[[ once again

choose 3BL.

Ptease take a moment to comptete the enctosed profile card. It

enabtes us to keep you posted on our latest advancements, and

helps us to better understand our customers and buitd products

that meet your needs and expectations.

3BL Consumer Products

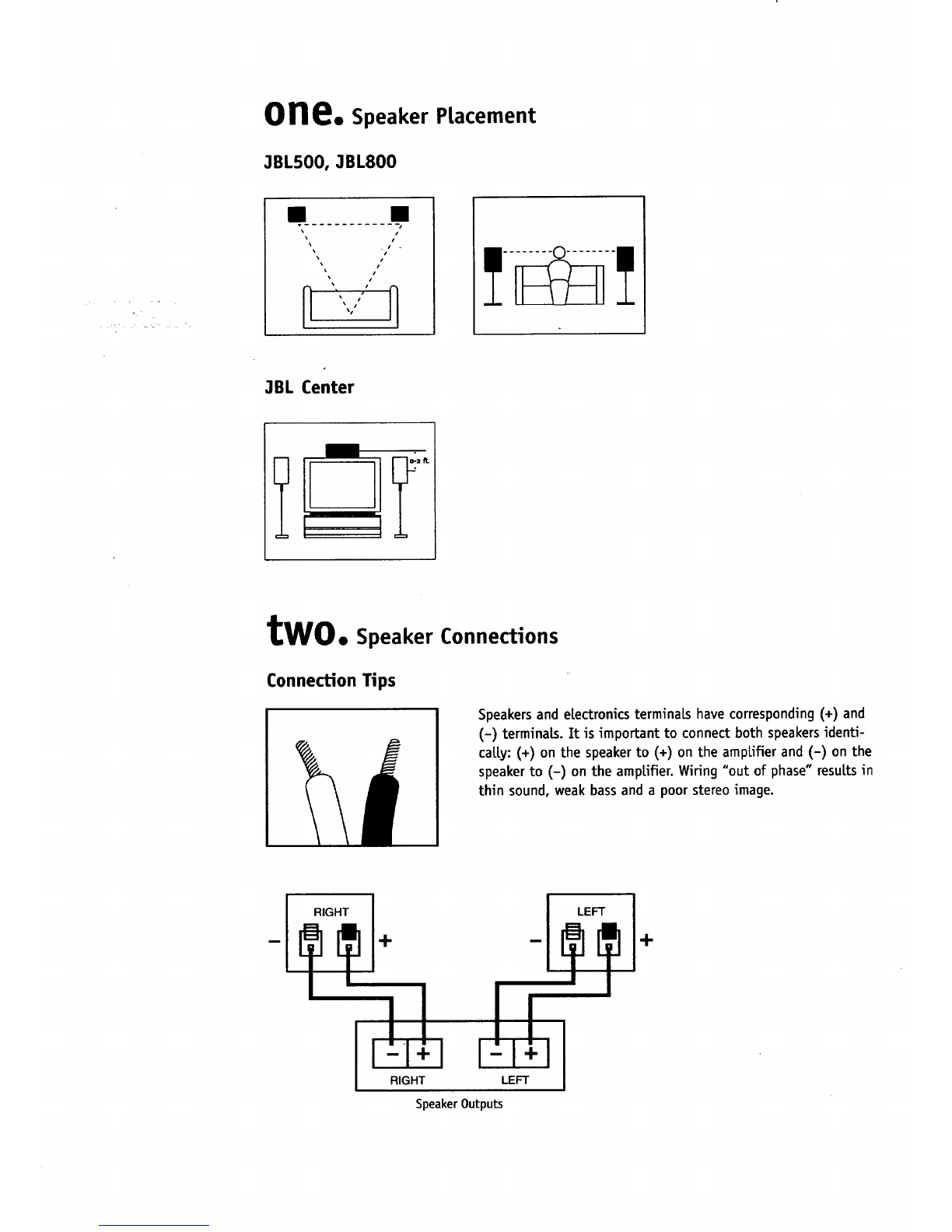

one. Speaker PLacement

3BLSOO, JBL800

•i

\i I

n,..n'''

3BL Center

two. Speaker Connections

Connection Tips

Speakers and electronics terminals have corresponding (+) and

(-) terminals. It is important to connect both speakers identi-

catty: (+) on the speaker to (+) on the amplifier and (-) on the

speaker to (-) on the amplifier. Wiring "out of phase" results in

thin sound, weak bass and a poor stereo image.

RIGHT

I'1_11

RIGHT LEFT

SpeakerOutputs

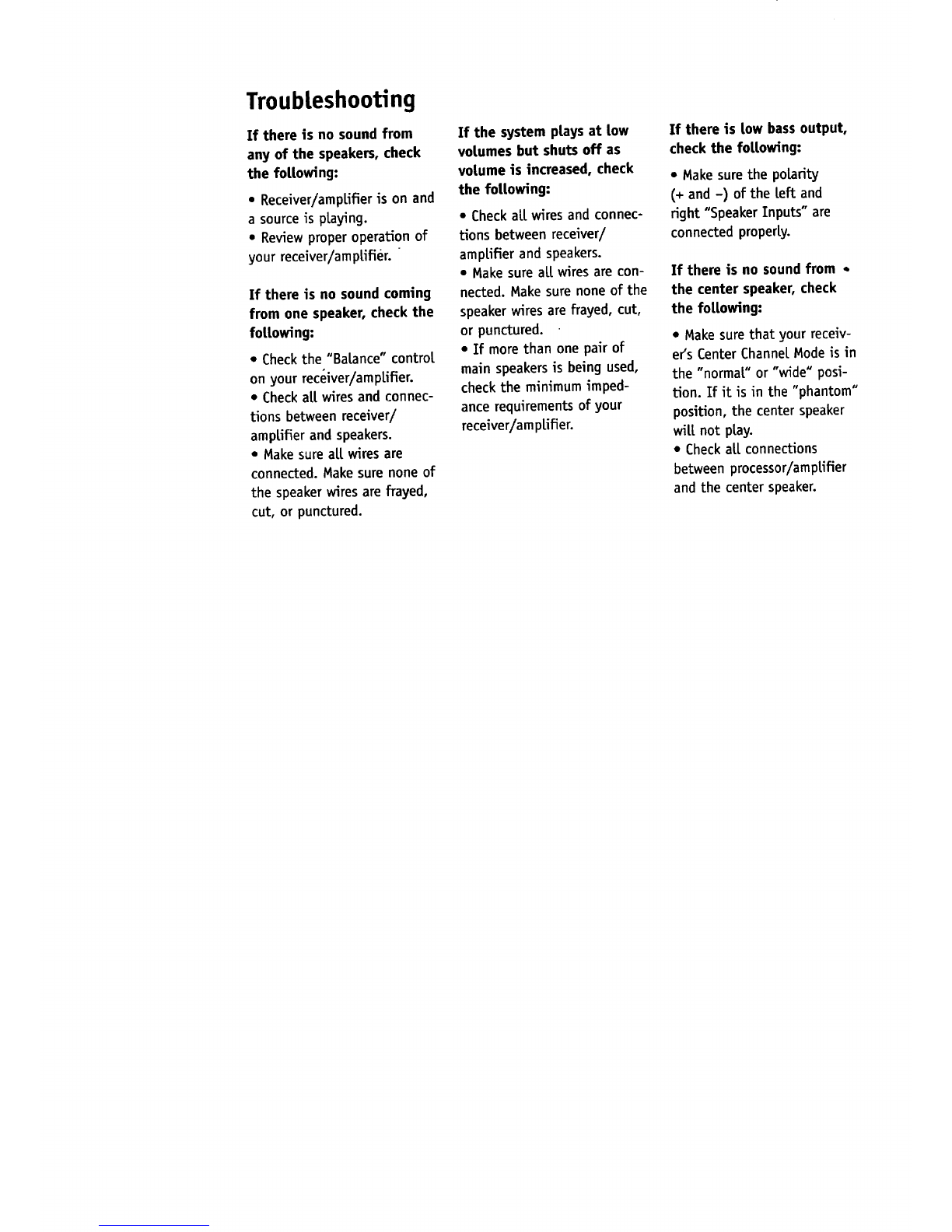

TroubLeshooting

If there is no sound from

any of the speakers, check

the foLLowing:

•Receiver/ampLifieris on and

asource is playing.

• Review proper operation of

your receiver/ampLifier.

If there is no sound coming

from one speaker, check the

foLLowing:

• Checkthe "BaLance" control

on your receiver/ampLifier.

• Checkat[ wires and connec-

tions between receiver/

amplifier and speakers.

•Makesure all.wires are

connected. Make sure none of

the speaker wires are frayed,

cut, or punctured.

If the system ptays at tow

votumes but shuts off as

votume is increased, check

the foLLowing:

•CheckaLLwires and connec-

tions between receiver/

amp|ifier and speakers.

• Make sure at[ wires are con-

nected. Make sure none of the

speaker wires are frayed, cut,

or punctured.

• If more than one pair of

main speakersis being used,

check the minimumimped-

ance requirements of your

receiver/ampLifier.

If there is tow bassoutput,

check the foLLowing:

• Make surethe polarity

(+ and -) of the Leftand

right "Speaker Inputs" are

connected properly.

If there is no sound from *

the center speaker, check

the following:

• Makesure that your receiv-

e(s Center Channel Mode is in

the "normaL" or "wide" posi-

tion. If it is in the "phantom"

position, the center speaker

wiLLnot play.

•CheckaLLconnections

between processor/ampLifier

and the center speaker.

Specifications

FrequencyResponse (-6dB):

RecommendedMaximum

Power Hand|ing*:

Sensitivity @I watt/1 meter:

Nomina{ Impedance:

Crossover Frequency:

Woofer:

Midrange:

Tweeter:

Dimensions (HxWxD):

Weight (each):

3BL500

75Hz - 20kHz

50 watts

86dB

8 ohms

2200Hz

5-1/4"

N/A

2" fiber cone

11 x 6-1/2 x7-1/4 inches

280 x 165 x 184mm

7tbs/3.2 kg

3BL800

52Hz - 80kHz

100 watts

89dB

8 ohms

3200Hz

N/A

12ram

19-1/4 x 10 x 9-1/4 inches

489 x254 x 235mm

19 tbs/8.6 kg

Frequency Response (-6dB):

RecommendedMaximum

Power Handling*:

Sensitivity @1 watt/1 meter:

Nominal Impedance:

Crossover Frequency:

Woofer:

Midrange:

Tweeter."

Dimensions (HxWxD):

Weight (each):

3BL Center

90Hz- 20kHz

100 watts

90dB

8 ohms

7500Hz

2x4-1/2"

N/A

2-1/2" fiber cone

6-1/2 x 18-1/2 x 5-5/8 inches

165 x 470 x 150mm ,-

10 !bs/4.5 kg

Occasional refinementsmay

be made to existing products

without notice, but wit[

always meet or exceedorigi-

nal specificationsunless

otherwisestated.

*The maximumrecommended

amplifier power rating will

ensureproper system head-

room to allow for occasional

peaks. Wedo not recommend

sustained operation at these

maximum power levels.

.. ',

The speakergri|tes are not

:removable"on any of the

mode_ Listedin this manual.

3BL Consumer Products

80 Crossways Park West, Woodbury, NY 11797

8500 Balboa Bou|evard, Northridge, CA 91329

1-800-336-43BL (4525) (USA only)

www.jbl.com

of 3BL, Incorporated.

3/97 O Part No. 3BLOM

15-30-4224-00

I'I A Harman International Company

LDeclaration of Conformity

We, JBL Europe A,_

Kor_vejen 194B

• "'DK-3460 Birkemd

DENMARK

declare in own res_ sibility,that the pco(lucts described

in this o_r's manual are in compliance with lechnical

standards:

EN 50 081-1/1992

EN 50 082-1/3.1995

Steen Michae4c_n

dBL Europe AtS

B_rkete_. DENMARK 3_97
