JBL MS125S/WH Manuale utente

JBL Incorporated, 8500 Balboa Boulevard, P.O. Box 2200, Northridge, California 91329 U.S.A.

JBL MS125S/WH REV H

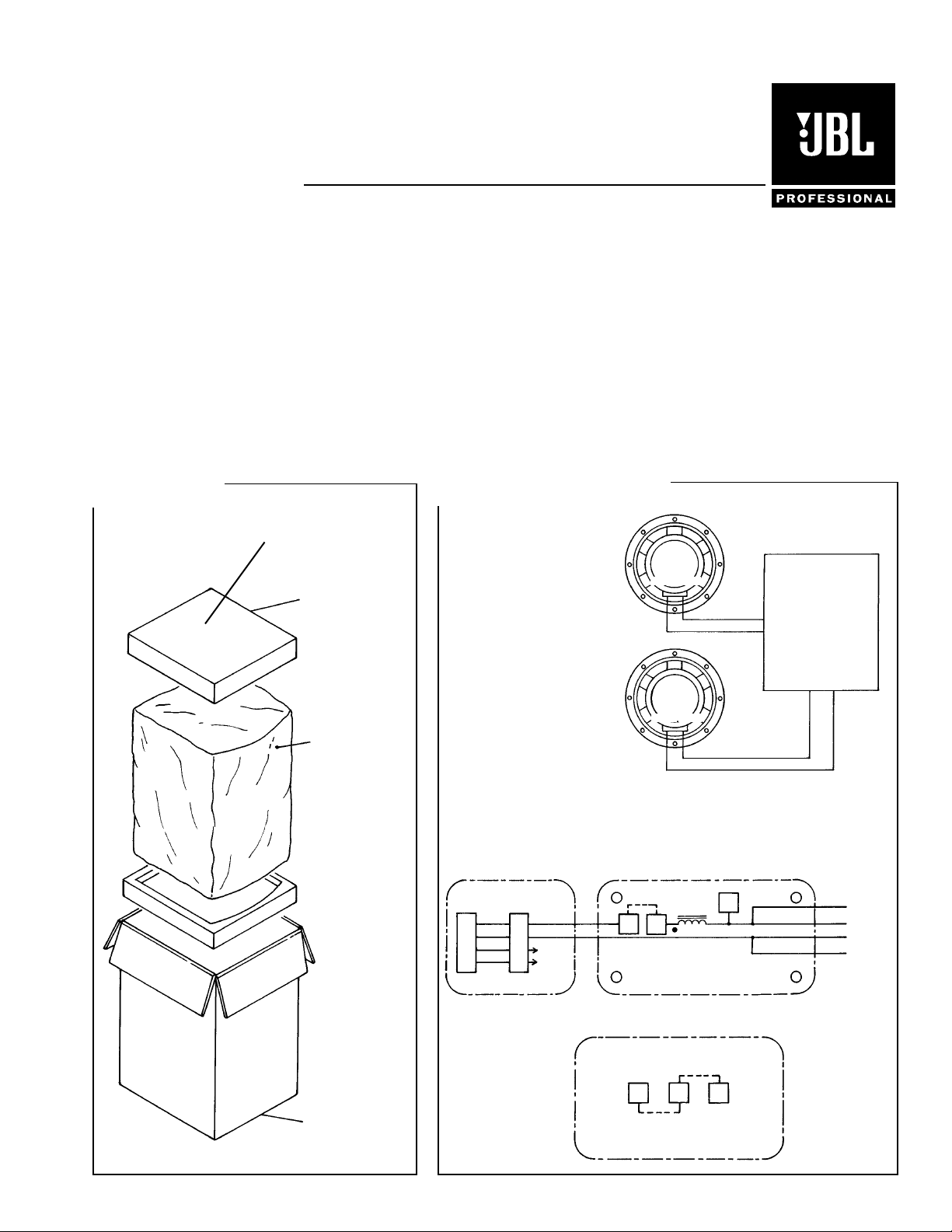

PACKAGE WIRING DIAGRAM

10-03

Technical Manual

JBL MS125S/WH

SPECIFICATIONS

ACOUSTIC & ELECTRICAL SPECIFICATIONS:

• Nominal Impedance: 4 ohms

• Power Capacity: 700W, AES Noise 2800W Peak

• Frequency Range: 35 Hz – 250 Hz (–10dB)

• Sensitivity: 103 dB SPL, 1 Watt @ 1 Meter

• Crossover Frequency: 200 Hz 6dB/octave internal

SYSTEM COMPONENTS:

• Cabinet: (Not For Sale)

• Grille: 128-00393-6,128-00393-00 (Wh)

• Low Frequency 380mm (15 in.) Cone

Transducer: Transducer (2032H) (2)

DC Resistance: 4.3 ohm ± 10%

• Crossover Network/ 129-10032-00

Terminal Cup:

AURAL SWEEP TEST SPECIFICATIONS:

A. System Aural Sweep Test: 7.0V Input, 20 Hz to 1.2 kHz

B. L.F. Aural Sweep Test: 7.0V Input, 20 Hz to 1.2 kHz

PHYSICAL SPECIFICATIONS:

• Enclosure Dimensions: 922mm x 569mm x 572mm D

(36.3 x 22.4 x 22.5 in. D)

• Weight: 100 lbs. (45.5 kg.)

WARRANTY INFORMATION:

• Refer to Warranty Statement packed with each product.

Filler (2)

991-00126-00

Microfoam (8)

Packaging

49790P

Carton

990-00148-00

Speaker,

Low Freq (2)

2032H

(318219-001X)

Cone Repl

C8R2032

See Note

Back of Page Network

129-10032-00

SCHEMATIC (129-10032-00)

WHT

GRN/BLK

WHT/BLK

GRN

WHT

GRN

RED

BLK

N/C

3.0mH

2–

1–

2–

1–

Busbar

Neutrik

Connector (2)

NL4MPR

REDBLK

GRN/BLK

CONNECTION INFORMATION

WHT/BLK

INPUT PCB NETWORK PCB

Passive

Bypass

L.F.

2032H

Warranty 59660

Owner’s Manual 10

981-00043-03

Tech Note 980-00036-00

Logo Sticker, Marquis

950-00032-00

JBL MS125/WH

JBL MS125S/WH

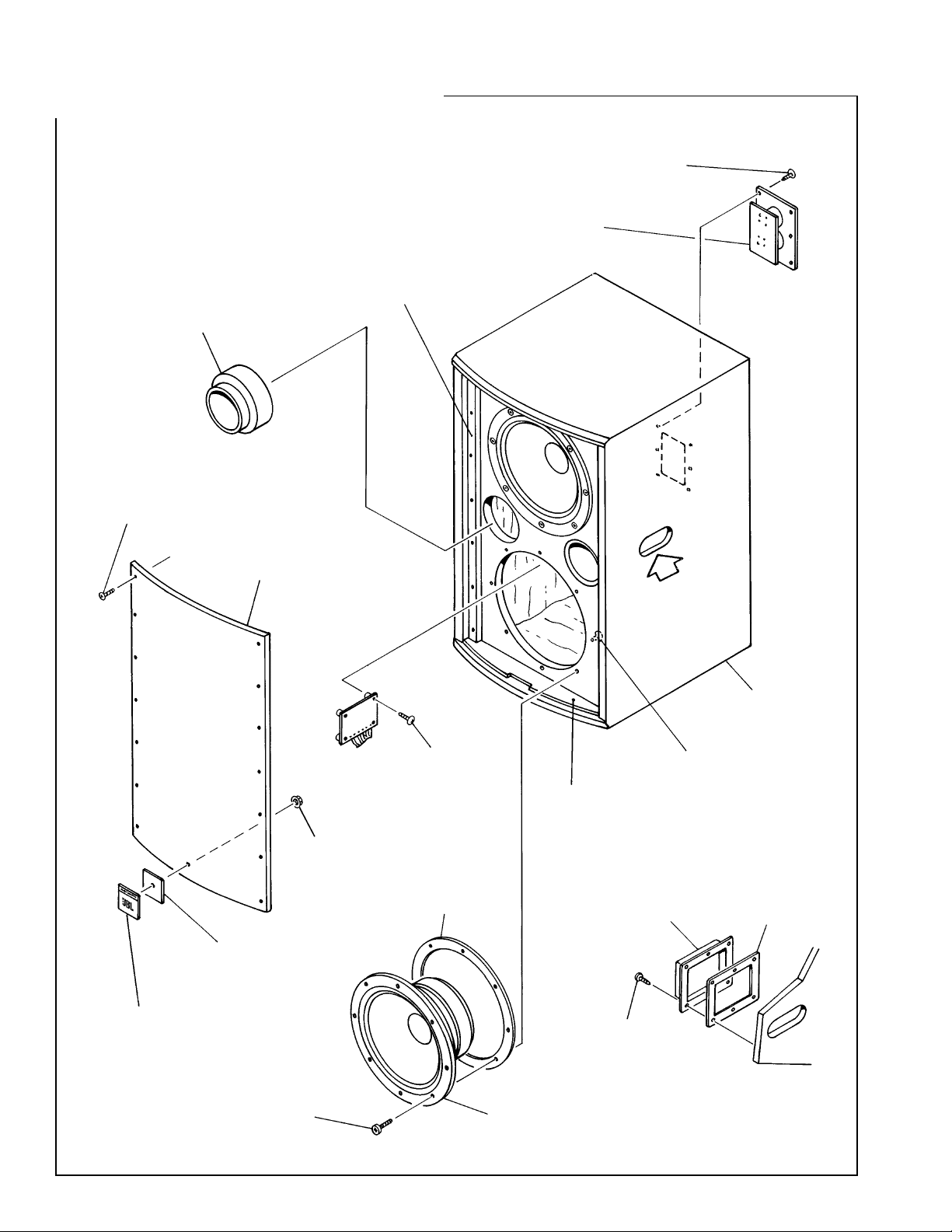

COMPONENT EXPLODED VIEW

Gasket, Cup (2)

359-00061-06

T-Nut (16)

61861

10-32

Grille Stick

389-00022-00

Logo

950-00031-00

Cup, Handle (2)

923-00018-00

923-0018-01 (Wh)

Screw (12)

883-41110-08

8-32 x .5

PN PH PB BLK

Screw (16)

804-01110-16

10-32 x 1

FIL,PH,BLK,

ZINC

Treated Cones:

Install Sheet 980-00037-00

WR2 (2 oz)

WR16 (16 oz)

Grille

Support (2)

389-00023-00

Cabinet

(Not For Sale)

Grille

128-00393-65

128-00393-00 (Wh)

Speaker,

Low Freq (2)

2032H

(318219-001X)

Cone Repl

C8R2032

Network

129-10032-00

Logo Pad

55830

Keps Nut

833-30110-00

10-32 BLK

Gasket (2)

359-00200-03

Port Tube (2)

393-60000-14

(Not For Sale)

Screw (6)

882-51110-12

6 x 3/4

OV PH

Screw (14)

882-51110-12

6 x 3/4

OV PH

Screw (4)

882-51110-12

6 x 3/4

OV PH

VIEW A

NOTE:BLACK DURAFLEX

REPAIR KIT 16677

WHITE DURAFLEX

REPAIR KIT 16679
