Jenn-Air JBC2088HTQ Manuale utente

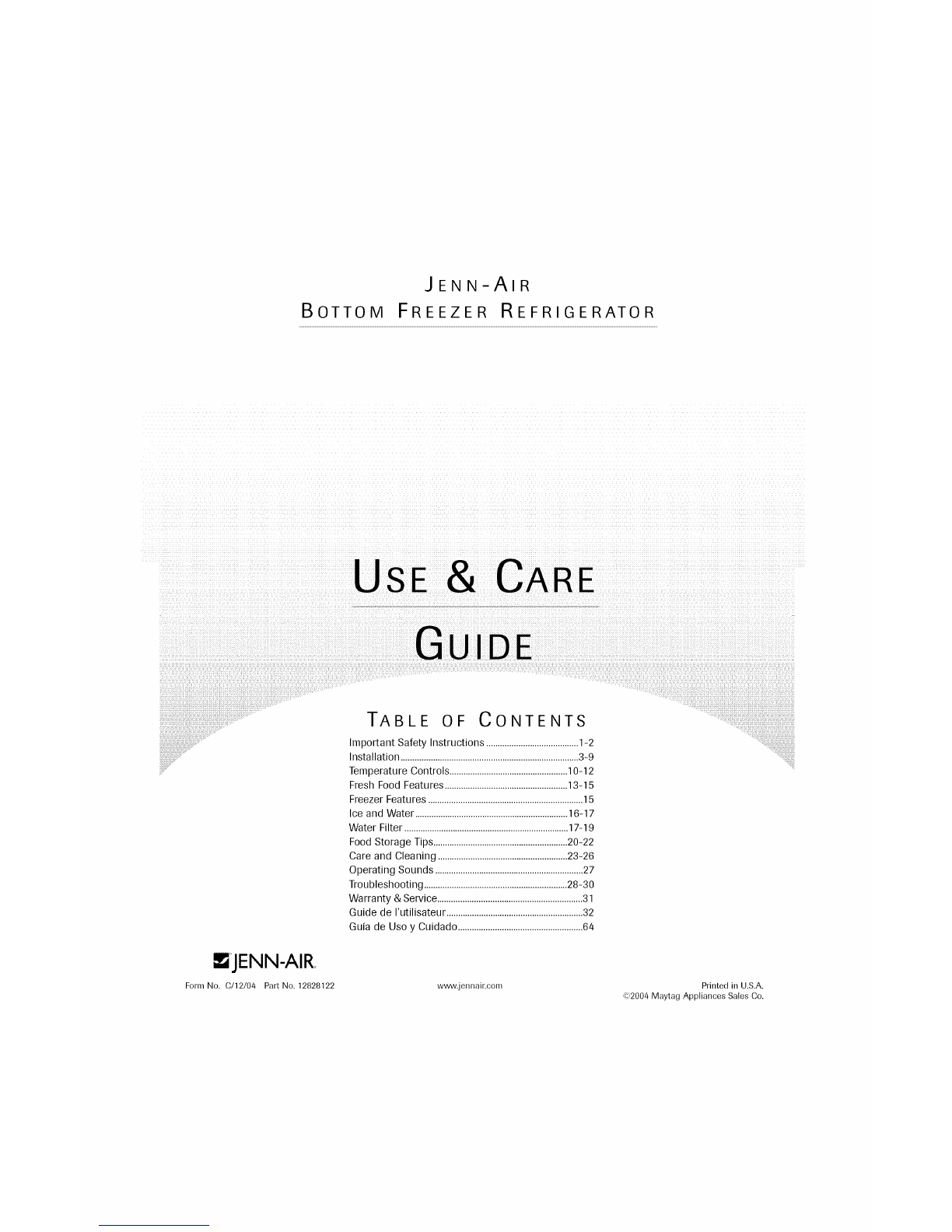

JENN-AIR

BOTTOM FREEZER REFRIGERATOR

JENN-AIR

Form No. 0/12/04 Part No. 12828122

Important Safety Instructions ........................................1-2

Installation .............................................................................3-9

Temperature Controls ...................................................10-12

Fresh Food Features .....................................................13-15

Freezer Features ...................................................................15

Ice and Water ..................................................................16-17

Water Filter .......................................................................17-19

Food Storage Tips ..........................................................20-22

Care and Cleaning ........................................................23-26

Operating Sounds ................................................................27

Troubleshooting ..............................................................28-30

Warranty & Service ...............................................................31

Guide de I'utilisateur ...........................................................32

Guia de Uso y Cuidado ......................................................64

www.jennair.com Printed in U.S.A.

,_)2004 Maytag Appliances Sales Co.

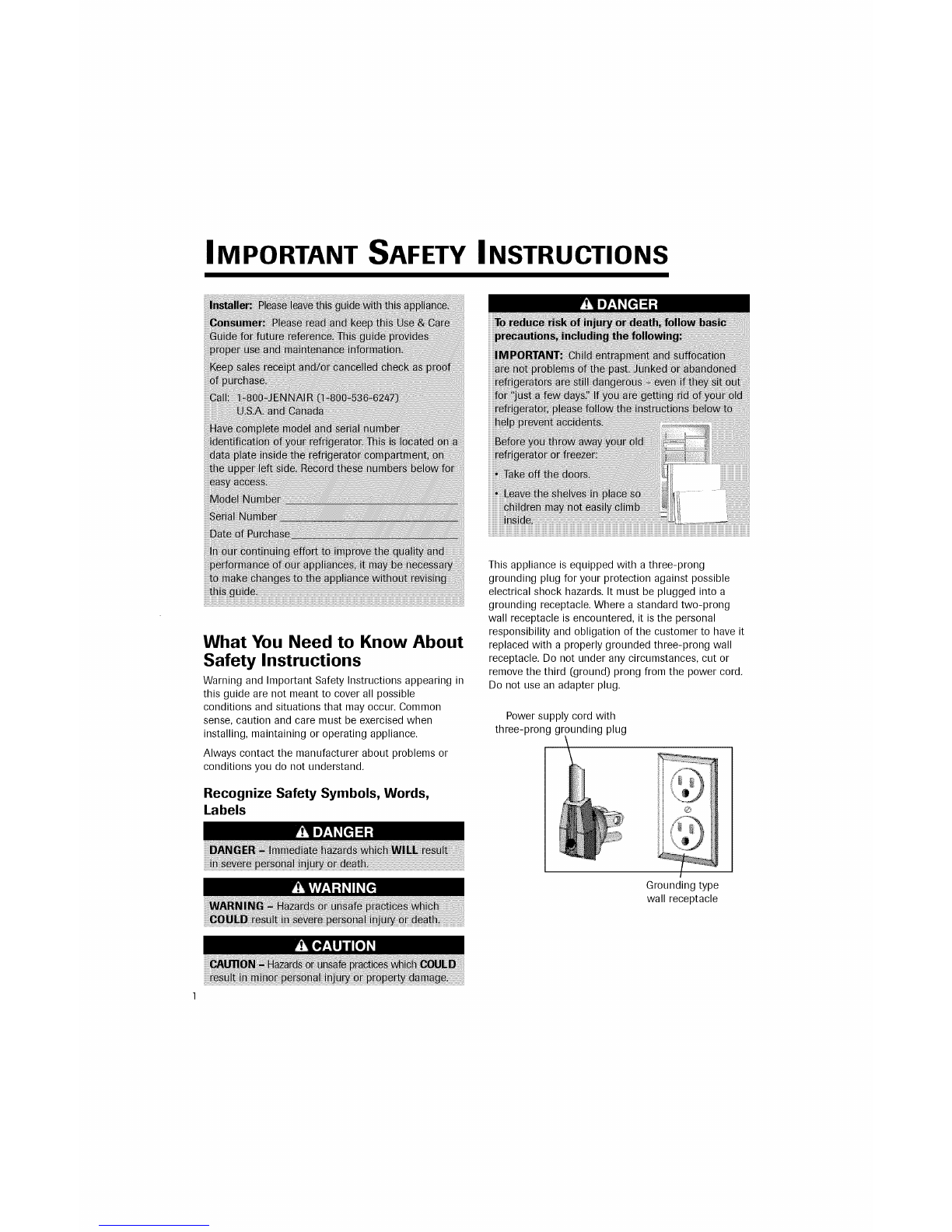

I MPORTANT SAFETY I NSTRUCTIONS

What You Need to Know About

Safety Instructions

Warning and Important Safety Instructions appearing in

this guide are not meant to cover all possible

conditions and situations that may occur. Common

sense, caution and care must be exercised when

installing, maintaining or operating appliance.

Always contact the manufacturer about problems or

conditions you do not understand.

Recognize Safety Symbols, Words,

Labels

This appliance is equipped with a three-prong

grounding plug for your protection against possible

electrical shock hazards. It must be plugged into a

grounding receptacle. Where a standard two-prong

wall receptacle is encountered, it is the personal

responsibility and obligation of the customer to have it

replaced with a properly grounded three-prong wall

receptacle. Do not under any circumstances, cut or

remove the third (ground} prong from the power cord.

Do not use an adapter plug.

Power supply cord with

three-prong grounding plug

Grounding type

wall receptacle

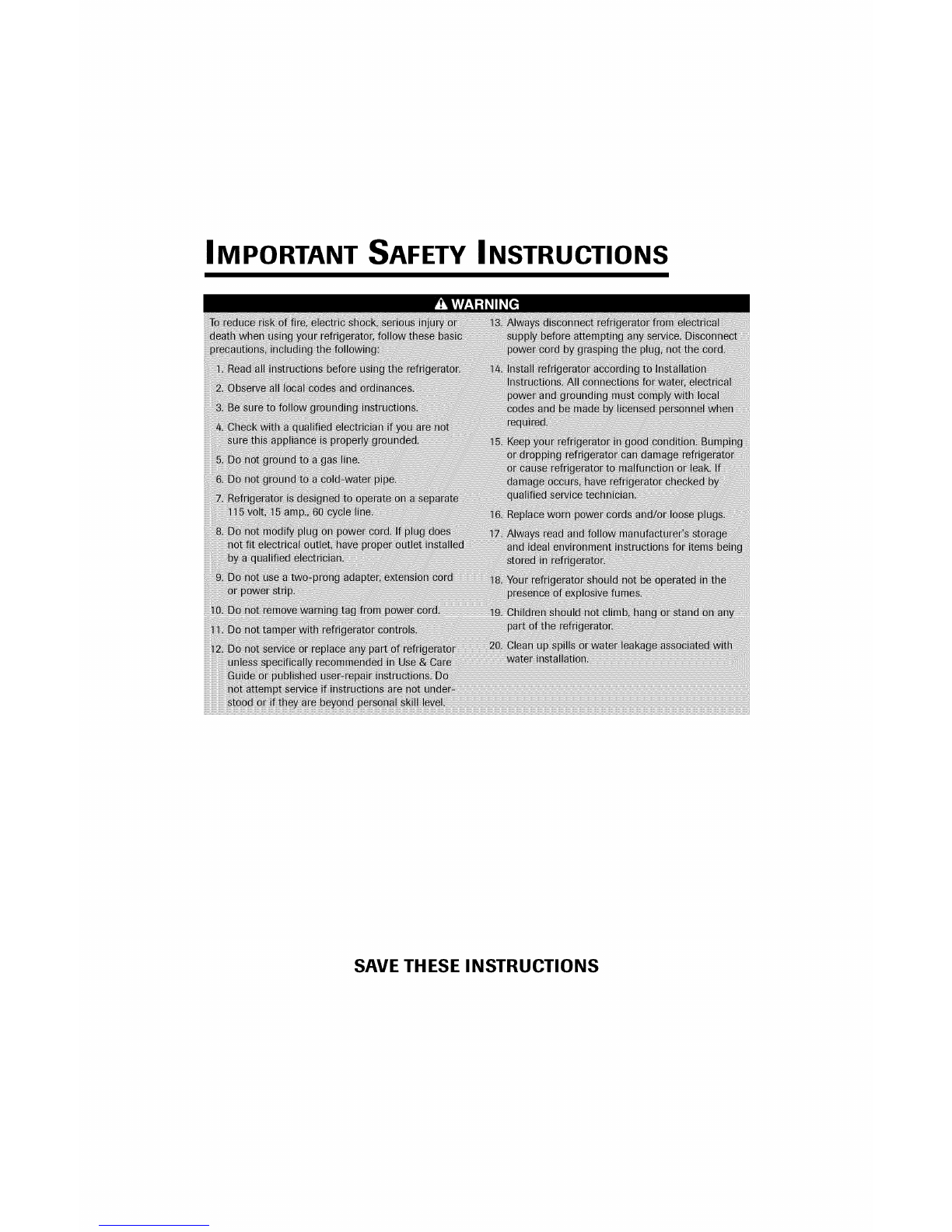

I MPORTANT SAFETY I NSTRUCTIONS

SAVE THESE INSTRUCTIONS

I NSTALLATI 0 N

Your refrigerator was packed carefully for shipment.

Remove and discard shelf packaging and tape. Do not

remove the serial plate.

Location

• Do not install refrigerator near oven, radiator or other

heat source. If not possible, shield refrigerator with

cabinet material.

• Do not install where temperature falls below 55° F

(13° C) or rises above 110° F (43° C). Malfunction

may occur at this temperature.

•Refrigerator is designed for indoor household

application only.

Measuring the Opening

When installing your refrigerator, measure carefully.

Allow '/2"space at top and '/;' space behind the

machine compartment cover (located in the rear) for

proper air circulation.

Subflooring or floor coverings (i.e. carpet, tile, wood

floors, rugs) may make your opening smaller than

anticipated.

Some clearance may be gained by using the leveling

procedure under Leveling.

IMPORTANT: If refrigerator is to be installed into a

recess where the top of the refrigerator is completely

covered, use dimensions from floor to top of hinge cap

to verify proper clearance.

Transporting Your Refrigerator

• NEVER transport refrigerator on its side. If an

upright position is not possible, lay refrigerator on its

back. Allow refrigerator to sit upright for

approximately 30 minutes before plugging it in to

assure oil returns to the compressor. Plugging the

refrigerator in immediately may cause damage to

internal parts.

• Use an appliance dolly when moving refrigerator.

ALWAYS truck refrigerator from its side or

back-NEVER from its front.

Protect outside finish of refrigerator during transport

by wrapping cabinet in blankets or inserting padding

between the refrigerator and dolly.

Secure refrigerator to dolly firmly with straps or

bungee cords. Thread straps through handles when

possible. Do not overtighten. Overtightening

restraints may dent or damage outside finish.

Glass Panel Doors (select models)

IINSTALLATION

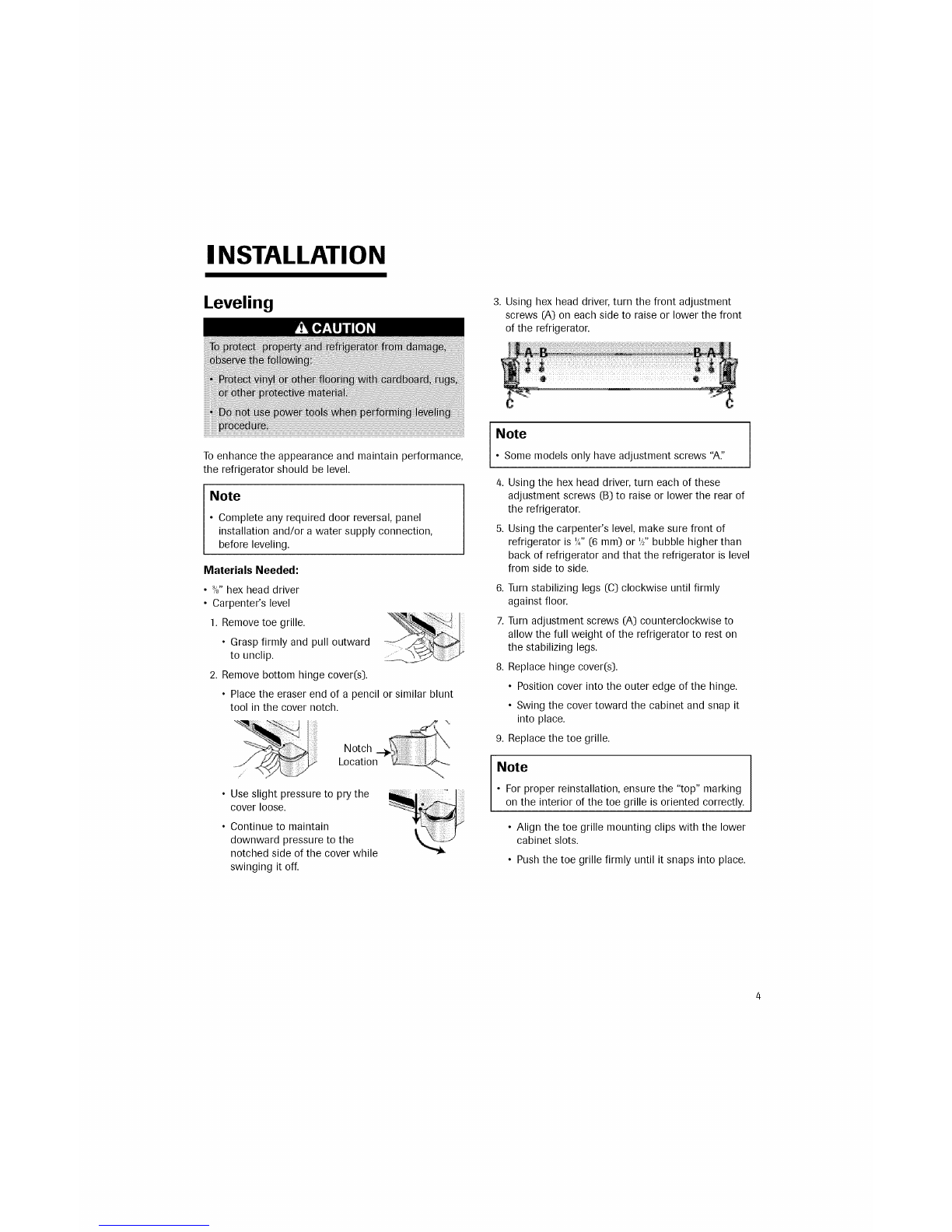

Leveling 3. Using hex head driver, turn the front adjustment

screws (A) on each side to raise or lower the front

of the refrigerator.

To enhance the appearance and maintain performance,

the refrigerator should be level.

Note

• Complete any required door reversal, panel

installation and/or a water supply connection,

before leveling.

Materials Needed:

•%"hex head driver

• Carpenter's level

1. Remove toe grille.

• Grasp firmly and pull outward

to unclip.

2. Remove bottom hinge cover(s).

• Place the eraser end of a pencil or similar blunt

tool in the cover notch.

Notch

Location

• Use slight pressure to pry the

cover loose.

• Continue to maintain

downward pressure to the

notched side of the cover while

swinging it off.

Note I

• Some models only have adjustment screws "A"

Using the hex head driver, turn each of these

adjustment screws (B) to raise or lower the rear of

the refrigerator.

Using the carpenter's level, make sure front of

refrigerator is '/4" (6 ram) or '/2"bubble higher than

back of refrigerator and that the refrigerator is level

from side to side.

6. Turn stabilizing legs (C) clockwise until firmly

against floor.

7. Turn adjustment screws (A) counterclockwise to

allow the full weight of the refrigerator to rest on

the stabilizing legs.

8. Replace hinge cover(s).

• Position cover into the outer edge of the hinge.

• Swing the cover toward the cabinet and snap it

into place.

9. Replace the toe grille.

Note

• For proper reinstallation, ensure the "top" marking

on the interior of the toe grille is oriented correctly.

• Align the toe grille mounting clips with the lower

cabinet slots.

• Push the toe grille firmly until it snaps into place.

I NSTALLATI ON

Door and Drawer Removal

Some installations require door/drawer removal to

transport the refrigerator to its final location.

1. Unplug power cord from power source.

2. Remove toe grille and bottom hinge

cover(s) (see page 4).

3. Remove top hinge cover from

refrigerator door by removing Phillips

screw and retain screw and cover for

later use.

Unscrew -_,6"hex head screws from

top hinge to remove hinge and

retain all screws for later use.

Lift refrigerator door from center

hinge pin.

Remove plastic sleeve, if present.

Remove center hinge pin with a -_6"hex

head driver. Retain hinge pin and

plastic sleeve for later use.

Remove Phillips screws to remove

center hinge and retain all screws for

later use.

8. Remove bottom hinge or stabilizing

bracket with 3/6"hex head driver and

retain screws for later use. Lift out

bottom hinge pin (on freezer door

models).

9. See page 6 for drawer removal

instructions.

I NSTALLATI 0 N

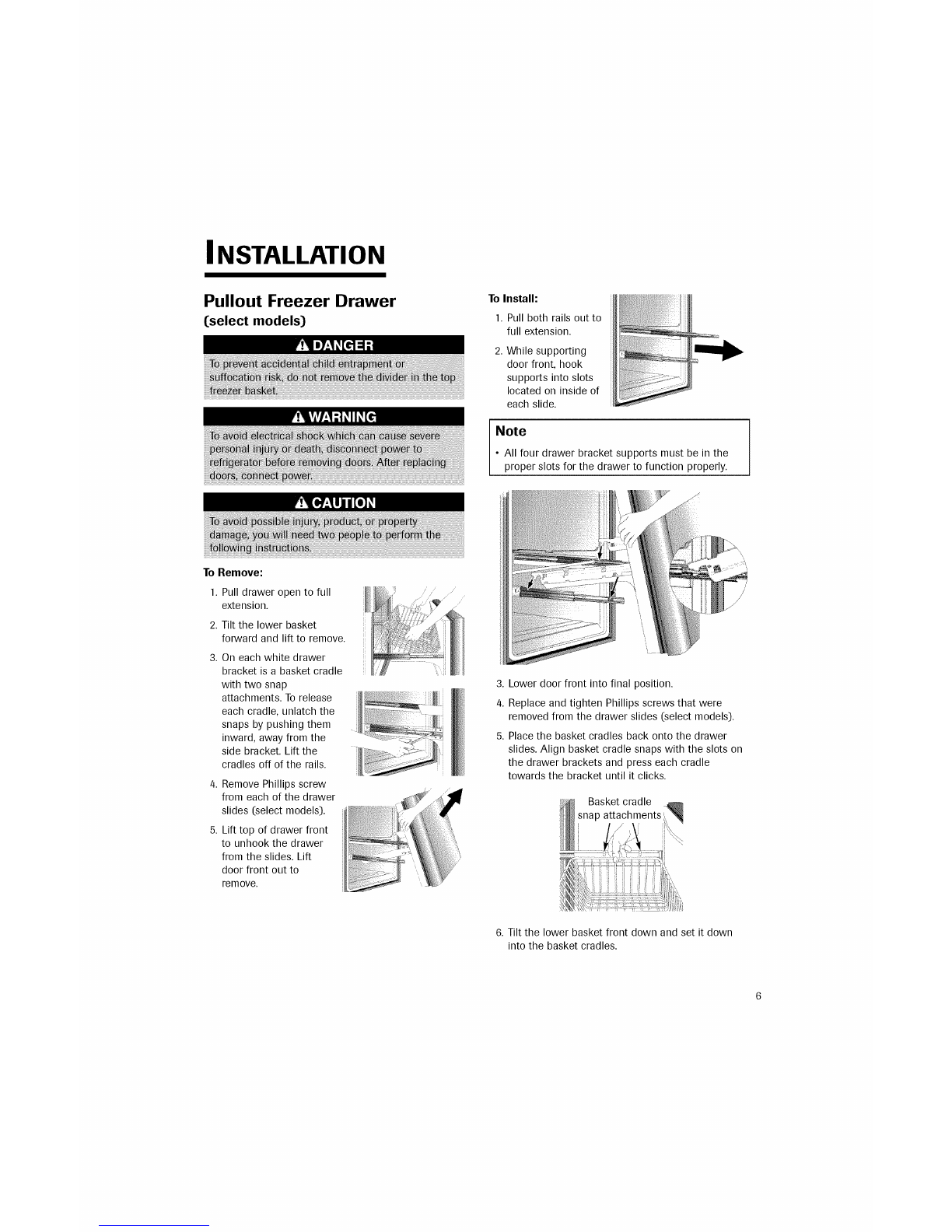

Pullout Freezer Drawer

{select models)

To Install:

1. Pull both rails out to

full extension.

2. While supporting

door front, hook

supports into slots

located on inside of

each slide.

Note

•All four drawer bracket supports must be in the

proper slots for the drawer to function properly.

To Remove:

1. Pull drawer open to full

extension.

2. Tilt the lower basket

forward and lift to remove.

3. On each white drawer

bracket is a basket cradle

with two snap

attachments. To release

each cradle, unlatch the

snaps by pushing them

inward, away from the

side bracket. Lift the

cradles off of the rails.

4. Remove Phillips screw

from each of the drawer

slides (select models).

5. Lift top of drawer front

to unhook the drawer

from the slides. Lift

door front out to

remove.

/4.

Lower door front into final position.

Replace and tighten Phillips screws that were

removed from the drawer slides (select models).

Place the basket cradles back onto the drawer

slides. Align basket cradle snaps with the slots on

the drawer brackets and press each cradle

towards the bracket until it clicks.

Basket cradle

snap attachments

6. Tilt the lower basket front down and set it down

into the basket cradles.

I NSTALLATI 0 N

Reinstallation of the Doors

1. Install hinge assemblies:

• Install top hinge loosely with 5/,6"hex head

screws.

• Install center hinge with Phillips screws.

• Freezer door models: Install bottom hinge with

3//,hex head screws.

2. Freezer door models: Insert bottom

hinge pin.

• Locate bottom hinge hole closest to

outside edge of cabinet, and insert

bottom hinge pin. Replace any door

shims, if present.

3. Freezer door models: Place hinge

side of freezer door on bottom hinge

pin and hold freezer door upright

while installing center hinge pin with

6/,6"hex head driver.

• Replace plastic sleeve.

• Replace any applicable door shims.

• Make sure the hinge pin is installed tightly.

Place hinge side of refrigerator door on center

hinge pin.

While holding refrigerator door |

upright, tighten down top hinge

with _,_"hex head driver and "_,.

replace hinge cover.

Handle Removal (style varies by model)

Materials Needed:

• 3/32"allen wrench

To Remove:

• Remove set screw from

handle mounting post

using _2" allen wrench.

• Repeat the procedure on

all posts to remove the

handle.

To Replace:

• Align handle with the

mounting posts.

• Fully tighten all set screws to secure handle

in place.

I NSTALLATI 0 N

Installing Front-Mounted Handles for

Stainless Steel Door

1. Loosen lower door clip on door _..........

with a phillips screwdriver.

Installing Front-Mounted Handles for

Stainless Steel Freezer Door

1. Loosen lower door clip on door

with a phillips screwdriver.

2. Locate predrilled hole at base of

handle, and fit hollow end of

handle over lower door clip.

3. Fit other end of handle over upper

door clip and slide up as far as

possible.

NOTE: If top of handle does not

fit over top clip, loosen lower clip

further until fit can be

accomplished.

4. Insert phillips screwdriver into

predrilled hole at base of handle

to tighten screw. Insert plastic

button plug into hole.

Removing Front-Mounted Handles for

Stainless Steel Door

1. Remove plastic button plug at base of handle with a

very small flat-blade screwdriver.

• Insert phillips screwdriver into

predrilled hole to remove screw.

2. Slide handle down and remove from

door clip.

iili!i!!ii........

¢!,

2. Locate predrilled hole at

base of handle, and fit hollow

end of handle over left door

clip.

Fit other end of handle over "._,

left door clip and slide left as

far as possible.

NOTE: If end of handle does

not fit over left clip, loosen

right clip further until fit can

be accomplished.

Insert phillips screwdriver

into predrilled hole at end of

handle to tighten screw.

Insert plastic button plug into hole.

Removing Front-Mounted Handles for

Stainless Steel Freezer Door

1. Remove right side plastic button

plug at end of handle with a

very small flat-blade screwdriver. .......

• Insert phillips screwdriver into

predrilled hole to remove

screw.

2. Slide handle right and remove

from door clip.

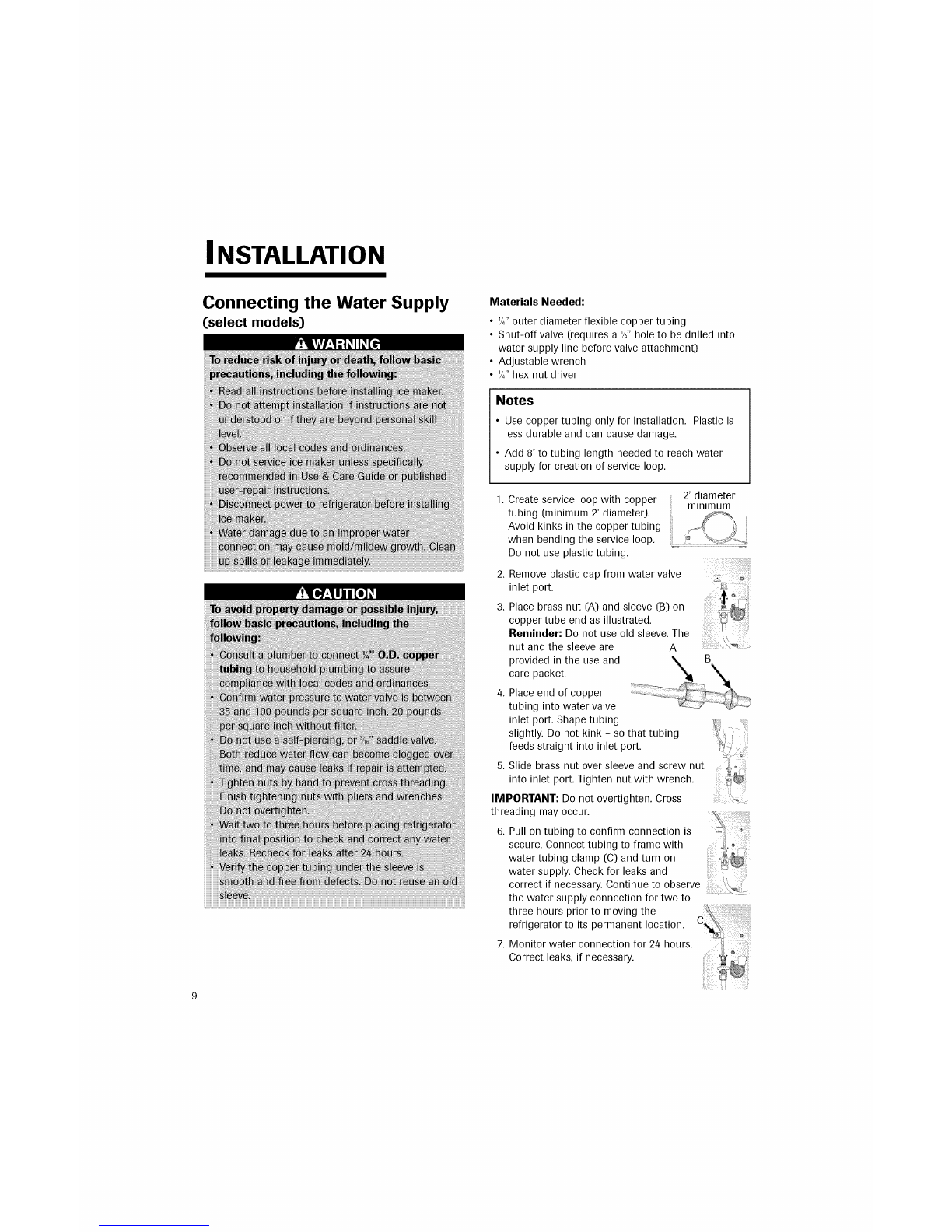

I NSTALLATI 0 N

Connecting the Water Supply

[select models)

Materials Needed:

•'/4"outer diameter flexible copper tubing

• Shut-off valve (requires a '/4"hole to be drilled into

water supply line before valve attachment)

• Adjustable wrench

• '/;' hex nut driver

Notes

• Use copper tubing only for installation. Plastic is

less durable and can cause damage.

• Add 8' to tubing length needed to reach water

supply for creation of service loop.

2' diameter

minimum

Create service loop with copper

tubing (minimum 2' diameter).

Avoid kinks in the copper tubing

when bending the service loop.

Do not use plastic tubing.

Remove plastic cap from water valve

inlet port.

Place brass nut (A) and sleeve (B) on

copper tube end as illustrated.

Reminder: Do not use old sleeve. The

nut and the sleeve are A

provided in the use and

care packet.

.Place end of copper

tubing into water valve

inlet port. Shape tubing

slightly. Do not kink - so that tubing

feeds straight into inlet port.

5. Slide brass nut over sleeve and screw nut

into inlet port. Tighten nut with wrench.

IMPORTANT: Do not overtighten. Cross

threading may occur.

6_ Pull on tubing to confirm connection is ::'_

secure. Connect tubing to frame with ,&.,o

water tubing clamp (C)and turn on

water supply. Check for leaks and

correct if necessary. Continue to observe ,,:_

the water supply connection for two to

three hours prior to moving the

refrigerator to its permanent location.

7. Monitor water connection for 24 hours.

Correct leaks, if necessary.

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali Jenn-Air Frigorifero

Jenn-Air

Jenn-Air JBR2086HES Manuale utente

Jenn-Air

Jenn-Air JUGFR242HM00 Manuale utente

Jenn-Air

Jenn-Air JS48PPDUDB01 Manuale utente

Jenn-Air

Jenn-Air JFC2089BEP Manuale utente

Jenn-Air

Jenn-Air JF36NXFXDE Manuale utente

Jenn-Air

Jenn-Air JFI2589AEP10 Manuale utente

Jenn-Air

Jenn-Air JCD2591WES00 Manuale utente

Jenn-Air

Jenn-Air JCB2587WEY Manuale utente

Jenn-Air

Jenn-Air JFFCC72EHL01 Manuale utente

Jenn-Air

Jenn-Air JFI2589AES2 Manuale utente

Jenn-Air

Jenn-Air JB36SEFXRB Manuale utente

Jenn-Air

Jenn-Air Euro-Style Design JS48SSDUDE Manuale utente

Jenn-Air

Jenn-Air JFC2290VEM Manuale utente

Jenn-Air

Jenn-Air JUD278DBCX00 Manuale utente

Jenn-Air

Jenn-Air JFC2089HPR11 Manuale utente

Jenn-Air

Jenn-Air JUDFP242HM Manuale utente

Jenn-Air

Jenn-Air JCB2585WEP00 Manuale utente

Jenn-Air

Jenn-Air JCD2595WES00 Manuale utente

Jenn-Air

Jenn-Air JCB2581WES00 Manuale utente

Jenn-Air

Jenn-Air JS42SEFXDB Manuale utente

Jenn-Air

Jenn-Air JSC24C8EAM00 Manuale utente

Jenn-Air

Jenn-Air jb36ssfxra Manuale utente

Jenn-Air

Jenn-Air JS42SEFXDB Manuale utente

Jenn-Air

Jenn-Air JS42PPDUDB01 Manuale utente

Manuali Frigorifero popolari di altre marche

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuale utente

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuale utente

Sharp

Sharp SJ-BA31IEXW2-EU Manuale utente

CORBERO

CORBERO CC2300MCW Manuale utente

KitchenAid

KitchenAid 2205264 Manuale utente

Stengel

Stengel KU 1101 A++ Manuale utente

NEFF

NEFF KI181 Series Manuale utente

Hoshizaki

Hoshizaki Reach-In Manuale utente

Amana

Amana ASD2524VES00 Manuale utente

BOMANN

BOMANN KGC 213 Manuale utente

Danby

Danby DAR044A1SLDD Istruzioni per il montaggio

Samsung

Samsung RF323TE Manuale utente

Beko

Beko CSA31022 Manuale utente

IKEA

IKEA FROSTIG C 185 E Manuale utente

Electrolux

Electrolux ER 6821 D Manuale utente

True

True TS-28 Manuale utente

Frigidaire

Frigidaire FSC23R5DW9 Manuale utente

Beko

Beko LSP4579W Manuale utente
