Jenn-Air JFC2089HPR11 Manuale utente

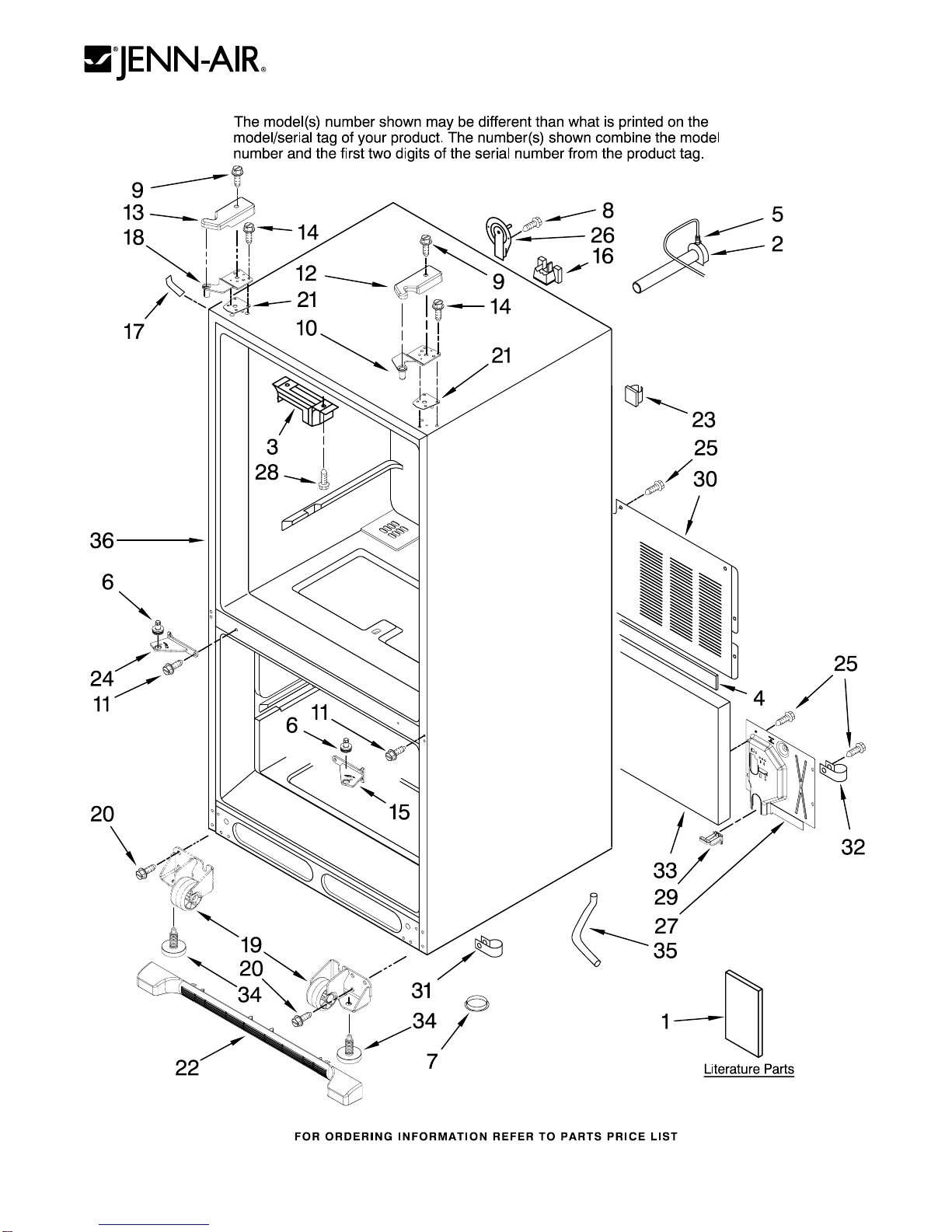

CABINET PARTS

For Model: JFC2089HPR11

(Oiled Bronze)

4−08 Litho In U.S.A. (PAL) (eeb) Part No. W10204058 Rev. A

REFRIGERATOR

CABINET PARTS

For Model: JFC2089HPR11

(Oiled Bronze)

W10204058

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

67006616 Tech Sheet

W10137647

Owners Manual

67005575 Tag, Energy

W10137519

Elbow, Fill Tube

3 67003405 Block, Pivot

4 B5759649 Gasket

5 M0114003 Clip, Speed

6 67006642 Pin, Center Hinge

7 A3076901 Plug, Button

8 67006287 Screw

9 67006521 Screw

12626907ED

Hinge, Top Right

11 67006380 Screw (6)

12 Cover, Right Hinge

12629801B

Black

13 Cover, Left Hinge

67006726 Black

14 67006303 Screw (6)

15 Hinge, Center (RT)

67002960 Black

16 67004092 Block, Fill Tube

17 Cover, Corner (2)

67003485 Black

12626908ED

Hinge, Top Left

19 Roller Assy.

(Front)

W10130459

Right

W10130460

Left

20 67006564 Screw (8)

21 12579702 Shim, Hinge

22 Grille, Toe

W10131134

Black

23 M0104106 Clip (2)

24 Hinge, Center (LT)

67002960 Black

25 67006425 Screw (10)

26 67003331 Cover, Water Line

27 67004098 Cover, Water Valve

28 67006669 Screw (2)

29 67004101 Sweep, Dual Tube

30 67006101 Cover, Unit

W10157973

Clip, Drain Tube

32 M0108105 Clamp, Tube

33 67003796 Insulation, Sound

W10141622

Brake, Foot

W10164397

Tube, Drain

36 Cabinet (Not a

Servicable Part)

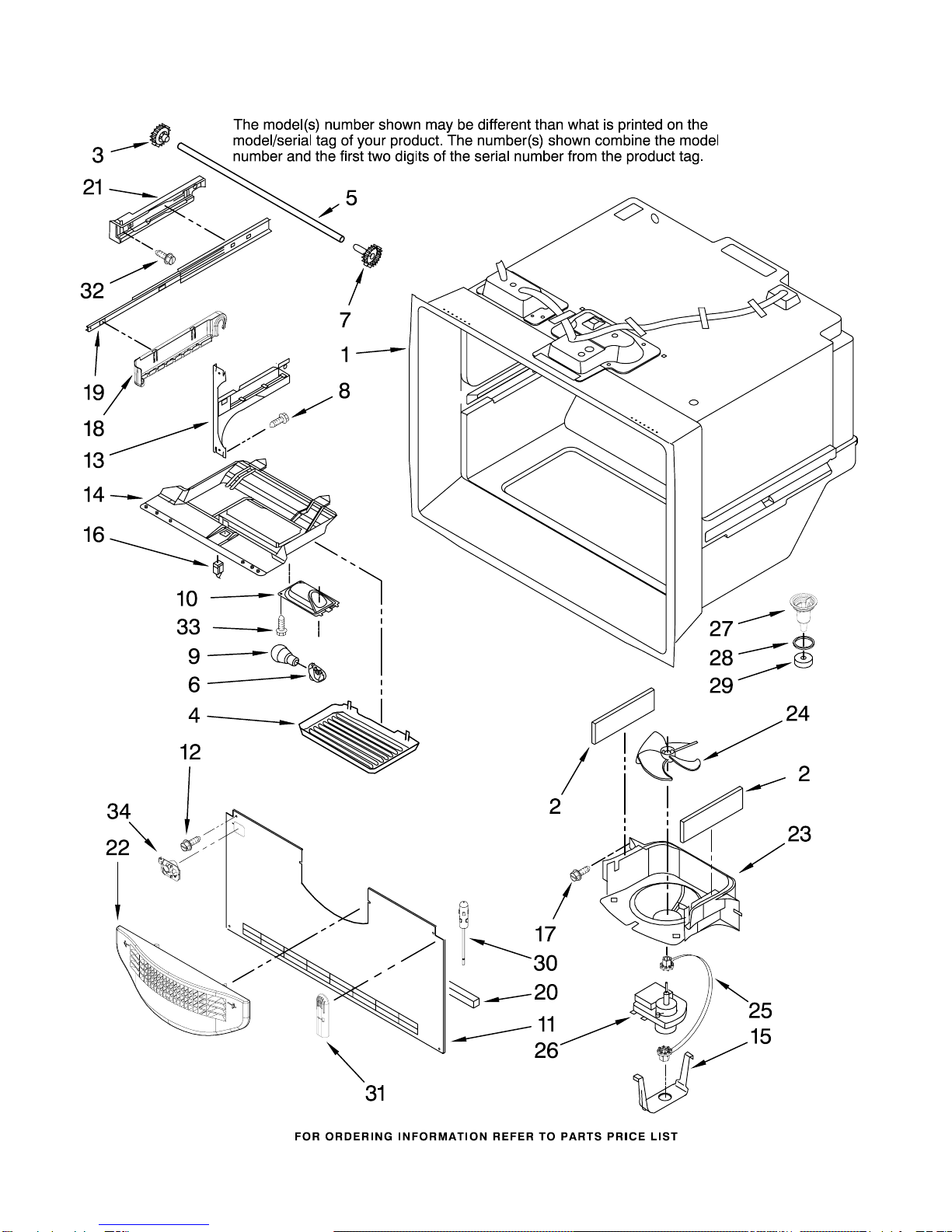

FREEZER LINER PARTS

For Model: JFC2089HPR11

(Oiled Bronze)

W10204058

FREEZER LINER PARTS

For Model: JFC2089HPR11

(Oiled Bronze)

W10204058

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 67001291 Gasket, Foam

3 12002497 Gear (Left)

(Includes Item 7)

4 67003905 Cover, Light

5 67004017 Shaft

Y12570701

Socket, Light

7 12002497 Gear (Right)

(Includes Item 3)

8 67006473 Screw (8)

9 A0282812 Bulb, Light

10 67001035 Housing, Light

11 67005873 Cover, Evaporator

12 67006425 Screw (4)

13 Bracket, Door

W10119064

Left

W10119295

Right

14 67003906 Housing, Light

W10167028

Clip, Evap Motor

16 67005653 Switch, Light

17 67006287 Screw (2)

18 Cradle, Basket

67004728 Left

67004729 Right

W10180420

Slide, Drawer (2)

20 67002492 Gasket, Bottom

21 Adapter, Slide

67004971 Left

67004972 Right

W10175909

Grille, Fz Air

W10167023

Shroud, Evap Fan

24 2169142 Blade, Fan

(Evaporator)

W10121318

Grommet

26 67003636 Motor, Evaporator

27 D7753903 Funnel, Drain

28 M0500703 Seal

29 B8381501 Gasket

30 12002355 Thermistor

31 67003924 Cover, Thermistor

32 67006406 Screw (6)

33 67006530 Screw

34 67005874 Guide, Fill Tube

Following Parts Not Illustrated

67006095 Harness, Fz Module

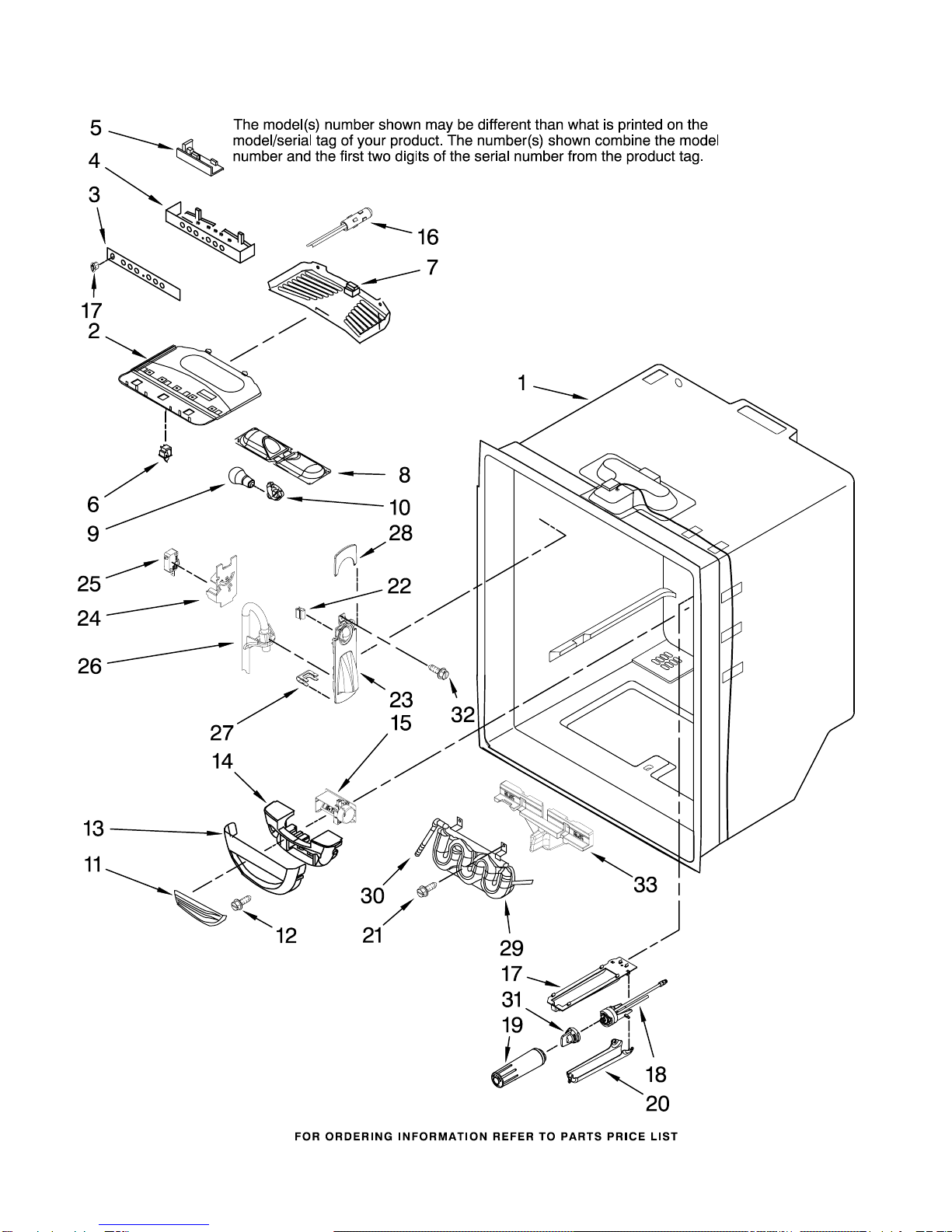

REFRIGERATOR LINER PARTS

For Model: JFC2089HPR11

(Oiled Bronze)

W10204058

REFRIGERATOR LINER PARTS

For Model: JFC2089HPR11

(Oiled Bronze)

W10204058

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 67004078 Module, Light

3 67005445 Overlay

W10185585

Housing, Control

5 67005397 Board, Control

6 C3680310 Switch, Light (2)

7 67003897 Cover, Light

8 67003901 Housing, Light

9 A0282812 Bulb, Light (2)

Y12570701

Socket, Light (2)

11 67003900 Insert,

Damper Cover

12 67006602 Screw

13 67003899 Cover, Damper

14 67006604 Insulation

W10127429

Control, Damper

16 12002355 Thermistor

17 67001668 Plate

18 67006524 Head, Water Filter

UKF8001AXX

Filter, Water

20 12568001 Cover, Filter

21 67006415 Screw (2)

22 B8390302 Clip, Facade (2)

W10158503

Facade, Disp.

24 67002742 Plate, Switch

25 12575501 Switch, Limit

26 67003728 Guide, Waterline

27 67002816 Clip, Waterline

28 67005674 Facade, Disp (Top)

W10153959

Tank, Water

30 61006182 Union

31 61003146 Plug, Bypass

32 67006400 Screw

W10163893

Insulation, Water

Tank

Following Parts Not Illustrated

67005417 Harness, Control

(Refrigerator)

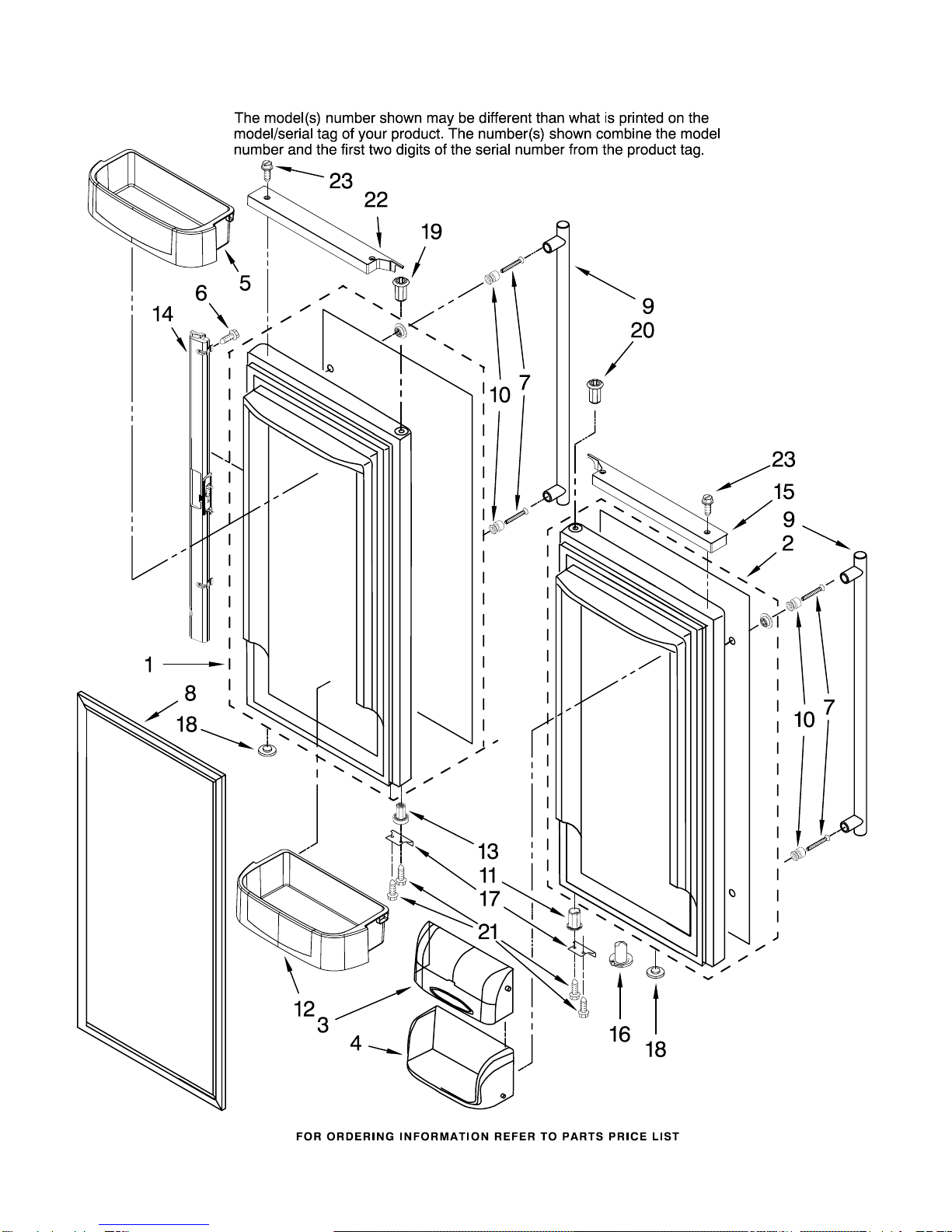

REFRIGERATOR DOOR PARTS

For Model: JFC2089HPR11

(Oiled Bronze)

W10204058

REFRIGERATOR DOOR PARTS

For Model: JFC2089HPR11

(Oiled Bronze)

W10204058

Illus. Part

No. No. DESCRIPTION

1 Door, Left

W10143255

Oiled Bronze

2 Door, Right

W10143254

Oiled Bronze

3 67003637 Door, Dairy

4 67001279 Tray, Dairy

5 67004748 Bin, Shelf (3)

(Medium)

6 67006786 Screw

W10133608

Screw

8 Gasket, Door (2)

12723206B

Black

9 Door Handle

12850910 Stainless

10 67006109 Mount, Handle

11 67002731 Bushing, Door

(Bottom Right)

12 67004749 Bin, Shelf (2)

(Gallon)

13 67002721 Bushing, Door

(Bottom Left)

14 Mullion, Door

67003264 Black

15 67005569 Extension, Door

(Right−Black)

16 Closure, Door

67003639 Black

17 Stop, Door

67003780 Black

18 Plug, Button

67004838 Black

19 Bushing, Door

(Upper Left)

12395501B

Black

20 Bushing, Door

(Upper Right)

67004978 Black

21 67006287 Screw

22 67005567 Extension, Door

(Left−Black)

23 67006679 Screw, Extension

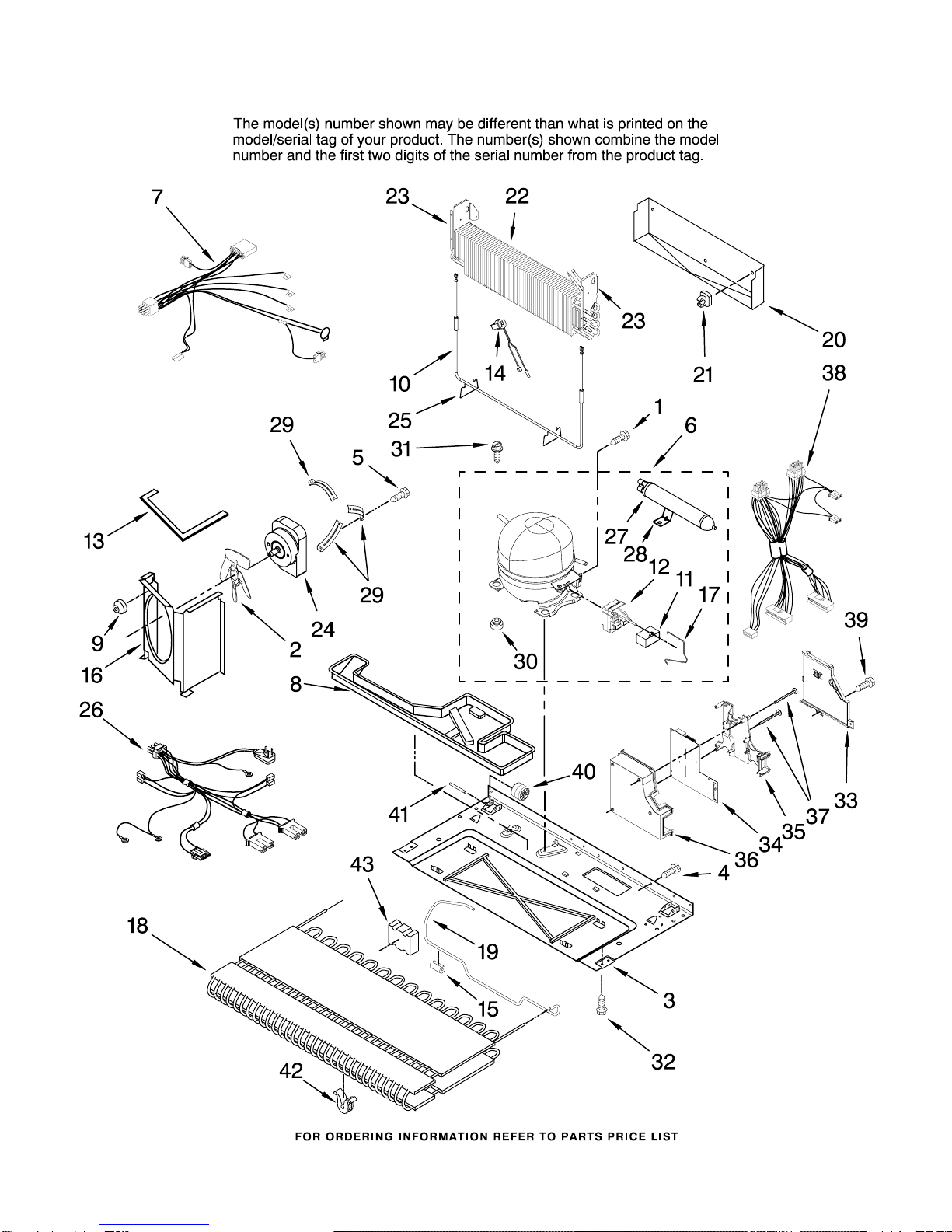

UNIT PARTS

For Model: JFC2089HPR11

(Oiled Bronze)

W10204058

UNIT PARTS

For Model: JFC2089HPR11

(Oiled Bronze)

W10204058

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 67006433 Screw

W10162928

Blade, Fan

3 67005889 Basepan

4 67006425 Screw (2)

5 67004954 Screw (3)

6 12002634 Compressor Kit

(Includes items

11,12,17,27, &

30)

W10119857

Harness, Evap

Heater

8 67007175 Pan, Drain

9 61004743 Grommet (3)

10 67002493 Heater, Defrost

11 67005562 Capacitor

12 67005561 Relay Assy.

13 61003210 Gasket

W10165425

Thermostat,

Defrost

15 67005680 Grommet (2)

W10158508

Shroud

17 67007052 Clip, Capacitor

18 67006131 Condenser

19 67004700 Tube, Discharge

20 67002490 Tray, Drip

21 10623002 Clip, Evaporator

22 12002041 Evaporator Kit

(Incl. Evap., Heat

Shield, & Instr.

Sheet)

23 Dam

67001084 Right Side

67001083 Left Side

24 67004432 Motor, Fan

25 10428101 Clip, Heater

26 13060201 Harness, Unit

With Power Cord

27 2317845 Drier

28 10547003 Clip, Drier

29 67004953 Bracket, Fan Motor

30 67003493 Grommet (4)

31 67006432 Screw (3)

32 67006573 Screw (4)

33 67005421 Cover, HV Box

W10173398

Board, HV Control

(Inc. Inst. Sheet)

35 67005418 Spacer, HV Box

36 67004969 Box, HV

37 67006550 Screw (2)

38 67005419 Harness, HV

39 67006615 Screw, Cover

40 67005149 Rolle (2)

41 67006434 Axle, Roller (2)

W10137529

Grommet, Cond (4)

43 67005491 Block, Condenser

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

REFRIGERANT CHARGE

5.0 Ozs.

(R−134A)
