CABINET PARTS

For Model: JS42SEDUDB01

(Stainless Steel)

10−08 Litho In U.S.A. (mjb) (psw) Part No. W10231840 Rev. A

42" BUILT IN

REFRIGERATOR

CABINET PARTS

For Model: JS42SEDUDB01

(Stainless Steel)

W10231840

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10151251

Use & Care Guide

W10164077

Energy Guide

W10159832

Service & Wiring

Sheet

2306424 Icemaker and

Ingredient Care

Center Service

Sheet

2318069 Main Control

Service Sheet

W10151249

Installation

Instructions

2 Cabinet (Not A

Serviceable Part)

3 2260503B Button, Filter

W10138054

Roller, Front &

Rear (4)

5 Support, Leveler

Assembly

W10163493

Right Side

W10163491

Left Side

6 2004514 Clip, Conduit

8 Cap, Water Filter

2260518B Black

9 2307640 Mounting Stud,

Grille

10 2307584 Grommet, Crossover

Tube

11 2005783 Cam, Door Closer

W10121140

Housing, Water

Filter

13 2318189 Tray, Drip Filter

14 3400525 Screw

15 4396841 Filter, Water

16 489399 Screw

17 3400230 Screw, Door Stop

18 2257644 Hinge (Top)

19 2318190 Bracket, Mtg

(Water Filter)

20 489464 Screw

21 2004994 Lock, Adjustable

Bushing

22 2300082 Bushing

24 2221242 Spring, Door

Closure (2)

25 486194 Screw

26 2005008 Retaining Ring,

Adjustable Bushing

W10129069

Wire Clip (5)

28 2006342 Gap, Cover

Assembly (Bottom)

29 Hinge (Bottom)

2006780 Freezer Side

2006779 Refrigerator Side

30 2302876 Bushing,

Adjustable

31 8533913 Screw 1/4−20 x 5/8

32 Skirt−Grille,

Bottom

2209025B Black

33 Extension Arm,

Door Closer

2266882 Right

2266881 Left

34 Grille Bottom,

Front

2325185B Black

35 2005921 Screw

36 Bracket, Support

Base (Front)

2006616 Left

2006556 Right

37 1157158 Screw

38 2006617 Bracket, Support

Base (Rear) (2)

39 2006346 Washer

40 2266880 Bushing,

Extension Arm

41 1163283 Screw

42 Connector, Water

Tube

2209709 5/16−1/4"

2300868 1/4"

43 8281163 Screw

44 Switch, Rocker Arm

1118894 Refrigerator Door

Side

1115373 Freezer Door Side

45 2215938 Cover, Switch (2)

46 487415 Screw (2)

47 Bracket, Switch

2221097 Right

2221096 Left

48 2215612 Cover, Rear

CABINET TRIM PARTS

For Model: JS42SEDUDB01

(Stainless Steel)

W10231840

Illus. Part

No. No. DESCRIPTION

1 Cabinet, Trim

(Right Side)

W10132472

Stainless Steel

3 Screw

1163283 Stainless Steel

4 2316687 Cabinet, Trim

(Bottom)

5 486194 Screw

6 2314017 Cabinet, Trim Top

W10132541

Cabinet Trim

(Left Side)

W10121451

Nutsert (4)

9 2005925 Seal−Trim, Side

10 489464 Screw

FREEZER SHELF PARTS

For Model: JS42SEDUDB01

(Stainless Steel)

W10231840

Illus. Part

No. No. DESCRIPTION

W10175905

Wire, Shelf

3 2302883 Shelf, Fixed (2)

4 2259082 Basket

5 2256270 Front, Basket

6 Slide, Basket

2259317 Right Side

2259318 Left Side

7 8533928 Screw

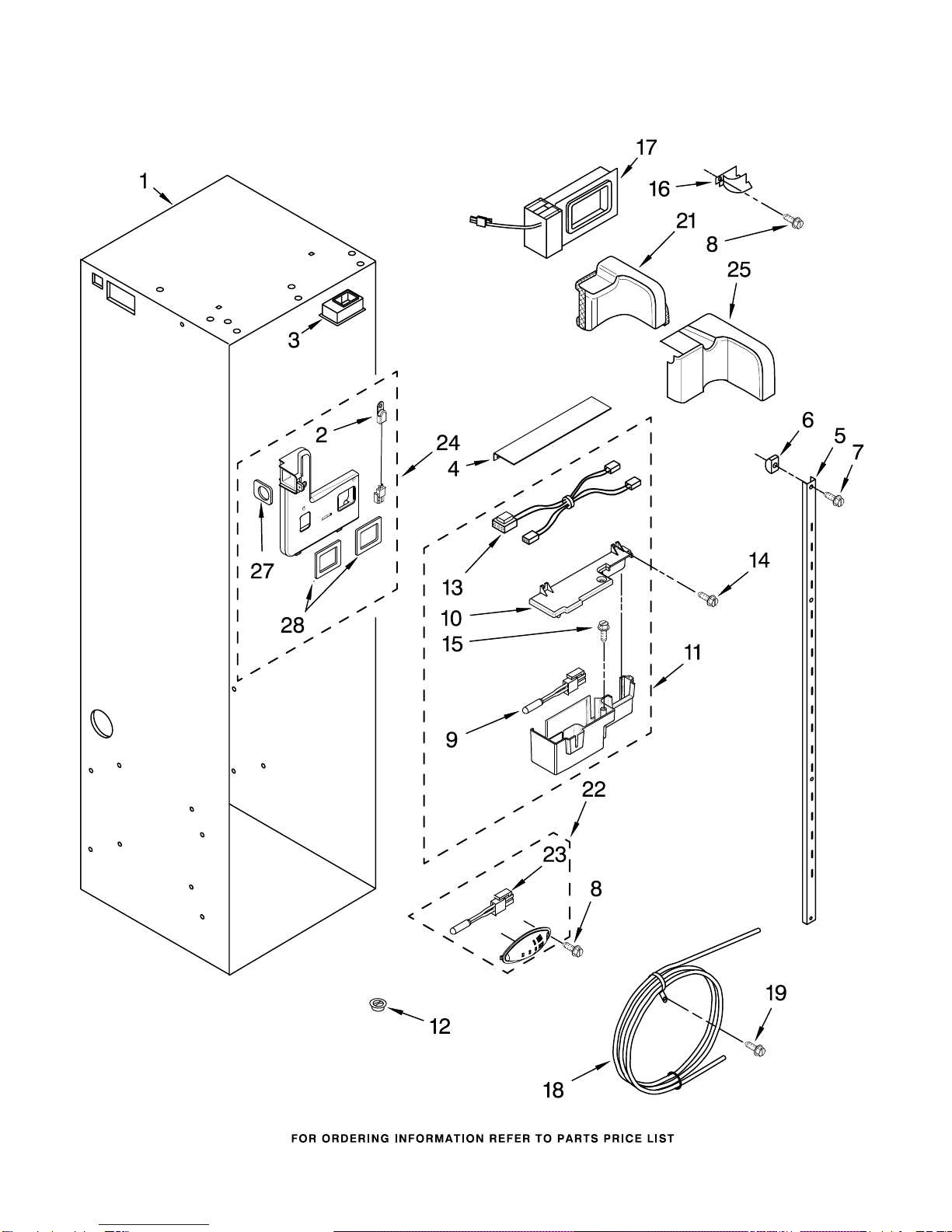

REFRIGERATOR LINER PARTS

For Model: JS42SEDUDB01

(Stainless Steel)

W10231840

REFRIGERATOR LINER PARTS

For Model: JS42SEDUDB01

(Stainless Steel)

W10231840

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 2306010 Thermistor

3 2208970 Air Duct

W10159487

Diverter, Crisper

Cover

5 2259077 Ladder, Shelf (2)

6 520965 Screw Support,

Ladder (8)

7 2006475 Screw

8 487539 Screw

9 2302937 Thermistor

10 2302986 Lid, Meat Pan

Baffle

W10169528

Baffle Control

Assembly

12 2171846 Release Valve

13 2310205 Jumper, Air Baffle

14 488357 Screw

15 486194 Screw

16 2003577 Guard, Air Return

17 2221296 Air Baffle

Assembly

18 2327509 Reservoir

19 488280 Screw

21 2309222 Diffuser Assembly

22 2317844 Thermistor Assy

23 2188820 Thermistor

24 2302992 Spacer, Air−

Baffle

25 2309087 Cover, Diffuser

27 2259412 Seal, Air Duct

(Round Hole)

28 2259398 Seal, Air Duct

(Square Hole)

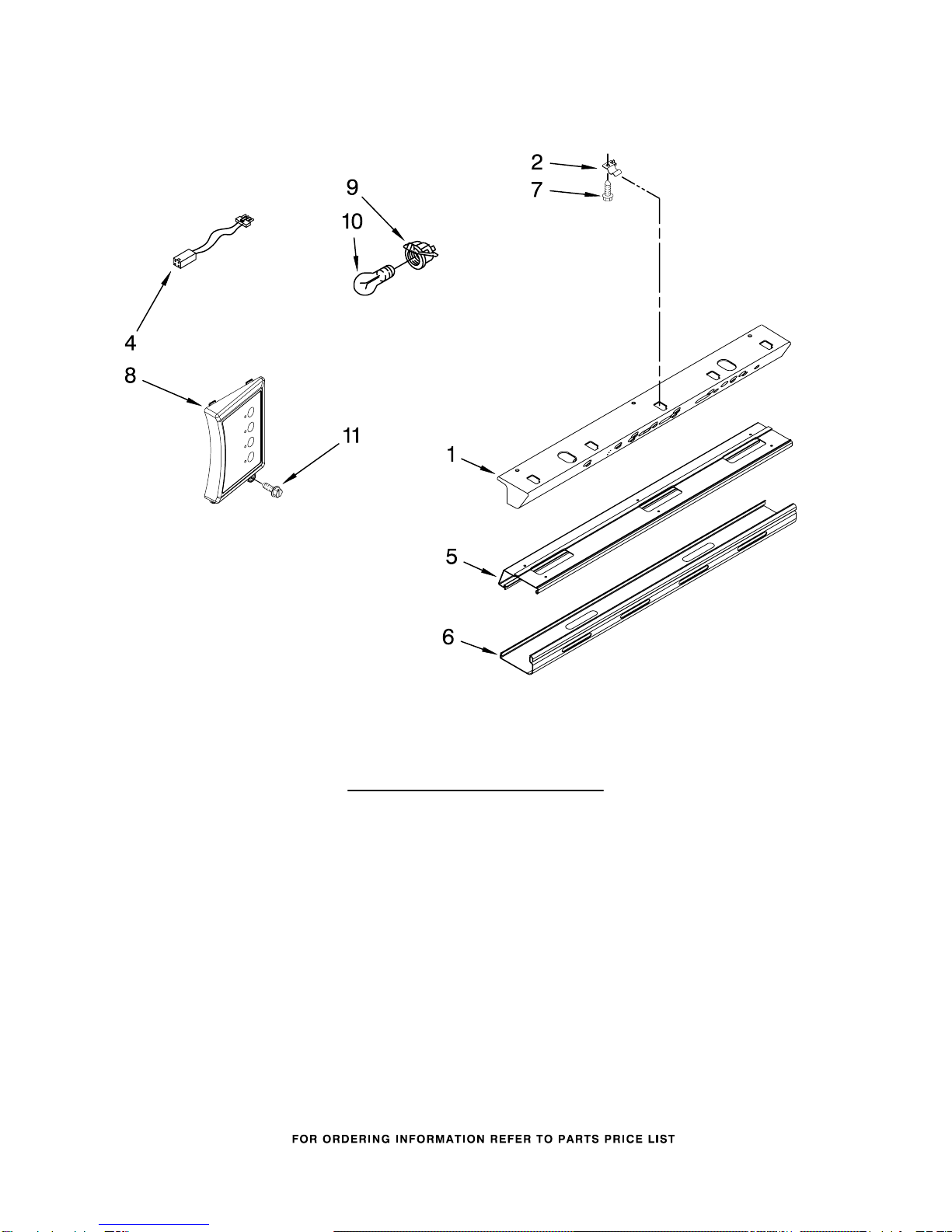

CONTROL PANEL PARTS

For Model: JS42SEDUDB01

(Stainless Steel)

W10231840

Illus. Part

No. No. DESCRIPTION

1 2316539 Control Box Assy

2 2317000 Clip, Box

4 2310390 Wire, Jumper

5 2307592 Bracket,

Control Box

6 2307595 Shield,

Control Box

7 487539 Screw (2)

W10151210

Display,

Ingredient Care

Center

9 2223857 Socket, Light

10 2326255 Light Bulb (2)

11 8281185 Screw

TOP GRILLE AND UNIT COVER PARTS

For Model: JS42SEDUDB01

(Stainless Steel)

W10231840

Illus. Part

No. No. DESCRIPTION

1 Panel, Decorative

Assembly

W10162618

Stainless Steel

W10161693

Cover, Unit

3 486194 Screw

4 2256466 Back Panel

W10185625

Cover, Unit Front

6 487415 Screw

W10167456

Wire Assembly

RC/FC Light Switch

W10159580

Nameplate

9 489348 Clamp

10 2215910 Grommet

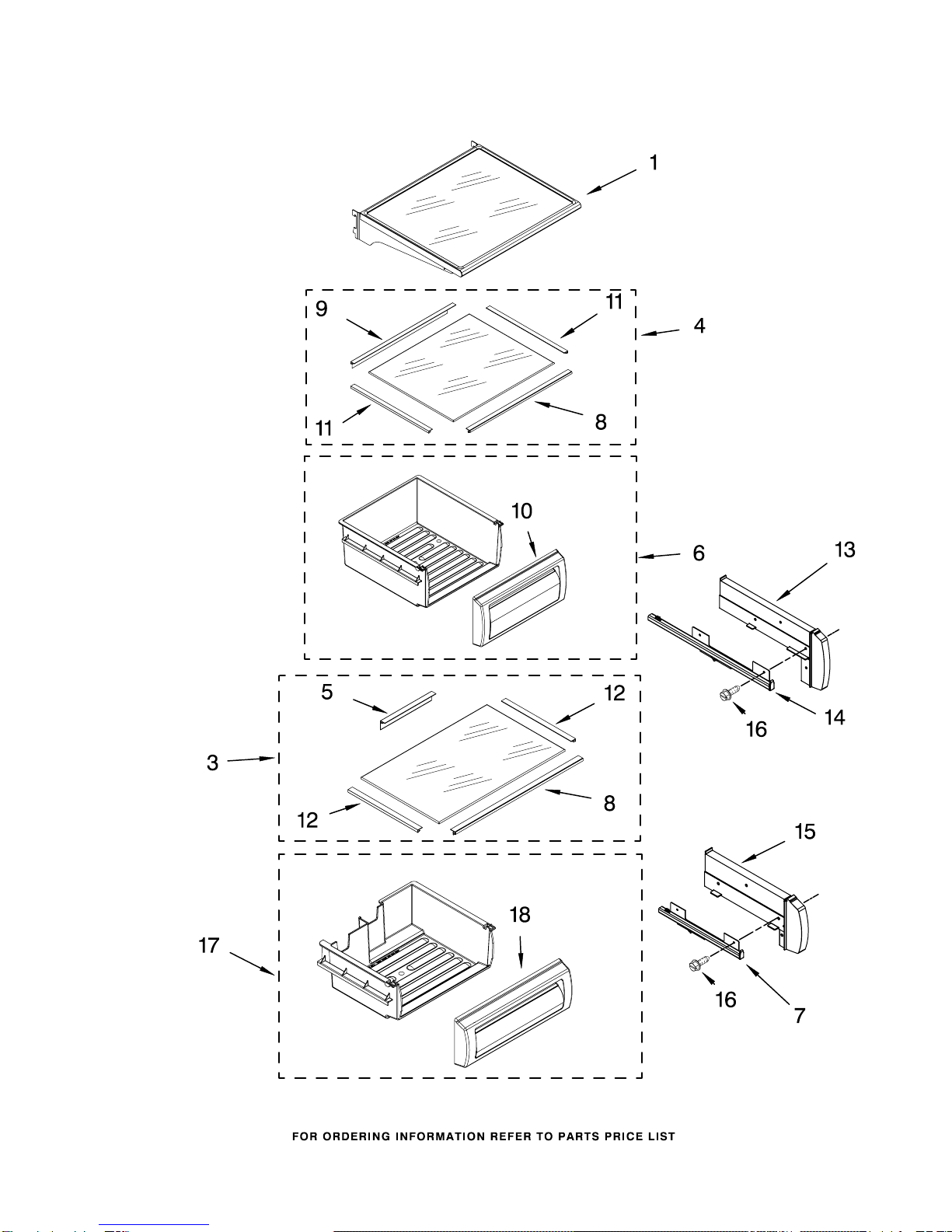

REFRIGERATOR SHELF PARTS

For Model: JS42SEDUDB01

(Stainless Steel)

W10231840

REFRIGERATOR SHELF PARTS

For Model: JS42SEDUDB01

(Stainless Steel)

W10231840

Illus. Part

No. No. DESCRIPTION

W10141494

Shelf Assembly

W10151215

Assembly, Meat Pan

Cover

W10151213

Assembly, Crisper

Cover

5 2257582 Trim, Glass Rear

6 2252412 Crisper Pan (2)

7 Slide, Meat Pan

2302954 Left Side

2302955 Right Side

8 2302831 Trim, Glass Front

9 2256254 Trim, Glass Rear

10 2256248 Front, Crisper

Pan

11 2252255 Trim, Glass Side

Crisper Pan

12 2256250 Trim, Glass Side

Meat Pan

13 Spacer, Crisper

2256222 Right Side (2)

2256223 Left Side (2)

14 Slide, Crisper

2302956 Right Side

2302957 Left Side

15 Spacer, Meat Pan

2256243 Left Side

2256244 Right Side

16 Screw

8533929 Right Side−

(8−18 x 1.375)

8533928 Left Side−

(8−18 x .750)

17 2256369 Pan Assembly

Meat

18 2256366 Front, Meat Pan
