Jensen CDR362 Istruzioni operative
6.2" Double DIN Multimedia Receiver
AM-FM / DVD / Pandora / Bluetooth / iPhone® - iPod®/
SiriusXM-Ready / USB / AV In / Rear Camera In
INSTALLATION &
OWNER'S MANUAL
CDR362
2
CDR362 INSTALLATION
Preparation
Please read entire manual before installation.
Before You Start
• Disconnect negative battery terminal. Consult a qualified technician for instructions.
• Avoid installing the unit where it would be subject to high temperatures, such as from
direct sunlight, or where it would be subject to dust, dirt or excessive vibration.
Getting Started
• Remove trim ring from unit.
• Remove 2 transit screws located on top of the unit.
• Insert the supplied keys into the slots as shown, and slide the unit out of the mounting
sleeve.
• Install mounting sleeve into opening, bending tabs to secure.
• Connect wiring harness and antenna. Consult a qualified technician if you are unsure.
• Certain vehicles may require an installation kit and/or wiring
harness adapter (sold separately).
• Test for correct operation and slide into mounting sleeve to secure.
• Snap trim ring into place.
TYPICAL FRONT-LOAD DIN MOUNTING METHOD
Trim Ring
Main Unit
Taptite Truss
Head 5x6mm
Taptite Binding
Head 5x6mm
3
CDR362 INSTALLATION
Wiring Diagram
Note:
When replacing a fuse, make sure to use the correct type and amperage. Using an incorrect fuse could cause
damage. The unit uses (1) 10 amp blade-type fuse located on the back of the unit.
Wiring Notes:
Rear camera input
A rear view camera (not included) can be used with the Camera input.
SiriusXM
For more information on how to install the SiriusXM Connect Vehicle tuner, consult the installation guide included
with the tuner (SiriusXM connect tuner and subscription sold separately).
SiriusXM Tuner Input
(SiriusXM Tuner and
subscription sold separately)
VIOLET
VIOLET/BLACK
GREY (RED CAP)
4
CDR362 OPERATION
Control Locations
Eject
EQ
Source
Power / Volume / Mute
1
2
3
Additional Inputs (USB, AV)
IR Remote Sensor
Reset Button
Disc Slot
5
6
7
8
4
2
3
4
5
16
7
8
120 19 18
16
14
12
10
17
15
13
11
3
5
7
9
2
4
6
8
Power / Mute
Eject
Play / Pause
Tune / Track Down
Previous
EQ
Repeat
Display
Audio
Source
1
2
3
4
5
6
7
8
9
11
12
13
14
15
16
17
18
Subtitle
Menu
Random
Volume Down
PTT
Volume Up
Tune / Track Up
Band
AS/PS
Next
19
20
10
5
CDR362 OPERATION
Power On/Off
Source
Volume
Mute
Auxiliary Input
USB Port
Main Menu
Press or any other button (except Eject) to turn the unit on. Press
and hold to turn the unit off.
Press SRC to access available input modes: Radio, Disc, Pandora, USB,
Bluetooth Phone, Bluetooth Audio, SiriusXM, AV In 1, AV In 2, Camera
and Settings. Disc or USB device must be connected/inserted to appear
in the mode selection string.
Rotate the volume knob to increase or decrease the volume level.
Momentarily press to silence the audio. Momentarily press again
to return to the previously selected volume. Rotating the volume knob
while the muted will also cancel the mute function.
Connect external audio devices to the 3.5mm auxiliary input on the
front panel.
Connect a USB device to the USB port on the front panel to play MP3
files or view AVI, MP4 video files or JPG photos.

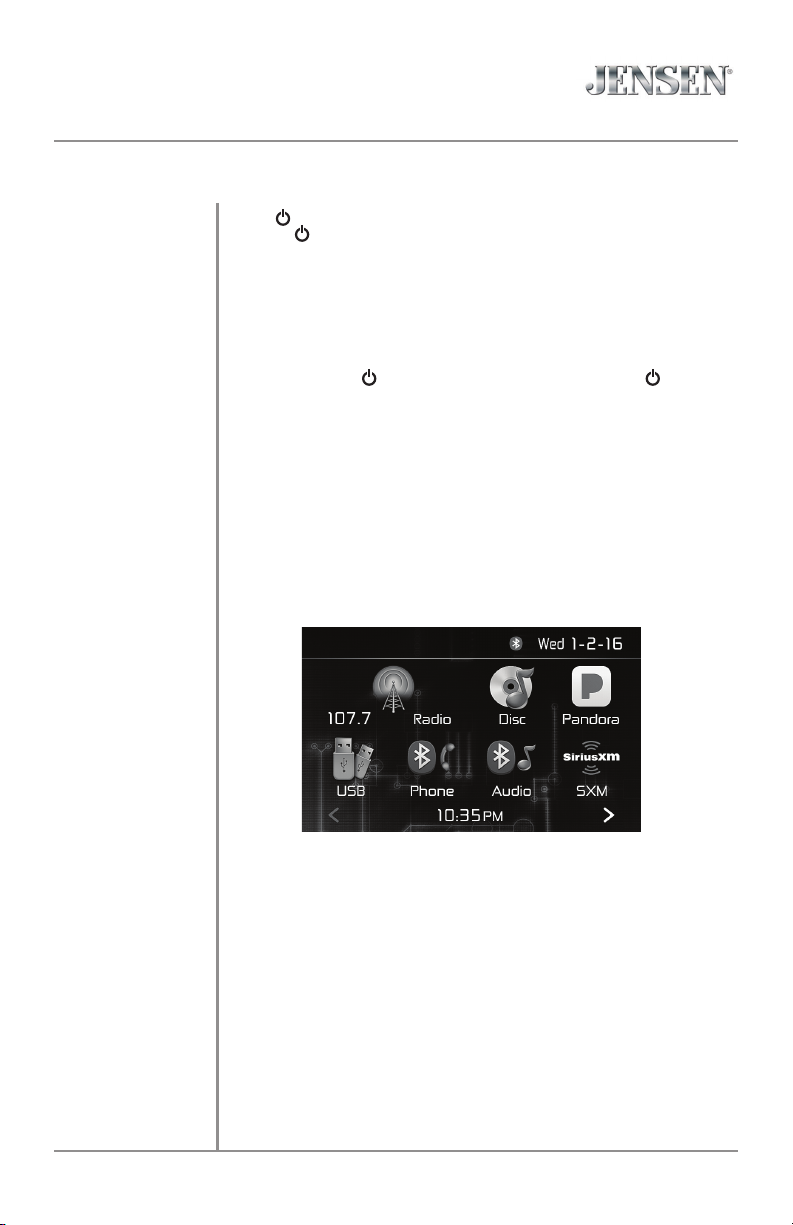

From any operational mode, press the arrow icon in the top left corner
to access the Main Menu screen. Use the right and left arrows in the
bottom corners to navigate between the two Main Menu screens, and
touch any icon to directy access the corresponding mode.
General Operation
6
CDR362 OPERATION
From the Main Menu screen, press Settings in the bottom right corner to
access the Setup Menu and select from the following categories: General,
Time, Display, Panel, Disc, Radio, General, Illumination, Wallpaper and
Version.
After accessing the desired category, press the up/down arrows to navigate
all the category options and use the touch screen to adjust each option.
General:
• OSD Language - Select English as the language for the on-screen
display.
• SRC - Select to choose the desired source for each option: SRC1, SRC2,
SRC3 and SRC4.
• Beep - Select to turn the audible beep On or Off.
• Camera - Select to turn the camera On or Off.
• Parking Guideline - Select to turn parking guidelines On or Off.
Time:
•Set the year, month and day, select between a 12-hour and 24-hour
clock display and set the hour and minute for the clock display.
Display:
•Adjust the following display options (-20 to 20): Brightness, Contrast,
Hue, Saturation and Sharpness.
Panel:
• Dimmer - Turn the dimmer On or Off.
• Dimmer Level - Select between Level 1, Level 2 or Level 3.
• Panel Adjust - Press and follow the prompts to calibrate the touch
screen.
Disc:
• Audio Language - Select desired language for audio.
• Subtitle Language - Select desired language for subtitles.
• Menu Language - Select desired language for the menus.
• Aspect Ratio - Select from the following ratios: 4:3PS, 4:3LB and 16:9.
• Change Password - Select and follow the prompts to change password.
• Rating - Select specific parental control rating, if desired.
General Operation
Setup Menu
7
CDR362 OPERATION
Radio:
• Dual - Select between Stereo and Mono operation.
• Local - Select between Local and Distance tuning
• Areea - Select between Europe, USA, American1 American 2 and OIRT.
• RDS - Select On or Off.
• RDS Region - Select On or Off.
• PI - Select Sound or Mute.
• TA - Select to turn traffic announcements On or Off.
• AF - Select to turn alternative frequencies On or Off.
• Radio Text - Select to turn radio text On or Off.
• Clock Sync - Select to turn clock sync On or Off.
• Traffic Volume - Select to turn traffic volume On or Off.
Bluetooth:
• Bluetooth - Turn Bluetooth On or Off.
• Auto Connect - Select On to program the unit to automatically connect to
available Bluetooth devices.
• Auto Answer - Select On to program the unit to automatically answer
incoming calls using Bluetooth.
• Auto Load Record - Turn auto load record On or Off.
• Auto Load Phonebook - Select On to automatically load the phonebook
from your phone.
• Change PIN - Select to change the PIN.
SXM:
• Change Password - Press and follow the prompts to change the unit's
password.
Illumination:
• Press to adjust color settings for illumination.
Wallpaper:
• Press to select a wallpaper for the on-screen display.
Version:
• Press to display version numbers or to restore the unit to factory default
settings.
General Operation
Setup Menu
8
CDR362 OPERATION
Select the Radio icon from the Main Menu screen.
Press to return to Main Menu screen.
Displays current mode of operation.
Displays current frequency.
Press to view and select available sources.
Press to select between 3 FM and 2 AM bands.
Press to tune down by seeking the next strong station.
Press to automatically store the six strongest stations in the current
band as presets.
Press momentarily to tune the unit down one step at a time.
Press momentarily to tune the unit up one step at a time.
Press to tune up by seeking the next strong station.
Press to view additional options.
To store a preset station, tune unit to desired station, then press and
hold the desired preset button to store the current station in that
preset spot. Up to 18 FM and 12 AM stations can be stored in memory.
Momentarily press any preset station to play it instantly.
Radio Operation
Main Menu 1
Current Mode Indicator 2
Current Frequency 3
Source 4
Band 5
Seek Tune Down 6
Auto Store 7
Manually Tune Down 8
Manually Tune Up 9
Seek Tune Up 10
Additional Options 11
Preset Stations 12
Radio Operation
1
3
2
458 10
6 7 9 11
12
9
CDR362 OPERATION
13 14 15 16 17 18 19
Radio Operation
Press to select between Local or Distance tuning.
Press to select Stereo or Mono operation.
Press to view and select a station category, and the unit will
automatically seek stations with that type of programming.
Press to directly enter the desired station number and begin playback
of that station.
Press to enter the Audio Settings menu and adjust the following
audio options:
• EQ - Use the touch screen to adjust equalization curvesn to
suit individual listening preferences. The following equalizer
frequencies are available for adjustment: 80Hz, 160Hz, 320Hz,
600Hz, 1kHz, 3kHz, 8kHz and16kHz. An adjustment range of
+16dB to -16dB is available for each frequency band.
• Fader-Balance - Use the touch screen to adjust the balance of
the audio output levels throughout the vehicle. The fader adjusts
levels front to back, and the balance adjust from left to right.
• Audio - Use the touch screen to adjust the following options:
Subwoofer (On or Off), Subwoofer Frequency (80Hz, 120Hz or
160Hz), Loudness (On or Off) and Loudness Center Frequency
(400Hz, 800Hz or 2400Hz).
• SRC Level - Adjust audio levels for each audio source (Disc,
USB, etc.)
Press to turn the Traffic Announcements feature On or Off.
Press to turn the Alternative Frequencies feature On or Off.
Local / Distance 13
Mono / Stereo 14
Program Type 15
Direct Entry 16
EQ 17
Traffic Announcements 18
Alternative Frequencies 19
10
CDR362 OPERATION
Insert a disc (label facing up), and playback will begin automatically.
To switch to CD mode from another mode of operation when a disc is
already inserted, select the Disc icon from the Main Menu screen.
Press to return to Main Menu screen.
Displays current mode of operation.
Displays information about the current track, including track number,
song title, artist name and album name.
Press to view and select available sources.
Press to view a list of files on the disc, Use the up/down arrows
to scroll through the list, then press the file name twice to begin
playback of that track. When searching all tracks, Order will appear
on the right side of the screen. Press this button to switch to viewing
tracks by Folder, then press the desired folder name twice to view
only the tracks contained in that folder.
When viewing file lists, the unit will show music lists by default, To
view lists of photo or video files, press the corresponding icon on the
bottom of the screen.
Press to return to the previous track. Press and hold to skip to the
beginning of the current track.
Displays the elapsed time and time remaining for the current track.
Press to stop or restart playback.
Press to advance to the next track.
Press to display additional options.
CD Operation
Main Menu 1
Current Mode Indicator 2
File Information 3
Source 4
List 5
Previous Track 6
Elapsed Time 7
Play/Pause 8
Next Track 9
Additional Options 10
CD Operation
1
3
2
457 10
6 8 9
Indice
Altri manuali Jensen Ricevitore
Jensen
Jensen MPR319 Istruzioni operative
Jensen
Jensen VM8013HD - Screen MultiMedia Receiver Manuale utente
Jensen
Jensen VM9311TS - DVD Player With LCD Monitor Manuale utente
Jensen
Jensen CAR10 Istruzioni operative
Jensen
Jensen CAR723W Manuale utente
Jensen
Jensen J1CA7W Istruzioni operative
Jensen
Jensen CMM7720 Istruzioni operative
Jensen
Jensen VX7021 Manuale utente
Jensen
Jensen VX3014 Manuale utente
Jensen
Jensen VX7020A Manuale utente
Jensen
Jensen MP5610 - In-Dash CD Player Manuale utente
Jensen
Jensen VX4025 Manuale utente
Jensen
Jensen CDR171 Istruzioni operative
Jensen
Jensen J1CA9W Istruzioni operative
Jensen
Jensen VX3022 Manuale utente
Jensen
Jensen MPR420 Istruzioni operative
Jensen
Jensen CMR322 Istruzioni operative
Jensen
Jensen MP7610XMi Manuale utente
Jensen
Jensen CAR813 Manuale utente
Jensen
Jensen CMM710 Istruzioni operative
