920BF/920BN

USER'S MANUAL

3D-AGP VGA / 3D-Audio M/B

FOR Pentium



II / III

The author assumes no responsibility for any errors or omissions which may

appearin this documentnor does itmakea commitment to update the information

contained herein.

NO. G03-920BFR3A

Release date: DEC 2000

** Year 2000 compliant **

Trademark:

* Pentium is registered trademark and MMX is a trademark of Intel corporation, the other names and brands

are the property of their respective owners.

* Specifications and Information contained in this documentation are furnished for information use only, and are

subject to change at any time without notice, and should not be construed as a commitment by manufacturer.

Chapter 1

1-1 Preface ...................................................................................................1

1-2 Key Feature ............................................................................................1

Chapter 2

Hardware Installation..................................................................................3

2-1 Unpacking...............................................................................................3

2-2 Motherboard Diagram.............................................................................4

2-3 Quick Reference for Jumpers, Connectors & Expansion Socket.............5

2-4 Installation Steps ....................................................................................6

2-5 Jumper Settings......................................................................................6

2-6 System Memory (DRAM)........................................................................8

2-7 Central Processing Unit (CPU) ...............................................................8

2-8 Expansion Cards.....................................................................................11

2-9 External Connectors ...............................................................................12

Chapter 3

AWARD BIOS SETUP..................................................................................18

3-1 STANDARD CMOS SETUP ...................................................................18

3-2 BIOS FEATURES SETUP......................................................................19

3-3 CHIPSET FEATURES SETUP...............................................................22

3-4 POWER MANAGEMENT SETUP ..........................................................23

3-5 PnP/PCI CONFIGURATION SETUP ......................................................25

3-6 LOADING BIOS DEFAULTS ...................................................................26

3-7 LOADING SETUP DEFAULTS................................................................26

3-8 INTEGRATED PERIPHERALS SETUP...................................................27

3-9 SUPERVISOR/USER PASSWORD ........................................................28

3-10 IDE HDD AUTO DETECTION ...............................................................28

3-11 SAVE & EXIT SETUP............................................................................29

3-12 EXIT WITHOUT SAVING ......................................................................29

Chapter 4

4-1 PC HEALTH MONITOR-II SOFTWARE ....................................................30

4-2 Sound Card Driver Quick Installation..........................................................30

APPENDIX-A Magic Install

TABLE OF CONTENT

Chapter 1

1-1 Preface

Thank you for purchasing this multifunction motherboard. It has the most flexibility you can

find in today’s computer market. This board integrates both Intel Pentium®II /Pentium®III &

Celeron™(Slot 1) / Coppermine processor and Celeron™ (Socket 370) PPGA / FCPGA

processor interface into a compact PC/AT compatible system along with share memory type

3D AGP VGA on-board, 3D PCI Audio on-board to support 4 channels speaker(If on-board

embedded Audio chip only), Ultra DMA 66, ACPI/AMP power management, and many other

powerful functions.

1-2 Key Feature

This motherboard is design for the PC user who wants highest possible quality and value in a

small package. It includes following main features:

•Supports both Slot 1 & Socket 370 CPU interface (onlyfor one CPU interface at a time).

•Supports Jumpless solution for setting of Front Side Bus Frequency (CPU Host

Clock),and CPU ratio in BIOS SETUP “CHIPSET FEATURES SETUP“.

•Multi-Speed Support : Provides 66/75/83/95/100MHz Front Side Bus Frequency to

support Intel PentiumII / PentiumIII / Coppermine / Celeron processor processor for

slot1 interface or Intel Celeron PPGA / FCPGA or a ZIP Socket 370 interface.

•Built-In High performance 3D AGP VGA:

∗Support share memory 2MB to 8MB selectable in BIOS SETUP.

∗Integrated programmable 24-bit true-color RAMDAC up to 230MHz pixel clock.

∗Integrated two 96x64 video line buffers for MPEG video playback.

∗Support 64 bit memory data bus interface; Support DIC, Direct Draw Driver.

∗Integrated a high performance and high quality 3D engine.

∗Support AGP Spec.1.0 compliant, 1xmode(66MHz), 2xmode(133MHz)

The VGA Share Memory Size can be 2MB/4MB/8MB selectable in the

“INTEGRATED PERIPHERALS Setup “ under BIOS Setup.

•Built in high quality PCI-Based HRTF 3D Extension Positional Audio Chip (Option for

motherboard that embedded Audio chip):

∗Supports rear side speakers, C3DX positional audio in 4 channels speaker mode.

∗Professional digital audio interface to support 24-bit SPDIF IN and OUT (44.1K and

48K format).

∗HRTF-base 3D positional audio, supporting DirectSound™ 3D and Aural A3D™

interface.

∗Digital functions that capable to provide hi-fi stereo, Dolby, 3D surround effects, and

playing MP3 music.

•You can add our Optical Kit (Option for motherboard that embedded Audio chip) to

connect any optical Input/Output device for super high quality sound transaction,

such as playing & recording MD(Mini Disk)/CD; CD-ROM directly recording to MD;

combine with DVD player to create a home theater system (This upgrade kit includes

Optical Module, Optical Cable, and Software DVD Driver).

•Chipset: SiS 620/5595 AGPset chip with I/O subsystems; CMI 8738 3D PCI Audio chip

(Option for motherboard that embedded Audio chip).

•DRAM Memory Support: supports 2 168-pin DIMMS(3.3V)from a memory size befween

16MB to 1.0GB.

•ISA and PCI expansion Slots: Three PCI slots ,Privodes one 16-bit ISA slot.

•Super Multi-I/O: Provides two high-Speed UART compatible serial ports and one parallel

port with EPP and ECP capabilities. Two floppy drives of either 5.25” or 3.5” (1.44MB or

2.88MB) are also supported without an external card.

•PCI Bus Master IDE Controller and ULTRA DMA 33/66: On-board PCI Bus Master IDE

controller with two connectors that supports four IDE devices in two channels, provides

faster data transfer rates, and supports Enhanced IDE devices such as Tape Backup, CD-

ROM drives and LS-120. This controller also supports PIO Modes 3 and 4 and Bus Master

IDE DMA 33/66Mbyte/Second.

•ACPI supporting for OS Directed Power Management

Keyboard Power On: When use ATX power supply and JP1 1-2 closed,choose power on

function by password in BIOS , can control power supply on by keyboard instead of power

button .

Ring-in Wake up: When Ring-In the system can wake up from SMI Mode.

Ring-in Power On: When Ring-In the system can power on automatic by this function by

use of ATX power supply.

RTC Power On: When use of ATX power supply and Enabled RTC Power On function, you

can setting RTC alarm to power on the system at the time length you setting .

Power Button: Press the button will place the system power on/off when use ATX power

supply .

Software off when use ATX power supply.

•Power Support: Efficient PWM switching power instead of traditional Linear Voltage

Regulator to prevent power component from being burned-out.

•Meets PC99 Requirements.

•Optional IRDA and PS/2 Mouse Connector: This motherboard supports an dedicated

16C550 standard UART,supporting infrared communication module for wireless interface

and PS/2 mouse cable set.

•Optional USB DEVICE Connector: This motherboard supports two USB port connectors for

USB devices.

•DMI Function Supporting.

•PC Health Monitoring : Allows you track PC’s CPU temperature, system voltage and fan

speed. When current temperature over warning temperature, the system will warning you

by alarm.

•Baby AT Form Factor: Dimensions 22cm x 25cm.

Chapter 2

Hardware Installation

2-1 Unpacking

This mainboard package should contain the following:

•The mainboard

•USER’S MANUAL for mainboard

•Cable set for Ultra DMA 33 IDE x1, Floppy x1, COM1 & COM2 x1, LPT x1, VGA x1,

Audio and Game x1(For motherboard that embedded Audio chip)

•CD for Drivers PACK

The mainboard contains sensitive electronic components which can be easily damaged by

electron-static, so the mainboard should be left in its original packing until it is installed.

Unpacking and installation should be done on a grounded anti-static mat.

The operator should be wearing an anti static wristband, grounded at the same point as the

anti-static mat.

Inspect the mainboard carton for obvious damage. Shipping and handling may cause

damage to your board. Be sure there are no shipping and handling damages on the board

before proceeding.

After opening the mainboard carton, extract the system board and place it only on a grounded

anti-static surface component side up. Again inspect the board for damage.

Press down on all of the socket IC’s to make sure that they are properly inserted. Do this only

on with the board placed on a firm flat surface.

Warning: Do not apply power to the board if it has been damaged.

You are now ready to install your mainboard. The mounting hole pattern on the mainboard

matches the Baby AT system board.

It is assumed that the chassis is designed for a Baby AT main board mounting. Place the

chassis on the anti-static mat and remove the cover.

Take the plastic clips, Nylon stand-off and screws for mounting the system board, and keep

them separate.

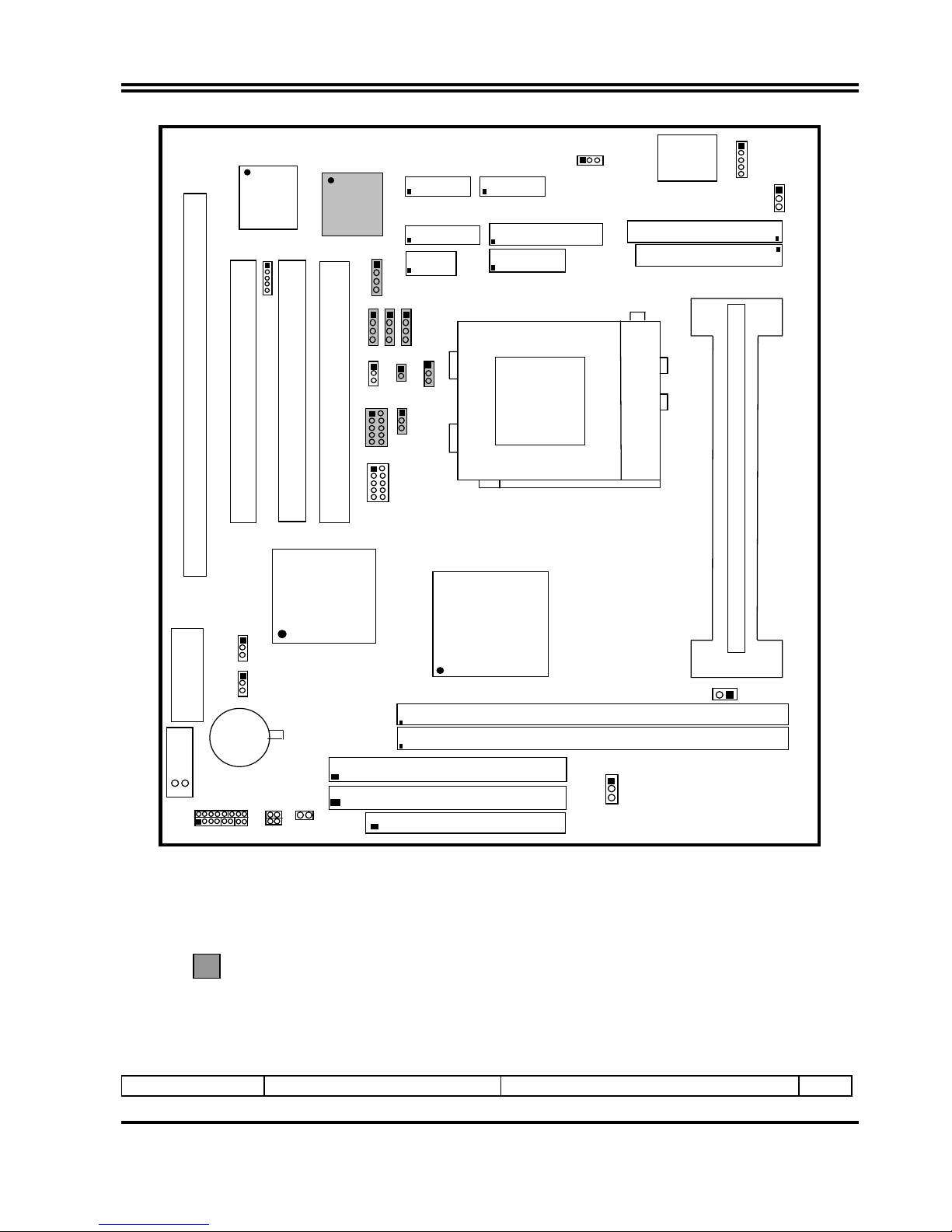

2-2 Motherboard Diagram

CPUFAN

SLOT-1

DIMM1

DIMM2

FLOPPY

IDE1

IDE2

SIS

5595 SIS

620

SLOT1

ISA1

BT1

BATT

CPU

PGA 370

PCI1

PCI2

PCI3

ATKB

PW2

PW1

COM1COM2

LPT1

VGA

GAME

AUDIO

SPDIFOUT

MS PIN1

JP1

JP8

WOL

SYSFAN

JP7

JP5

JP6

JP3

JP4

USB

SPEK RST TBLED

KEYLOCK TBSW

HDLED

SMI

PS/ON

U13

BIOS U14-7

JP9

SPKIN1

SPDIFIN

Figure 2-1

2-3 Quick Reference for Jumpers, Connectors & Expansion Socket

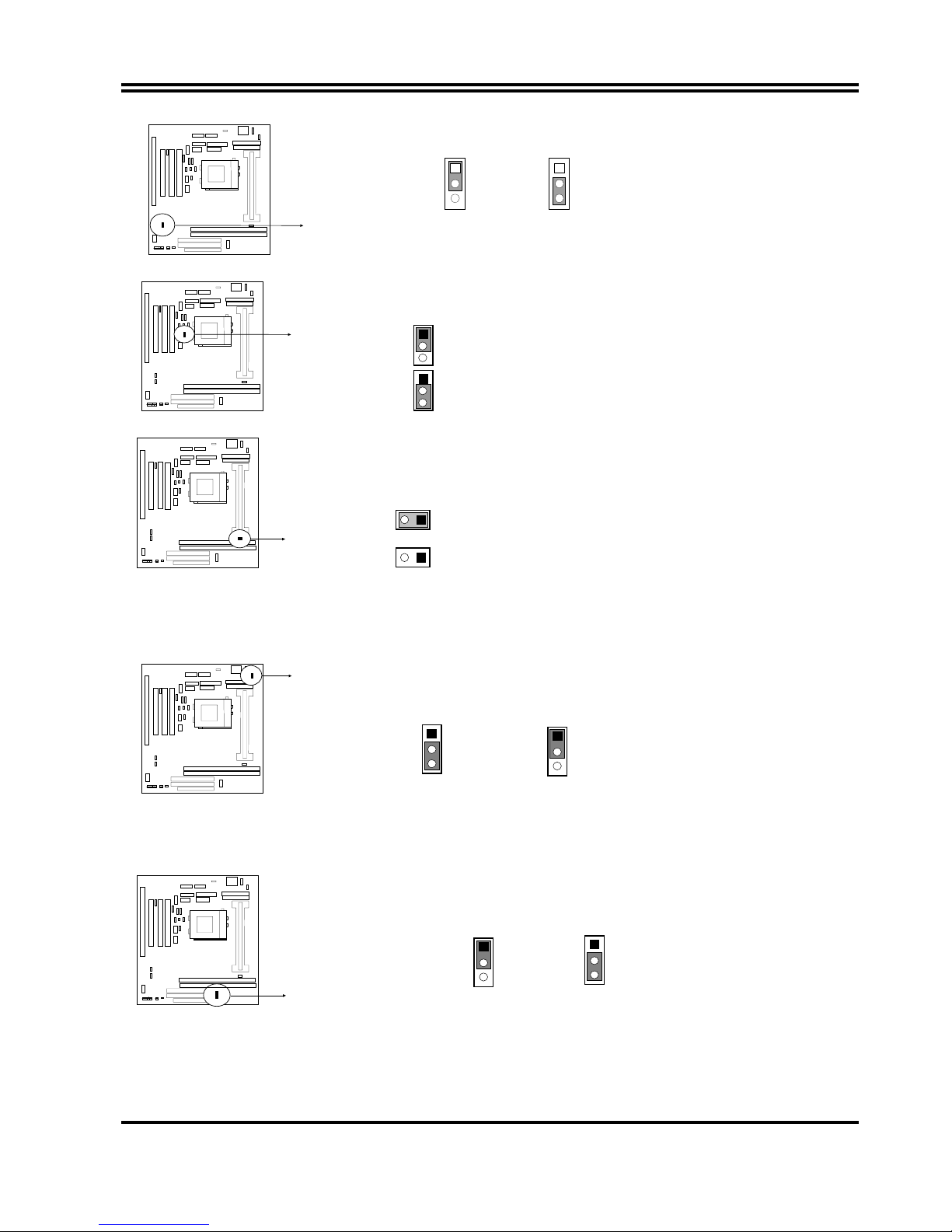

Jumpers

Jumper Name Description Page

tional connector for motherboard that embedded wit Audio Chi

U14-7 CPU Bus Frequency Selection Open:100MHZ(off), Closed:66MHz(on) p.6

JP8 CMOS RAM Clear 1-2 Clear CMOS, 2-3 Normal p.7

J5 On board VGA Enabled/Disabled open : Enabled,closed : Disabled p.7

JP1 Keyboard power on function 1-2 : Enabled , 2-3 : Disabled p.7

JP9 VIO Voltage Selection 1-2 : 3.45V , 2-3 : 3.52V p.7

Connectors

Connector Name Description Page

PW1 AT Power Connector 12-Pin Block p. 12

PW2 ATX Power Connector 20-Pin Block p. 12

ATKB Keyboard Connector 5-Pin Female p.12

MS_PIN1 PS/2 Mouse Connector 5-Pin Block p.12

LPT1 Parallel Port Connector 26-Pin Block p.13

COM1,COM2 Serial Port COMA & COMB 10-Pin Block p.13

FDD Floppy Driver Connector 34-Pin Block p.13

IDE1 Primary IDE Connector 40-Pin Block p.14

IDE2 Secondary IDE Connector 40-Pin Block p.14

HDLED IDE activity LED 2-Pin Connector p.14

FPC Front Panel Connector 16-Pin Block p.14

IR Infrared Module Connector 5-Pin Block p.15

USB USB Port Connector 10-Pin Block p.15

CPUFAN,SYSFAN FAN Connector Fanning system connectors p.15

PS-ON ATX power button/soft power button 2-Pin Connector p.15

VGA VGA Connector 16-Pin Block p.16

WOL Wake On Lan 3-pin Block p.16

Jumpers & Connectors (Option for motherboard that embedded Audio Chip)

Item number Name Description Page

JP6 Audio Chip Enabled/Disabled 1-2 Enabled, 2-3 Disabled p.7

Audio Line IN / Line OUT / MIC 10-pin Connector p.16

Game Game port Connector 16-pin Connector p.16

JP3 CD-Audio IN 4-pin Block p.17

JP4 CD-Audio IN 4-pin Block p.17

JP5 AUX IN 4-pin Block p.17

SPDIFIN SPDIN(Sony/Philips Digital Interface) IN 4-pin Block p.17

SPDIFOUT SPDIN(Sony/Philips Digital Interface) OUT 4-pin Block p.17

JP7 For Optional Optical Kit Connector 10-pin Block p.17

Expansion Sockets

Socket/Slot Name Description Page

Slot1 CPU Slot

PentiumII/III/Coppermine CPU Slot p.8

Zip Socket 370 CPU Socket Celeron PPGA / FCPGA CPU Socket p.9

DIMM1,DIMM2 DIMM Module Socket 168-Pins DIMM SDRAM Module Expansion Socket p.9

PCI1, PCI2, PCI3 PCI Slot 32-bits PCI Local Bus Expansion slots p.11

ISA1 ISA Slot 16-bits ISA Bus Expansion slot p.11

2-4 Installation Steps

Before using your computer, you must follow the steps as follows:

1. Set Jumpers on the Motherboard

2. Install the CPU

3. Install DRAM Modules

4. Install Expansion card

5. Connect Cables, Wires, and Power Supply

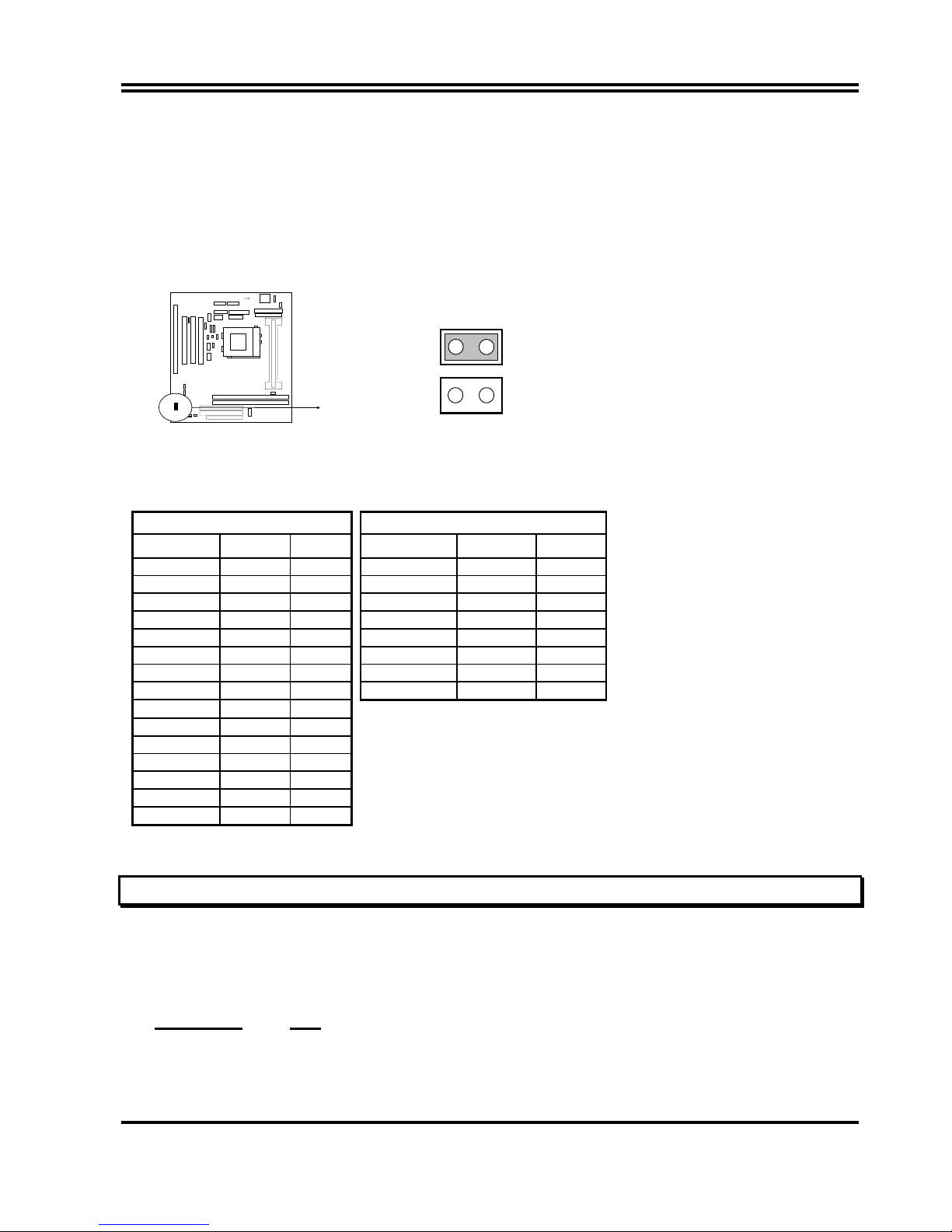

2-5 Jumper Settings

1. CPU Bus Frequency Selection : U14-7

※You can also set the CPU Bus frequency and CPU ratio from the “CHIPSET FEATURES

SETUP” under BIOS SETUP.

Table for the Pentium III and Celeron Socket 370 CPU

Celeron Pentium III

Speed Bus Ratio Speed Bus Ratio

300/66 66MHz 4.5x 500E/100 100MHz 5.0x

333/66 66MHz 5.0x 550E/100 100MHz 5.5x

366/66 66MHz 5.5x 600E/100 100MHz 6.0x

400/66 66MHz 6.0x 650E/100 100MHz 6.5x

466/66 66MHz 7.0x 700/100 100MHz 7.0x

500/66 66MHz 7.5x 750/100 100MHz 7.5x

533/66 66MHz 8.0x 800/100 100MHz 8.0x

533A/66 66MHz 8.0x 850/100 100MHz 8.5x

566/66 66MHz 8.5x

600/66 66MHz 9.0x

633/66 66MHz 9.5x

667/66 66MHz 10.0x

700/66 66MHz 10.5x

733/66 66MHz 11.0x

766/66 66MHz 11.5x

∗Because the Ratio are fixed by CPU Manufacture, users don’t need

to setting ratio any more, this table just for reference use.

2. CMOS RAM Clear: JP8 (Yellow color selector)

WARNING: Make sure your computer is POWER OFF when you CLEAR CMOS.

Connect a jumper Cap over this jumper for a few seconds, will clears information stored in

the CMOS RAM Chip that input by user, such as hard disk information and passwords.

After CLEAR CMOS, you must enter the BIOS setup (by holding down <DEL> during

power-up) to re-enter BIOS information (see BIOS SETUP).

Selections JP8

Normal 2-3 (Default)

Clear CMOS 1-2 (momentarily)

U14-7

100MHz : Open

66MHz : Closed

Normal

CMOS RAM (Normal / Clear CMOS Data)

JP8

Clear CMOS

JP8

3. On Board Audio Chip Enabled / Disabled connector: JP6

Closed (Default) : Enabled

Open : Disabled

4. On board VGA function Enabled / Disabled connector: J5

Closed : Disabled

Open (Default) : Enabled

5. Keyboard Power on function: JP1

This function only support when use ATX power supply . When choose 1-2 closed

and use ATX power supply , you can choice power on system by power button or

keyboard in “KB Power ON Password” item under “Power Management Setup”.

JP1

1-2 closed : Enabled(Default)

JP1

2-3 closed : Disabled

6. VIO Voltage Setting Connector : JP9

The VIO Voltage Jumper Allow you to Select the Voltage Suppied to the DRAM , Chipset

and the CPU’S I/O buffer.

1-2 closed : 3.45V (Default)

JP9

2-3 closed : 3.52V

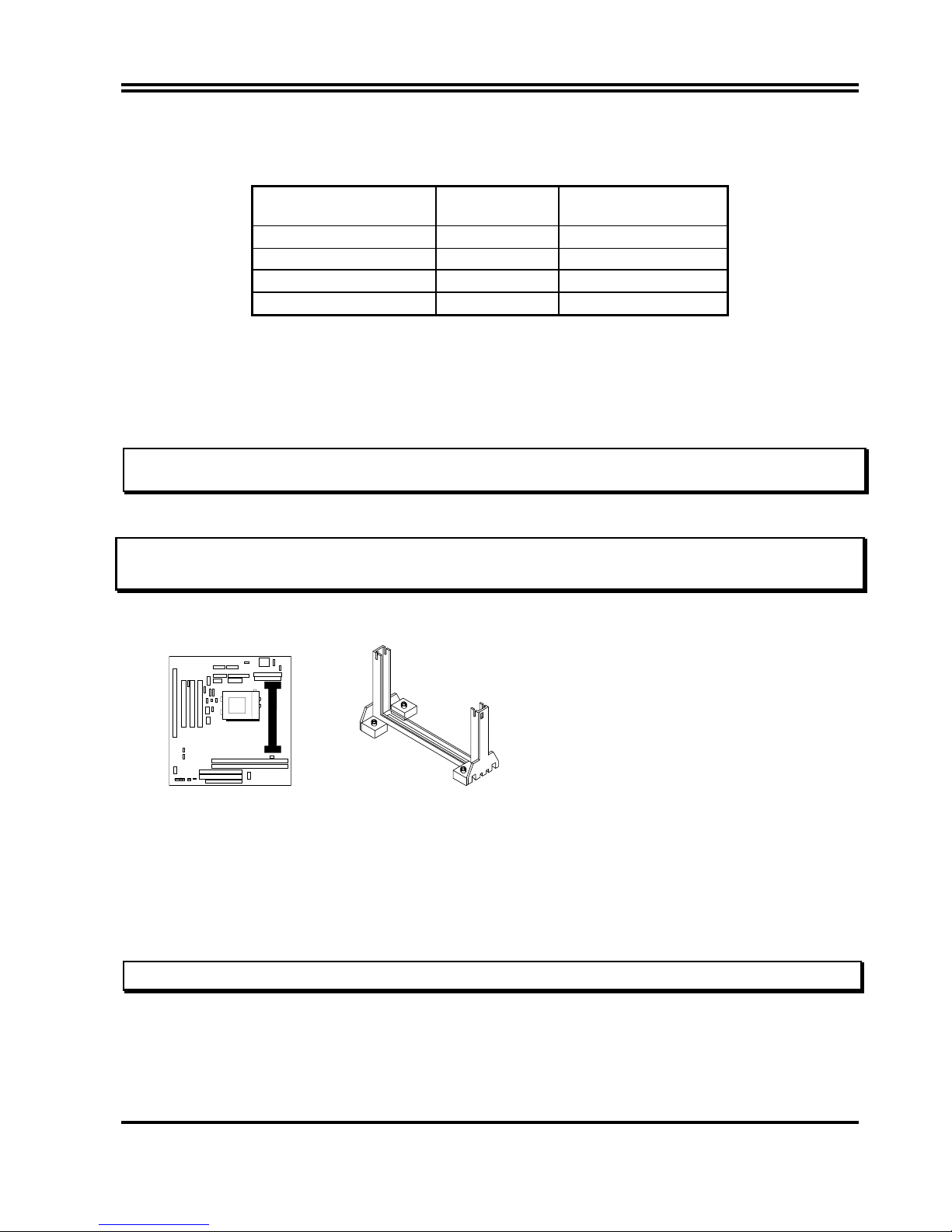

2-6 System Memory (DRAM)

This main board supports two 168-pins DIMM modules, the Max Memory Size is 1.0GB

Because of the VGA share memory function, the system must always occupy BANK0

(DIMM1)to booting the system.

DIMM 1 DIMM 2 System can be

Accept or Not

168-pin DIMM ×Accept

168-pin DIMM 168-pin DIMM Accept

×168-pin DIMM Not Accept

××Not Accept

∗Because of share memory function, the system must always occupy DIMM1 first to boot

up the system .

2-7 Central Processing Unit (CPU)

2-7-1 The motherboard provides a Slot-1 for Pentium II/III processor. The CPU on board

must have a fan or heat sink attached to prevent overheating.

WARNING: Without a fan or heat sink, the CPU will overheat and cause damage to both the CPU

and the motherboard.

To install a CPU, first turn off your system and remove its cover. Locate the Slot- 1 and place

RETENTION MODULE as following:

IMPORTANT: You must set jumper U14-7 for “Bus Frequency Selection” on page 6 depending on

the CPU that you install.

1. Attach heat sink to the CPU.

2. Place Part A on slot-1 and gently screw four corners on top of the mother- board.

PART A

2-7-2 The mainboard also provides a 370-pin ZIF Socket 370. The CPU on mainboard must

have a fan attached to prevent overheating.

To install a CPU, first turn off your system and remove its cover. Locate the ZIF Socket and

open it by first pulling the lever sideways away from the socket then upwards to a 90-degree

right angle. Insert the CPU with the white dot as your guide. The white dot should point

towards the end of the level. The CPU has a corner pin for three of the four corners, the CPU

will only fit in the one orientation as shown as follow. With the added weight of the CPU fan,

no force is required to insert the CPU. Once completely inserted, hold down on the fan and

close the Socket’s lever.

IMPORTANT: You can setting the CPU ratio and Host Frequency under “Chipset Features Setup”.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali JETWAY Scheda madre

JETWAY

JETWAY V6FP Manuale utente

JETWAY

JETWAY P4XFCU Manuale utente

JETWAY

JETWAY IN73M3 Manuale utente

JETWAY

JETWAY MI05 Series Manuale utente

JETWAY

JETWAY 917PDCPR106 Manuale utente

JETWAY

JETWAY NC7A Series Manuale utente

JETWAY

JETWAY P4MDMR7A Manuale utente

JETWAY

JETWAY P5M Manuale utente

JETWAY

JETWAY NF9G-QM77 Manuale utente

JETWAY

JETWAY 601TCFR3A Manuale utente

JETWAY

JETWAY 993AN Manuale utente

JETWAY

JETWAY NF792R Series Manuale utente

JETWAY

JETWAY 614DFR1A Manuale utente

JETWAY

JETWAY G03-NF9C-F Manuale utente

JETWAY

JETWAY NC9E-F Manuale utente

JETWAY

JETWAY P4X400DMR2A Manuale utente

JETWAY

JETWAY HBJC501F797-Q37-B Manuale utente

JETWAY

JETWAY 845EDAR1A Manuale utente

JETWAY

JETWAY 993BSR4A Manuale utente

JETWAY

JETWAY NF835A Series Manuale utente

JETWAY

JETWAY 865GDA Manuale utente

JETWAY

JETWAY 865GFTR3A Manuale utente

JETWAY

JETWAY P4XFAR1C Manuale utente

JETWAY

JETWAY 694TCS Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente
