NOTE: All wiring must conform to applicable local codes, ordinances, and

regulations.

1. Install module wiring in accordance with the job drawings and appropri-

ate wiring diagrams.

2. Set the address on the module per job drawings.

3. Secure module to electrical box (supplied by installer), as shown in

Figure 2.

IMPORTANT: When using the M300CJ-REL for Class B applications, remove

Jumper (J1) and discard. The Jumper is located on the back as shown in

Figure 1B.

FIGURE 2. MODULE MOUNTING:

C1060-00

JC-460-008 1 I56-3368-000

M300CJ-REL Releasing Control Module

BEFORE INSTALLING

This information is included as a quick reference installation guide. Refer to

the control panel installation manual for detailed system information. If the

modules will be installed in an existing operational system, inform the opera-

tor and local authority that the system will be temporarily out of service. Dis-

connect power to the control panel before installing the modules.

NOTICE: This manual should be left with the owner/user of this equipment.

GENERAL DESCRIPTION

M300CJ-REL Releasing Control Modules are intended for use in intelligent, two-

wire systems, where the individual address of each module is selected using the

built-in rotary switches. This module is used to switch an external power sup-

ply, which can be a DC power supply to a solenoid. It also supervises the wiring

to the connected load and reports the status to the panel as NORMAL, OPEN, or

SHORT CIRCUIT. The M300CJ-REL has two pairs of output termination points

available for fault-tolerant wiring and a panel-controlled LED indicator.

COMPATIBILITY REQUIREMENTS

To ensure proper operation, this module shall be connected to a compati-

ble Johnson Controls system control panel only (list available from Johnson

Controls). In addition, please refer to Johnson Controls Device Compatibility

document for the list of compatible solenoids.

MOUNTING

The M300CJ-REL mounts directly to 4-inch square electrical boxes (see Figure

2). The box must have a minimum depth of 21/8inches. Surface mounted

electrical boxes (SMB500) are available (for indoor dry applications only).

FIGURE 1A. CONTROLS AND FIGURE 1B. JUMPER LOCATION:

I56-3368-000

SPECIFICATIONS

SLC

Normal Operating Voltage: 15 to 32 VDC Nominal

Average Operating Current: 700µA (LED flashing)

Maximum Activation Current: 9.0 mA (red LED on)

External Supply

Normal Operating Voltage: 24 VDC Nominal

Maximum Line Loss: 2.3 VDC (total allowable loss from power supply to module and from module to solenoid)

Minimum Operating Voltage to Activate Solenoid: 18 VDC (at solenoid)

Standby Current: 6.4 mA

Activation Current: 10 mA

Maximum Activation Current: 2 A

Solenoid

Supervisory Loop Voltage: 3.3 V

Supervisory Loop Current (Normal): 30 mA

Maximum Activation Current: 2 A

Temperature Range: 14°F to 140°F (-10°C to 60°C)

Humidity: 10% to 95% RH Non-condensing

Dimensions: 41/2˝ H × 4˝ W × 1

1/4˝ D; (106 mm H × 108 mm W × 31 mm D)

Accessories: Wall cover plate (included); SMB500 Surface Mount Electrical Box (for indoor dry applications only)

INSTALLATION AND MAINTENANCE INSTRUCTIONS

507 E. Michigan Street

Milwaukee, WI 53201

Phone: 414.524.4000

C1059-00 C0910-00

WIRING

INDICATORS:

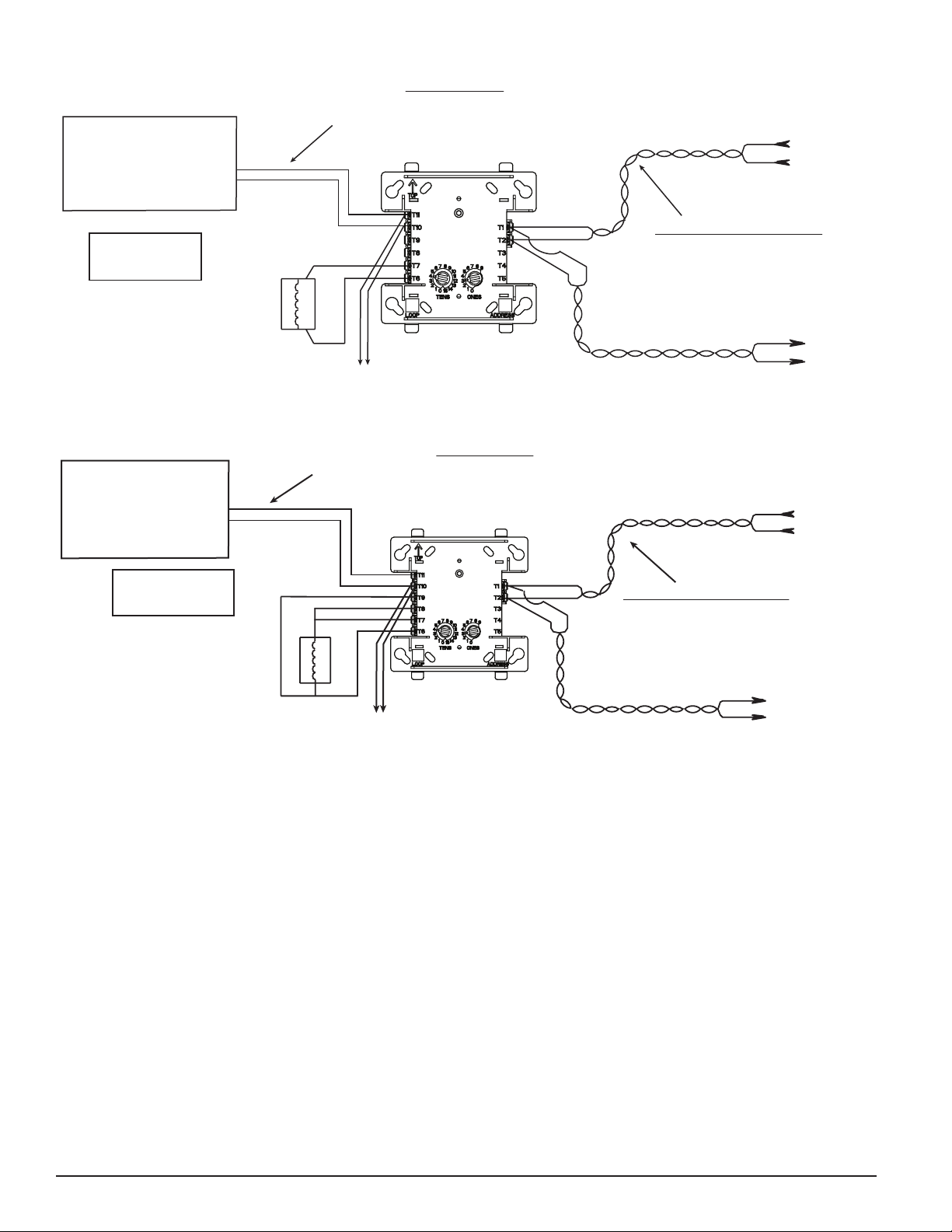

FIGURE 3. TYPICAL CLASS B, SOLENOID CONFIGURATION:

(+)

(-)

(+)

(-)

(+)

(-) (-)

(+)

24 VDC CIRCUIT

DO NOT LOOP WIRE ON TERMINALS 10 & 11. BREAK WIRE

RUN TO PROVIDE SUPERVISION OF CONNECTIONS.

TO NEXT

MODULE

24 VDC POWER SUPPLY

ISOLATED, REGULATED,

POWER LIMITED PER NFPA

70. UL 864 LISTED FOR

RELEASING DEVICE

SERVICE USE WITH

BATTERY BACKUP.

POWER SUPPLY

SUPERVISION BY

MODULE

CONNECT MODULES TO LISTED

COMPATIBLE

CONTROL PANELS ONLY

SIGNAL LINE CIRCUIT (SLC)

32 VDC MAX.

TWISTED PAIR

IS RECOMMENDED

ALL WIRING SHOWN IS SUPERVISED

AND POWER LIMITED

RELEASING

CONTROL

MODULE

FROM

PANEL OR

DEVICE

TO NEXT

DEVICE

OUTPUT TO A UL LISTED FIRE

ALARM RELEASING SOLENOID

(REFER TO PANEL MANUFACTURER'S

INSTALLATION DOCUMENT)

C0996-02

FIGURE 4. TYPICAL CLASS A, SOLENOID CONFIGURATION:

(+)

(–)

(+)

(–)

(+)

(–)

(+)

(–)

ALL WIRING SHOWN IS SUPERVISED AND POWER LIMITED

POWER SUPPLY

SUPERVISION BY

MODULE

TO NEXT

MODULE

TO NEXT

DEVICE

SIGNAL LINE CIRCUIT (SLC)

32 VDC MAX.

TWISTED PAIR

IS RECOMMENDED

CONNECT MODULES TO

LISTED COMPATIBLE

CONTROL PANELS ONLY

FROM

PANEL OR

DEVICE

24 VDC CIRCUIT

DO NOT LOOP WIRE ON TERMINALS 10 & 11. BREAK WIRE

RUN TO PROVIDE SUPERVISION OF CONNECTIONS.

24 VDC POWER SUPPLY

ISOLATED, REGULATED,

POWER LIMITED PER

NFPA 70. UL 864 LISTED

FOR RELEASING DEVICE

SERVICE USE WITH

BATTERY BACKUP.

RELEASING

CONTROL

MODULE

OUTPUT TO A UL LISTED FIRE

ALARM RELEASING SOLENOID

(REFER TO PANEL MANUFACTURER'S

INSTALLATION DOCUMENT)

C0997-02

JC-460-008 2 I56-3368-000
