Jonsered LM2153CMD Guida

S E R V I C E

Spare parts

Ersatzteile

Pièces détachées

Reserve onderdelen

Repuestos

Reservdelar

Ersätter 106 xx xx-xx

I0600016

IPL, LM2153 CMD, 2006-01, 544 33 81-01

LM2153CMD

544 33 81-01

Replaces

Ersetzt

Remplace

Vervangt

Reemplaza

96141010100

402356 11.02.05 BY

ILLUSTRATED PARTS LIST

MODEL NUMBER LM2153CMD

PRODUCT NUMBER 961 41 01-01

MFG. ID. NUMBER 96141010100

ROTARY LAWN MOWER - - MODEL NUMBER LM2153CMD (96141010100) PRODUCT NUMBER 961 41 01-01

KEY PART

NO. NO. DESCRIPTION

1 532 16 71-63 Handle, Upper, Deluxe Comfort

2 532 19 60-05 Handle, Lower

3 532 18 60-53 Spring, Rear Door, RH

4 532 19 47-88 Guide, Rope, Side

5 532 13 20-04 Nut, Hex, with Lockwasher Insert 1/4-20

6 532 06 64-26 Wire, Tie

7 532 19 15-74 Bolt, Handle 5/16-18 x 1.75

8 532 08 76-92 Knob, Handle

9 532 19 18-19 Bar, Control, Wire, Deluxe Comfort

10 532 18 88-21 Bolt, Carriage

11 873 93 05-00 Nut, Hex, with Lockwasher Insert 5/16-18 UNC

12 532 05 17-93 Cotter, Hairpin

13 532 18 60-52 Spring, Rear Door, LH

14 532 75 06-34 Screw, Tapping, Hex Washer Head #10-24

15 532 12 51-62 Bracket, Upstop

16 532 19 05-74 Rear Door Assembly

17 532 18 41-93 Bolt, Rear Door

18 532 19 81-70 Plug, Mulcher

19 532 40 07-32 Kit, Lawn Mower Housing Assembly

20 532 19 40-29 Handle Bracket Assembly, LH

21 532 19 40-31 Handle Bracket Assembly, RH

22 532 15 00-78 Screw, Hex Washer Head

23 532 16 31-83 Bolt, Hex Head 5/16-18 x 5/8

24 873 80 05-00 Nut, Hex, with Lockwasher Insert 5/16-18

25 532 16 13-33 Bafﬂe, Side

KEY PART

NO. NO. DESCRIPTION

26 532 16 34-09 Screw #12 x 5/8

29 532 13 31-07 Cable, MZR

30 532 19 37-07 Adapter, Blade

31 532 19 93-77 Blade, 21"

32 532 85 10-74 Washer, Hardened

33 532 85 02-63 Lockwasher, Helical Spring 3/8

34 532 85 10-84 Screw, Hex Head 3/8-24 x 1.38

35 532 18 91-85 Shield, Debris

37 532 15 04-06 Bolt, Engine

38 - - - Engine, Briggs & Stratton, Model Number 128802

(Order parts from engine manufacturer)

39 532 40 20-19 Grassbag

40 532 19 46-44 Frame, Grassbag

41 532 18 21-66 Decal, Danger

42 532 05 45-83 Self-Tapping Screw

43 532 18 49-41 Pulley, Engine

44 532 18 77-23 Key, Hi-Pro

59 532 16 42-65 Grip, Handle, Foam, Smooth

60 532 18 21-54 Throttle Control

61 532 18 33-65 Screw

65 532 11 11-90 Cable Clamp

97 532 08 38-16 Screw

- - 532 18 21-34 Warning Decal

- - 532 40 23-51 Operator’s Manual, European

- - 532 40 23-52 Operator’s Manual, Scandinavian

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your lawn mower and void your warranty.

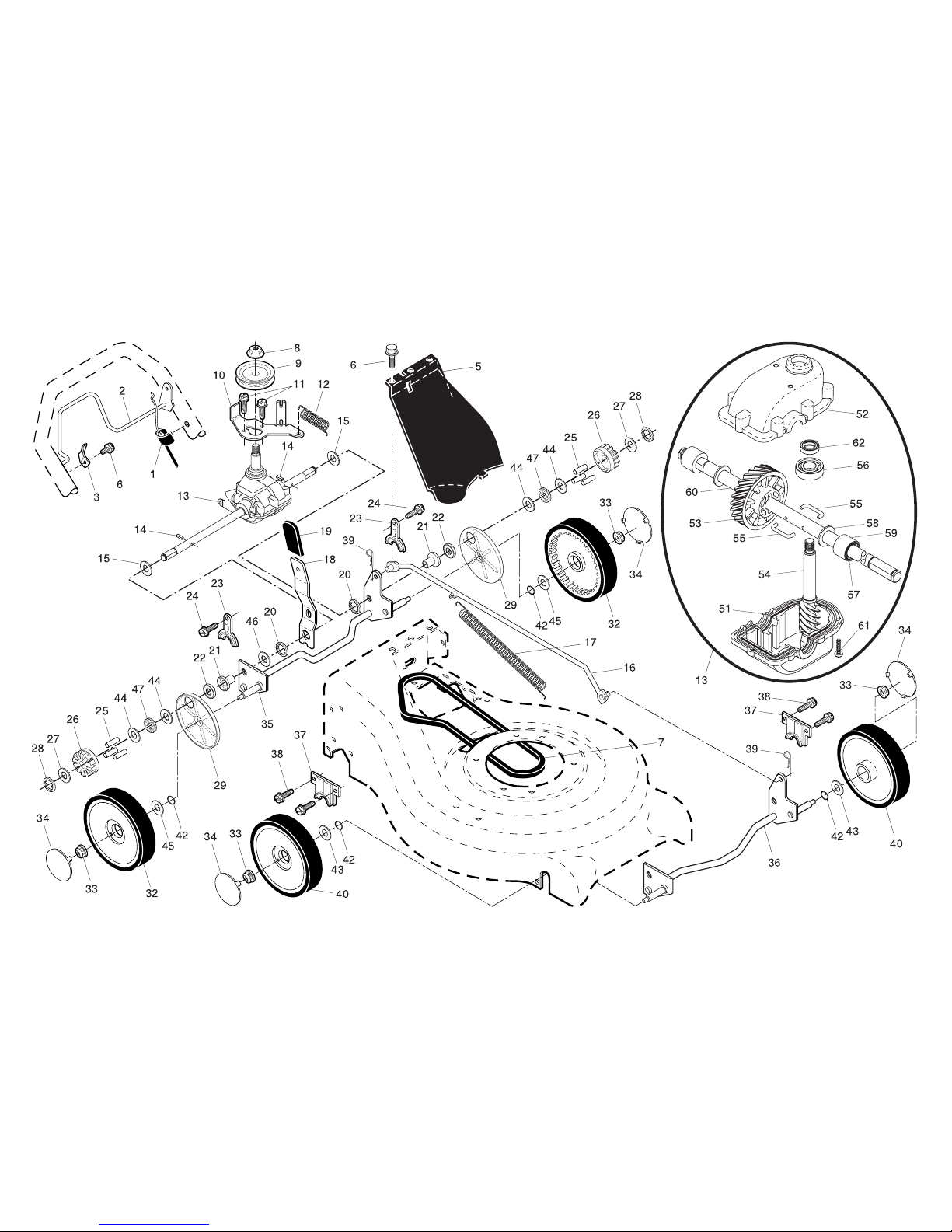

ROTARY LAWN MOWER - - MODEL NUMBER LM2153CMD (96141010100) PRODUCT NUMBER 961 41 01-01

KEY PART

NO. NO. DESCRIPTION

1 532 18 76-26 Cable, Drive

2 532 16 14-73 Bail, Control, Drive

3 532 16 45-57 Bracket, Downstop

4 532 75 06-34 Screw, Tapping, Hex Washer Head #10-24

5 532 40 28-07 Cover, Drive

6 532 75 06-34 Screw, Threaded, Rolled #10-25 x .50

7 532 16 08-16 V-Belt

8 532 13 20-10 Nut, Hex, Flangelock, Zinc Plated 3/8-16

9 532 16 39-39 Pulley, Driven

10 532 16 45-53 Belt Keeper

11 532 16 34-09 Screw, Hex Washer Head #10-24 x .668

12 532 18 76-27 Spring

13 532 18 82-95 Gearcase Assembly, Complete

14 532 14 53-54 Pin, Spring, Thrust

15 532 05 70-79 Washer, Hardened

16 532 16 15-84 Rod, Connecting

17 532 16 16-02 Spring, Extension

18 532 19 61-62 Spring, Selector

19 532 19 00-69 Knob, Selector Spring

20 812 00 00-22 E-Ring 7/8

21 532 16 33-65 Bearing, Support

22 532 16 99-11 Bearing, Ball

23 532 16 45-55 Retainer, Drive Assembly, Stamped

24 532 05 78-08 Screw, Tapping, Hex Head 1/4-20 x .75

25 532 17 00-11 Drive Pawl

26 532 16 64-50 Pinion, Drive

27 532 05 21-60 Washer, Shim (as required)

28 812 00 00-58 E-Ring 7/16

KEY PART

NO. NO. DESCRIPTION

29 532 18 94-03 Cover, Dust, Wheel

32 532 18 80-42 Wheel & Tire Assembly, Rear, Driven 9 x 2

33 532 08 39-23 Nut, Hex, Flangelock

34 532 18 06-26 Hubcap

35 532 19 60-16 Shaft Assembly, Rear

36 532 19 60-15 Shaft Assembly, Front

37 532 16 14-63 Retainer, Front Shaft

38 532 16 34-09 Screw #12 x 5/8

39 532 70 02-79 Clip, Retainer

40 532 15 03-48 Wheel & Tire Assembly, Front 8 x 2

42 532 18 81-52 O-Ring

43 532 08 83-48 Washer, Flat 3/8

44 532 06 23-35 Belleville Washer 1/2

45 532 06 77-25 Washer 1/2 x 1-1/2 x .134

46 819 57 22-16 Washer

47 532 08 81-18 Felt Washer

51 532 18 75-30 Case, Lower

52 532 19 12-45 Case, Upper

53 532 18 75-32 Gear, 24 Teeth

54 532 18 75-33 Shaft, Worm

55 532 18 35-05 Wireform

56 532 18 35-06 Bearing, Ball

57 532 18 35-08 Seal, Output Shaft

58 532 18 35-09 Washer

59 532 18 35-11 Bushing

60 532 19 12-48 Shaft, Output

61 532 18 35-13 Screw

62 532 18 35-14 Seal, Worm Shaft

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your lawn mower and void your warranty.
