Jonsered LT2216 Guida

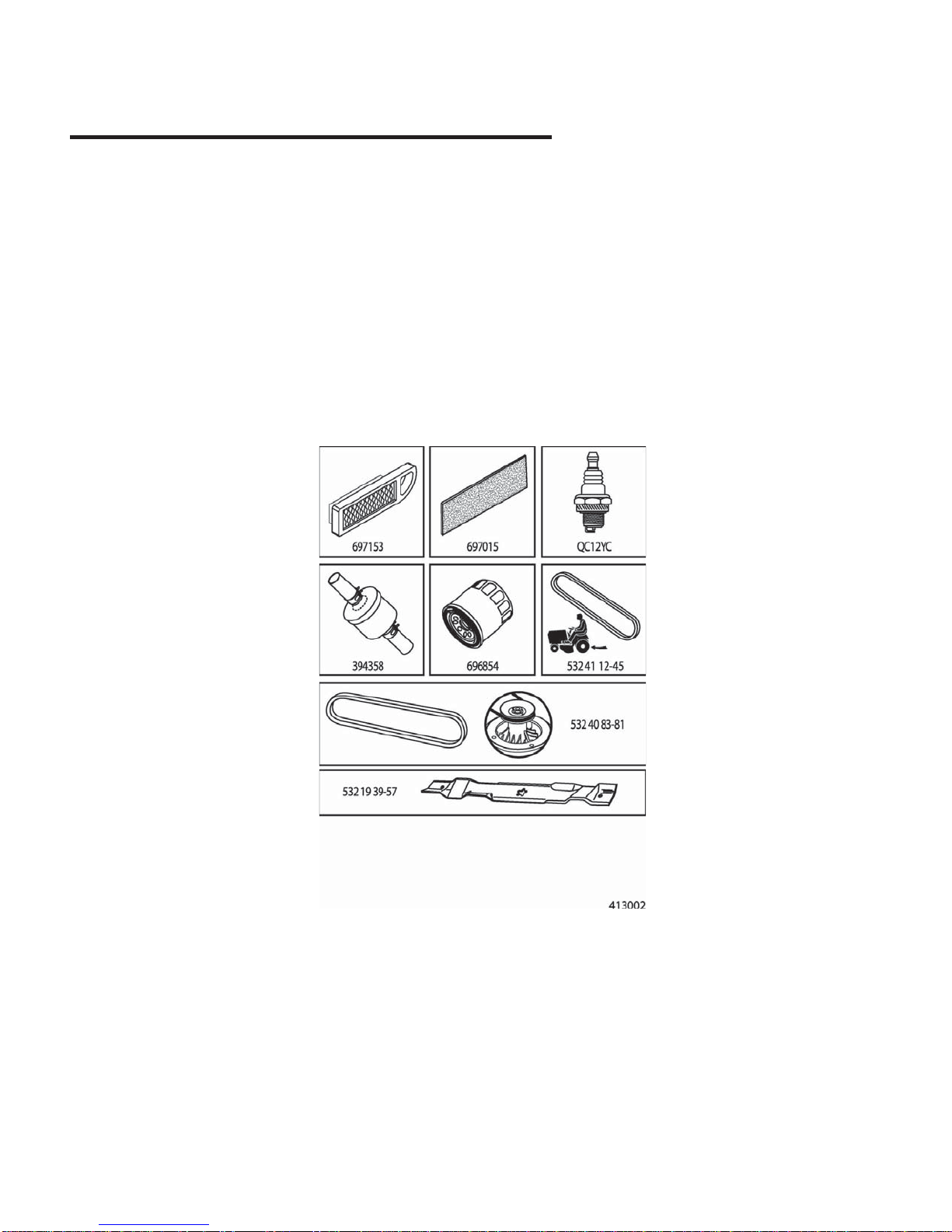

SERVICE

Spare parts

Ersatzteile

Pièces détachées

Reserve onderdelen

Repuestos

Reservdelar

IPL, LT2216, 2007-10, 504 11 16-17

LT2216

504 11 16-17

96041003202

ILLUSTRATED PARTS LIST

MODEL NO. 96041003202

CUSTOMER CATALOG NO. LT2216

PRODUCT NO. 960 41 00-32

532 41 56-22 Rev. 8

TRACTOR - - MODEL NUMBER LT2216 (96041003202), PRODUCT NO. 960 41 00-32

DECALS

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

KEY PART

NO. NO. DESCRIPTION

410

598

wheel_art_1-tex

WHEELS AND TIRES

KEY PART

NO. NO. DESCRIPTION KEY PART

NO. NO. DESCRIPTION

1 532 05 91-92 Cap Valve Tire

2 532 06 51-39 Stem Valve

3 532 13 83-36 Rim Asm 6" front

4 532 05 99-04 Tube Front (Service Item Only)

5 532 10 62-22 Tire F T 15 x 6 0 - 6

6 532 12 49-57 Fitting Grease (Front Wheel Only)

7 532 12 49-59 BearingFlange(FrontWheelOnly)

8 532 17 50-39 Cap Axle Blk 1 50 x 1 00

9 532 10 62-68 Tire R 18 x 9.5-8 TurfSaver

- - 532 42 05-31 Tire R 18 x 9.5-8 TurfSaver LT

10 532 12 49-26 Tube Rear (Service Item Only)

11 532 13 83-37 Rim Asm 8" rear

- - 532 14 43-34 Sealant, Tire (10 oz. Tube)

1 532 40 03-89 Decal, Operators

2 532 18 95-53 Decal, Hood

3 532 19 68-41 Decal, Warning Eng. Symbols

4 532 40 86-55 Decal, Hood Panel

5 532 15 97-36 Decal, Chassis Hot Muffler

6 532 18 04-32 Decal, Fender 100 DB/CE

7 532 18 21-66 Decal, Cutfinger CE

8 532 41 30-02 Decal, Rpl

9 532 14 50-05 Decal, Battery Dnge/Poi

10 532 14 08-37 Decal, Saddle Brake Parking

11 532 19 63-57 Decal, Warning

12 532 19 43-02 Decal, Mower V-Belt Schematic

13 532 15 97-37 Decal, Brake/Clutch Symbol

14 532 40 91-50 Decal, Eng. HP

16 532 18 57-73 Decal, Steering

17 532 19 68-42 Decal,SDLSHF/CRDSYM.Cutfinger

18 532 18 39-30 Decal Cover/Belt GRD.

- - 532 40 95-05 Pad, Footrest, LH

- - 532 41 12-73 Pad, Footrest, RH

- - 532 16 25-98 Decal, Drawbar Load Limit

- - 532 41 21-75 Manual Oper. Euro

17 17

TRACTOR - - MODEL NUMBER LT2216 (96041003202), PRODUCT NO. 960 41 00-32

SCHEMATIC

FUSE

STARTER

SOLENOID

BATTERY

CLUTCH/BRAKE

(PEDAL UP)

REVERSE SWITCH

(NOT IN REVERSE)

SEAT SWITCH

(NOT OCCUPIED)

SHORTING

CONNECTOR

CHASSIS

HARNESS

IGNITION

UNIT

HOUR

METER

CHASSIS HARNESS

CONNECTOR

(MATING SIDE)

DASH HARNESS

CONNECTOR

(MATING SIDE)

FUEL

LINE

FUEL SHUT-OFF

SOLENOID

(IF SO EQUIPPED)

JUNCTION

CONNECTOR

A2A1

SPARK

PLUGS GAP

(2 PLUGS ON

TWIN CYL. ENGINES)

(OPTIONAL)

NON-REMOVABLE

CONNECTIONS

REMOVABLE

CONNECTIONS

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED

CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY

SHOULD BE RE-INSTALLED TO

PROPERLY SECURE YOUR

WIRING.

SCH11

IGNITION SWITCH

CIRCUITPOSITION

OFF B+A1

RUN/OVERRIDE

B+S+A1START

M+G+A1

B+A1RUN

“MAKE”

L+A2

ATTACHMENT CLUTCH

(CLUTCH OFF)

BLACK

BLACK /WHITE

BLUE

BLUE BLACK

BLACKBLACK

BLACK

DER

RED

WHITE

GRAY

BLACK

POWER OUTLET

(OPTIONAL)

12V

BLACK

AMMETER

(OPTIONAL)

RED

BLACK

BROWN

HEADLIGHTS

LIGHT SWITCH

ORANGE

LIGHTING SYSTEM OUTPUT

5 AMP AC @ 3600 RPM

ALTERNATOR

14 VOLTS AC MIN. @ 3600 RPM (LIGHTS OFF)

DIODE

28 VOLTS AC MIN. @ 3600 RPM

(CHARGING SYSTEM DISCONNECTED)

CHARGING SYSTEM OUTPUT

3 AMP DC @ 3600 RPM

NOTE

YOUR TRACTOR IS

EQUIPPED WITH A SPECIAL

ALTERNATOR SYSTEM.

THE LIGHTS ARE NOT

CONNECTED TO THE

BATTERY, BUT HAVE THEIR

OWN ELECTRICAL SOURCE.

BECAUSE OF THIS, THE

BRIGHTNESS OF THE LIGHTS

WILL CHANGE WITH ENGINE

SPEED. AT IDLE THE LIGHTS

WILL DIM. AS THE ENGINE IS

SPEEDED UP, THE LIGHTS

WILL BECOME THEIR

BRIGHTEST.

TRACTOR - - MODEL NUMBER LT2216 (96041003202), PRODUCT NO. 960 41 00-32

ELECTRICAL

30 33

79 21

43 27

T02K

With 12V Outlet Option

103

With Service Minder Option

4646

TRACTOR - - MODEL NUMBER LT2216 (96041003202), PRODUCT NO. 960 41 00-32

ELECTRICAL

KEY PART

NO. NO. DESCRIPTION

1 532 16 34-65 Battery

2 874 76 04-12 Bolt Hex Head 1/4-20 x 3/4

8 532 19 32-28 Box Battery

16 532 17 61-38 Switch Interlock Push-In

21 532 18 37-59 Harness Socket Light W/4152J

22 532 00 41-52 Bulb Light

25 532 40 16-62 Cable Starter

26 532 17 51-58 Fuse

27 873 51 04-00 Nut Keps Hex 1/4-20 unc

28 532 19 88-85 Cable, Ground

29 532 40 15-45 Switch, Seat

30 532 19 33-50 Switch, Ign

33 532 41 19-35 Key/Chain

34 532 11 07-12 Switch Light / Reset

40 532 40 10-98 Harness Ign. Dash

41 817 72 04-08 Screw Thd Cut 1/4-20 x 1/2

42 532 13 15-63 Cover, Terminal

43 532 19 25-07 Solenoid

55 817 06 05-12 Screw Thdrol 5/16-18 x 3/4 TYTT

71 532 40 04-49 Harness Ign.

79 532 17 52-42 Socket Asm. Bulb

87 532 19 78-02 Switch Interlock Clutch Cable

90 532 40 07-25 Cover Terminal

92 532 19 66-15 Harness Pigtail Reverse Switch

93 532 19 25-40 Screw Plastite 10-14 x 2.0

94 532 19 18-34 Module Reverse ROS

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

TRACTOR - - MODEL NUMBER LT2216 (96041003202), PRODUCT NO. 960 41 00-32

CHASSIS

194

236

235

183

152 159

180

196

222

chassis-tex_elite-sv-pro_2_r1

217

182

176

175

177

130

151

176

150

228

194

228

176

137

18 208

207

186

159

189

159

2 532 41 22-82 Drawbar Lower

5 532 41 12-79 Dash

14 532 19 47-57 Hood

15 532 18 97-54 Lens LH

18 532 19 29-15 Grille

25 532 18 97-55 Lens RH

36 817 06 05-12 Screw 5/16-18 x 3/4

37 532 41 12-83 Fender

58 817 41 22-80 Drawbar Upper

68 817 49 05-08 Screw THDROL 5/16-18 x 1/2

130 532 19 16-11 Screw

137 532 18 49-21 Bumper Dash

150 532 18 43-22 Air Duct

151 532 40 78-07 Bracket Pivot

152 532 19 43-29 Shield Browning

159 817 00 06-12 Screw Hexwsh Thdrol 3/8-16x 3/4

175 532 19 32-43 Crossmember

176 532 40 07-76 Screw 10-24 x 5/8

177 532 19 52-28 Bushing Steering

180 532 19 42-60 Chassis

182 532 19 30-57 Dash Lower

183 874 78 05-20 Bolt 5/16-18 unc x 1-1/4

186 532 18 97-53 Insert Grille

189 817 00 05-12 Screw 5/16 - 18 x 3/4

194 873 90 05-00 Nut Lock Hex Flange 5/16-18

196 532 40 97-28 Console Asm. Deck Lift

207 532 18 38-33 Bezel RH

208 532 18 38-32 Bezel LH

217 532 40 91-67 Rod Pivot Hood

222 532 13 77-29 Screw 1/4-20 x 5/8

228 532 19 51-61 Stud Fastener

235 532 40 61-29 Spacer Fender

236 873 93 05-00 Nut Lock 5/16-18 unc

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

KEY PART

NO. NO. DESCRIPTION

TRACTOR - - MODEL NUMBER LT2216 (96041003202), PRODUCT NO. 960 41 00-32

CHASSIS

TRACTOR - - MODEL NUMBER LT2216 (96041003202), PRODUCT NO. 960 41 00-32

DRIVE

185

186

189 49

187

190

232

233

165166

188

172

195

125

161

175

192

158

134

192

157

141

140

139

176

178

174

203

184

167

160

drive-tex_D6800_Fender_31

159

166

237

205 33

155

193

221

268 148

275

202

116

TRACTOR - - MODEL NUMBER LT2216 (96041003202), PRODUCT NO. 960 41 00-32

DRIVE

KEY PART

NO. NO. DESCRIPTION KEY PART

NO. NO. DESCRIPTION

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

1 – – – – – – Transaxle, DANA D6800-1

(Order Parts from Transaxle

Manufacturer)

2 532 12 35-83 Key Square

15 819 13 13-16 Washer 13/32 x 13/16 x 16 Ga.

17 532 19 72-97 Spring, Brake

22 532 19 76-60 Rod Shift

23 532 12 12-74 Knob Duckhead 1/2-13

26 532 19 74-55 Spring Brake Return

29 532 19 72-67 Rod, Brake

33 812 00 00-01 Ring E

35 532 19 77-22 Rod, Brake, Park

37 532 12 17-49 Washer 25/32 x 1-1/4 x 16 Ga.

42 532 12 48-72 Cover, Foot Pedal

49 872 11 06-14 Bolt

50 532 19 43-27 Pulley Idler Flat

51 873 90 06-00 Lock Nut 3/8-16

52 532 19 43-26 Idler V-Groove .910" Offset

56 532 41 12-45 V-Belt, Drive

61 532 12 36-66 Pulley transaxle

64 532 19 62-00 Shaft Asm. Pedal Brake Control

70 532 41 12-90 Console

74 532 14 24-32 Screw 1/4 x 1/2

73 874 49 05-44 Bolt Hex Flghd 5/16-18 Gr. 5

116 873 90 05-00 Nut Lock Hex Flange 5/16-18

125 817 00 05-12 Screw 5/16-18 x 3/4

134 532 40 24-30 Asm Shift

139 874 55 04-12 Bolt 1/4-28 unf Gr. 8 w/Patch

140 810 04 04-00 Washer Lock Hvy Helical 1/4

141 819 09 12-10 Washer 9/32 x 3/4 x 10 Ga.

148 817 00 06-12 Screw 3/8-16 x 3/4

155 812 00 00-28 Ring Retainer

157 532 10 57-01 Washer Plate Shift

158 532 19 43-52 Belt Keeper

159 876 02 04-12 Pin Cotter 1/8 x 3/4

160 532 16 94-84 Retainer Clip

161 532 19 54-03 Spring, Return, Clutch

165 532 19 62-12 Bushing Shaft Brake Hand Control

166 532 19 72-90 Nut Push .625

167 532 40 52-57 Latch Brake Parking

172 532 19 76-57 Strap Torque LH

174 532 19 72-89 Nut Push

175 532 19 89-81 Shaft Asm. Shift

176 532 19 62-14 Arm Clevis Rod Shift

178 532 19 74-56 Spring Shift

184 532 41 12-89 Handle Parking Brake

185 872 11 06-20 Bolt

186 532 19 43-21 Spacer Retainer

187 819 13 32-10 Washer

188 532 19 43-23 Link Clutch Ground Drive

189 532 19 43-17 Bellcrank Ground Drive

190 532 19 43-18 Keeper Bellcrank Ground Drive

192 532 15 03-60 Nut Lock Center 1/4-28 Fnthd

193 817 06 05-12 Screw 5/16-18 x 3/4

195 532 19 73-32 Bracket Brake Rod

202 532 19 95-89 Link Transaxle

203 819 11 11-16 Washer 11/32 x 11/16 x 16 Ga.

205 532 12 17-48 Washer 25/32 x 1-5/8 16 Ga.

221 532 40 31-87 Retainer Spring Clip Handle

232 874 78 07-16 Bolt 7/16-14 x 1 Gr.5

233 532 40 52-96 Washer Serrated

268 532 18 24-02 Guard Muffler

275 819 13 16-14 Washer 13/32 x 1 x 14 Ga.

Altri manuali per LT2216

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Jonsered Taglia erba

Jonsered

Jonsered LT2113 Manuale utente

Jonsered

Jonsered LT 2317 A Manuale utente

Jonsered

Jonsered Poulan 12597RB Manuale utente

Jonsered

Jonsered Z48F Manuale utente

Jonsered

Jonsered Front Rider FR13 Manuale utente

Jonsered

Jonsered LT2115CM Guida

Jonsered

Jonsered LT2218A Manuale utente

Jonsered

Jonsered LM 2153CMDAE Manuale utente

Jonsered

Jonsered LT2122A Manuale utente

Jonsered

Jonsered LT2122A2 Manuale utente

Jonsered

Jonsered YT42 Manuale utente

Jonsered

Jonsered LM2146C Manuale utente

Jonsered

Jonsered FR 2216 MA 4X4 Manuale utente

Jonsered

Jonsered LT14A Manuale utente

Jonsered

Jonsered LT2226 A2 Manuale utente

Jonsered

Jonsered JNA1542A Manuale utente

Jonsered

Jonsered LGT54 Manuale utente

Jonsered

Jonsered J160AWD Manuale utente

Jonsered

Jonsered FR 2216 MA Manuale utente

Jonsered

Jonsered LT2218A Manuale utente

Jonsered

Jonsered LT2218CMA Manuale utente

Jonsered

Jonsered LT2116CMA2 Manuale utente

Jonsered

Jonsered Front Rider FR13 Manuale di istruzioni

Jonsered

Jonsered FRM13 Automatic Manuale utente

Manuali Taglia erba popolari di altre marche

RHINO

RHINO 1958 Manuale utente

Wolf Garten

Wolf Garten Compact plus 40 B Manuale utente

Cub Cadet

Cub Cadet LTX 1045 Manuale utente

Craftsman

Craftsman 917.378461 Manuale utente

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuale utente

Challenge

Challenge CH18V2 Istruzioni operative

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuale utente

DEWEZE

DEWEZE ATM-725 Manuale operativo

Weed Eater

Weed Eater 180083 Manuale utente

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuale utente

Better Outdoor Products

Better Outdoor Products Quick Series Manuale utente

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuale operativo

MTD

MTD 795, 792, 791, 790 Manuale utente

Toro

Toro Groundsmaster 3505-D Manuale utente

Dennis

Dennis FT 610 Manuale utente

AIRFORCE

AIRFORCE F-15 Gen 3 Manuale utente

MTD

MTD 126-220-000 Manuale utente

Toro

Toro 74806 Manuale utente
