K-array KK 50 Manuale utente

www.k-array.com

HP Sound Equipment s.r.l. Viale Roma 7/i - 50037 - San Piero a Sieve (FI), Italy

tel. +39 055 8487222 - fax. +39 055 8487238 - e-mail: info@k-array.com

DATASHEET

Features:

• Unique performance-to-size ratio

• Vertical, Horizontal and 3D line-array

applications

• Multiple 2” long-excursion full-range cone

drivers

• Wide horizontal coverage

• Electronically protected

• Integrated mounting hardware and accessories

• Selectable 16 Ohm or 64 Ohm impedance

• Selectable channel A or B

• Top quality components for outstanding

performance

• Weather proof, suitable for outdoor installations

• Available in black or white

The KK50 is a compact, line array element comprised of 8 x

2” neodymium transducers in a strong stainless steel chassis.

Its wide dispersion pattern can be con gured horizontally

or vertically. A number of KK50 speakers can also be put

together in multiple array con gurations.

Each speaker can be set for 16 or 64 Ohms eliminating the

need for 70volt transformers in distributed systems. The

KK50 reproduces the full vocal frequency range with clear

intelligibility. This can be augmented with the KKS50 or KL12

sub to extend the operating frequency range.

A variety of accessories provide numerous mounting options

for permanent and portable installations.

KA series ampli ers have presets speci cally optimized for

KK50 applications. All KK50 components are designed by

the K-array R&D department and custom made under the

K-array quality control system.

KK50

3D line-array element

Applications:

• Theatre, Club, Churches

• Front  ll and under-balcony  ll

• Portable and installed AV systems

• Stage and AV studio monitoring

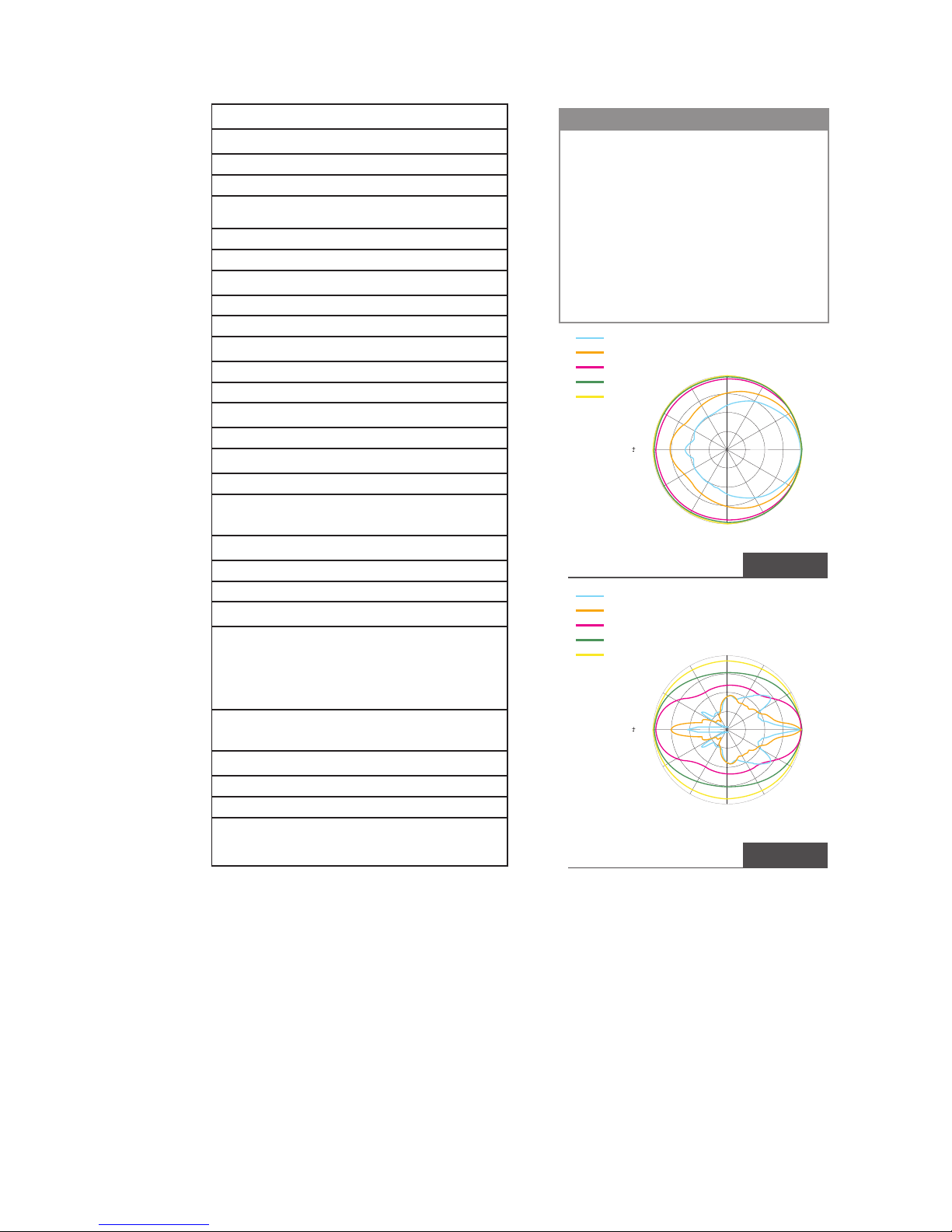

vertical

horizontal

500 Hz

250 Hz

8 KHz

4 KHz

1 KHz

500 Hz

250 Hz

8 KHz

4 KHz

1 KHz

Accessories:

• K-KLINK: Link hardware for Kobra line

array elements

• K-KFLY: tilter for own line array

applications

• K-KCLAMP: Clamp for hanging

• K-KWALL: Bracket for wall xing

• K-KWIRE: 2-channels link cable

• K-K35MM: 35mm adapter

KK50

Acoustics

Power handling 150 W(AES)

Impedance 16 Ω or 64 Ω

Operating

frequency range 150 Hz - 19 KHz

SPL 1W/1mt 92 dB

Maximum SPL 114 dB continuous - 120 dB peak

Coverage

Horizontal 100°

Vertical 10°

Crossover

Type External crossover required

Frequency 150 Hz, 24 db/oct suggested minimum

Transducers

Full-range 8 x 2” neodymium 0.75” voice coil

Power Audio Input

Connectors 2 x 4-pins Speakon

Wiring Pin 1+ (IN/OUT 1+) Pin1- (IN/OUT 1-)

Pin 2+ (IN/OUT 2+) Pin2- (IN/OUT 2-)

Selection Switches

Impedance 16 Ω - 64 Ω

Channel CH1 - CH2

Recommended Ampliers

Type 64 Ω

Single ended mode:

KA7, KA7-7, KA10, KA10-10, KA40

for up to 16 units each channel

Bridge mode:

KA7, KA7-7, KA10, KA10-10

for up to 8 units each amplier

Type 16 Ω

Single ended mode:

KA7, KA7-7, KA10, KA10-10

for up to 4 units each amplier

Physical

Dimensions 5.6 x 51.5 x 7 cm (2.2” x 20.28” x 2.76”)

Weight 2 Kg (4.41 lbs)

Notes for data

New materials and design are introduced into existing products without previous notice.

Present systems may differ in some respects from those presented in this brochure.

90°

120° 60°

30°

-30°

-60°

150°

-90°

180°

-150°

-120°

0° frontback

120° 60°

30°

-30°

-60°

150°

-90°

180°

-150°

-120°

0° frontback
