IMPORTANT: Wear Safety glasses before starting the replacement of parts.

790/79 Series Rework Installation Sheet

Current PCB

Switch

Holder

New

Cam

Protective

Bracket

New privacy

Switch

New PCB

4 6

2 3

Remove screw and take out battery pack

Remove foam, cam & screws and discon-

nect cables

Assemble New PCB

Option

Motor (See step 4)

Pass cables in

housing gap push

cables away from

the screw head

Place the plastic clip to hold the cables in place. Make sure

the clip is not on the cables before to hold it with the screw

Before placing PCB connect

standard cables and cables

for door option if applicable

at orientation as shown

Use screws from step 4

Override Switch

(See step 4)

Remove PCB

Remove 5 screws and take off the back

plate Assemble protective bracket and hold with

one of the 5 screws from step 2

Screw below center label

Protective Bracket

790/79 Series LOCK PCB + PRIVACY MECH. PARTS

All manuals and user guides at all-guides.com

all-guides.com

1.877.468.3555

www.ilcosupport.com

10 11

12 13

8 9

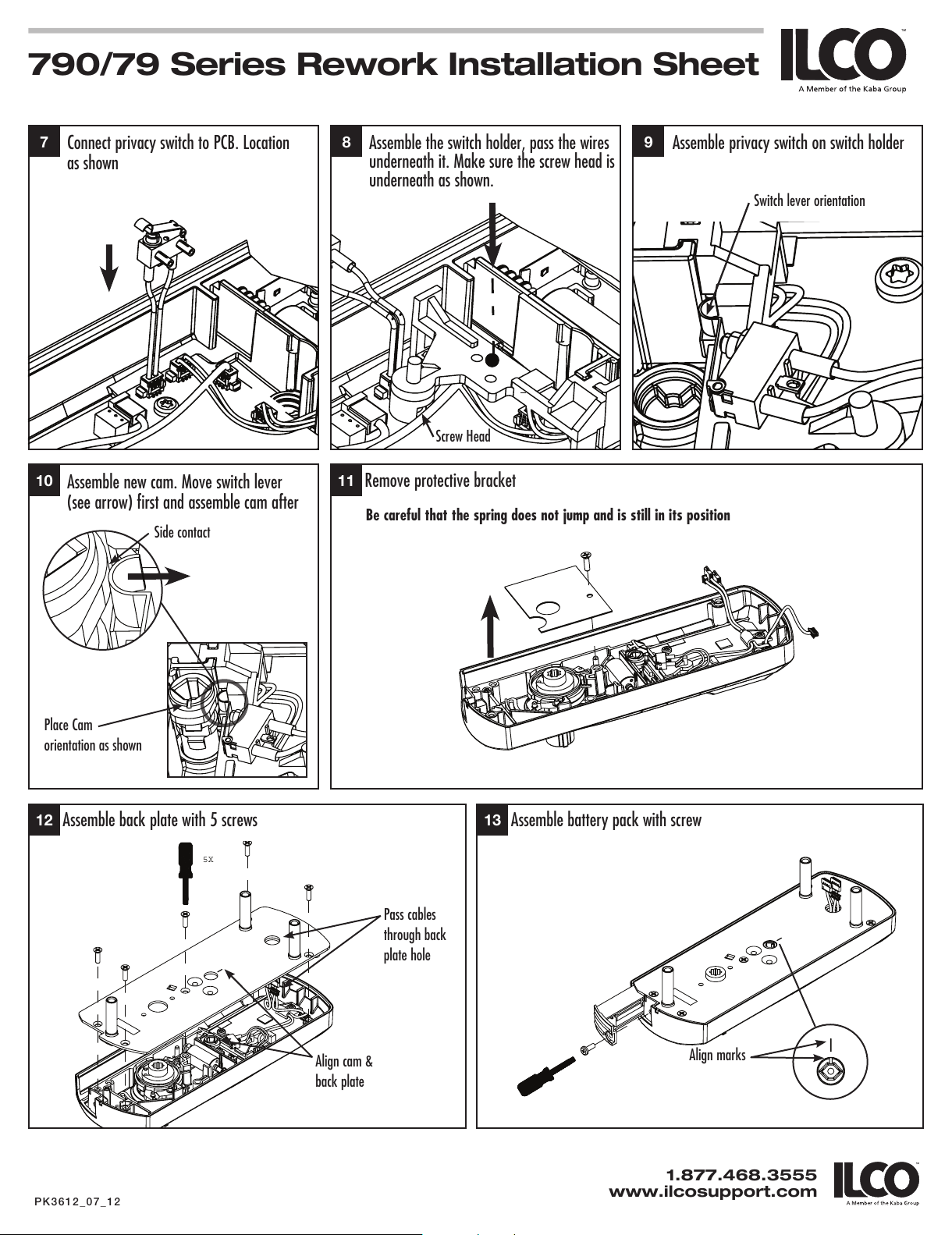

Connect privacy switch to PCB. Location

as shown

Assemble new cam. Move switch lever

(see arrow) first and assemble cam after

Remove protective bracket

Assemble back plate with 5 screws Assemble battery pack with screw

Assemble the switch holder, pass the wires

underneath it. Make sure the screw head is

underneath as shown.

Assemble privacy switch on switch holder

Switch lever orientation

Screw Head

Place Cam

orientation as shown

Align cam &

back plate

Pass cables

through back

plate hole

Side contact

Be careful that the spring does not jump and is still in its position

Align marks

790/79 Series Rework Installation Sheet

PK3612_07_12
