Kargo Master 40816 Manuale

Kargo Master

Rancho Cordova, CA 95742

800-343-7486

[email protected]

20200406R2 DATE: __________________

Instruction Guide

40816

Installation Instructions –40816

For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 1

*PLEASE READ ALL INSTRUCTIONS AND WARNINGS PRIOR TO ASSEMBLING, INSTALLING, AND

USING THIS PRODUCT.*

Warning

Always check for wires, fuel tanks and lines, brake lines and other important vehicle

functionality items prior to drilling and installing all products.

DO NOT EXCEED MANUFACTURERS WEIGHT CAPACITY FOR ROOF.

Tools Needed

1/2” Socket and Wrench

9/16” Socket and Wrench

9/16” Box Wrench

Table of Contents

Before You Begin..................................................................................................................................................... 1

Parts List................................................................................................................................................................... 2

Hardware ................................................................................................................................................................. 2

Assembly.................................................................................................................................................................. 3

Before You Begin

Read all instructions prior to installing any rack, accessory, or equipment.

Place anti-seize on all threads.

THE STEPLADDER ACCESSORY MOUNTS TO THE PASSENGER-SIDE FRONT PAN OR THE DRIVER-SIDE REAR PAN

(IF DRIVER-SIDE DROP DOWN IS INSTALLED).

Installation Instructions –40816

For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 2

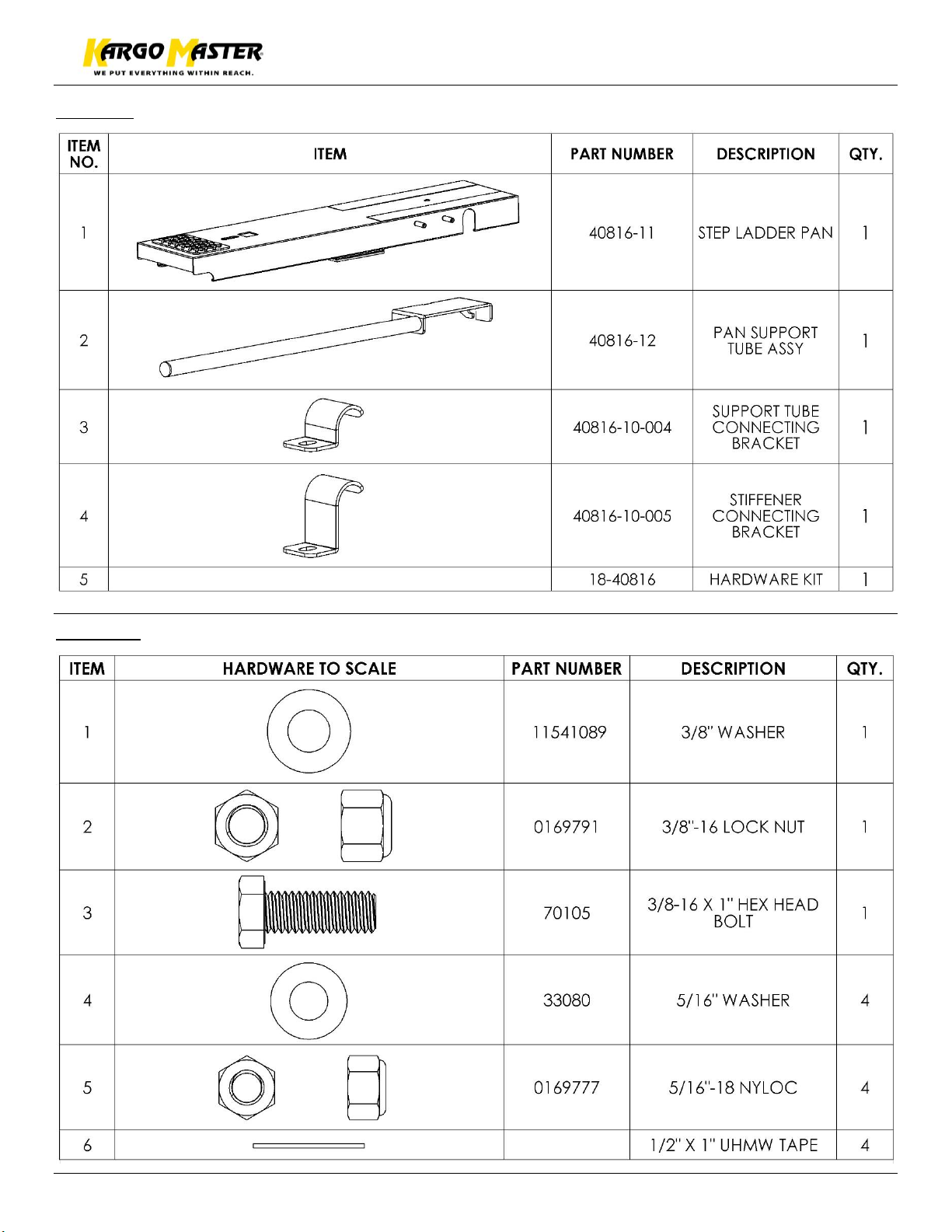

Parts List

Hardware

Installation Instructions –40816

For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 3

DO NOT EXCEED MANUFACTURERS WEIGHT CAPACITY FOR ROOF

Assembly

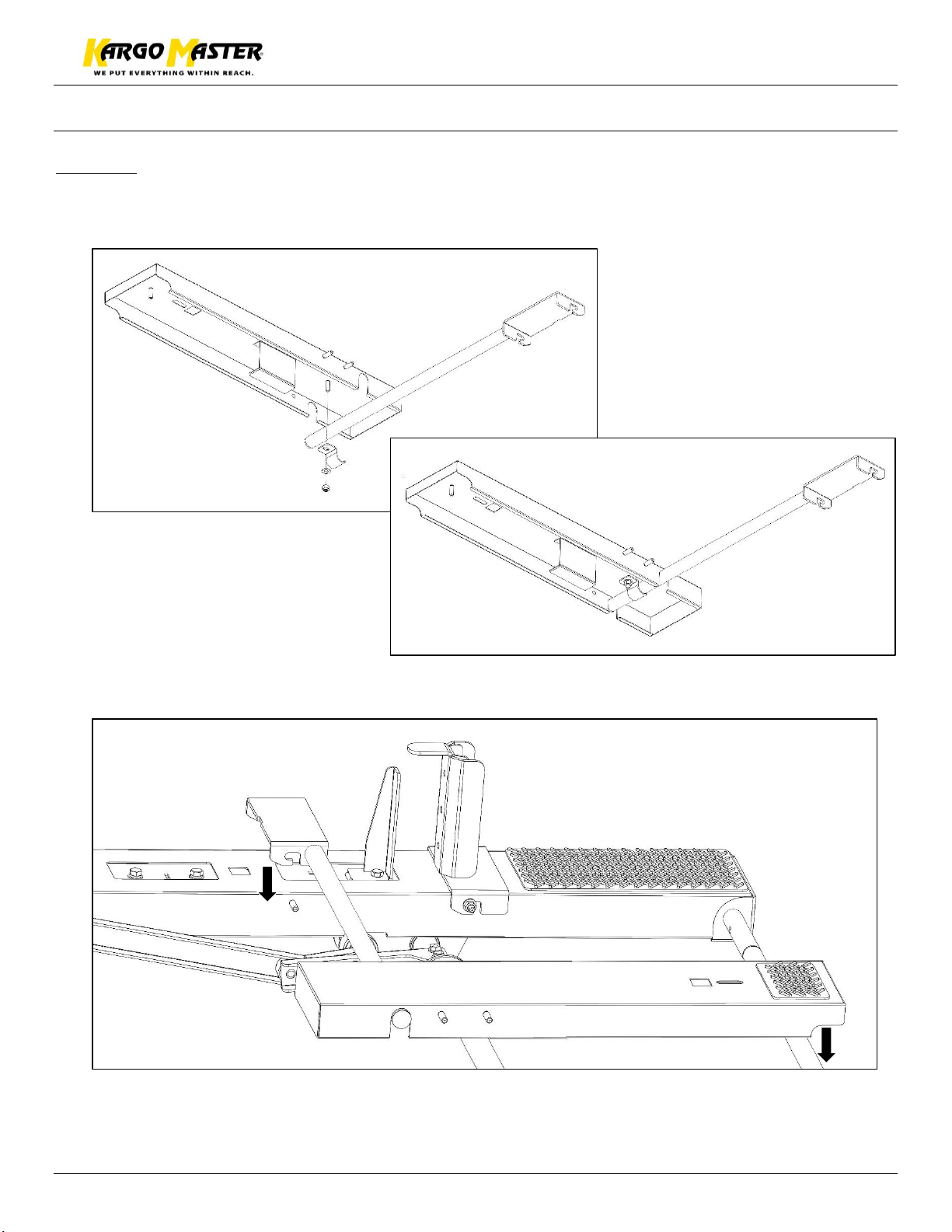

Using the stiffener connecting bracket (the taller bracket), a 5/16” washer and 5/16” lock nut, loosely

attach pan support tube assembly to the 5/16” stud on the bottom of the step ladder pan as shown.

Attach pan support tube assembly to the pan of the drop down ladder rack, to the right, on the 5/16” studs

that are closest to the center of the vehicle.

Installation Instructions –40816

For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 4

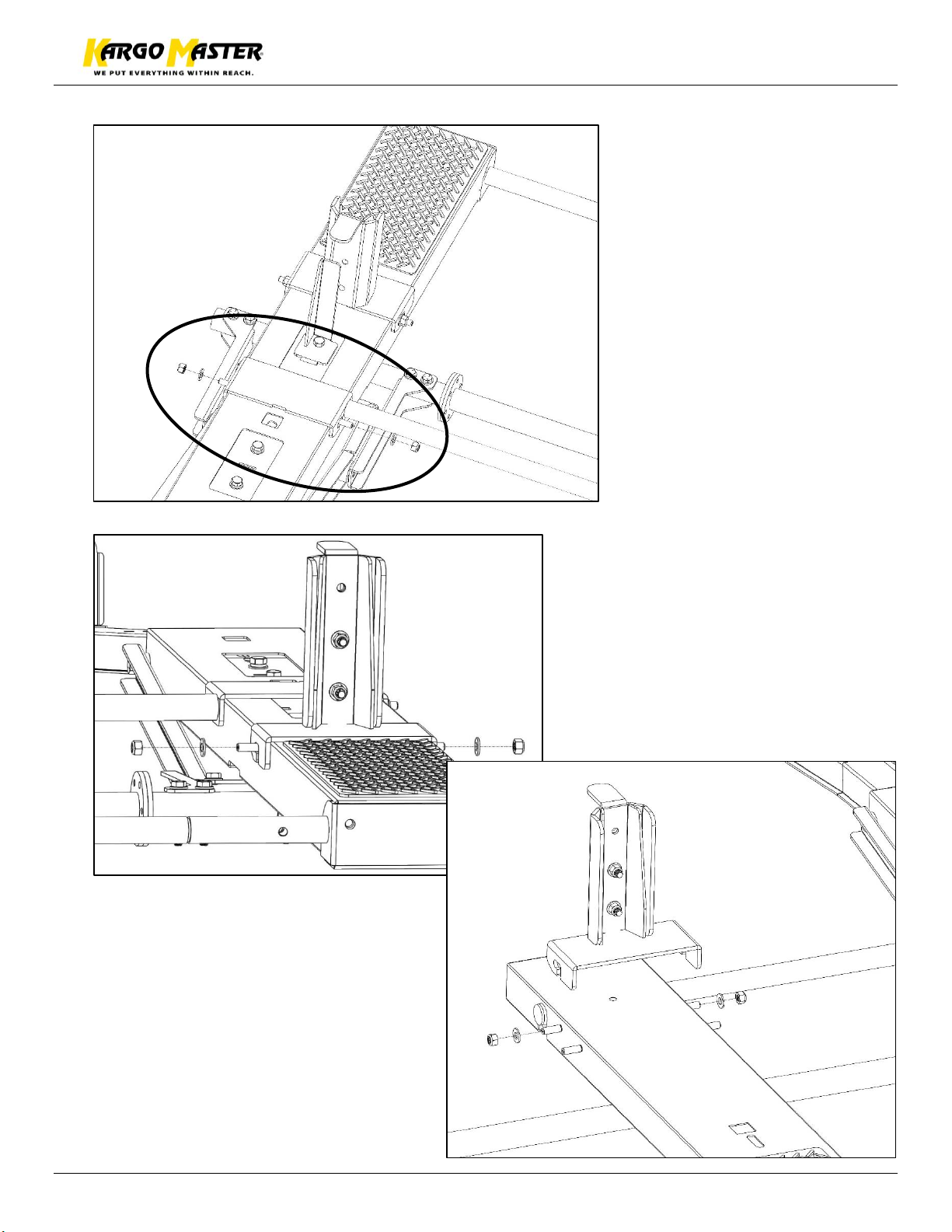

Secure the bracket with 5/16” washer and 5/16” lock nut on both sides.

Detach the ladder hook from the original pan.

Loosely install onto the new extension kit

using the two 5/16” lock nuts and two 5/16”

washers as shown.

Installation Instructions –40816

For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 5

Detach the ladder stop from the original pan.

Loosely install ladder stop to using the 3/8” x 1”

hex bolt from the hardware kit, 3/8” washers,

3/8” lock nut and placing stop so the tab goes into

the corresponding rectangular hole.

Gently set and hold the ladder in position on the rack, as shown, and adjust the stepladder pan into

position.

NOTE: The ladder position shown below is the appropriate position during use.

Installation Instructions –40816

For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 6

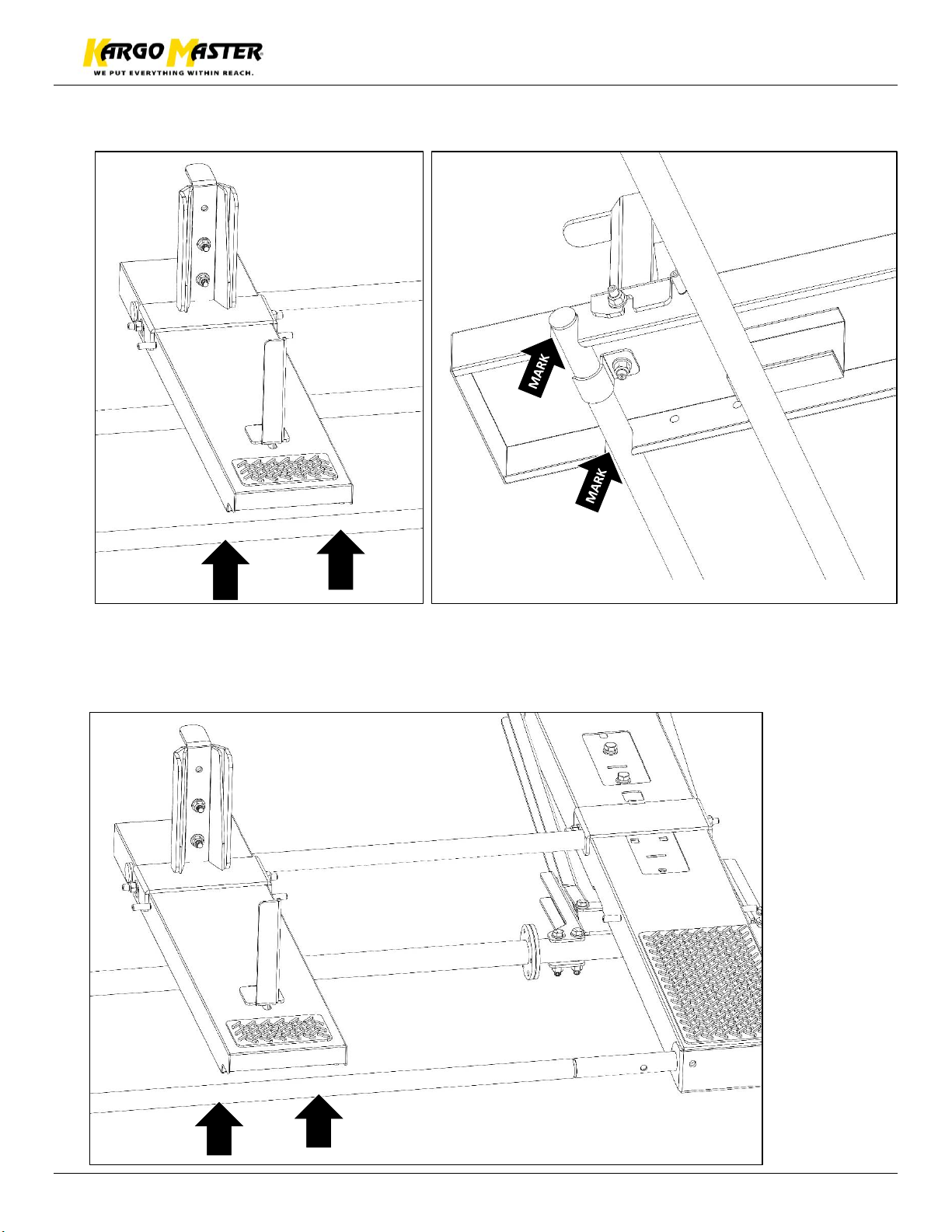

Using a pencil, mark on the drop down rack support tube and the pan support tube, the location of the

ladder pan.

Remove the ladder.

Ensure the stepladder pan is at the marked position.

Apply the protector tape, included in the bolt kit, on the drop down rack support tube, just below the

extension pan, centered over the marks, to prevent paint from scratching.

MARK

TAPE

Installation Instructions –40816

For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 7

Loosely fasten the ladder pan to the support tube, using the support tube connecting bracket (the shorter

bracket), a 5/16” washer and a 5/16” lock nut.

Loosen the stiffener connecting bracket and slide the extension pan aside.

Apply protector tape, included in the bolt kit, on the pan support tube, just below the extension pan,

centered over the marks, to prevent paint from scratching.

GO BACK AND ENSURE ALL HARDWARE IS TIGHTENED.

ASSEMBLY IS COMPLETE
