Kichler Lighting 35162 Manuale utente
ITEM #0831588
MODEL #35162
CEILING FAN
1
ATTACH YOUR RECEIPT HERE
Serial Number Purchase Date
Questions, problems, missing parts? Before returning to your retailer, call our
customer service department at 1-800-554-6504, 8 a.m. - 4:30 p.m, EST, Monday - Friday.
Kichler® is a registered trademark of
The L.D. Kichler Co. All Rights Reserved.
Français p. 13

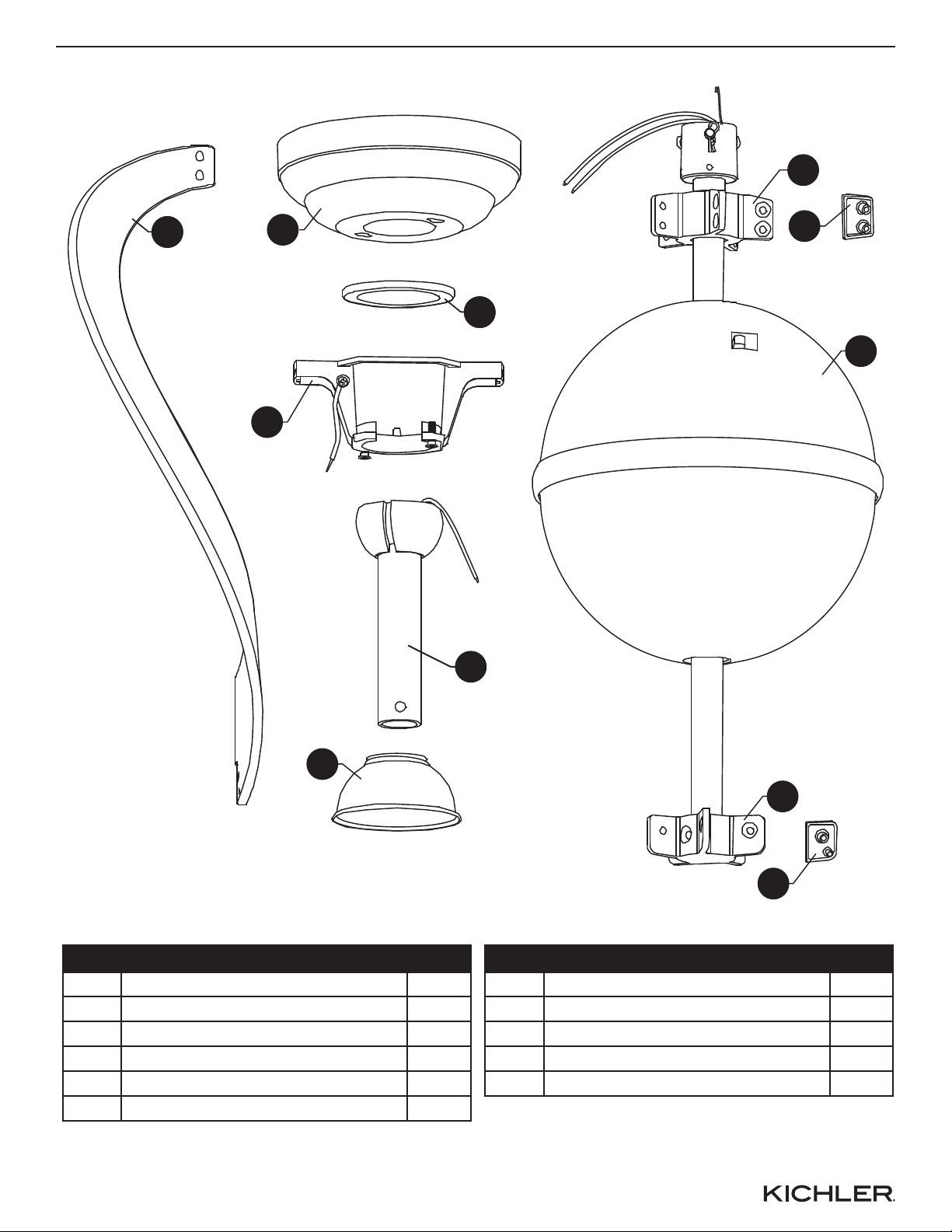

PACKAGE CONTENTS
2
A
Hanging Bracket
Down Rod
Canopy
Canopy Cover
Motor Coupling Cover
Motor Assembly
B
C
D
E
F
1
1
1
1
1
1
PART DESCRIPTION QTY
Upper Fan Blade Assembly
Lower Fan Blade Assembly
Fan Blade
Upper Rectangular Washer
Lower Rectangular Washer
I
H
G
J
K
1
1
5
5
5
PART DESCRIPTION QTY
A
C
E
B
DD
DI J
K
G
F
H
3

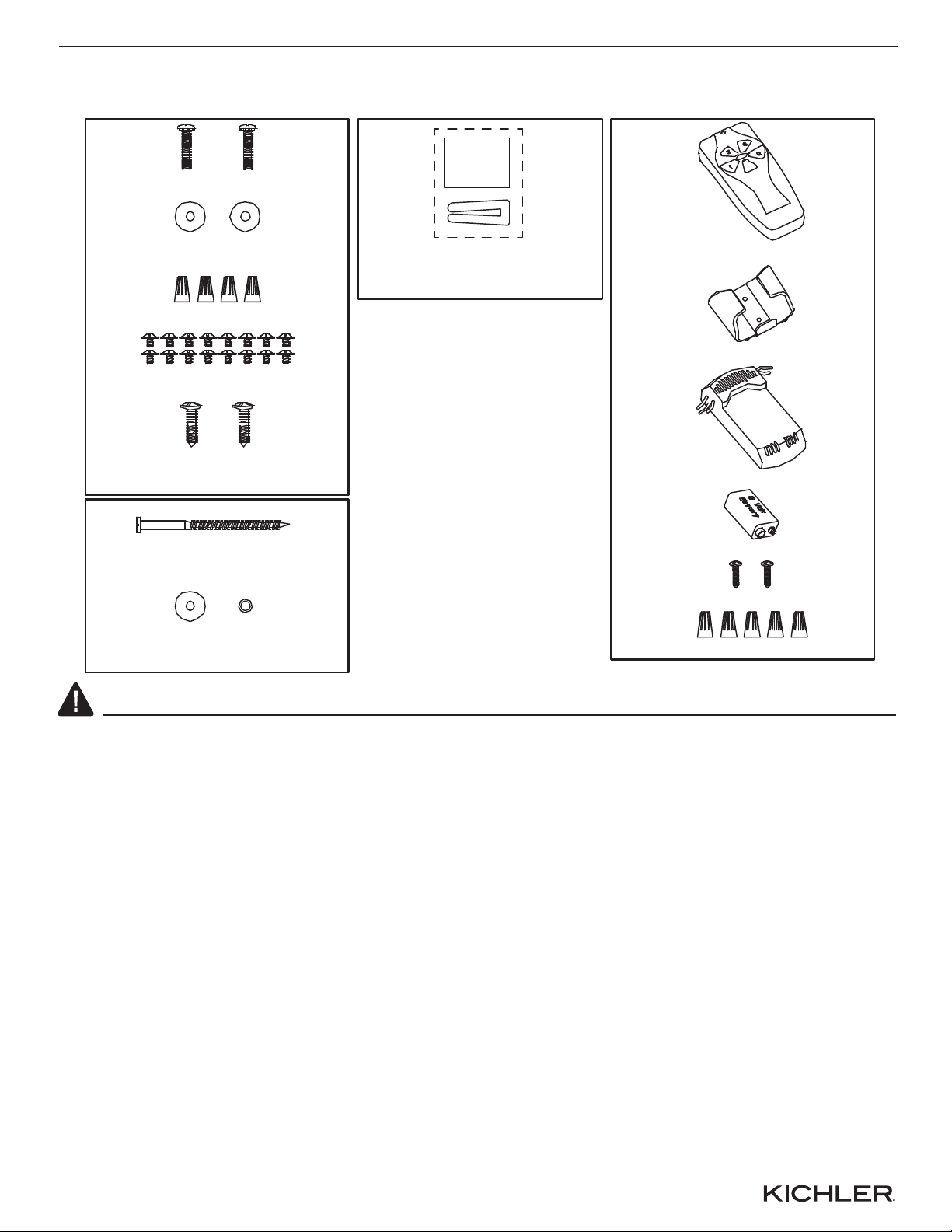

PACKAGE CONTENTS
HARDWARE BAG BALANCE KIT BAG REMOTE CONTROL
Remote Control
Remote Control Holder
Receiver
Battery
Wood Screw
Hanging bracket Screw
Hanging bracket Washer
Wire Connector
Blade Screw
Balance KitBalance Kit
Wood Screw
Wire Connector
Lag Screw
Flat Washer + Spring Washer
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install the
product.
WARNING:
• Important: When using an existing outlet box, be sure the box is securely attached to the building
structure and can support the full weight of the fan. Failure to do so can result in serious injury or
death.
• Turn off circuit breakers and wall switch to the fan supply wire leads. Warning: Failure to
disconnect power supply prior to installation may result in serious injury or death.
• Warning - Connecting this fan to a light switch (on/off) has been known to cause damage to the
receiver. This fan must be wired to continually receive power. Failure to do so will drastically
reduce the lifespan of this fan.
• Do not install fan on a ceiling with a pitch greater than 20°.
• WARNING – To Reduce The Risk Of Fire, Electric Shock, Or Personal Injury, Mount To Outlet Box
Marked 'Acceptable for Fan Support of 15.9 kg (35 lbs) or less' And Use Mounting Screws
Provided With The Outlet Box and/or Support Directly From Building Structure. Most Outlet Boxes
Commonly Used For The Support of Luminaires Are Not Acceptable For Fan Support And May
Need To Be Replaced. Consult A Qualified Electrician If In Doubt."
• Important: Be sure wiring box is properly grounded or that a ground (green) wire is present.
4
A B C
ASSEMBLY INSTRUCTIONS
• WARNING-To reduce risk of fire, electric shock, or personal injury, mount to outlet box marked
“Acceptable for Fan Support of 15.9kg (35lbs) or less” and use mounting screws provided with the
outlet box and/or support directly from building structure. Most outlet boxes commonly used for
the support of luminaries are not acceptable for fan support and may need to be replaced.
Consult a qualified electrician if in doubt.

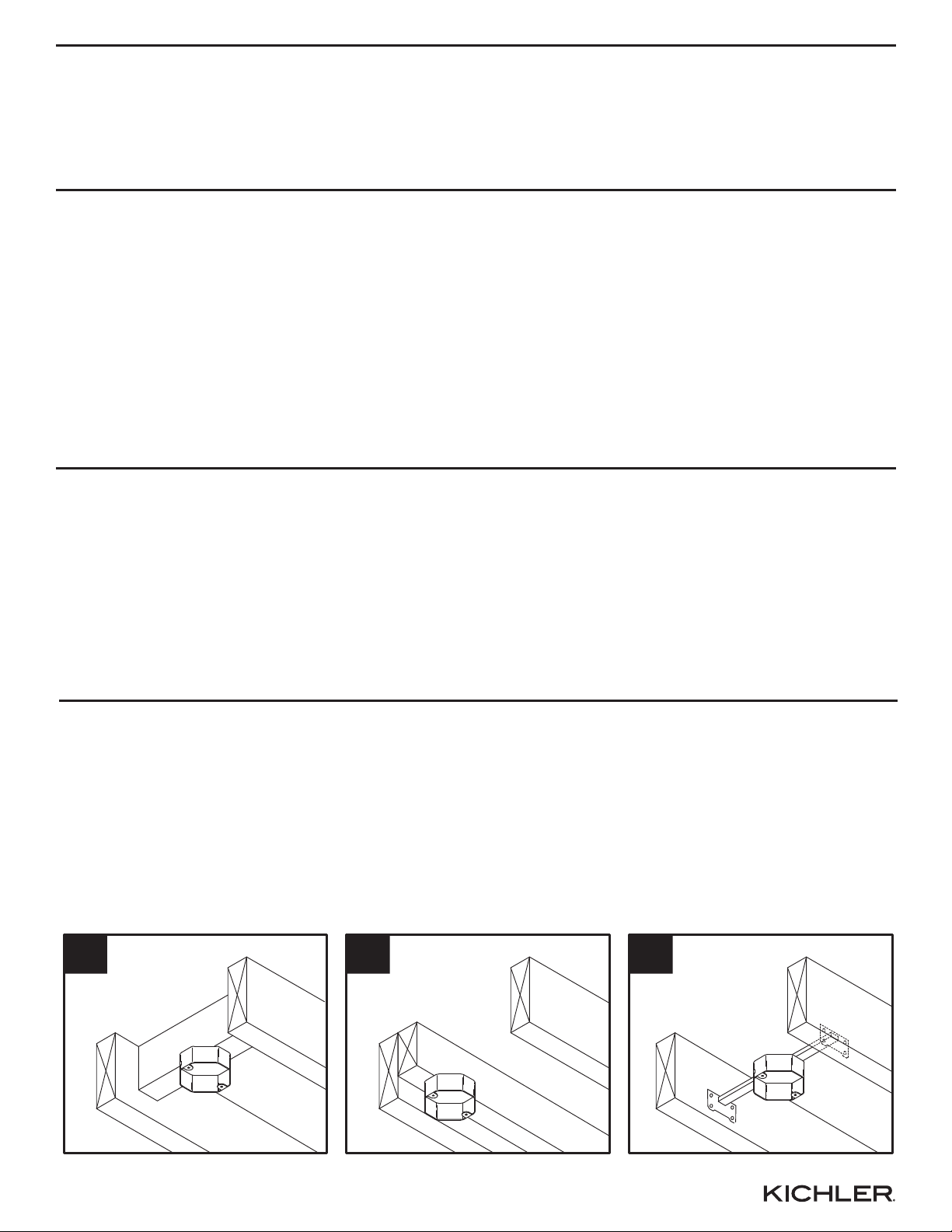

• Warning-Risk of fire, electric shock, or personal injury. Ceiling fans may be either directly
supported from a structural framing member of a building and (see examples in figures A & B) or
may be mounted to an outlet box marked acceptable for fan support of 31.8 kg (70 lbs) to 15.9kg
(35 lbs) (see example in figure C).
CAUTION
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and diagram. If any part is missing or damaged, do not attempt to assemble the product.
Contact customer service for replacement parts.
Estimated assembly time: 30 minutes to 1 hour.
Tools Required for Assembly (not included): Phillips screwdriver, flathead screwdriver, wire strippers,
electrical tape, ladder, safety glasses, wrench, pliers.
• Read and understand all instructions and illustrations completely before proceeding with assembly
and installation of this fixture.
• If you have any doubts about how to install this lighting fixture, or if the fixture fails to operate
completely, please contact a qualified licensed electrical contractor.
• All parts must be used as indicated in these instructions. Do not substitute any parts, leave parts
out, or use any parts that are worn out or broken. Failure to obey this instruction could invalidate
the UL listing, C.S.A. certification, and/or ETL listing of this fixture.
• This fixture is intended for installation in accordance with the National Electric Code (NEC) and all
local code specifications.
• This fixture is for indoor use only.
WARNING (continued)
• Make sure the installation site you choose allows a minimum of 7 feet from the floor to the end of
the blades.
• To reduce the risk of fire or electrical shock, do not use this fan with any solid state fan speed
device or variable speed control.
ASSEMBLY INSTRUCTIONS
5

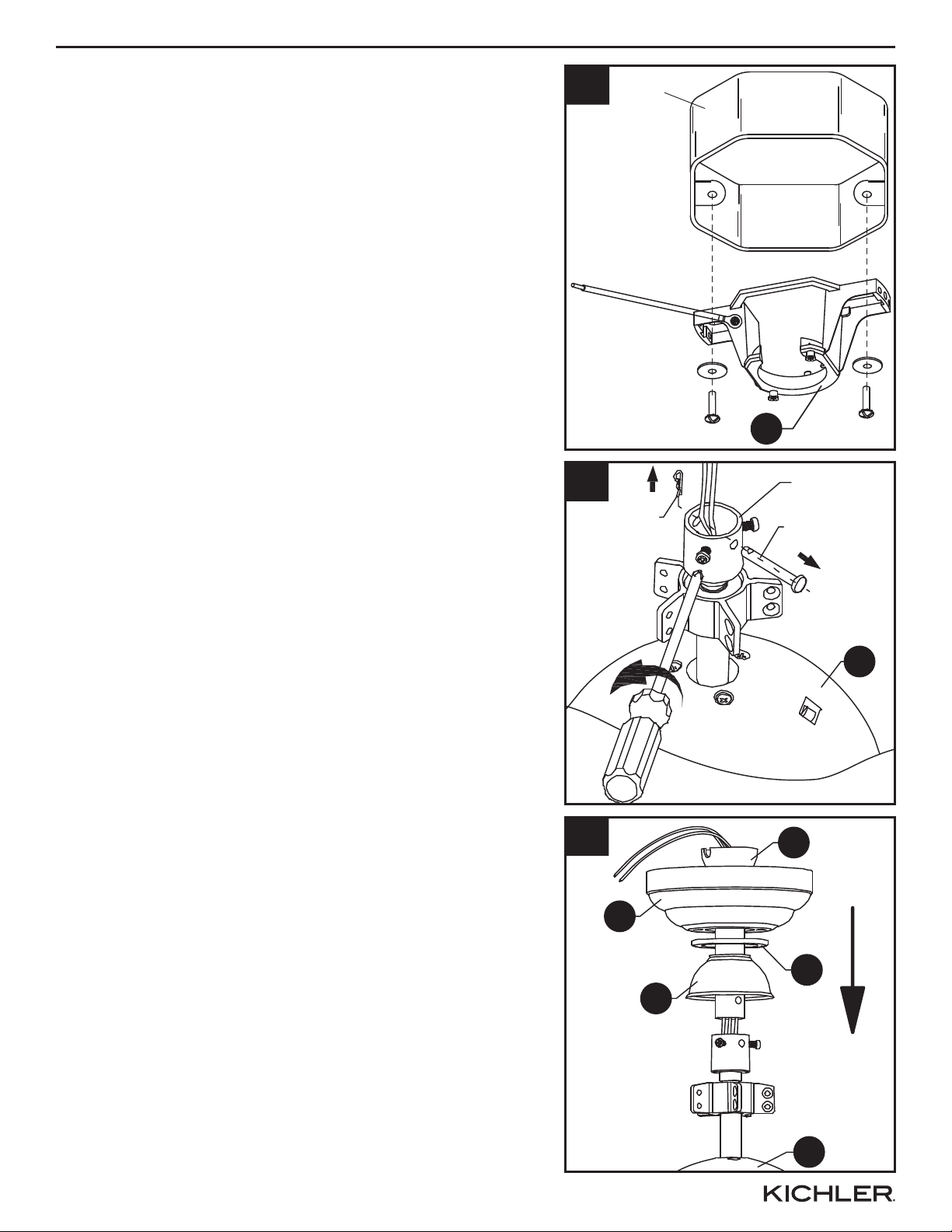

1. Secure the hanging bracket (A) to the ceiling outlet
box using hanging bracket screws and hanging
bracket washers.
Important: If attaching the fan to a sloped ceiling,
make sure open end of mounting bracket is installed
facing the roof. Do not install fan on a ceiling with a
pitch greater than 20°.
2. Loosen the set screws found on coupling on top of
the motor assembly (F). Then remove the hair and
clevis pin that will be used on a later step.
1Outlet Box
A
3. Place motor coupling cover (E), canopy cover (D),
and canopy (C) over the coupling found on the top of
the motor assembly (F). Feed wires from the motor
assembly (F) through the down rod (B), then insert
the down rod (B) into the coupling found on top of
the motor assembly (F).
2
F
Hair Pin Clevis Pin
Coupling
3
C
E
B
D
F
ASSEMBLY INSTRUCTIONS
6
4. Pass the clevis pin through the down rod (B) and
coupling found on the motor assembly (F) and
secure with the hair pin. Tighten set screws found
on the coupling on the motor assembly (F).
5. Carefully lift the fan and seat the downrod (B)/hanger
ball assembly on the hanging bracket (A). Be sure
the groove in the ball is lined up with the tab on the
hanger bracket (A).
5
B
A
Coupling
4
F
Hair Pin
Clevis Pin
6. For Canadian installation and for USA fans over 35 lbs, the safety cable must be installed into the
house structure beams using a 3” lag screw. Make sure that when the safety cable is fully
extended the lead wires are longer than the cable and no stress is placed on the lead wires.
Safety
Cable
Flat
Washer
Spring
Washer
Safety
Cable
Lag
Screw
Safety
Cable
6a 6b 6c
ASSEMBLY INSTRUCTIONS
77

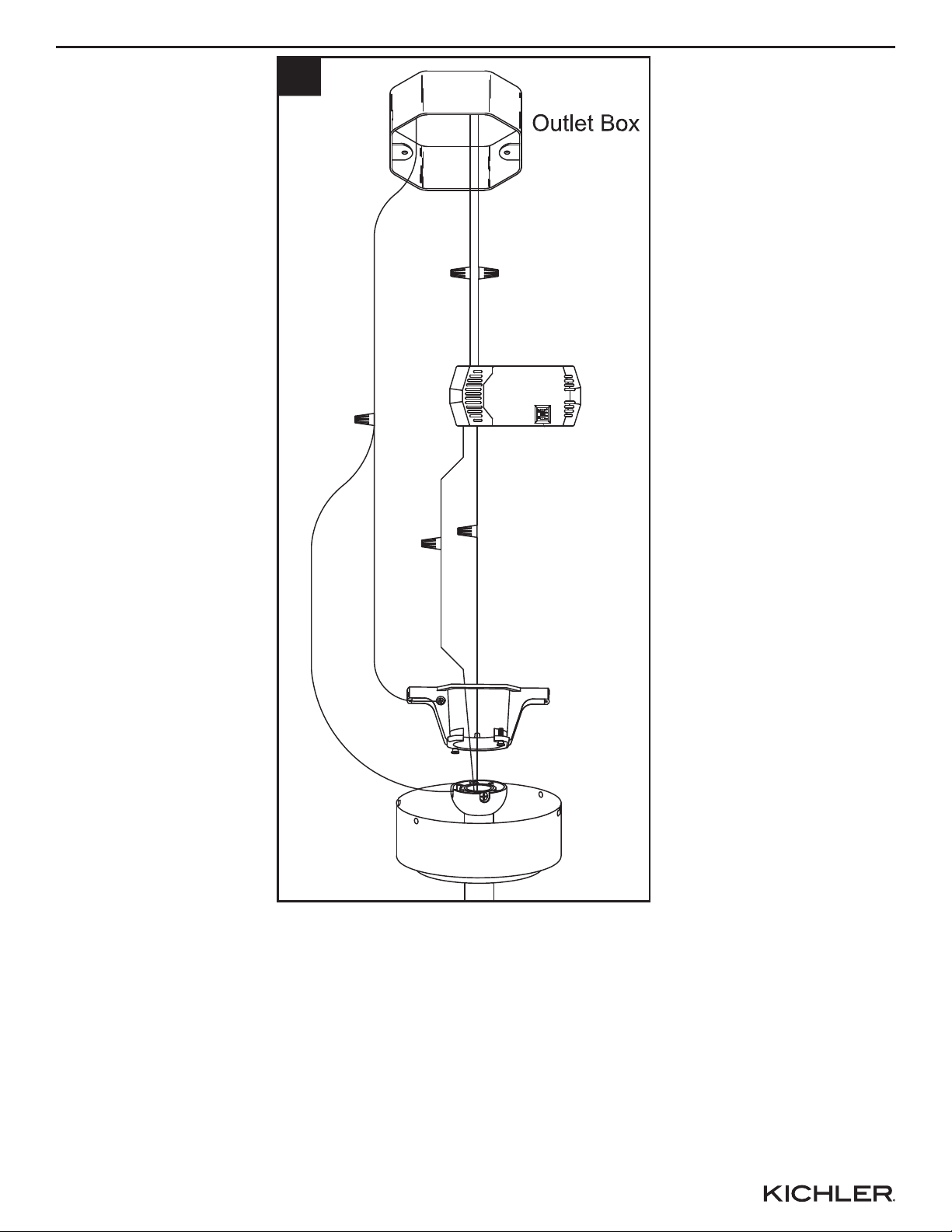

7. Wiring the fan per wiring diagram and securely connect wires with wire connectors:
• Connect WHITE wire marked AC IN N from the fan to WHITE wire marked TO MOTOR N from the
receiver.
• Connect BLACK marked AC IN L wire from the fan to BLACK marked TO MOTOR L wire from the
receiver.
• Connect WHITE wire from the outlet box to WHITE marked AC IN N wire from the receiver.
• Connect BLACK wire from the outlet box to BLACK wire marked AC IN L wire from the receiver.
• Connect GROUND (GREEN) wires from hanger bracket and downrod ball, to GROUND (GREEN
or BARE COPPER) from house.
7
BARE COPPER
(GROUND)
GREEN (BRACKET)
WHITE
(AC INPUT)
WHITE
(NEUTRAL)
BLACK
(AC INPUT)
BLACK
(LIVE)
WHITE
(NEUTRAL)
BLACK
(MOTOR) BLACK
WHITE
GREEN (DOWN ROD)
WHITE
ASSEMBLY INSTRUCTIONS
8
8

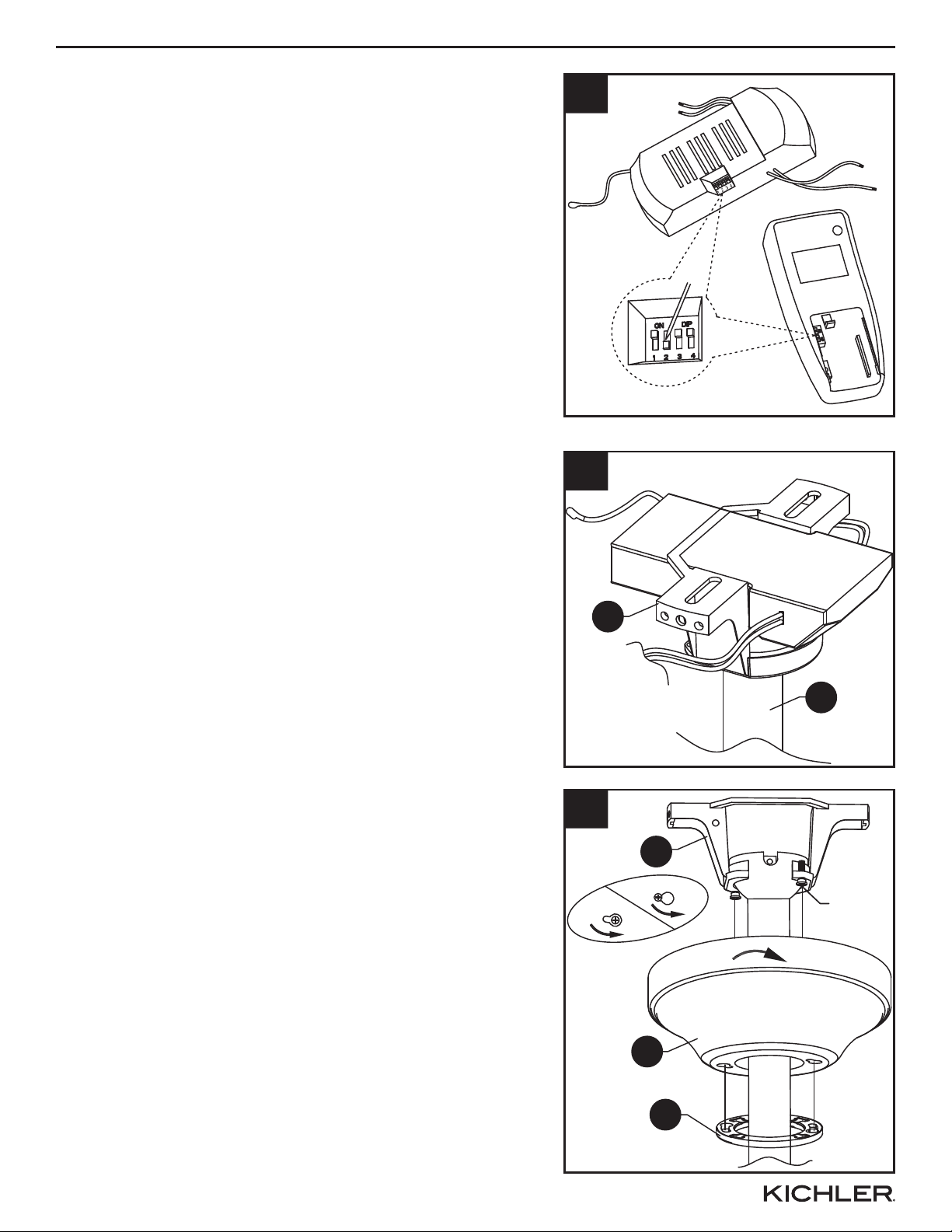

8. In order to use the remote control the dip switches
must match on both the remote control and the
receiver. Make sure they both have the same
configuration.
Remove the battery cover from the remote control.
Slide dip switches up or down using a small screw
driver (not included). Then match the dip switches
on the receiver to the same position as the remote
control.
9. Once wiring step has been completed, slide the
wired remote receiver in between the hanging
bracket (A) and the top of the downrod ball (B) with
the flat side of the receiver facing the ceiling. Turn
lead wires upward and carefully push them into the
outlet box, with the white and green wires to one
side of the box and the black wire toward the other
side.
10.Loosen the two shoulder screws without fully
removing the hanging bracket (A). Assemble canopy
(C) by rotating keyhole slot in canopy over shoulder
screws in hanging bracket (A). Tighten shoulder
screws. Securely attach and tighten the canopy
cover (D) over the shoulder screws in the hanging
bracket (A) utilizing the keyhole slot twist-lock
feature.
9
A
B
10
A
C
D
Shoulder
Screw
Remote Control
Receiver
ASSEMBLY INSTRUCTIONS
9
12.Raise fan blade (I) to the upper fan blade assembly (G) making sure the holes line up on both the
fan blade (I) and the upper fan blade assembly (G). Secure the fan blade by passing two blade
screws through the upper fan blade assembly (G) , fan blade (I) and into the upper rectangular
washer (J). Finially pass one blade screw through the lower fan blade assembly (H), fan blade (I)
and into lower rectangular washer (K). Repeat for remaining fan blades (I).
G
H
12
J
K
I
I
11.Remove shipping retainer from the motor assembly
(F) before assembling the fan blades in the next
step.
11
Shipping
Retainer
F
ASSEMBLY INSTRUCTIONS
10

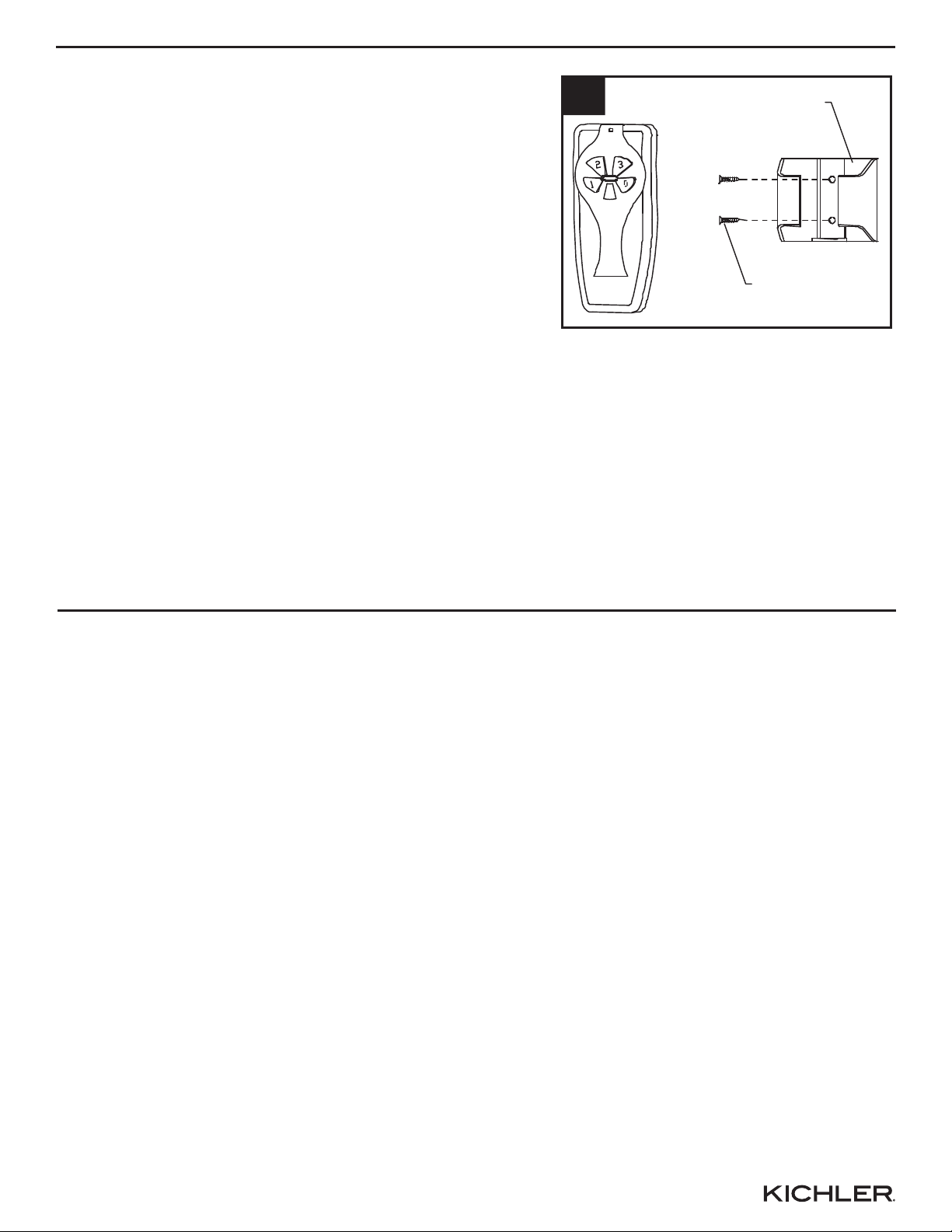

13.Install remote control holder onto wall with wood
screws provided. 13 Remote Control Holder
Wood Screw
FCC WARNING
Warning: Changes or modifications to this unit not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC rules. These limits are to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and if not installed and used in accordance with the instructions may cause
harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
