54" Ample

INSTRUCTION MANUAL

Model# 310354READ AND SAVE THESE INSTRUCTIONS

KICHLER.COM

54" Ample | 3

TABLE OF CONTENTS

INSTALLING THE MOUNTING PLATE...................................18

INSTALLING THE LIGHT KIT AND GLASS SHADE

(IF NOT USING THE DECORATIVE COVER) ......................................19

INSTALLING THE DECORATIVE COVER

(IF NOT USING THE LIGHT KIT AND GLASS SHADE) .......................20

INSTALLING THE COOLTOUCH WALL PLATE....................21

INSTALLING THE TRANSMITTER..........................................21

OPERATING INSTRUCTIONS.................................................22

TROUBLESHOOTING...............................................................26

FCC INFORMATION ..................................................................28

SAFETY RULES............................................................................ 4

TOOLS AND MATERIALS REQUIRED..................................... 6

PACKAGE CONTENTS ............................................................... 6

MOUNTING OPTIONS.................................................................7

HANGING THE FAN .................................................................... 8

INSTALLATION OF SAFETY CABLE.......................................12

ELECTRICAL CONNECTIONS.................................................13

FINISHING THE INSTALLATION .............................................16

ATTACHING THE FAN BLADES...............................................18

4 | KICHLER.COM

fan support and may need to be replaced. Due to the

complexity of the installation of this fan, a qualified

licensed electrician is strongly recommended.

6. The outlet box and support structure must be

securely mounted and capable of reliably supporting

a minimum of 15.9 kg (35 pounds). Use only cULus

Listed outlet boxes marked “Acceptable for Fan

Support of 15.9 kg (35 lbs) or less”.

7. The fan must be mounted with a minimum of 2.1 m

(7 feet) clearance from the trailing edge of the blades

to the floor.

8. To operate the reverse function on this fan, press

the “Reverse” Button on the transmitter while fan is

running.

9. Avoid placing objects in the path of the blades.

10. WARNING: make sure the power is disconnected

before cleaning your fan.

READ AND SAVE THESE INSTRUCTIONS

SAFETY RULES

WARNING: FOR CANADA, THIS FAN MUST BE SECURED DIRECTLY TO THE BUILDING STRUCTURE / CEILING JOIST.

DON’T SECURE THIS FAN TO AN OUTLET BOX.

1. CAUTION – RISK OF SHOCK: Disconnect Power at

the main circuit breaker panel or main fusebox before

starting and during the installation.

2. WARNING: All wiring must be in accordance with the

National Electrical Code “ANSI/NFPA 70” and local

electrical codes. Electrical installation should be

performed by a qualified licensed electrician.

3. WARNING: To reduce the risk of electric shock, this

fan must be installed with a general-use, isolating wall

control/switch.

4. WARNING: Not suitable for use with solid-state speed

controls.

5. WARNING: To reduce the risk of fire, electric shock,

or personal injury, mount to outlet box marked

“acceptable for fan support of 15.9 kg (35 lbs.) or

less” and use mounting screws provided with the

outlet box. Most outlet boxes commonly used for

the support of light fixtures are not acceptable for

54" Ample | 5

16. N.W. 9.0 KGS (19.84 LBS) / G.W. 10.34 KGS (22.8 LBS)11. To avoid personal injury or damage to the fan and

other items, be cautious when working around or

cleaning the fan.

12. Do not use water or detergents when cleaning the fan

or fan blades. A dry dust cloth or lightly dampened

cloth will be suitable for most cleaning.

13. After making electrical connections, spliced

conductors should be turned upward and pushed

carefully up into outlet box. The wires should be

spread apart with the grounded conductor and the

equipment-grounding conductor on one side of the

outlet box and the ungrounded conductor on the

other side of the outlet box.

14. Electrical diagrams are reference only. Light kits that

are not packed with the fan must be cULus Listed

and marked suitable for use with the model fan you

are installing. Switches must be cULus General Use

Switches. Refer to the Instructions packaged with the

light kits and switches for proper assembly.

15. All set screws must be checked, and retightened

where necessary, before installation.

SAFETY RULES (continued)

WARNING

TO REDUCE THE RISK OF PERSONAL INJURY,

DO NOT BEND THE BLADE BRACKETS DURING

ASSEMBLY OR AFTER INSTALLATION. DO NOT

INSERT OBJECTS IN THE PATH OF THE BLADES.

6 | KICHLER.COM

TOOLS AND MATERIALS REQUIRED

PACKAGE CONTENTS

• Phillips Screwdriver

• Blade Screwdriver

• 11 mm Wrench

• Step Ladder

• Wire Cutters

Unpack your fan and check the contents. You should have the following items:

A. Fan Blades (3)

B. Decorative Ring

C. Canopy & Ceiling Mounting Bracket

D. Hanger Ball/Downrod Assembly

E. Coupling Cover

F. Fan Motor Assembly

G. Mounting Plate

H. LED light kit

I. Glass Shade

J. Decorative Cover

K. Transmitter (TR250B) and Wall Plate

L. Package hardware

1) Safety Cable Hardware:

Wood Screw ( 1 ), Flat Washer ( 1 )

2) Blade attachment hardware:

Blade Mounting Screws (11), Fiber

Washers (11)

3) Balance kit

4) Mounting hardware: Wood Screws (2),

Flat Washers (2), Star Washers (2),

Wire Nuts (3), Screws (2)

1 2 3 4

54" Ample | 7

Fig. 1

Outlet box

Fig. 2

Fig. 3

Recessed

outlet box ceiling Ceiling

Mounting

plane

Provide strong

support

ANGLED CEILING

MAXIMUM 15° ANGLE

Fig. 4

Outlet box

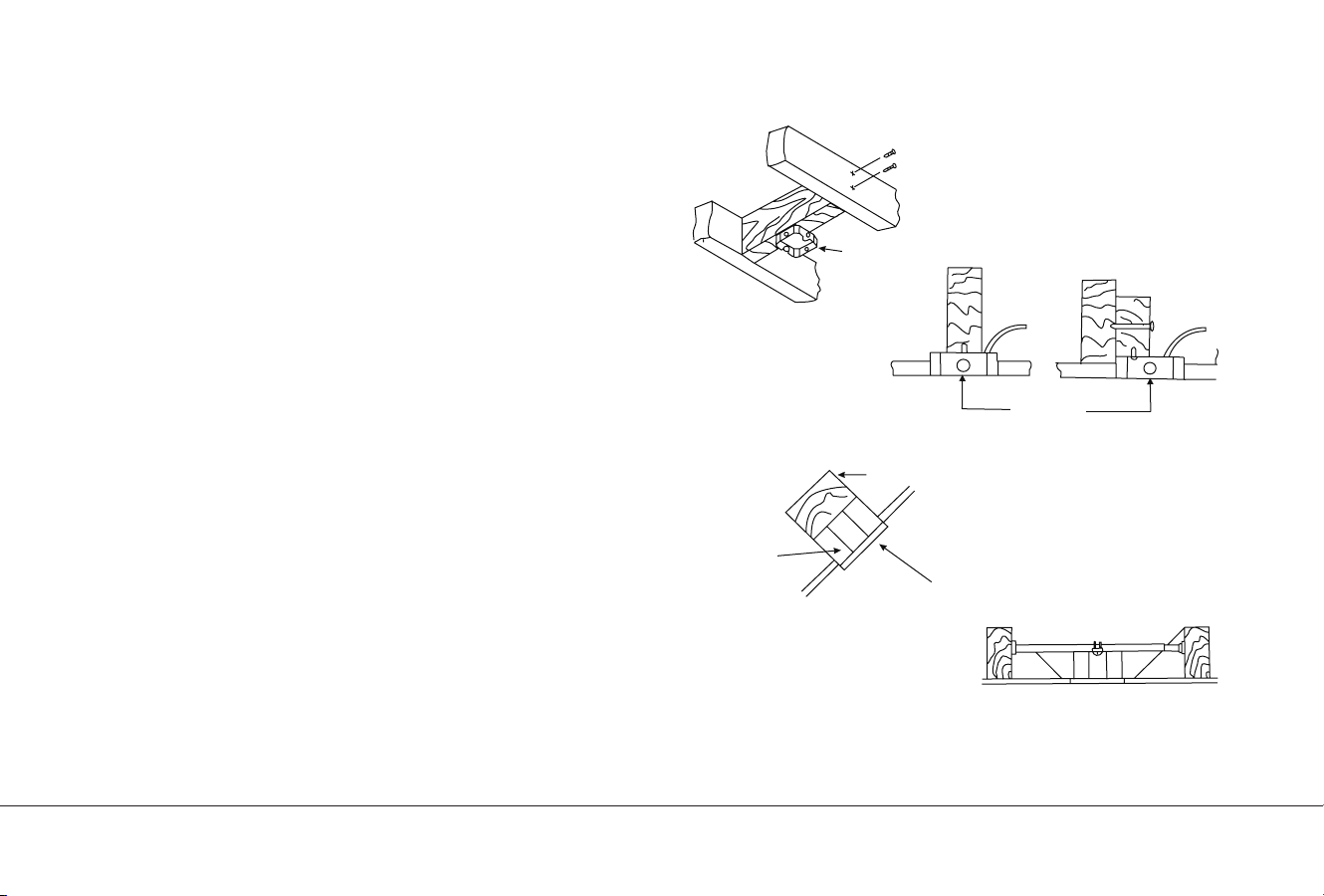

MOUNTING OPTIONS

If there is not an existing UL (cUL for Canadian Installation) listed

mounting box, then read the following instructions. Disconnect

the power by removing fuses or turning o circuit breakers.

Secure the outlet box directly to the building structure. Use

appropriate fasteners and building materials. The outlet box and

its support must be able to fully support the full weight of the fan

(up to 15.9kg (35 pounds)). Do not use plastic outlet boxes.

Figures 1, 2 and 3 are examples of dierent ways to mount the

outlet box.

NOTE: If you are installing the ceiling fan on a sloped (vaulted)

ceiling, you may need a longer downrod to maintain proper

clearance between the tip of the blade and the ceiling. A

minimum clearance of 12" is suggested for optimal operation.

NOTE: Depending on the location you have selected for

installation, you may need to purchase and install a “Joist

Hanger” for the support of the outlet box. Make sure the joist

hanger you purchase has been designed for use with ceiling

fans. (Fig. 4)

8 | KICHLER.COM

HANGING THE FAN

CAUTION: To avoid possible electrical shock, be sure you have

turned o the power at the main circuit panel.

WARNING: All set screws must be checked, and retightened where

necessary, before installation.

NOTE: This ceiling fan is supplied with two types of hanging assemblies; the

standard ceiling installation using the downrod with ball and socket mounting

and the “close-to-ceiling” installation. The “close-to-ceiling” installation

is recommended in rooms with less than 8-foot ceilings or in areas where

additional space is desired from the floor to the fan blades.

Fig. 5

Hook

Check Tab

120V Wires

Washer

(Supplied with Electrical Box)

Mounting Screw

(Supplied with Electrical Box)

Ceiling Mounting

Bracket

cULus

Electrical

Box

54" Ample | 9

Standard Ceiling Installation

WARNING: All set screws must be checked, and retightened where necessary,

before installation.

Step 1. Pass the 120-volt supply wires through the center hole in the ceiling mounting bracket as

shown in (Fig. 5).

Step 2. Secure the ceiling mounting bracket to the ceiling outlet box with the screws

and washers provided with your outlet box.

Step 3. Remove the retaining clip and the hitch pin from the hanger ball/downrod assembly.

Remove the hanger ball from the hanger ball/downrod assembly by loosening the set screw

(do not remove) on the hanger ball, unscrewing and removing the cross pin, and unscrewing the

hanger ball from the downrod. (Fig. 6)

Step 4. Loosen the two set screws (do not remove) in the coupling on top of the motor

assembly. (Fig. 7)

Step 5. Carefully feed the electrical lead wires and safety cable from the coupling on top of the

motor assembly up through the downrod. Thread the downrod into the coupling on top of the

motor assembly until the hitch pin holes in the downrod and the hitch pin holes in the coupling

are aligned. (Fig. 7)

Step 6. Carefully insert the hitch pin through the holes in the coupling and the downrod. (Fig. 7)

NOTE: Be careful not to jam the hitch pin against the wiring inside of the downrod.

Insert the retaining clip through the hole near the end of the hitch pin until it snaps into its locked

position. (Fig. 7)

Step 7. Tighten the two set screws in the coupling on top of the motor assembly firmly. (Fig. 7)

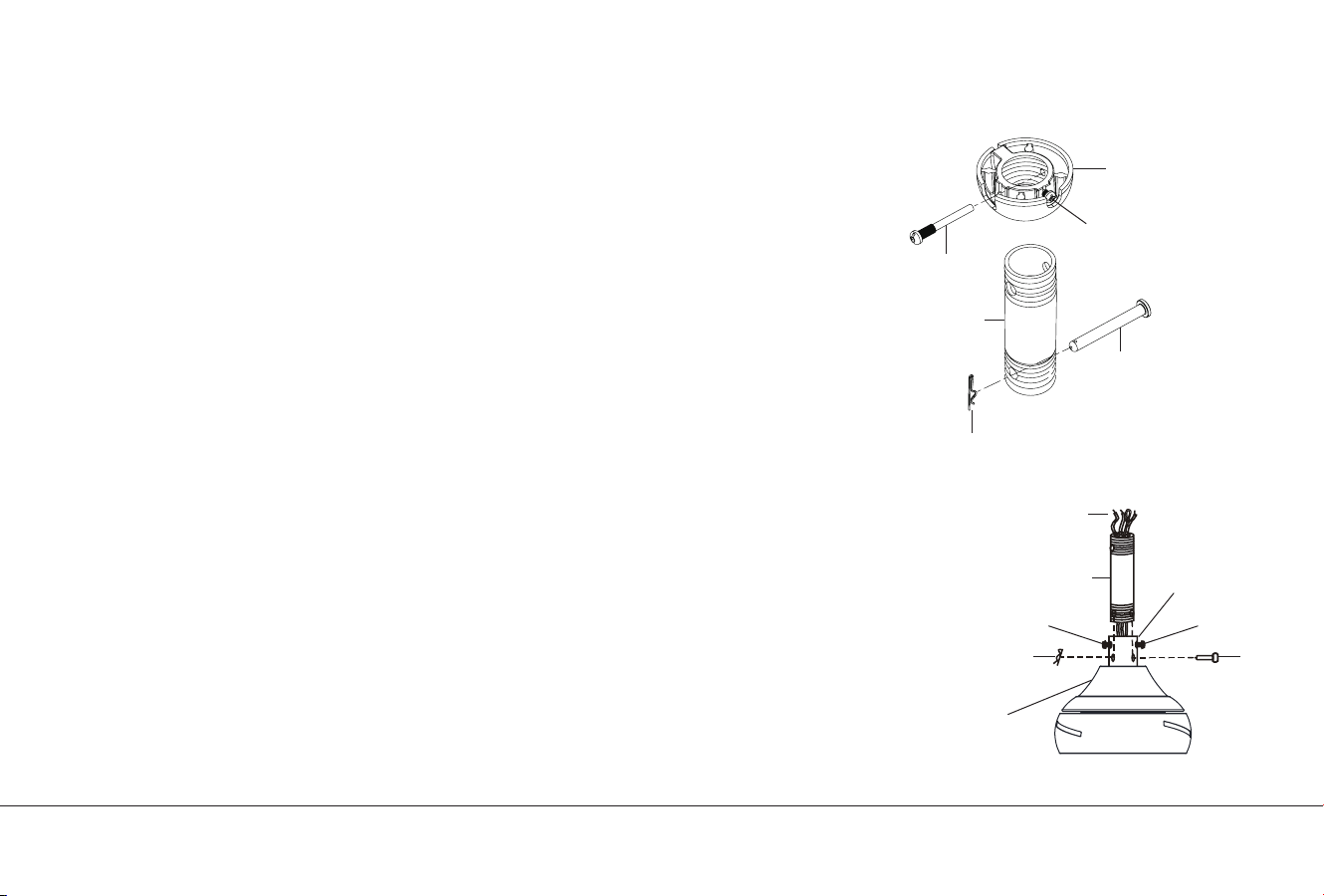

HANGING THE FAN (continued)

Cross Pin

Hanger Ball

Set Screw

Downrod

Retaining

Clip

Hitch Pin

Fig. 6

Fig. 7

Downrod

Supply

Wires

Coupling

Set ScrewSet Screw

Hitch

Retaining

Clip

Motor

Assembly

10 | KICHLER.COM

HANGING THE FAN (continued)

Step 8. Slip the coupling cover, decorative ring (finished side facing motor), and canopy

onto the downrod. (Fig. 8B).

Step 9. Carefully reinstall the hanger ball onto the downrod. Carefully reinstall the cross

pin through the hanger ball and downrod. (Fig. 8A)

NOTE: Be careful not to jam the cross pin against the wiring inside of the downrod.

Make sure the cross pin is in the correct position. Tighten the cross pin. Tighten the set

screw on the hanger ball. Make sure that the wires are not twisted. (Fig. 8A)

Step 10. Lift the motor assembly into position and place the hanger ball into the ceiling

mounting bracket socket. Rotate the entire assembly until the “Check Tab” has dropped

into the “Registration Slot”and seats firmly. (Fig. 9)

The entire motor assembly should not rotate (left or right) when seated properly.

WARNING: Failure to reattach the cross pin and seat the “Check Tab” can

cause the fan to fall from the ceiling during operation. Take special care to

make sure this pin is reattached.

Fig. 8A

Fig. 8B

Fig. 9

Cross Pin Set

Screw

Canopy

Downrod

Decorative

Ring

Coupling

Cover

Set Screw Set Screw

Retaining Clip

Hitch Pin

Ceiling

Mounting

Bracket

Check Tab

Registration

Slot

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali Kichler Lighting Fan

Kichler Lighting

Kichler Lighting Arkwright Manuale utente

Kichler Lighting

Kichler Lighting Monarch II Manuale utente

Kichler Lighting

Kichler Lighting Porters Lake Manuale utente

Kichler Lighting

Kichler Lighting 54 Meredith Manuale utente

Kichler Lighting

Kichler Lighting Kimberley Manuale utente

Kichler Lighting

Kichler Lighting VASSAR Manuale utente

Kichler Lighting

Kichler Lighting Sterling Manor Manuale utente

Kichler Lighting

Kichler Lighting Decor Dorset Manuale utente

Kichler Lighting

Kichler Lighting Lyndon 300120 Manuale utente

Kichler Lighting

Kichler Lighting Vassar 330002OZ Manuale utente

Kichler Lighting

Kichler Lighting True Manuale utente

Kichler Lighting

Kichler Lighting RIED Manuale utente

Kichler Lighting

Kichler Lighting PINION 60 Manuale utente

Kichler Lighting

Kichler Lighting Surrey Climates 60 Manuale utente

Kichler Lighting

Kichler Lighting Makoda Manuale utente

Kichler Lighting

Kichler Lighting 52" Canfield Pro Manuale utente

Kichler Lighting

Kichler Lighting Kevlar 310150WCP Manuale utente

Kichler Lighting

Kichler Lighting Canfield 300117WH Manuale utente

Kichler Lighting

Kichler Lighting Rana 310155 Manuale utente

Kichler Lighting

Kichler Lighting Sola 330151 Manuale di istruzioni

Kichler Lighting

Kichler Lighting Select Sutter Place Manuale utente

Kichler Lighting

Kichler Lighting Monarch Manuale utente

Kichler Lighting

Kichler Lighting Select Canfield 300107 Manuale utente

Kichler Lighting

Kichler Lighting Kittery Point Manuale utente

Manuali Fan popolari di altre marche

ELTA FANS

ELTA FANS H03VV-F Manuale utente

Hunter

Hunter 20714 Manuale di istruzioni

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manuale utente

Hunter

Hunter Caraway Manuale di istruzioni

Panasonic

Panasonic FV-15NLFS1 Manuale utente

Kompernass

Kompernass KH 1150 Manuale utente

VES

VES FALA100/12V/TR Manuale utente

Vertiv

Vertiv Liebert DCD Manuale utente

Westinghouse

Westinghouse GFP Series Manuale utente

Venmar

Venmar KUBIX HRV PLUS Series Manuale utente

Maico

Maico ECR 31 Manuale utente

Sonnenkonig

Sonnenkonig Dinky Manuale utente

S&P

S&P ECOWATT HXBR Manuale utente

Wider

Wider IMP03369BH Manuale utente

Panasonic

Panasonic F-60DHN Manuale utente

Hinkley

Hinkley HIGHLAND Manuale utente

Broan

Broan 766BN Manuale utente

Premium

Premium PFS16022 Istruzioni per il montaggio
