Instruction Manual

LaceyTM

A Kichler®Décor™ceiling fan

Designed to coordinate with a popular Kichler Lighting collection.

Includes our new

CoolTouch

6 Speed DC Control System

Looks permanent, but goes wherever you go!

U.S. Patent Pending

Our High Efficiency DC Motor Technology

Requires 70% Less energy than a Standard

Ceiling Fan AC Induction Motor.

1. To reduce the risk of electric shock, insure

electricity has been turned off at the circuit

breaker or fuse box before beginning.

2. All wiring must be in accordance with the

National Electrical Code and local electrical

codes. Electrical installation should be

performed by a qualified licensed

electrician.

3. WARNING: Suitable for use with solid-

state speed controls.

4. WARNING: To reduce the risk of personal

injury, use only the two steel screws (and

lock washers) provided with the outlet box

for mounting to the outlet box. Most outlet

boxes commonly used for the support of

lighting fixtures are not acceptable for fan

support and may need to be replaced,

consult a qualified electrician if in doubt.

5. The outlet box and support structure must

be securely mounted and capable of

reliably supporting a minimum of 50

pounds. Use only ETL Listed outlet boxes

marked "FOR FAN SUPPORT".

6. The fan must be mounted with a minimum

of 7 feet clearance from the trailing edge of

the blades to the floor.

7. To operate the reverse function on this fan,

press the reverse button while the fan is

running.

8. Avoid placing objects in the path of the

blades.

9. To avoid personal injury or damage to the

fan and other items, be cautious when

working around or cleaning the fan.

10. Do not use water or detergents when

cleaning the fan or fan blades. A dry dust

cloth or lightly dampened cloth will be

suitable for most cleaning.

11. After making the electrical connections,

spliced conductors should be turned

upward and pushed carefully up into outlet

box. The wires should be spread apart with

the ground wire and white (common) wire

to one side with the black (load) wire to the

other side of the outlet box.

12. Electrical diagrams are reference only.

Light kits that are not packed with the fan

must be ETL Listed and marked suitable

for use with the model fan you are

installing. Switches must be ETL General

Use Switches. Refer to the Instructions

packaged with the light kits and switches

for proper assembly.

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK OR PERSONAL INJURY, MOUNT

FAN TO OUTLET BOX MARKED

"ACCEPTABLE FOR FAN SUPPORT".

WARNING

TO REDUCE THE RISK OF PERSONAL

INJURY, DO NOT BEND THE BLADE

BRACKETS (ALSO REFERRED TO AS

FLANGES) DURING ASSEMBLY OR AFTER

INSTALLATION. DO NOT INSERT OBJECTS

IN THE PATH OF THE BLADES.

1. SAFETY RULES

3. PACKAGE CONTENTS

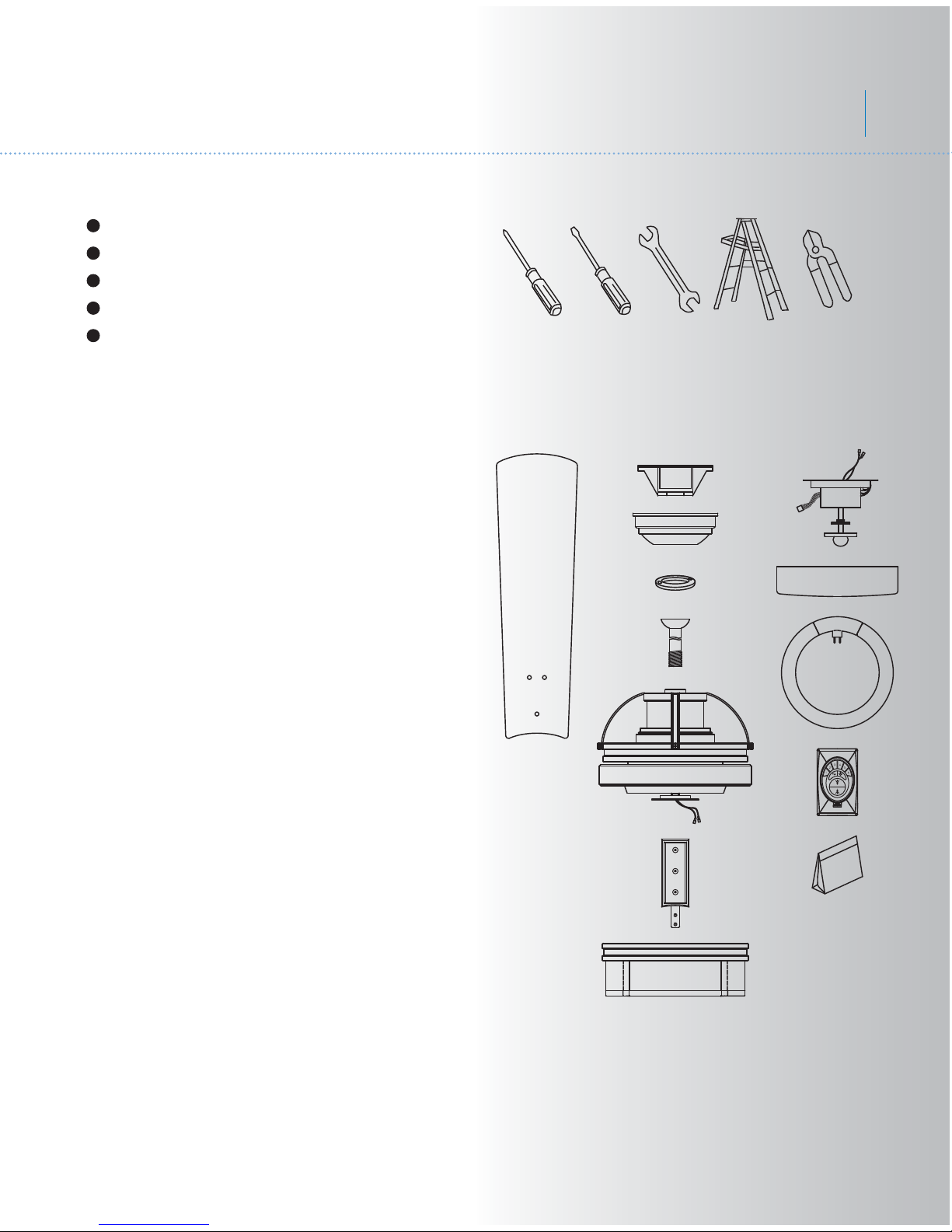

Unpack your fan and check the contents. You

should have the following items:

a. Fan blades (5)

b. Ceiling mounting bracket

c. Canopy

d. Decorative canopy bottom cover

e. Ball/downrod assembly

f. Coupling cover & fan motor assembly

g. Set of 5 blade brackets and Pre-Installed

mounting screws

h. Light plate

i. Lamp ballast assembly

j. Glass shade

k. 22W, T9 circular ﬂuorescent lamp

l. CoolTouch™ Control System

m. Part bag contents

1) Mounting hardware:

wood screws (2), ﬂat washers (2),

star washers (2), wire nuts (3),

screws (2)

2) Blade attachment hardware:

screws (17), ﬁber washers (17)

3) Blade bracket attachment hardware:

screws (12)

4) Safety cable hardware:

wood screw, spring washer, ﬂat washer

5) Allen wrench

6) Balance Kit

Philips screw driver

Blade screw driver

11 mm wrench

Step ladder

Wire cutters

2. TOOLS AND MATERIALS REQUIRED

LaceyTM

4. MOUNTING OPTIONS

Outlet box

Provide strong

support

Recessed

outlet box Ceiling

mounting

plate

Outlet box

Fig. 1

Fig. 3

Fig. 4

Outlet box

Fig. 2

ANGLED CEILING

MAXIMUM 30°ANGLE

If there isn't an existing ETL listed mounting

box, then read the following instructions.

Disconnect the power by removing fuses or

turning off circuit breakers.

Secure the outlet box directly to the building

structure. Use appropriate fasteners and

building materials. The outlet box and its

support must be able to fully support the

moving weight of the fan (at least 50 lbs). Do

not use plastic outlet boxes.

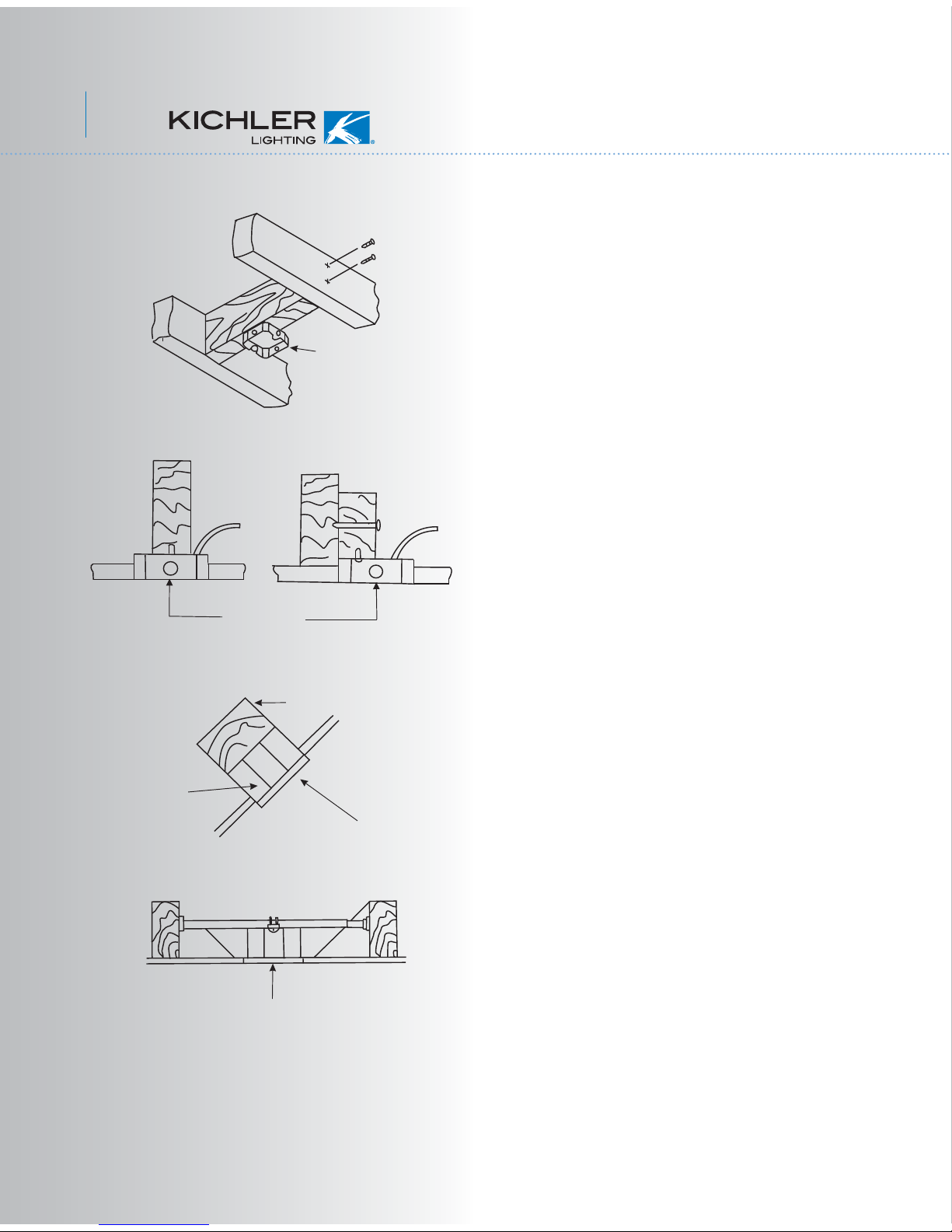

Figures 1, 2 and 3 are examples of different

ways to mount the outlet box.

NOTE: If you are installing the ceiling fan on a

sloped (vaulted) ceiling, you may need a

longer downrod to maintain proper clearance

between the tip of the blade and the ceiling.

A minimum clearance of 12" is suggested for

optimal operation.

NOTE: Depending on the location you have

selected for installation, you may need to

purchase and install a "Joist Hanger" for the

support of the outlet box. Make sure the joist

hanger you purchase has been designed for

use with ceiling fans. (Fig. 4)

Fig. 7

Fig. 6

Mounting screws

(supplied with

electrical box)

Hook

Ceiling

mounting

bracket

ETL Listed

outlet box

120V Wires

Washers

Fig. 5

5. HANGING THE FAN

RMEMEBER to turn off the power before you

begin installation. This is necessary for your

safety and also the proper programing of the

control system.

To properly install your ceiling fan, follow the

steps below.

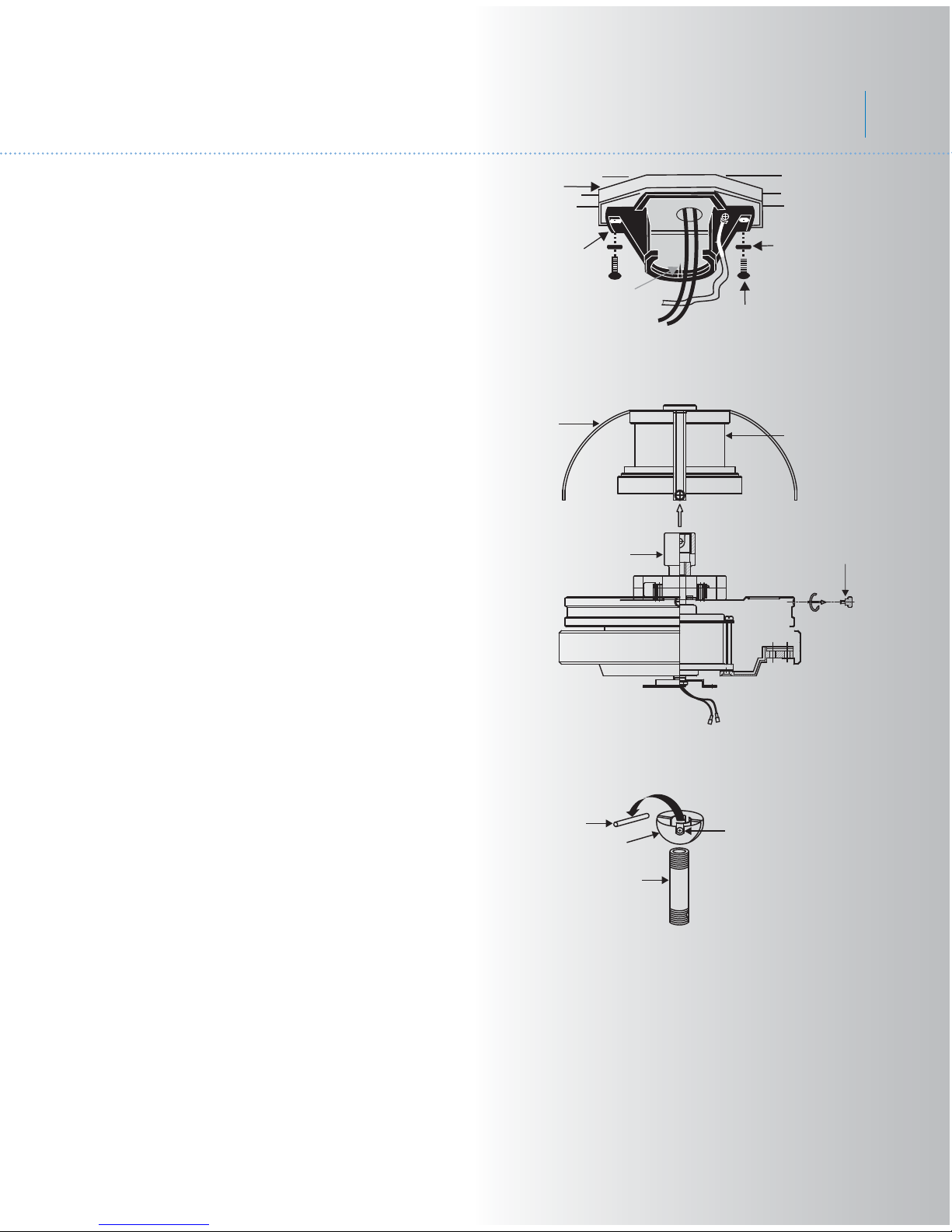

Step 1. Pass the 120 volt supply wires from

the ceiling outlet box through the center of the

ceiling mounting bracket. (Fig. 5)

Step 2. Attach the ceiling mounting bracket to

the outlet box using the screws and washers

included with the outlet box. (Fig. 5)

Step 3. Remove the coupling cover from the

motor housing by removing the four screws

from the four decorative arched braces. (Fig.

Step 4. Remove the hanger ball from the

downrod assembly by loosening the set

screw, removing the cross pin and sliding the

ball off the rod. (Fig. 7)

SPECIAL NOTE: For proper Control System

Programing, it is essential that power is NOT

connected or turned on to the ceiling fan

during the installation process.

You will be instructed at the proper time to

power up the system.

Collar

Decorative

arched

brace Coupling cover

Screws

Cross pin

Hanger ball Set screw

Downrod

LaceyTM

Fig. 8

Fig. 10

Fig. 9

Registration slot

Check tab

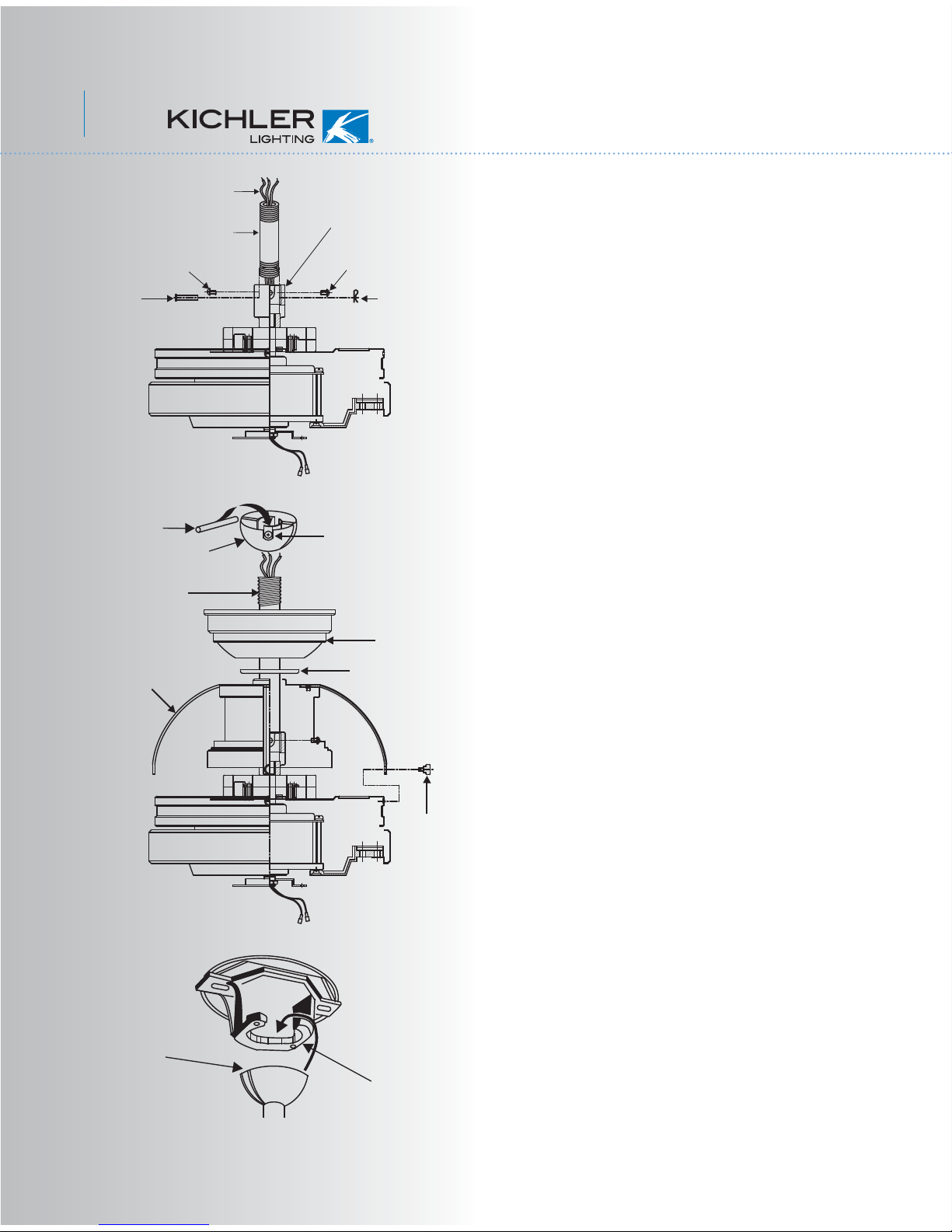

Step 5. Loosen the two set screws and

remove the hitch pin and retaining clip from

the coupling on top of the motor assembly.

(Fig. 8)

Step 6. Carefully feed the electrical lead wires

from the fan up through the downrod. Thread

the downrod into the coupling until the Hitch

pin holes are aligned.

Next, replace the hitch pin and retaining clip.

Tighten both set screws. (Fig. 8)

Step 7. Slip the coupling cover/decorative

arched braces assembly, canopy cover and

canopy onto the downrod. Secure the

coupling cover /decorative arched braces

assembly to the motor housing using the four

screws previously removed. (Fig. 9)

Thread the hanger ball onto the downrod,

insert the cross pin through the downrod and

tighten. Now tighten the set screw. (Fig. 9)

Step 8. Lift the motor assembly into position

and place the hanger ball into the ceiling

mounting bracket.

Rotate the entire assembly until the "Check

Tab" has dropped into the "Registration Slot"

and seats ﬁrmly. (Fig. 10)

The entire motor assembly should not rotate

(left or right) when seated properly.

WARNING: Failure to reattach the cross pin

and seat the "Check Tab" can cause the fan

to fall from the ceiling during operation. Take

special care to make sure this pin is

reattached.

Downrod

Canopy

Canopy cover

Coupling cover & decorative

arched braces

assembly

Screws

Cross pin

Hanger ball Set screw

Supply wires

Downrod

Hitch pin

Retaining clip

Set screws

Coupling

Set screws

Fig. 11

Ceiling mounting

bracket Attach

safety cable

to ceiling joist

with screw and

washer

Fig. 12

7. ELECTRICAL CONNECTIONS

6. INSTALLATION OF SAFETY SUPPORT

(required for Canadian installation ONLY)

A safety support cable is provided to help

prevent the ceiling fan from falling, please

install it as follows.

Step 1. Attach the provided wood screw and

washers to the ceiling joist next to the

mounting bracket but do not tighten. (Fig. 11)

Step 2. Adjust the length of the safety cable to

reach the screw and washers by pulling the

extra cable through the cable clamp until the

overall length is correct, put the end of the

cable back through the cable clamp, forming a

loop at the end of the cable. Tighten the cable

clamp securely. Now, put the loop in the end

the safety cable over the wood screw and

under the washer. Tighten the wood screw

securely.

NOTE: Although the safety support cable is

required for Canadian installations only. It's a

good idea to make the attachment with any

installation.

WARNING: To avoid possible electrical shock,

be sure you have turned off the power at the

main circuit panel.

Follow the steps below to connect the fan to

your household wiring. Use the wire

connecting nuts suppled with your fan. Secure

the connectors with electrical tape. Make sure

there are no loose wire strands or connections.

Step 1. Connect the fan supply (black) wire to

the black household supply wire as shown in

Figure 12.

Step 2. Connect the neutral fan (white) wire to

the neutral household (white) wire.

Step 3. Connect the fan ground wire (green) to

the household ground wire.

Step 4. After connecting the wires, spread

them apart so that the green and white wires

are on one side of the outlet box and the black

and blue wires are on the other side.

Step 5. Turn the connecting nuts upward and

push the wiring into the outlet box.

White (neutral)

Green or bare

copper (ground)

White ("AC IN N")

Ground (green)

(Connect to ground wire

on hanger bracket if no

house ground wire exists.)

Outlet box

Black ("AC IN L")

Black (motor)

LaceyTM

Step 1. Tuck all the connections neatly into

the ceiling outlet box.

Step 2. Slide the canopy up to the mounting

bracket and place one of the key hole slots

over the mounting screw on the mounting

bracket. Rotate the canopy until the screw

head locks in place at the narrow section of

the key hole. See ﬁgure 13.

Step 3. Align the remaining circular hole on

the canopy with the remaining hole on the

Ceiling Mounting Bracket. Insert and tighten

the mounting screw you removed earlier and

the mounting screw from Step 2 above. Now,

attach the canopy cover to the mounting

screw heads by inserting the screw heads into

the bottom side of the canopy cover and

rotating the cover clockwise.

NOTE: Adjust the canopy screws as

necessary until the canopy and canopy cover

are snug. (Fig. 13)

Warning: Make sure the "Check Tab" at the

bottom of the hanger bracket is properly

seated in the "Registration Slot" on the side of

the hanger ball before attaching the canopy to

the bracket. Failure to properly seat the

"Check Tab" could damage the electrical

wires when to ceiling fan blade direction is

changed while the fan is running.

8. FINISHING THE INSTALLATION

9. ATTACHING THE FAN BLADES

Step 1. Attach a blade to a blade bracket

using the screws and ﬁber washers provided.

(Fig.14)

Make sure the blade is straight when set on

the blade bracket. Tighten each mounting

screw and then repeat this procedure for each

blade.

Step 2. Using the Allen Wrench provided and

two mounting screws, attach each blade

assembly to the motor. (Fig. 14)

NOTE: Make sure these mounting screws are

securely tightened.

Fig. 13

Fig. 14

Outlet box

Ceiling

mounting

bracket

Canopy

Canopy cover

Screws

Blades

Blade brackets

Screws Allen wrench

Screws

Fiber

washers

Fig. 15

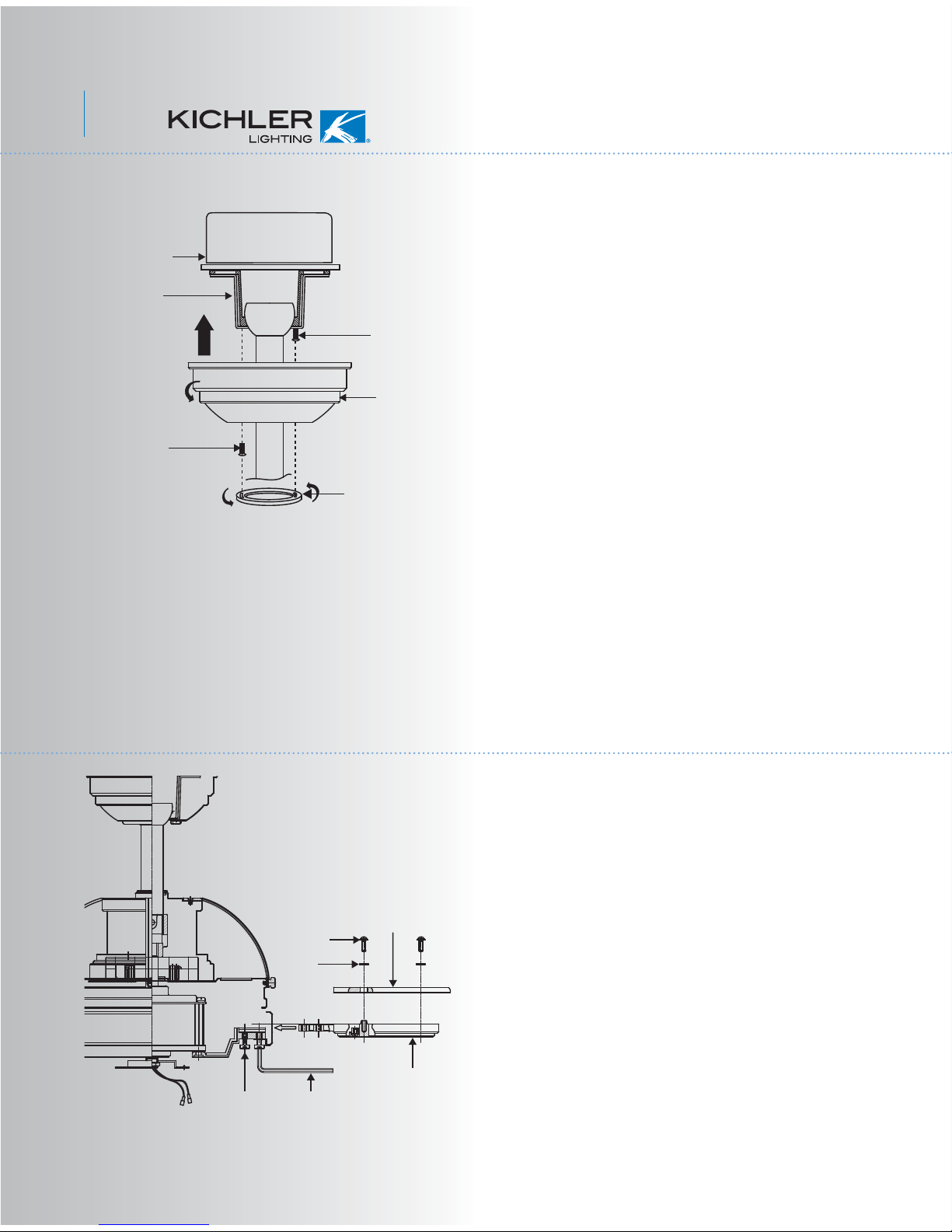

10. INSTALLING THE LIGHT PLATE

Step 1. Loosen the two screws on the

mounting ring attached to the motor shaft and

"remove" and save the third screw. (Fig. 15)

Step 2. Place the key hole slots on the light

plate over the two screws previously loosened

on the mounting ring.

Turn the light plate until is locks in place at the

narrow section of the key hole slots.

Tighten both key hole screws and replace the

third screw previously removed and tighten

securely.

Fig. 16

11. INSTALLING THE LAMP BALLAST

ASSEMBLY

NOTE: Before continuing installation, conﬁrm

that the power is still turned off at the main

circuit breaker or by removing the correct

fuse. Turning the power off using a wall

switch is not sufﬁcient to prevent electrical

shock.

Step 1. Loosen two of the mounting screws

on the Light Fixture Plate and remove the

third. (Fig. 16)

Step 2. Hold the Lamp Ballast Assembly close

to the light ﬁxture and connect the white wires

from the Ballast and the fan by pushing the

connectors together. Follow the same

procedure with the black wires. (Fig. 16)

Step 3. Tuck the connections neatly into the

light ﬁxture. Place the key holes on the Lamp

Ballast Assembly over the 2 screws previously

loosened from the light plate, turn the Lamp

Ballast Assembly until it locks in place at the

narrow section of the key holes. Secure by

tightening the 2 screws previously loosened

and the one previously removed. (Fig. 16)

Light

plate

Screws

Mounting ring

Lamp ballast

assembly Screws

Light

plate

Wire connectors

LaceyTM

Fig. 17

Fig. 18

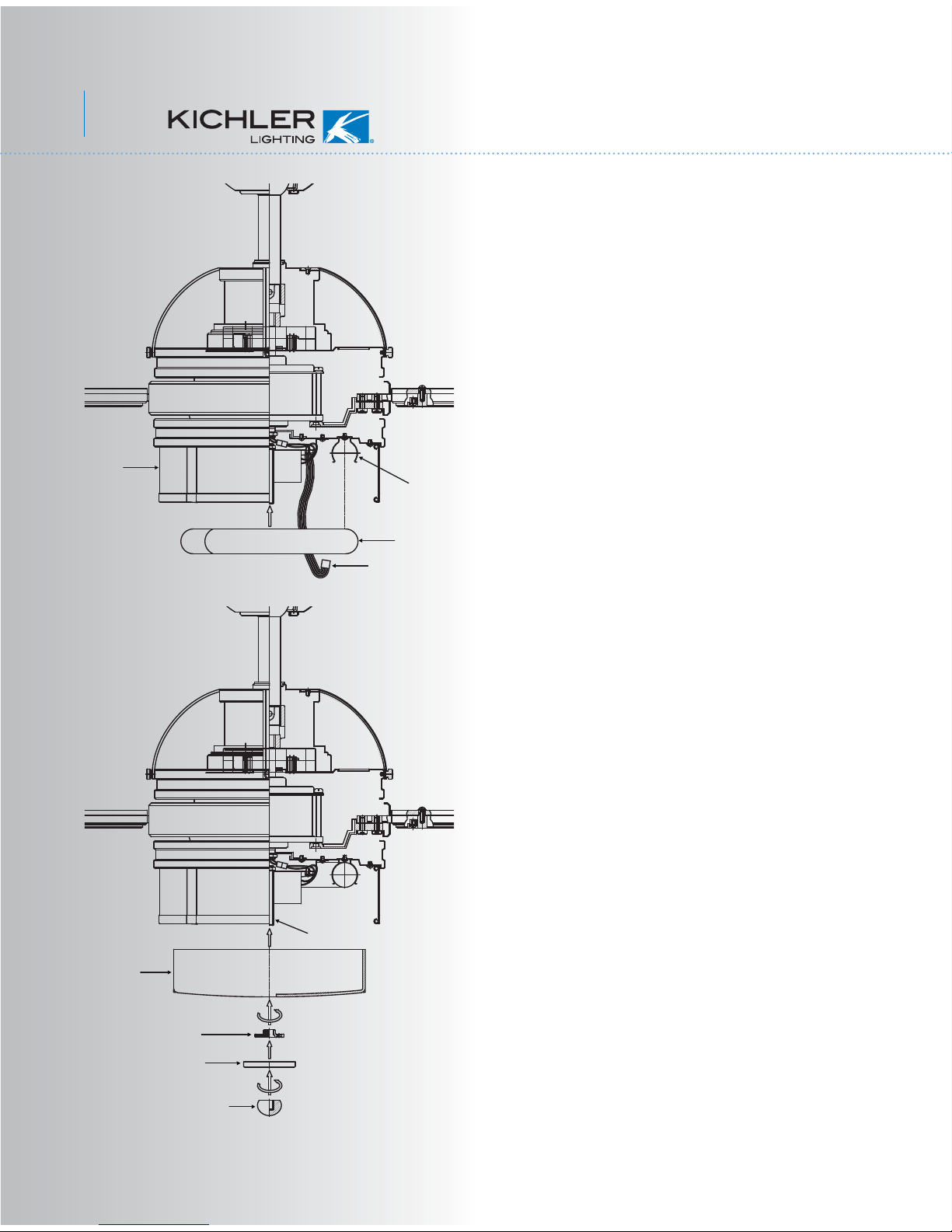

12. INSTALLING THE LAMP AND

GLASS SHADE

Lamp

Lamp holder

Wire connector

Light

plate

Glass

shade

metal nut

Glass cap

Decorative nut

Lamp ballast stem

Step 1. Attach the lamp to the lamp holders

applying even pressure to the lamp at each

lamp holder. The lamp will pop into place.

NOTE: sometimes it helps to open the lamp

holder by lifting the end. This enlarges the

holder allowing the lamp to pop into place

easier. (Fig 17)

Connect the Lamp Ballast to the Lamp by

pushing the Four Pin Connector into the

receptacle on the Lamp.

Step 2. Remove the decorative nut, glass cap

and metal nut from the lamp ballast stem.

Place the glass shade over the lamp ballast

stem and secure the shade with a metal nut

(rubber side touching the shade). (Fig. 18)

Step 3. Fit the decorative glass cap onto the

lamp ballast stem, while holding the

decorative glass cap, thread the decorative

nut onto the lamp ballast stem securely. DO

NOT OVER TIGHTEN.

Indice

Altri manuali Kichler Lighting Fan

Kichler Lighting

Kichler Lighting Lija 330140NI Manuale utente

Kichler Lighting

Kichler Lighting 300370 Manuale utente

Kichler Lighting

Kichler Lighting XETY LED Manuale utente

Kichler Lighting

Kichler Lighting Crystal Bay Manuale utente

Kichler Lighting

Kichler Lighting Tide Weather+ Manuale utente

Kichler Lighting

Kichler Lighting KAPONO Manuale utente

Kichler Lighting

Kichler Lighting ZEUS KLF-ZEUS-60-WHT-BN Manuale utente

Kichler Lighting

Kichler Lighting 35156 Manuale utente

Kichler Lighting

Kichler Lighting Riggs 300143 Manuale utente

Kichler Lighting

Kichler Lighting RIDLEY2 KLF-RIDLEY2-52-NB Manuale utente

Kichler Lighting

Kichler Lighting Decor InnesII 300130 Manuale utente

Kichler Lighting

Kichler Lighting Canfield Patio 310192 Manuale utente

Kichler Lighting

Kichler Lighting Leeds Manuale utente

Kichler Lighting

Kichler Lighting Terra Select Manuale utente

Kichler Lighting

Kichler Lighting Cortez Manuale utente

Kichler Lighting

Kichler Lighting Canfield Manuale utente

Kichler Lighting

Kichler Lighting 54 Skye LED Manuale utente

Kichler Lighting

Kichler Lighting Lehr II Manuale utente

Kichler Lighting

Kichler Lighting Imari 65 Manuale utente

Kichler Lighting

Kichler Lighting KLF-SOLA-34-WHT-BN Manuale utente

Kichler Lighting

Kichler Lighting BASICS PRO PREMIER 330016WH Manuale utente

Kichler Lighting

Kichler Lighting Pacific Edge 300157 Manuale utente

Kichler Lighting

Kichler Lighting Canfield 300117WH Manuale utente

Kichler Lighting

Kichler Lighting Lija Manuale utente

Manuali Fan popolari di altre marche

ELTA FANS

ELTA FANS H03VV-F Manuale utente

Hunter

Hunter 20714 Manuale di istruzioni

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manuale utente

Hunter

Hunter Caraway Manuale di istruzioni

Panasonic

Panasonic FV-15NLFS1 Manuale utente

Kompernass

Kompernass KH 1150 Manuale utente

VES

VES FALA100/12V/TR Manuale utente

Vertiv

Vertiv Liebert DCD Manuale utente

Westinghouse

Westinghouse GFP Series Manuale utente

Venmar

Venmar KUBIX HRV PLUS Series Manuale utente

Maico

Maico ECR 31 Manuale utente

Sonnenkonig

Sonnenkonig Dinky Manuale utente

S&P

S&P ECOWATT HXBR Manuale utente

Wider

Wider IMP03369BH Manuale utente

Panasonic

Panasonic F-60DHN Manuale utente

Hinkley

Hinkley HIGHLAND Manuale utente

Broan

Broan 766BN Manuale utente

Premium

Premium PFS16022 Istruzioni per il montaggio
