Kichler Lighting 35152 Manuale utente

ITEM #0747613, 31885139

MODEL #35152

CEILING FAN

ATTACH YOUR RECEIPT HERE

Serial Number Purchase Date

Questions, problems, missing parts? Before returning to your retailer, call our customer

service department at 1-800-554-6504, 8 a.m. - 4:30 p.m, EST, Monday - Friday.

kichler.com/customer-care/contact-us

Français p. 16

Español p. 31

PACKAGE CONTENTS

231

Hanging Bracket

Down Rod

Canopy

Blade Plate

Motor Coupling Cover

Motor Assembly

PART DESCRIPTION QTY

Finial

Rubber Washer

Canopy Hole Cover

Metal Washer

Blade

PART DESCRIPTION QTY

HARDWARE CONTENTS

2 3

Hanging bracket Screw

Hanging bracket Washer

Wire Connector

Blade Screw

Balance Kit

HARDWARE BAG REMOTE CONTROL

Remote Control

Remote Control Holder

Battery

Receiver

Wood Screw

Lag Screw

Wire Connector

Flat Washer + Spring Washer

Blade Plate Screw

3 5

SAFETY INFORMATION

Please read and understand this entire manual before attempting to assemble, operate or install the

product. If you have any questions regarding the product, please call customer service at

1-800-554-6504, 8 a.m. - 4:30 p.m., EST.

WARNING:

• Important: When using an existing outlet box, be sure the box is securely attached to the building

structure and can support the full weight of the fan. Failure to do so can result in serious injury or

death.

• Turn off circuit breakers and wall switch to the fan supply wire leads. Warning: Failure to

disconnect power supply prior to installation may result in serious injury or death.

• Warning - Connecting this fan to a light switch (on/off) has been known to cause damage to the

receiver. This fan must be wired to continually receive power. Failure to do so will drastically

reduce the lifespan of this fan.

• Do not install fan on a ceiling with a pitch greater than 20°.

• WARNING – To Reduce The Risk Of Fire, Electric Shock, Or Personal Injury, Mount To Outlet Box

Marked 'Acceptable for Fan Support of 15.9 kg (35 lbs) or less' And Use Mounting Screws

Provided With The Outlet Box and/or Support Directly From Building Structure. Most Outlet Boxes

Commonly Used For The Support of LuminairesAre NotAcceptable For Fan SupportAnd May

Need To Be Replaced. Consult A Qualified Electrician If In Doubt."

• Important: Be sure wiring box is properly grounded or that a ground (green) wire is present.

WARNING

• CAUTION – RISK OF SHOCK –

Disconnect Power at the main circuit breaker panel or main fusebox before starting and

during the installation.

• WARNING:

This fixture is intended for installation in accordance with the National Electrical Code

(NEC) and all local code specifications. If you are not familiar with code requirements,

installation by a certified electrician is recommended.

• Do not use bulbs with wattage greater than specified on this fixture.

• California Proposition 65

WARNING: This product can expose you to chemicals including lead, which is known to

the State of California to cause cancer, birth defects, or other reproductive harm.

For more information, go to http://www.P65Warnings.ca.gov

CAUTION

PREPARATION

5 6

Before beginning assembly of product, make sure all parts are present. Compare parts with package

contents list and diagram. If any part is missing or damaged, do not attempt to assemble the product.

Contact customer service for replacement parts.

Estimated assembly time: 30 minutes to 1 hour.

Tools Required for Assembly (not included): Phillips screwdriver, flathead screwdriver, wire strippers,

electrical tape, ladder, safety glasses, wrench, pliers.

A B C

ASSEMBLY INSTRUCTIONS

• WARNING-To reduce risk of fire, electric shock, or personal injury, mount to outlet box marked

“Acceptable for Fan Support of 15.9kg (35lbs) or less” and use mounting screws provided with the

outlet box and/or support directly from building structure. Most outlet boxes commonly used for

the support of luminaries are not acceptable for fan support and may need to be replaced.

Consult a qualified electrician if in doubt.

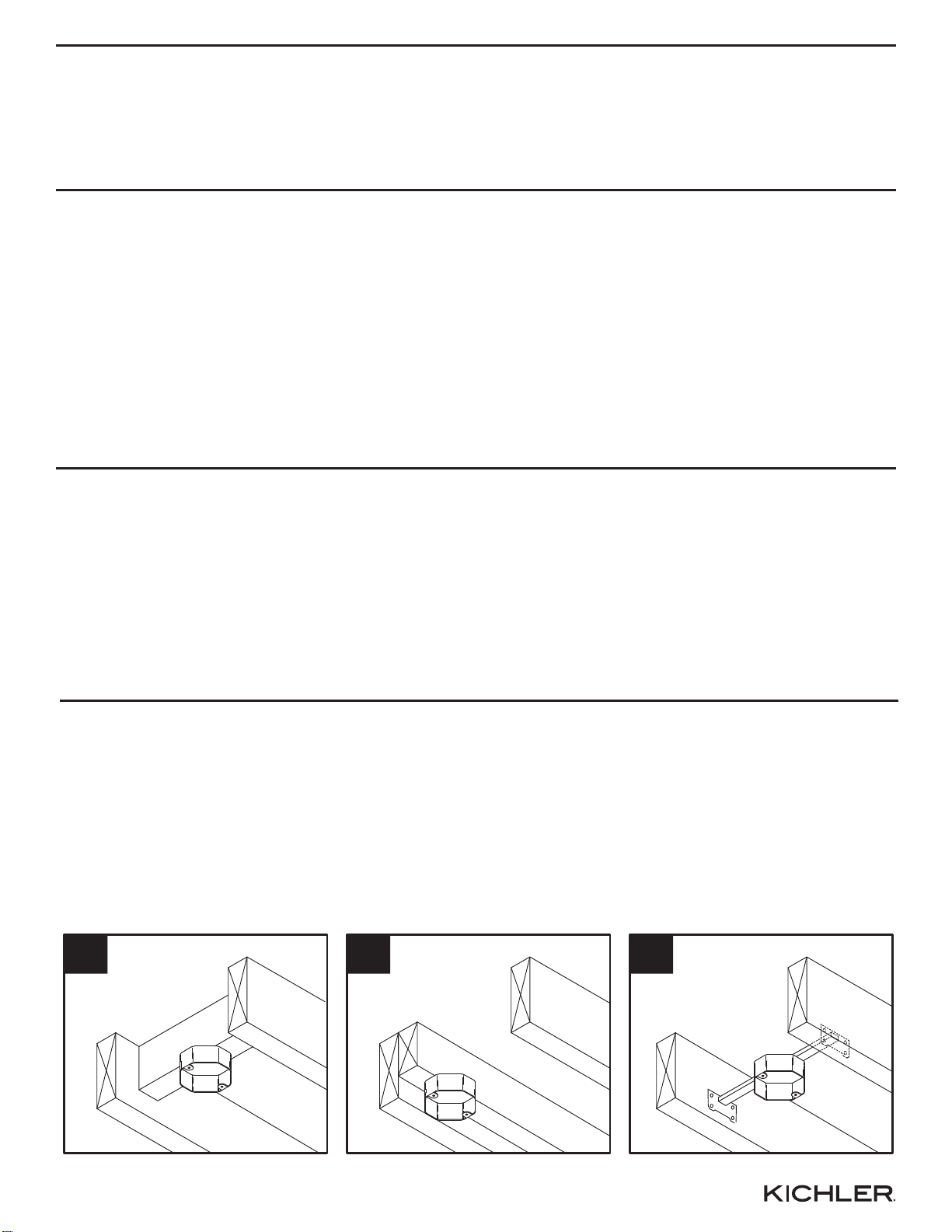

• Warning-Risk of fire, electric shock, or personal injury. Ceiling fans may be either directly

supported from a structural framing member of a building and (see examples in figures A & B) or

may be mounted to an outlet box marked acceptable for fan support of 31.8 kg (70 lbs) to 15.9kg

(35 lbs) (see example in figure C).

• Read and understand all instructions and illustrations completely before proceeding with assembly

and installation of this fixture.

• If you have any doubts about how to install this lighting fixture, or if the fixture fails to operate

completely, please contact a qualified licensed electrical contractor.

• All parts must be used as indicated in these instructions. Do not substitute any parts, leave parts

out, or use any parts that are worn out or broken. Failure to obey this instruction could invalidate

the UL listing, C.S.A. certification, and/or ETL listing of this fixture.

• This fixture is intended for installation in accordance with the National Electric Code (NEC) and all

local code specifications.

• This fixture is for indoor use only.

WARNING (continued)

• Make sure the installation site you choose allows a minimum of 7 feet from the floor to the end of

the blades.

• To reduce the risk of fire or electrical shock, do not use this fan with any solid state fan speed

device or variable speed control.

ASSEMBLY INSTRUCTIONS

5 6

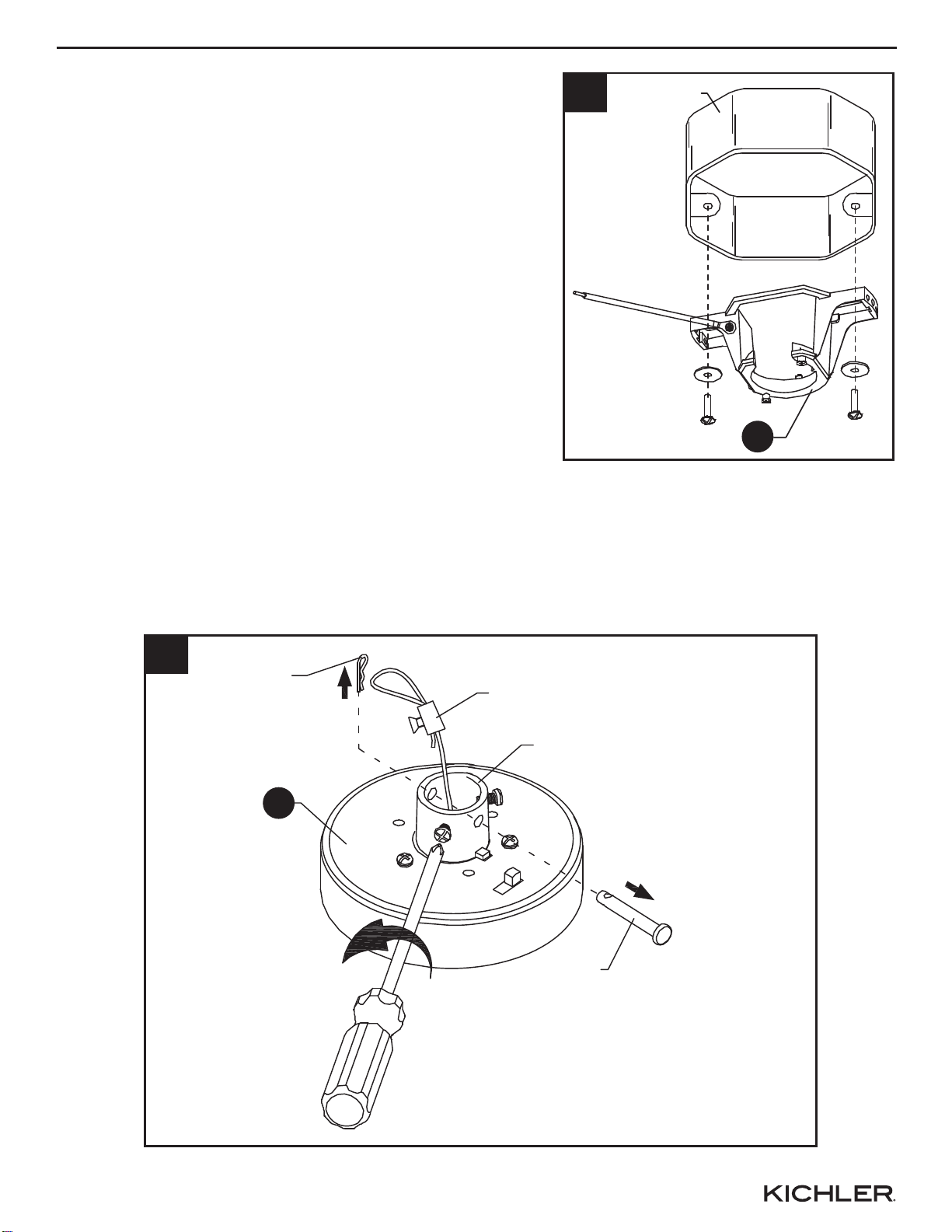

1. Secure the hanging bracket (A) to the ceiling outlet

box using hanging bracket screws and hanging

bracket washers.

Important: If attaching the fan to a sloped ceiling,

make sure open end of mounting bracket is installed

facing the roof. Do not install fan on a ceiling with a

pitch greater than 20°.

Outlet Box

2. Loosen the set screws found on coupling on top of the motor assembly (F). Then remove the hair

and clevis pin that will be used on a later step.

Hair Pin Safety Cable

Clevis Pin

Coupling

ASSEMBLY INSTRUCTIONS

3. Insert down rod (B) through canopy (C), canopy hole cover (I), and motor coupling cover (E).

Feed wires from the motor assembly (F) through the down rod (B), then insert the down rod (B)

into the coupling found on top of the motor assembly (F).

4. Pass the clevis pin through the down rod (B) and coupling found on the motor assembly (F) then

secure with the hair pin. Tighten set screws found on the coupling on the motor assembly (F).

Hair Pin

Clevis Pin

Coupling

7 8

ASSEMBLY INSTRUCTIONS

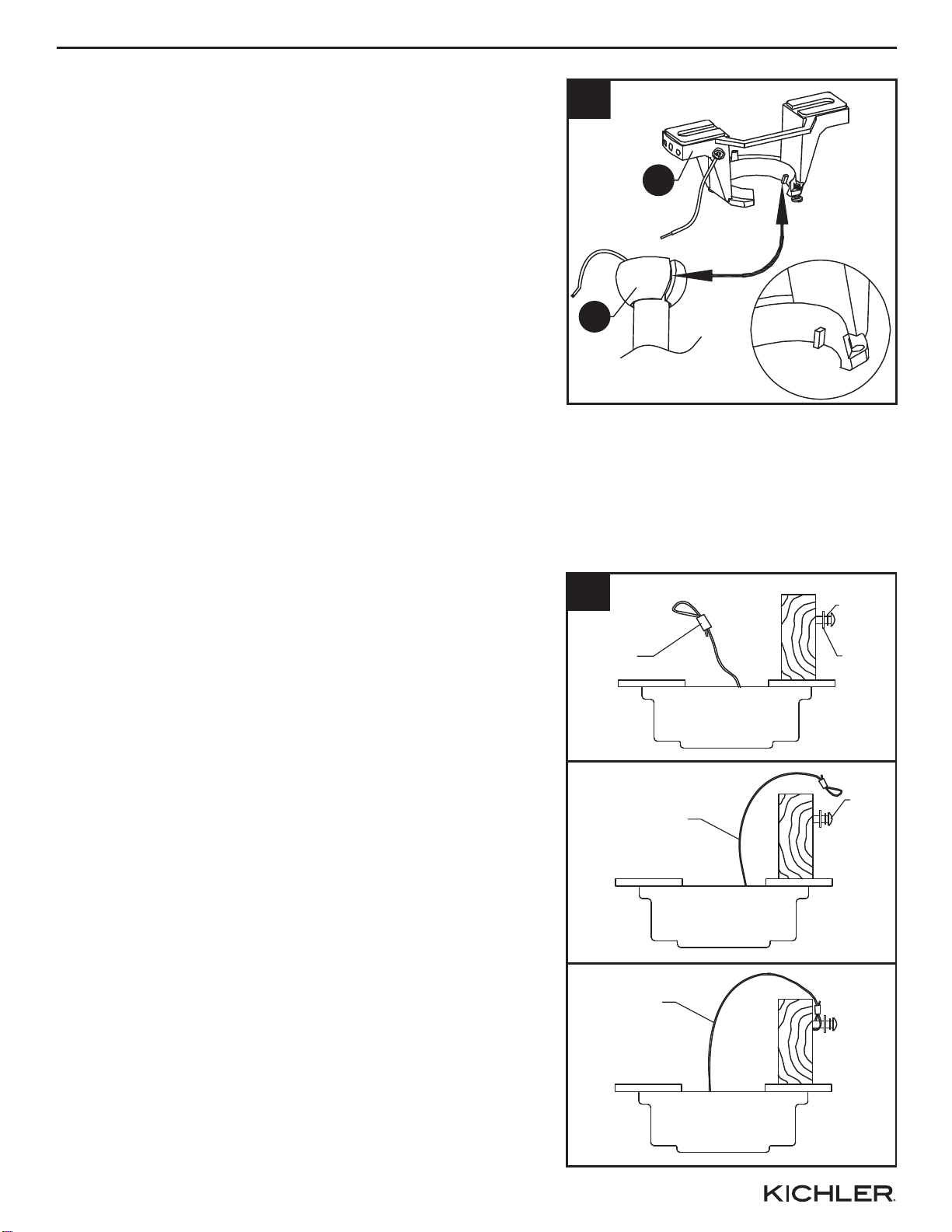

5. Carefully lift the fan and seat the downrod (B)/hanger

ball assembly on the hanging bracket (A). Be sure

the groove in the ball is lined up with the tab on the

hanging bracket (A).

6. For Canadian installation and for USA fans over 35

lbs, the safety cable must be installed into the house

structure beams using a 3” lag screw. Make sure

that when the safety cable is fully extended the lead

wires are longer than the cable and no stress is

placed on the lead wires.

Safety

Cable

Lag

Screw

Safety

Cable Flat

Washer

Spring

Washer

Safety

Cable

ASSEMBLY INSTRUCTIONS

8 9

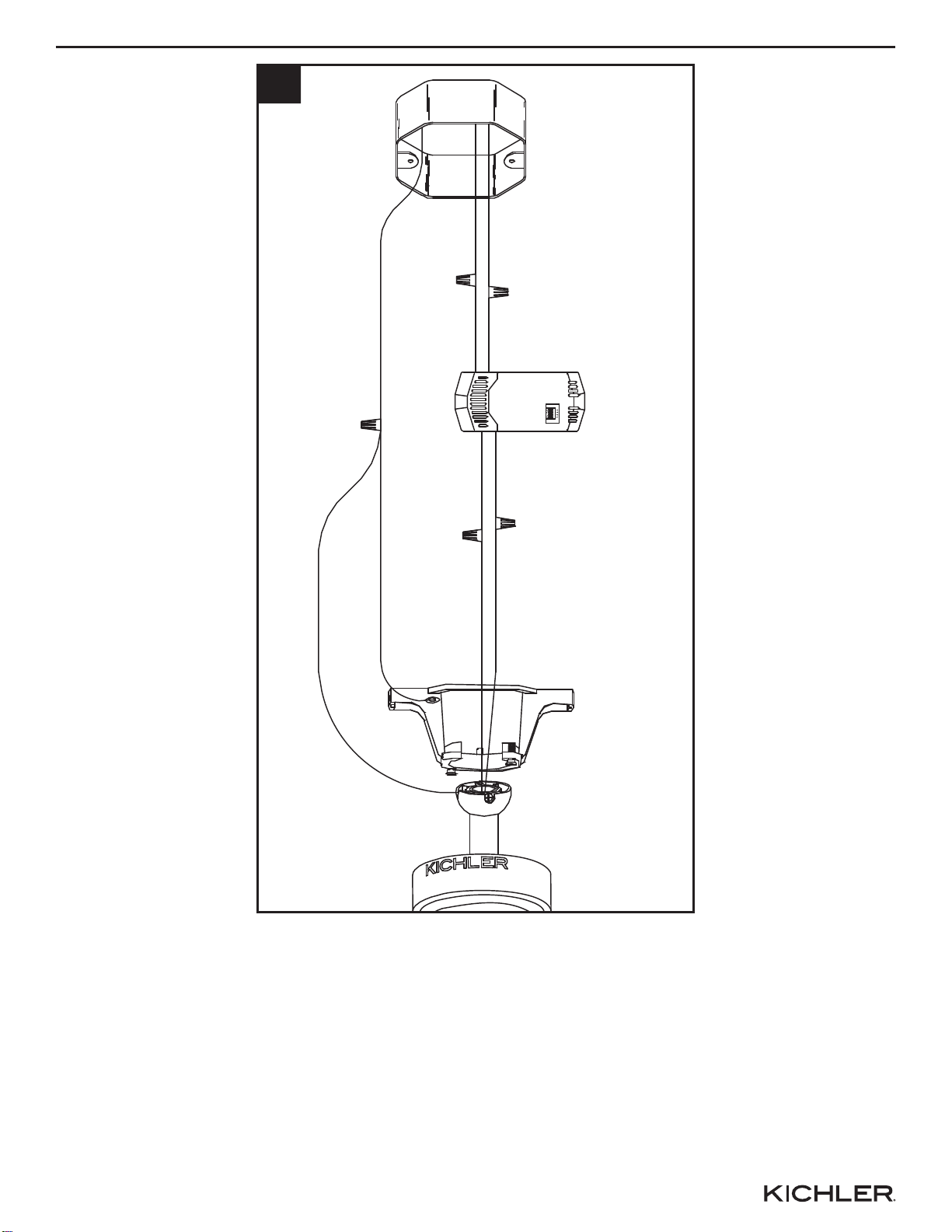

7. Wiring the fan per wiring diagram and securely connect wires with wire connectors: Wrap electrical

tape (not included) around each wire connector and make sure no bare wire or wire strands are

visible after making connections.

• Connect WHITE wire from the fan to WHITE wire marked TO MOTOR N from the receiver.

• Connect BLACK wire from the fan to BLACK wire marked TO MOTOR L from the receiver.

• Connect BLACK wire from the outlet box to BLACK wire marked AC IN L from the receiver.

• Connect WHITE wire from the outlet box to WHITE wire marked AC IN N from the receiver.

• Connect GROUND (GREEN) wires from hanger bracket and downrod ball, to GROUND (GREEN

or BARE COPPER) from house.

OUTLET BOX

BLACK

(LIVE)

WHITE

(NEUTRAL)

BLACK

(AC

INPUT)

WHITE

(AC

INPUT)

BARE COPPER

(GROUND)

GREEN (BRACKET)

GREEN (DOWN ROD)

WHITE

(NEUTURAL)

BLACK (MOTOR) BLACK

WHITE

ASSEMBLY INSTRUCTIONS

9 10 11

8. In order to use this remote control the dip switches

must match on both the remote control and the

receiver. Make sure they both have the same

configuration.

There are 16 combinations of code for setting up the

remote control. If you do not use the dip switch

combination set up by the manufacture then you will

need to use the set up procedures listed below.

Remove the battery cover from the remote control.

Slide dip switches up or down using a small screw

driver (not included). Then match the dip switches

on the receiver to the same position as the remote

control.

Install the battery (included) and replace the battery

cover you previously removed.

The remote control comes with a cradle that may be

attached to the wall with the included screws.

9. Once wiring step has been completed, slide the

wired remote receiver in between the hanging

bracket (A) and the top of the downrod ball (B) with

the flat side of the receiver facing the ceiling. Turn

lead wires upward and carefully push them into the

outlet box, with the white and green wires to one

side of the box and the black wires toward the other

side.

REMOTE

CONTROL

RECEIVER
