INSTRUCTION MANUAL

Product images may vary slightly from actual product.

52" Lija™

KICHLER.COM

TABLE OF CONTENTS

SAFETY RULES .................................................................4

TOOLS REQUIRED............................................................5

PACKAGE CONTENTS ....................................................5

MOUNTING OPTIONS.....................................................6

HANGING THE FAN......................................................7-9

INSTALLATION OF SAFETY SUPPORT..................10

ELECTRICAL CONNECTIONS ............................. 11-12

FINISHING THE INSTALLATION................................ 13

ATTACHING THE FAN BLADES.................................14

INSTALLING THE MOUNTING PLATE....................14

INSTALLING THE LIGHT FIXTURE........................... 15

OPERATING INSTRUCTIONS...............................16-17

INSTALLING THE REMOTE

CONTROL HOLDER.......................................................18

TROUBLESHOOTING.............................................19-20

FCC INFORMATION .......................................................21

52" Lija™|

SAFETY RULES

1. To reduce the risk of electric shock, ensure electricity has been

turned o at the circuit breaker or fuse box before beginning.

2. All wiring must be in accordance with the National Electrical

Code and local electrical codes. Electrical installation should

be performed by a qualified licensed electrician.

3. WARNING: To reduce the risk of fire, electric shock, or

personal injury, use mounting screws provided with the

outlet box. Most outlet boxes commonly used for the

support of light fixtures are not acceptable for fan support

and may need to be replaced. Due to the complexity of

the installation of this fan, a qualified licensed electrician is

strongly recommended.

4. The outlet box and support structure must be securely

mounted and capable of reliably supporting a minimum of

50 pounds. Use only CUL Listed outlet boxes marked “FOR

FAN SUPPORT”.

5. The fan must be mounted with a minimum of 7 feet

clearance from the trailing edge of the blades to the floor.

6. Do not operate reversing switch while fan blades are in motion.

Fan must be turned o and blades stopped before reversing blade

direction.

7. Avoid placing objects in the path of the blades.

8. To avoid personal injury or damage to the fan and other items, be

cautious when working around or cleaning the fan.

9. Do not use water or detergents when cleaning the fan or fan

blades. A dry dust cloth or lightly dampened cloth will be suitable

for most cleaning.

10. After making the electrical connections, spliced conductors should

be turned upward and pushed carefully up into outlet box. The

wires should be spread apart with the ground wire and white

(common) wire to one side with the black (load) wire to the other

side of the outlet box.

11. Electrical diagrams are reference only. Light kits that are not

packed with the fan must be CUL Listed and marked suitable for

use with the model fan you are installing. Switches must be CUL

General Use Switches. Refer to the Instructions packaged with the

light kits and switches for proper assembly.

WARNING

TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND

THE BLADE BRACKETS (ALSO REFERRED TO AS FLANGES)

DURING ASSEMBLY OR AFTER INSTALLATION. DO NOT INSERT

OBJECTS IN THE PATH OF THE BLADES.

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR

PERSONAL INJURY, MOUNT FAN TO OUTLET BOX

MARKED “ACCEPTABLE FOR FAN SUPPORT”.

4 | KICHLER.COM

TOOLS AND MATERIALS REQUIRED

PACKAGE CONTENTS

•Phillips screwdriver

•Blade screwdriver

•11 mm wrench

•Step ladder

•Wire cutters

Unpack your fan and check the contents . You should have the following items:

A. Fan blades (4)

B. Canopy and ceiling mounting bracket

C. Ball/downrod assembly

D. Coupling cover

E. Fan motor assembly

F. Set of 4 blade brackets and

pre-installed mounting screws

G. Mounting plate

H. LED light fixture

I. Glass shade

J. Receiver

K. Transmitter and holder

with mounting screws

L. Part bag contents

1) Mounting hardware: wire nuts (3)

2) Blade attachment hardware:

screws (12), fiber washers (12)

3) Safety cable hardware:

wood screw, spring washer,

flat washer

52" Lija™|

MOUNTING OPTIONS

If there isn’t an existing UL (cUL for Canadian Installation) listed

mounting box, then read the following instructions. Disconnect the

power by removing fuses or turning o circuit breakers.

Secure the outlet box directly to the building structure. Use

appropriate fasteners and building materials. The outlet box and its

support must be able to fully support the moving weight of the fan

(at least 50 lbs). Do not use plastic outlet boxes.

Figures 1, 2 and 3 are examples of dierent ways to mount the

outlet box.

NOTE: If you are installing the ceiling fan on a sloped (vaulted)

ceiling, you may need a longer downrod to maintain proper

clearance between the tip of the blade and the ceiling. A minimum

clearance of 12" is suggested for optimal operation.

NOTE: Depending on the location you have selected for

installation, you may need to purchase and install a “Joist Hanger”

for the support of the outlet box. Make sure the joist hanger you

purchase has been designed for use with ceiling fans. (Fig. 4)

Outlet box

Fig. 1

Outlet box

Fig. 2

Fig. 3

Recessed

outlet box

Provide strong

support

Ceiling

mounting

plane

ANGLED CEILING

MAXIMUM 20° ANGLE

Fig. 4

Outlet box

6 | KICHLER.COM

HANGING THE FAN

REMEMBER to turn o the power before you begin. To properly install your ceiling

fan, follow the steps below.

Step 1. Remove the decorative canopy bottom cover from the canopy by turning

the cover counter clockwise. (Fig. 5)

Step 2. Remove the ceiling mounting bracket from the canopy by removing

(and save one of the two screws. Loosen the remaining screw by a half turn.

(Fig. 5)

Step 3. Pass the 120 volt supply wires from the ceiling outlet box through the

center of the ceiling mounting bracket. (Fig.6)

Step 4. Attach the ceiling mounting bracket to the outlet box using the screws and

washers included with the outlet box. (Fig. 6)

Step 5. Remove the hanger ball from the downrod assembly by loosening the set

screw, unscrewing and removing the cross pin and unscrewing the ball o the rod.

(Fig.7)

Hanger bracket

Ceiling canopy

Canopy cover

Fig. 6

120V Wires

CUL Listed

outlet box

Washers

Mounting screws

(supplied with electrical box)

Ceiling

mounting

bracket

Fig. 7

Downrod

Set screw

Hanger

ball

Cross pin

Fig. 5

52" Lija™|

Fig. 8

HANGING THE FAN

Step 6. Loosen the two set screws and remove the hitch pin and retaining clip from

the coupling on top of the motor assembly. (Fig. 8)

Step 7. Carefully feed the electrical lead wires safety cable from the fan up through

the downrod. Thread the downrod into the coupling until the Hitch pin holes are

aligned.

Next, replace the hitch pin and retaining clip. Tighten both set screws. (Fig. 8)

Supply wires

Set screw

Retaining clip

Downrod

Set screw

Safety cable

Hitch pin

8 | KICHLER.COM

HANGING THE FAN

Step 8. Slip the coupling cover, canopy cover and canopy onto the downrod.

(Fig. 9)

Thread the hanger ball onto the downrod, insert the cross pin through the

downrod and tighten. Tighten the set screw.

Step 9. Lift the motor assembly into position and place the hanger ball into the

ceiling mounting bracket.

Rotate the entire assembly until the “Check Tab” has dropped into the

“Registration Slot” and seats firmly. (Fig. 10)

The entire motor assembly should not rotate (left or right) when seated properly.

WARNING: Failure to reattach the cross pin and seat the “Check Tab” can cause

the fan to fall from the ceiling during operation. Take special care to make sure this

pin is reattached.

Registration slot

Fig. 10

Fig. 9

Coupling cover

Retaining clip

Set screws

Hitch pin

Canopy cover

Canopy

Downrod

52" Lija™|

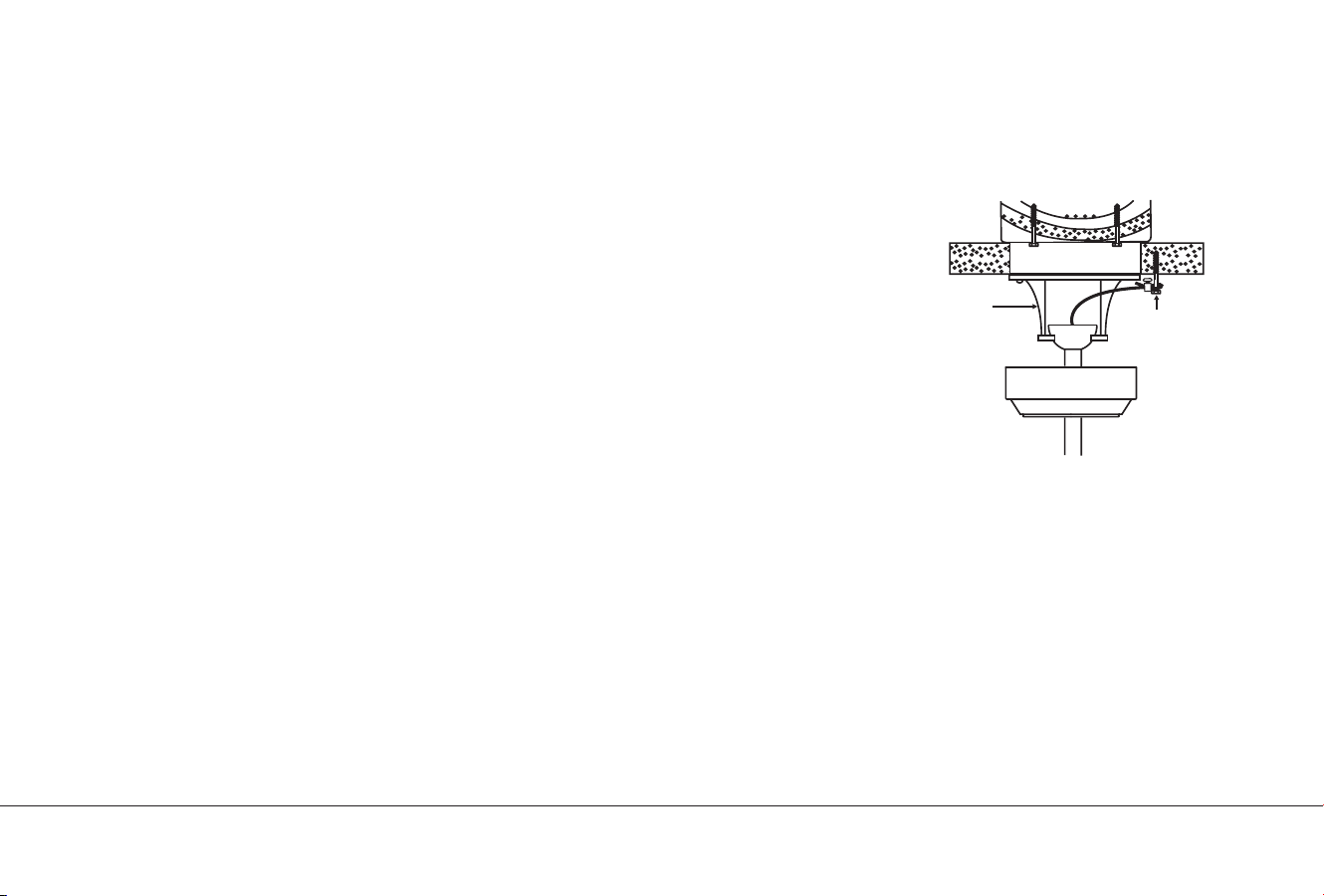

INSTALLATION OF SAFETY SUPPORT

(Required for Canadian installation ONLY)

A safety support cable is provided to help prevent the ceiling fan from falling.

Step 1. Attach the provided wood screw and washers to the ceiling joist next to the

mounting bracket but do not tighten. (Fig. 11)

Step 2. Adjust the length of the safety cable to reach the screw and washers by pulling

the extra cable through the cable clamp until the overall length is correct, put the end of

the cable back through the cable clamp, forming a loop at the end of the cable. Tighten

the cable clamp securely. Now, put the loop in the end of the safety cable over the wood

screw and under the washer. Tighten the wood screw securely.

NOTE: Although the safety support cable is required for Canadian installations only.

It’s a good idea to make the attachment with any installation.

Ceiling

mounting

bracket Attach safety cable

to ceiling joist with

screw and washer

Fig. 11

10 | KICHLER.COM
