52" Vinea

INSTRUCTION MANUAL

Model# 300345READ AND SAVE THESE INSTRUCTIONS

2 | KICHLER.COM

TABLE OF CONTENTS

SAFETY RULES ..............................................................3

TOOLS REQUIRED ........................................................5

PACKAGE CONTENTS .................................................5

MOUNTING OPTIONS .................................................6

HANGING THE MOTOR ASSEMBLY .........................7

INSTALLATION OF SAFETY SUPPORT...................10

ELECTRICAL CONNECTIONS ...................................11

COMPLETING THE MOTOR INSTALLATION ........12

ATTACHING THE FAN BLADES ................................13

INSTALLING THE LIGHT PLATE ..........................………............14

INSTALLING THE LIGHT KIT AND GLASS SHADE ...............15

INSTALLING THE “COOLTOUCH” CONTROL SYSTEM

WALL PLATE .................................................................................16

INSTALLING AND REMOVING THE HANDHELD

TRANSMITTER ............................................…..............................17

OPERATING INSTRUCTIONS ....................................................17

REVERSE FUNCTION .................................................................19

FCC INFORMATION ....................................................................19

TROUBLESHOOTING ................................................................20

1. CAUTION – RISK OF SHOCK –

Disconnect Power at the main circuit breaker panel

or main fusebox before starting and during the

installation.

2. WARNING: This fixture is intended for installation in

accordance with the National Electrical Code (NEC)

and all local code specifications. If you are not familiar

with code requirements, installation by a certified

electrician is recommended.

3. WARNING: To reduce the risk of fire or electric shock,

use only the control provided with the fan.

4. WARNING: To reduce the risk of fire, electric shock,

or Personal Injury mount to an outlet box marked

“Acceptable For Fan Support of up to 15.9 kg (35 lbs)”.

For outlet box mounting, use mounting screws (and

lock washers) provided with the outlet box. Most

outlet boxes commonly used for the support of light

fixtures are not acceptable for fan support and may

need to be replaced. Due to the complexity of the

installation of this fan, a qualified licensed electrician

is strongly recommended.

5. WARNING: Chemical Burn Hazard. Keep batteries

away from children.; and

This product contains a lithium button/coin cell

battery. If a new or used lithium button/coin cell

battery is swallowed or enters the body, it can cause

severe internal burns and can lead to death in as little

as 2 hours. Always completely secure the battery

compartment. If the battery compartment does not

close securely, stop using the product, remove the

batteries, and keep it away from children. If you think

batteries might have been swallowed or placed inside

any part of the body, seek immediate medical attention.

a) The cells shall be disposed of properly, including

keeping them away from children; and

b) Even used cells may cause injury.

6. All wiring must be in accordance with the National

Electrical Code ANSI/NFPA 70 and local electrical

codes. Electrical installation should be performed by a

qualified licensed electrician.

READ AND SAVE THESE INSTRUCTIONS

SAFETY RULES

WARNING: FOR CANADA, THIS FAN MUST BE SECURED DIRECTLY TO THE BUILDING STRUCTURE / CEILING JOIST.

DON’T SECURE THIS FAN TO AN OUTLET BOX.

52" Vinea | 3

4 | KICHLER.COM

15. After making the electrical connections, spliced

conductors should be turned upward and pushed

carefully up into outlet box. The wires should be spread

apart with the grounded conductor and the equipment-

grounding conductor on one side of the outlet box and

the ungrounded conductor on the other side of the

outlet box.

16. Electrical diagrams are for reference only. Light kits

that are not packed with the fan must be ETL Listed

and marked suitable for use with the model fan you are

installing. Switches must be ETL General Use Switches.

Refer to the Instructions packaged with the light kits

and switches for proper assembly.

17. All set screws must be checked, and retightened where

necessary, before installation.

18. The subject fan 300345 weight information is as below:

Net Weight : 10.3 kgs / 22.66 lbs;

Gross Weight: 11.7 kgs /25.74 lbs.

7. The outlet box and support structure must be

securely mounted and capable of reliably supporting

a minimum of 15.9 kg (35 pounds). Use only cULus

Listed outlet boxes marked “FOR FAN SUPPORT”.

8. WARNING: TO REDUCE THE RISK OF FIRE,

ELECTRIC SHOCK OR PERSONAL INJURY, MOUNT

FAN TO OUTLET BOX MARKED “ACCEPTABLE FOR

FAN SUPPORT”.

9. Avoid placing objects in the path of the blades.

10. To avoid personal injury or damage to the fan and

other items, be cautious when working around or

cleaning the fan.

11. To operate the reverse function on this fan, press the

reverse button while the fan is running.

12. Make sure the installation site you choose allows a

minimum clearance of 2.1 m (7 feet) from the blades

to the floor and at least 30 inches from the ends of the

blades to any obstruction.

13. WARNING: make sure the power is disconnected

before cleaning your fan.

14. Do not use water or detergents when cleaning the fan

or fan blades. A dry dust cloth or lightly dampened

cloth will be suitable for most cleaning.

WARNING

TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND

THE BLADE BRACKETS DURING ASSEMBLY OR AFTER INSTALLATION.

DO NOT INSERT OBJECTS IN THE PATH OF THE BLADES.

SAFETY RULES

52" Vinea | 5

TOOLS AND MATERIALS REQUIRED

PACKAGE CONTENTS

• Phillips Screwdriver

• Blade Screwdriver

• 11 mm Wrench

• Step Ladder

• Wire Cutters

Unpack your fan and check the contents . You should have the following items:

A. Mounting Bracket

B. Ball / Downrod Assembly

C. Canopy

D. Canopy Hole Cover

E. Coupling Cover

F. Motor Assembly

G. Fan Blade (5)

H. Blade Bracket (5)

I. Light Plate

J. Light Kit

K. Glass Shade

L. Finial

M. Wall control Kit:

Receiver (1), Control (1), Metal Plate (1),

Wire connector (6), Wood Screw (2),

Battery (2), Long Screw (2),

Short Screw (2), Expansion Anchor (2),

Plastic Nut (2)

N. Package hardware

1.) Mounting hardware :

Wire Connector (3)

2.) Blade attachment hardware :

Screws (15) , Washers (15)

3.) Safety cable hardware :

Wood screw (1) ,

Spring washer (1),

Flat washer (1)

4.) Light kit attachment hardware:

Screw (3);

X15

6 | KICHLER.COM

MOUNTING OPTIONS

If there is not an existing UL (cUL for Canadian Installation)

listed mounting box, then read the following instructions.

Disconnect the power by removing fuses or turning o circuit

breakers.

Secure the outlet box directly to the building structure. Use

appropriate fasteners and building materials. The outlet box

and its support must be able to fully support the full weight

of the fan (up to 15.9kg (35 pounds)). Do not use plastic outlet

boxes.

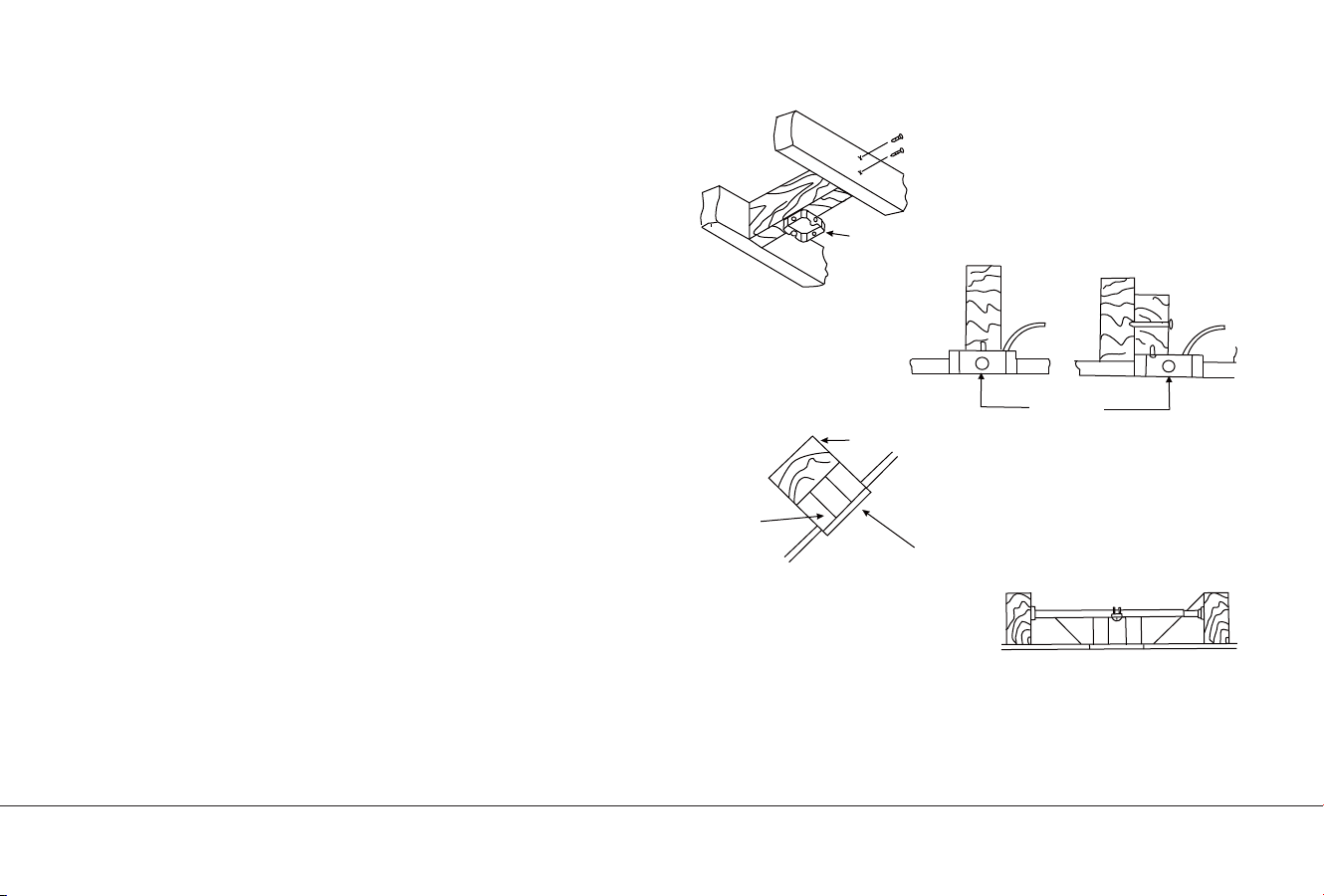

Figures 1, 2 and 3 are examples of dierent ways to mount the

outlet box.

NOTE: If you are installing the ceiling fan on a sloped (vaulted)

ceiling, you may need a longer downrod to maintain proper

clearance between the tip of the blade and the ceiling. A

minimum clearance of 12" is suggested for optimal operation.

NOTE: You must use 12" or longer downrod for 22° slope

(max angle 22°). (Fig. 3)

NOTE: Depending on the location you have selected for

installation, you may need to purchase and install a joist

hanger for the support of the outlet box. Make sure the joist

hanger you purchase has been designed for use with ceiling

fans. (Fig. 4)

Fig. 1

Outlet box

Fig. 2

Fig. 3

Fig. 4

Outlet box

Recessed

outlet box ceiling

mounting

plane

Provide strong

support

ANGLED CEILING

MAXIMUM 22° ANGLE

52" Vinea | 7

Fig. 5

Fig. 6

Fig. 7

Outlet Box

Ceiling Mounting

Bracket

Flat Washer

Screw

Set Screw

Hanger Ball

Cross Pin

Clevis Pin

Downrod

Hairpin

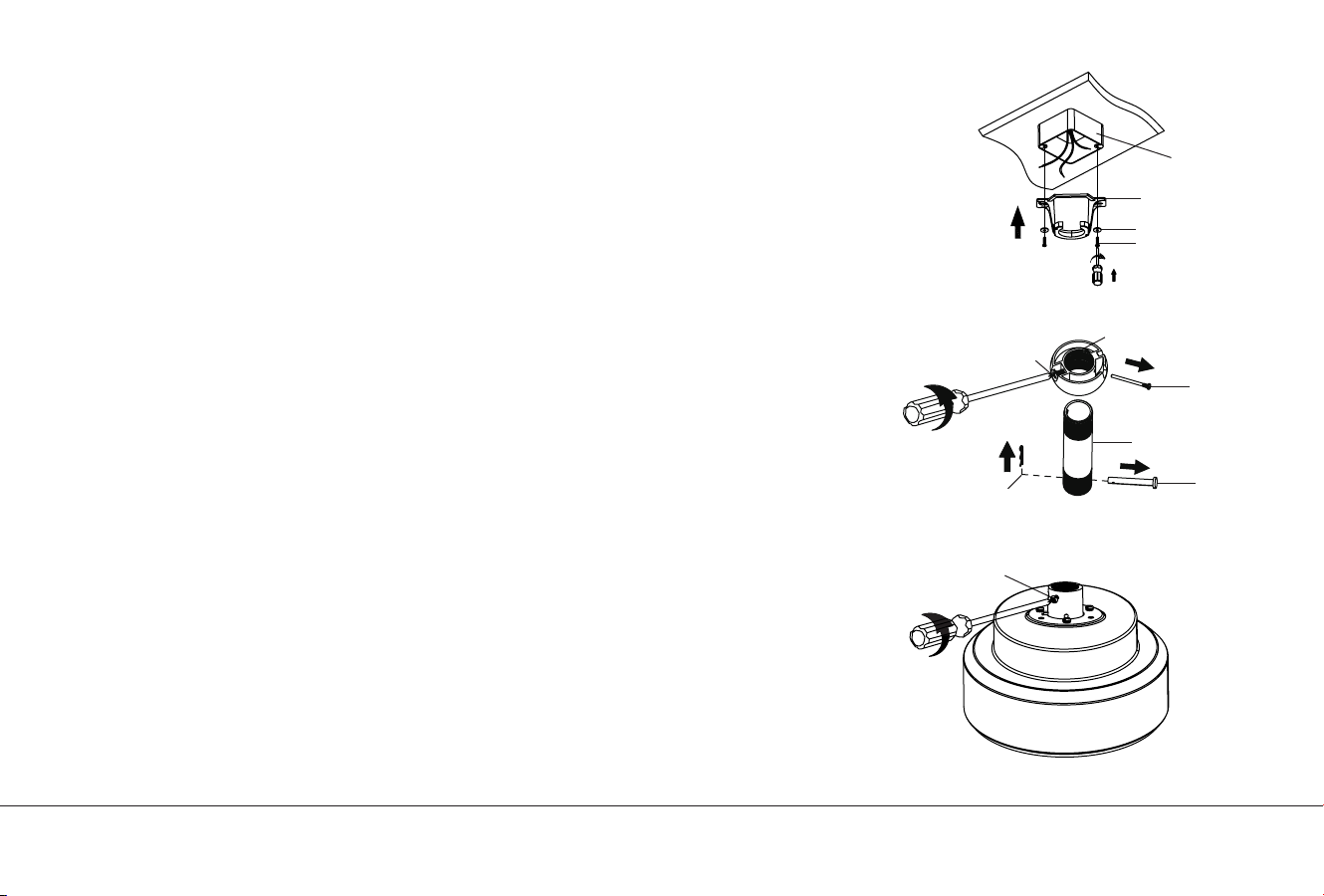

HANGING THE MOTOR ASSEMBLY

REMEMBER to turn o the power before you begin installation. This is necessary for

your safety and also the proper programming of the control system.

To properly install your ceiling fan, follow the steps below.

Step 1. Before attaching fan to outlet box (not included), ensure the outlet box is securely

fastened to at least two points to a structural ceiling member (a loose box will cause the

fan to wobble). Pass the 120 volt supply wires from the ceiling outlet box through the

center of the ceiling mounting bracket. Install mounting bracket to outlet box in ceiling

using the screws and washers included with the outlet box. (Fig. 5)

Step 2. Remove the hairpin and clevis pin from the downrod assembly, retain for later

use. Remove the hanger ball from the downrod assembly by loosening set screw,

removing the cross pin, and sliding ball of the rod. (Fig. 6)

NOTE: Make sure to keep loosened hardware separate to avoid confusion during

installation.

Step 3. Loosen the two set screws on the motor coupling. (Fig. 7)

8 | KICHLER.COM

Step 4. Carefully feed fan wires and safety cable up through the downrod.

Thread the downrod onto the motor coupling until the clevis pin holes

are aligned. Next, replace the clevis pin and hairpin, then tighten both set

screws. (Fig. 8)

Step 5. Slip the coupling cover, canopy hole cover and canopy onto the

downrod. Carefully reinstall the hanger ball onto the downrod. Make sure

the cross pin is in the correct position and the set screw is tight and the

wires are not twisted . ( Fig. 9)

CAUTION: Ensure all screws are tight before moving to the next step.

HANGING THE MOTOR ASSEMBLY (continued)

Motor

Coupling

Canopy

Hanger Ball

Cross Pin

Canopy Hole Cover

Coupling Cover

Downrod

Hairpin Clevis Pin

Set Screw

Fig. 8

Fig. 9

52" Vinea | 9

Step 6. Now lift the motor assembly into position and place the hanger ball into

the mounting bracket. Rotate until the check tab has dropped into the registration

slot and seats firmly. ( Fig. 10) The entire motor body should not rotate if this is

done correctly.

WARNING: Failure to properly seat the check tab can damage the ceiling fan

during operation.

HANGING THE MOTOR ASSEMBLY (continued)

Fig. 10

Check Tab

Registration

Slot

10 | KICHLER.COM

Flat Washer

INSTALLATION OF SAFETY SUPPORT

(required for Canadian installation ONLY)

A safety support cable is provided to help prevent the ceiling fan from faIling, please

install it as follows.

Step 1. Drive a wood screw and washers into the side of the brace that holds the outlet

box. Leave 3mm (1/8") of space between the support brace and the washer. (Fig. 11)

Step 2. Insert the safety cable through the mounting bracket and one of the holes in

the outlet box into the ceiling. Adjust the length of the safety cable to reach the screw

and washers by pulling the extra cable through the cable clamp until the overall length is

correct, put the end of the cable back through the cable clamp, forming a loop at the end

of the cable. Tighten the cable clamp securely. Now, put the loop in the end of the safety

cable over the wood screw and under the washer. Tighten the wood screw securely.

(Fig. 12)

NOTE: Although the safety support cable is required for Canadian installations only,

it’s a good idea to make the attachment with any installation.

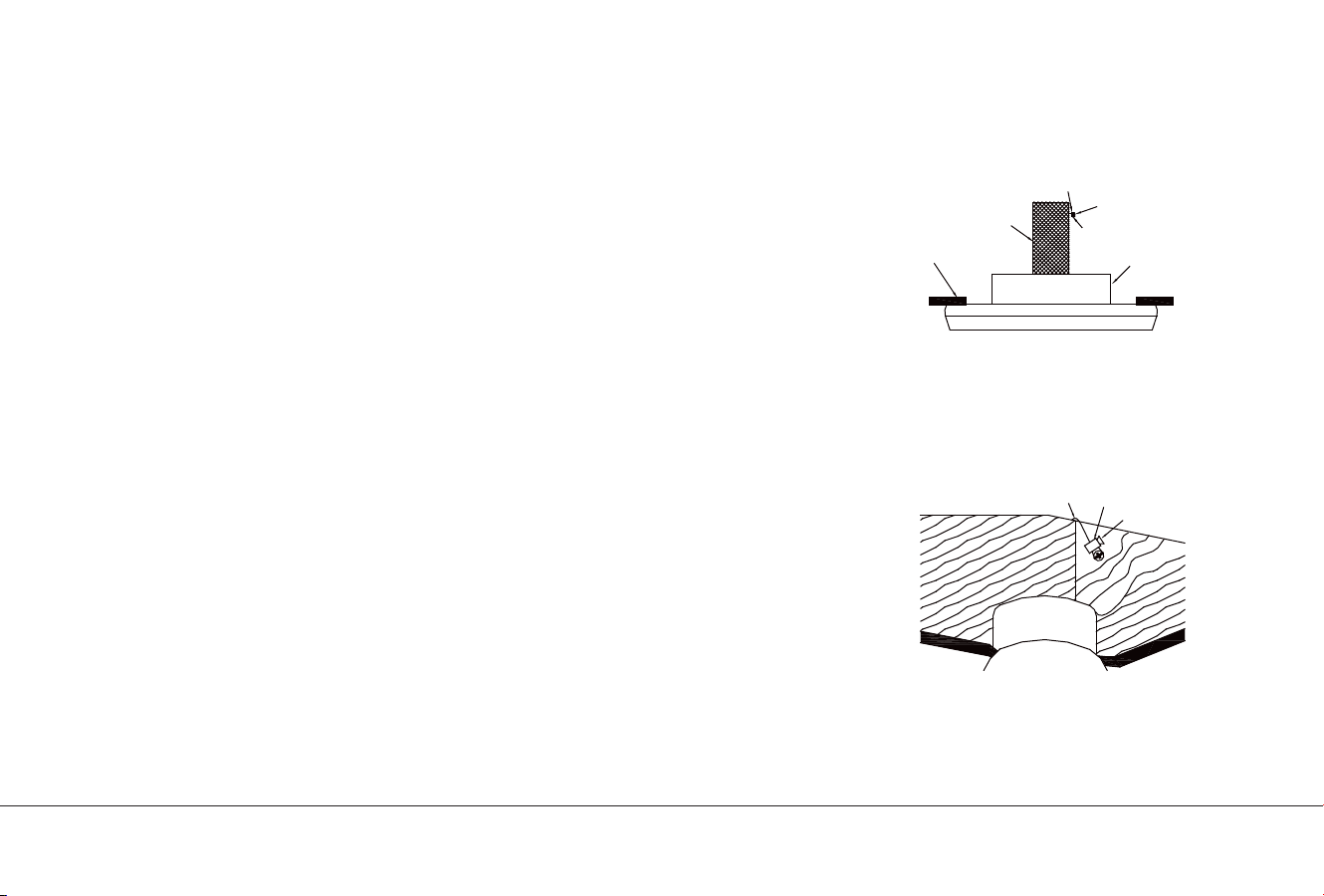

Wood Screw

Spring Washer

Outlet Box

Ceiling

Support Brace

Safety Cable Bolt

Wood Screw

Fig. 12

Fig. 11

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali Kichler Lighting Fan

Kichler Lighting

Kichler Lighting Larissa Manuale utente

Kichler Lighting

Kichler Lighting BASICS PRO SELECT 330017MWH Manuale utente

Kichler Lighting

Kichler Lighting RIED Manuale utente

Kichler Lighting

Kichler Lighting Starkk Manuale utente

Kichler Lighting

Kichler Lighting 35152 Manuale utente

Kichler Lighting

Kichler Lighting Ried 300356 Manuale utente

Kichler Lighting

Kichler Lighting Monarch Manuale utente

Kichler Lighting

Kichler Lighting Guardian 330057 Manuale utente

Kichler Lighting

Kichler Lighting Select Sutter Place Manuale utente

Kichler Lighting

Kichler Lighting 300260/60-GENT Series Manuale utente

Kichler Lighting

Kichler Lighting Decor Dorset Manuale utente

Kichler Lighting

Kichler Lighting Monarch II Manuale utente

Kichler Lighting

Kichler Lighting Maeve LED 52 Manuale utente

Kichler Lighting

Kichler Lighting KAPONO Manuale utente

Kichler Lighting

Kichler Lighting Kimberley Manuale utente

Kichler Lighting

Kichler Lighting Tranquil Manuale utente

Kichler Lighting

Kichler Lighting 54 Meredith Manuale utente

Kichler Lighting

Kichler Lighting Spyn Lite Manuale utente

Kichler Lighting

Kichler Lighting 330015WH Manuale utente

Kichler Lighting

Kichler Lighting Cottage Grove Manuale utente

Kichler Lighting

Kichler Lighting Select Canfield 300107 Manuale utente

Kichler Lighting

Kichler Lighting 300395 Manuale utente

Kichler Lighting

Kichler Lighting Sterling Manor Patio Manuale utente

Kichler Lighting

Kichler Lighting Terna 300215 Manuale utente

Manuali Fan popolari di altre marche

ELTA FANS

ELTA FANS H03VV-F Manuale utente

Hunter

Hunter 20714 Manuale di istruzioni

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manuale utente

Hunter

Hunter Caraway Manuale di istruzioni

Panasonic

Panasonic FV-15NLFS1 Manuale utente

Kompernass

Kompernass KH 1150 Manuale utente

VES

VES FALA100/12V/TR Manuale utente

Vertiv

Vertiv Liebert DCD Manuale utente

Westinghouse

Westinghouse GFP Series Manuale utente

Venmar

Venmar KUBIX HRV PLUS Series Manuale utente

Maico

Maico ECR 31 Manuale utente

Sonnenkonig

Sonnenkonig Dinky Manuale utente

S&P

S&P ECOWATT HXBR Manuale utente

Wider

Wider IMP03369BH Manuale utente

Panasonic

Panasonic F-60DHN Manuale utente

Hinkley

Hinkley HIGHLAND Manuale utente

Broan

Broan 766BN Manuale utente

Premium

Premium PFS16022 Istruzioni per il montaggio
