Instruction Manual

1. To reduce the risk of electric shock, insure

electricity has been turned off at the circuit

breaker or fuse box before beginning.

2. All wiring must be in accordance with the

National Electrical Code and local

electrical codes. Electrical installation

should be performed by a qualified

licensed electrician.

3. WARNING: To reduce the risk of electrical

shock and fire, do not use this fan with any

solid-state fan speed control device.

4. WARNING: To reduce the risk of fire,

electric shock, or personal injury, mount to

outlet box marked "Acceptable for Fan

Support of 22.7 kg (50 lbs.) Or Less"

and use mounting screws provided with

the outlet box. Most outlet boxes

commonly used for the support of light

fixtures are not acceptable for fan support

and may need to be replaced. Due to the

complexity of the installation of this fan, a

qualified licensed electrician is strongly

recommended.

5. The outlet box and support structure must

be securely mounted and capable of

reliably supporting a minimum of 50

pounds. Use only CUL Listed outlet boxes

marked "FOR FAN SUPPORT".

6. The fan must be mounted with a minimum

of 7 feet clearance from the trailing edge of

the blades to the floor.

7. To operate the reverse function on this fan,

press the reverse button while the fan is

running.

8. Avoid placing objects in the path of the

blades.

9. To avoid personal injury or damage to the

fan and other items, be cautious when

working around or cleaning the fan.

10. Do not use water or detergents when

cleaning the fan or fan blades. A dry dust

cloth or lightly dampened cloth will be

suitable for most cleaning.

11. After marking electrical connections,

spliced conductors should be turned

upward and pushed carefully up into outlet

box. The wires should be spread apart with

the grounded conductor and the

equipment-grounding conductor on one

side of the outlet box.

12. Electrical diagrams are reference only.

Light kits that are not packed with the fan

must be CUL Listed and marked suitable

for use with the model fan you are

installing. Switches must be CUL General

Use Switches. Refer to the Instructions

packaged with the light kits and switches

for proper assembly.

NOTE: SUITABLE FOR USE WITH SOLID-

STATE SPEED CONTROLS.

1. SAFETY RULES

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK OR PERSONAL INJURY, MOUNT FAN TO

OUTLET BOX MARKED "ACCEPTABLE FOR FAN

SUPPORT". WARNING

TO REDUCE THE RISK OF PERSONAL INJURY,

DO NOT BEND THE BLADE BRACKETS (ALSO

REFERRED TO AS FLANGES) DURING

ASSEMBLY OR AFTER INSTALLATION. DO NOT

INSERT OBJECTS IN THE PATH OF THE BLADES.

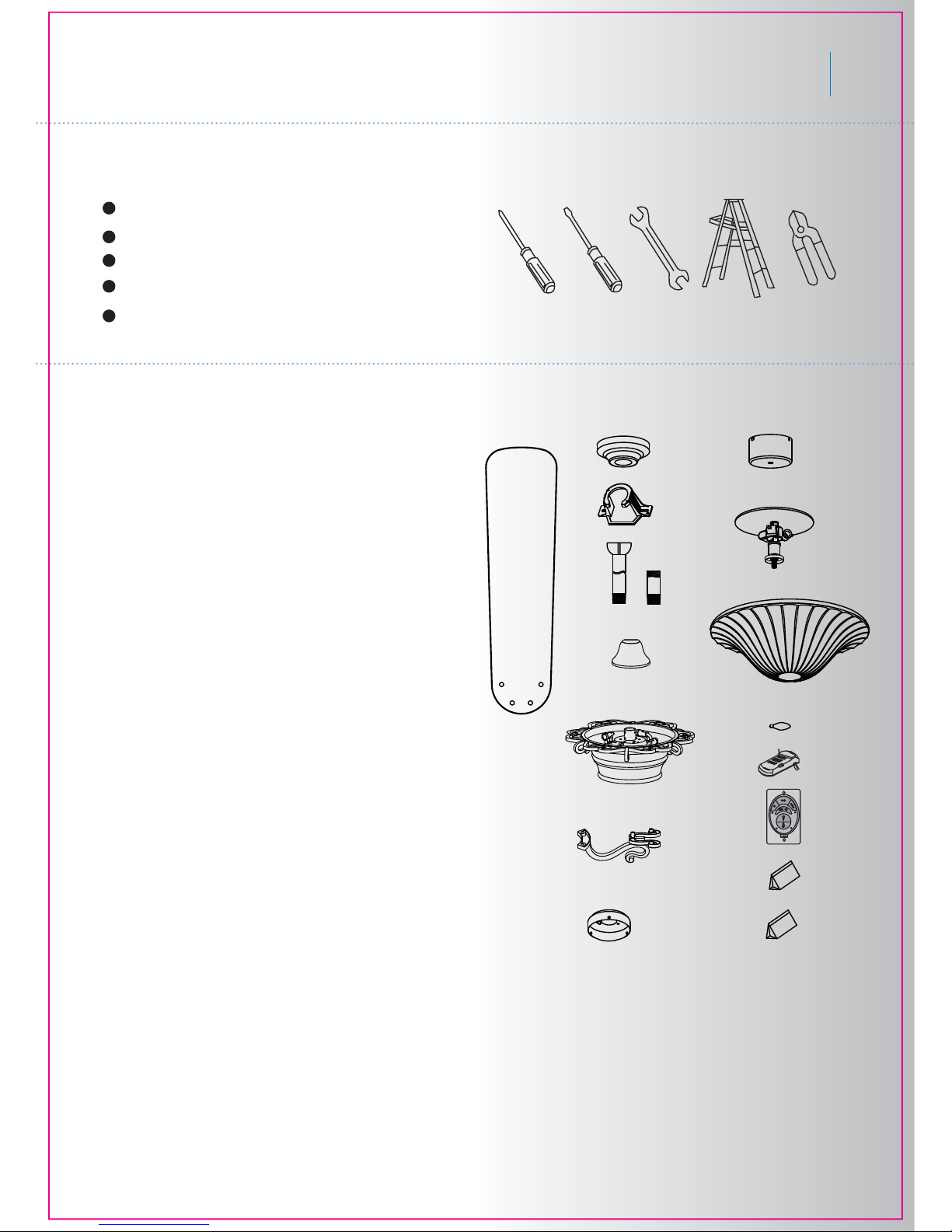

3. PACKAGE CONTENTS

Unpack your fan and check the contents. You

should have the following items:

Philips screw driver

Slot screw driver

11 mm wrench

Step ladder

Wire cutters

2. TOOLS AND MATERIALS REQUIRED

WiltonTM

a. Fan blades (5)

b. Canopy

c. Mounting bracket

d. Ball/downrod assembly (1)

& extra downrod (1)

e. Coupling cover

f. Fan assembly

g. Set of blades bracket (5)

h. Mounting plate

i. Switch housing

j. Light kit

k. Glass shade

l. Bulb

m. Receiver +7 wire nuts

n. CoolTouch™ Control System

o. Package hardware

1) Mounting hardware:

wood screws (2), flat washers(2),

screws(2),wire nuts(4)

2) Blade attachment hardware:

screws (21), flat washers(21),

fiber washers(21)

3) Blade bracket hardware:

screws (1)

4) Safety cable hardware:

wood screw (1), spring washer (1),

flat washer(1)

5) Balance kit

p. Decorative plate hardware:

decorative plate (1), finial (1),

light kit hardware (1)

4. MOUNTING OPTIONS

Secure the outlet box directly to the building

structure. Use appropriate fasteners and

building materials. The outlet box and its

support must be able to fully support the

moving weight of the fan (at least 50 lbs). Do

not use plastic outlet boxes.

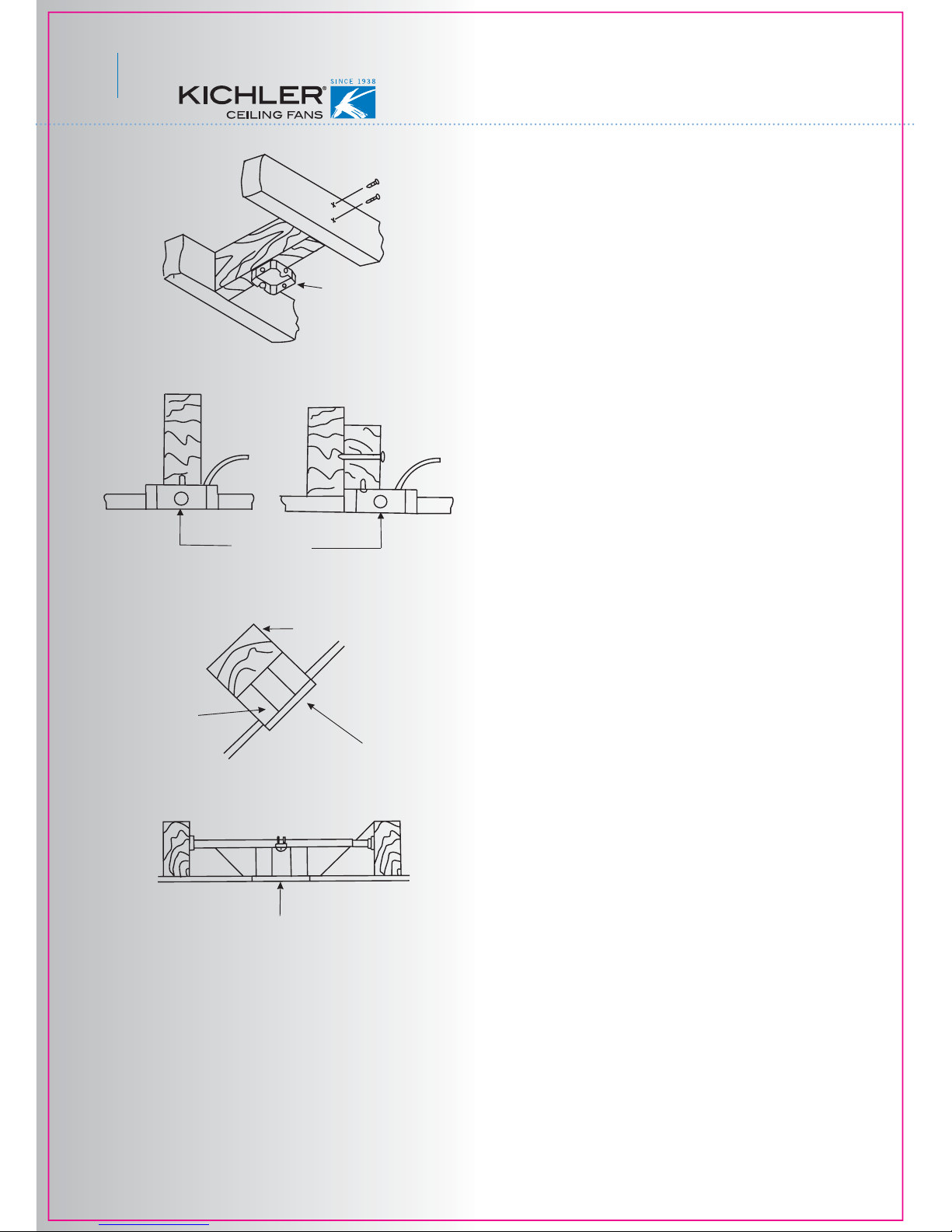

Figures 1,2 and 3 are examples of different

ways to mount the outlet box.

NOTE: You may need a longer downrod to

maintain proper blade clearance when

installing on a steep, sloped ceiling. (Fig. 3)

To hang your fan where there is an existing

fixture but no ceiling joist, you may need an

installation hanger bar as shown in Fig 4.

Outlet box

Provide strong

support

Recessed

outlet box Ceiling

mounting

plate

Outlet box

Fig. 1

Fig. 3

Fig. 4

Outlet box

Fig. 2

If there isn't an existing UL ( CUL for Canadian

Installation) listed mounting box, then read the

following instructions. Disconnect the power by

removing fuses or turning off circuit breakers.

WiltonTM

5. HANGING THE FAN

REMEMBER to turn off the power. Follow the

steps below to hang your fan properly:

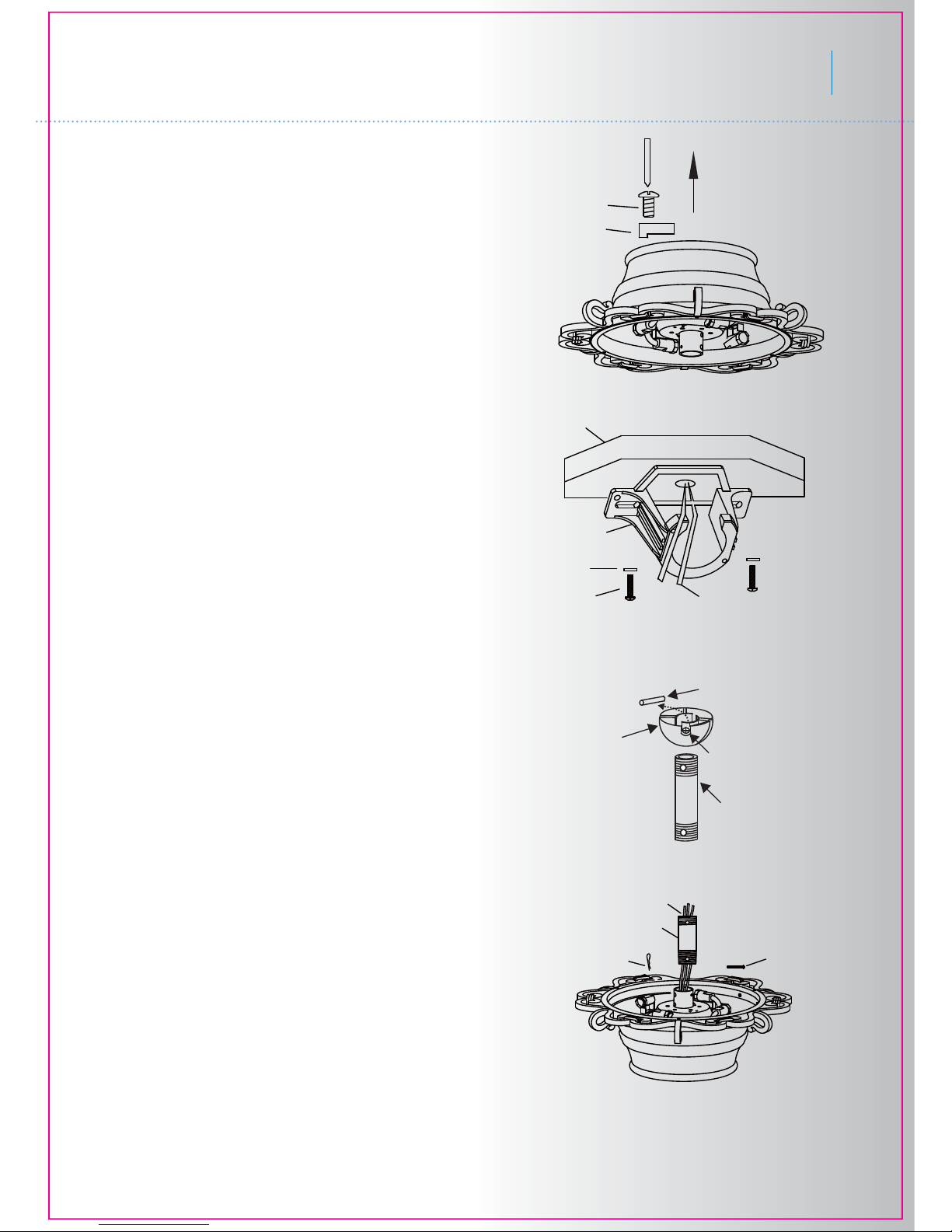

Step 2. Secure the hanger bracket to the

ceiling outlet box using screws and washers

provided. (Fig. 6)

Step 3. Remove hanger ball from downrod

assembly by loosening set screws, removing

the cross pin, and sliding ball off the rod. (Fig. 7)

Step 4. Loosen the two set screws and

remove the hitch pin and lock pin from the top

coupling of the motor assembly. (Fig. 8)

Step 1. Remove the fan motor and housing

assembly from the protective plastic bag.

Place the fan assembly into the lower pad

with the bottom of the motor facing up.(The

lower foam pad serves as a holder for the

fan during the first stages of assembly).

Remove the plastic motor shipping blocks

and discard. (Fig. 5)

Step 5. Carefully feed the fan wires up

through the downrod.Threaded the downrod

onto the motor coupling until the hitch pin

holes are aligned. Next , replace hitch pin and

lock pin , and tighten both set screws . Install

4pcs bulbs (included) into socket . (Fig 8)

Fig. 7

Fig. 5

Fig. 6

Fig. 8

Downrod

Cross pin

Hanger

ball Set screw

Hitch pin

Lock pin

Downrod

Supply wires

Screw

Shipping block

Mounting bracket

CUL listed electrial box

Mounting screw 120V wires

Washer

Fig. 10

Registration slot

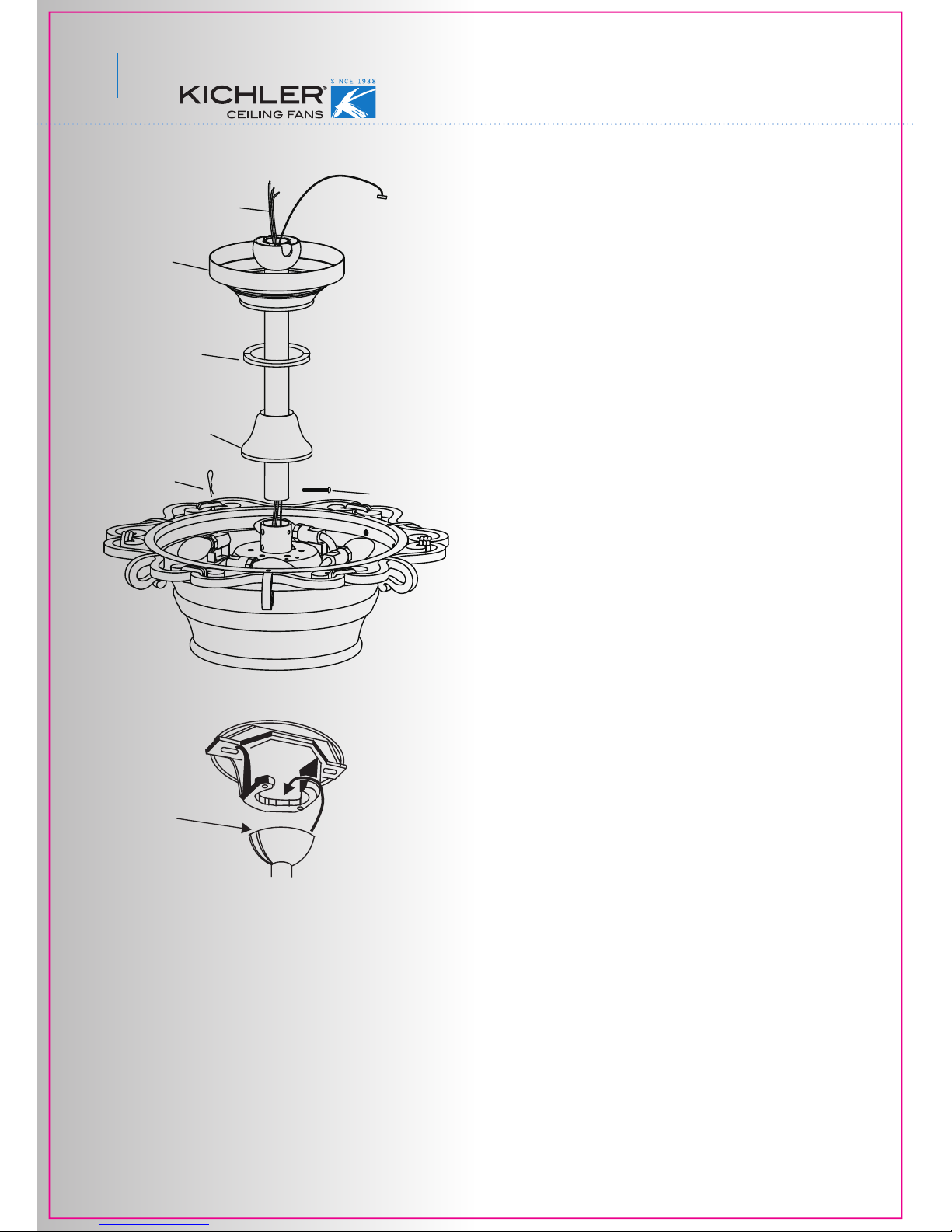

Step 6. Slip the coupling cover, canopy cover

and canopy onto the downrod. Carefully

reinstall the hanger ball onto the downrod.

Make sure the cross pin is in the correct

position and the set screws are tight and the

wires are not twisted. (Fig 9)

Step 7. Now lift the motor assembly into

position and place the hanger ball into the

hanger bracket. Rotate until the “Check Tab”

has dropped into the “Registration Slot” and

seats firmly. (Fig. 10) The entire motor

assembly should not rotate if this is done

correctly.

Fig. 9

Supply wires

Canopy

Coupling cover

Hitch pin

Lock pin

Canopy cover

WiltonTM

6. INSTALLATION OF SAFETY SUPPORT

( For Canadian Installation ONLY )

Fig. 11

Fig. 12

Fig. 13

An additional safety support is provided to

prevent the fan from falling. Secure the safety

cable to the ceiling joist with screw and

washer, as illustrated in Figure 11.

7. MAKE THE ELECTRIC CONNECTIONS

WARNING: To avoid possible electrical

shock, be sure electricity is turned off at the

main fuse box before wiring.

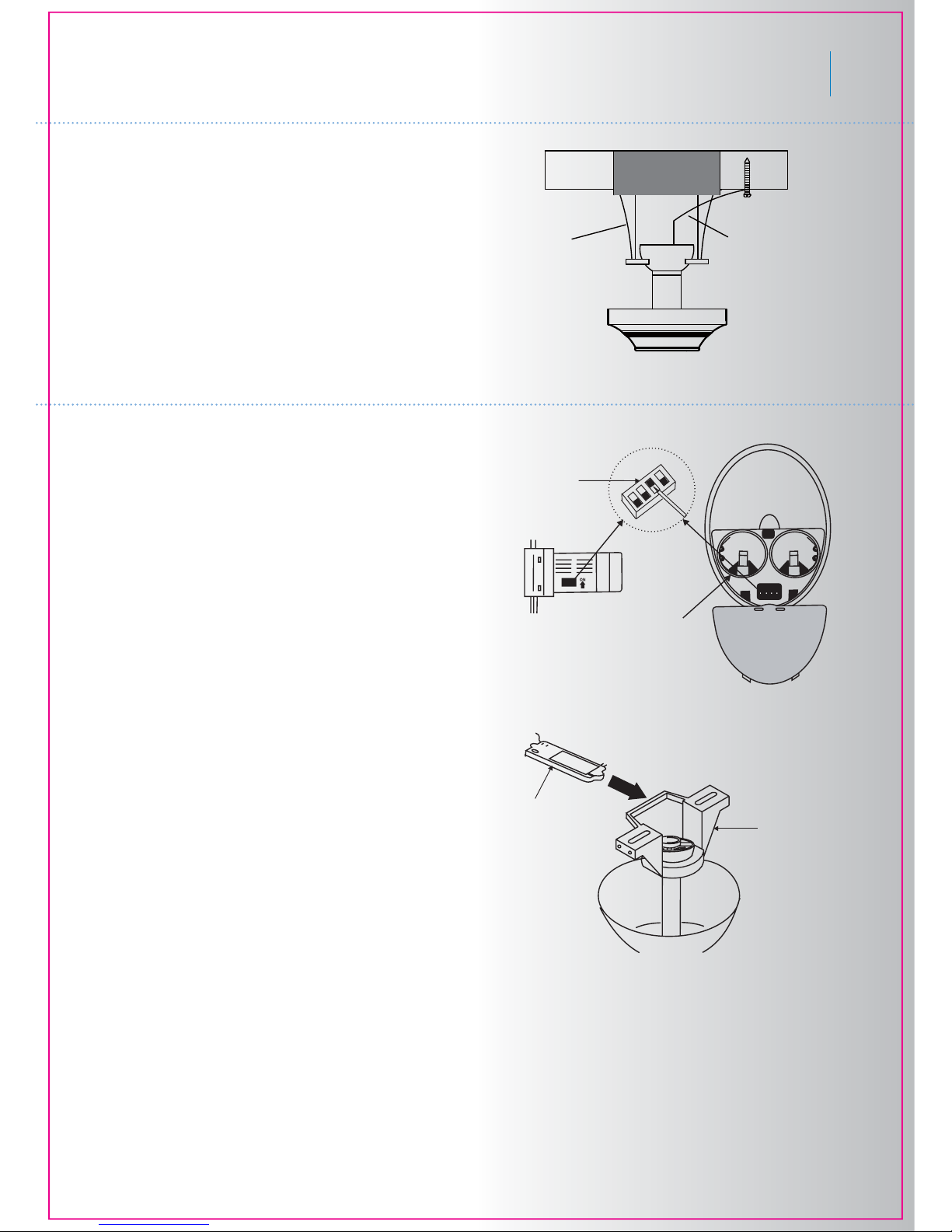

Code switch

Receiver

Hanger

bracket

Battery Compartment

NOTE: The CoolTouchTM Control System is

equipped with 16 code combinations to

prevent possible interference from or to other

remote units. The frequency switches on your

receiver and transmitter have been preset at

the factory. Please recheck to make sure the

switches on the transmitter and receiver are

set to the same position, any combination of

settings will operate the fan as long as the

transmitter and receiver are set to the same

position. (Fig. 12)

Hanger bracket Safety cable

Step 2. Motor to Receiver Electrical Connec-

tions: Connect the black wire from the fan to

black wire marked "TO MOTOR L" from the

receiver. Connect the white wire from the fan

to the white wire marked "TO MOTOR N"

from the receiver. Connect the blue wire from

the fan to the blue wire marked "For Bottom

Light" from the receiver. Connect the orange

wire from the fan to the orange wire marked

“FOR UPPER LIGHT” from the receiver.

Secure all the wire connections with the

plastic wire nuts provided. (Fig. 14 on next

page)

Step 1. Insert the receiver into the mounting

bracket, and keep flat in opposition of ceiling.

(Fig. 13)

Fig. 14

Fig. 15

Step 1. Tuck connections neatly into ceiling

outlet box.

NOTE: adjust the canopy screws as necessary

until the canopy and canopy cover are snug.

(Fig.15)

Note: Fan must be installed at a maximum

distance of 30 feet from the transmitting unit for

proper signal transmission between the

transmitting unit and the fan's receiving unit.

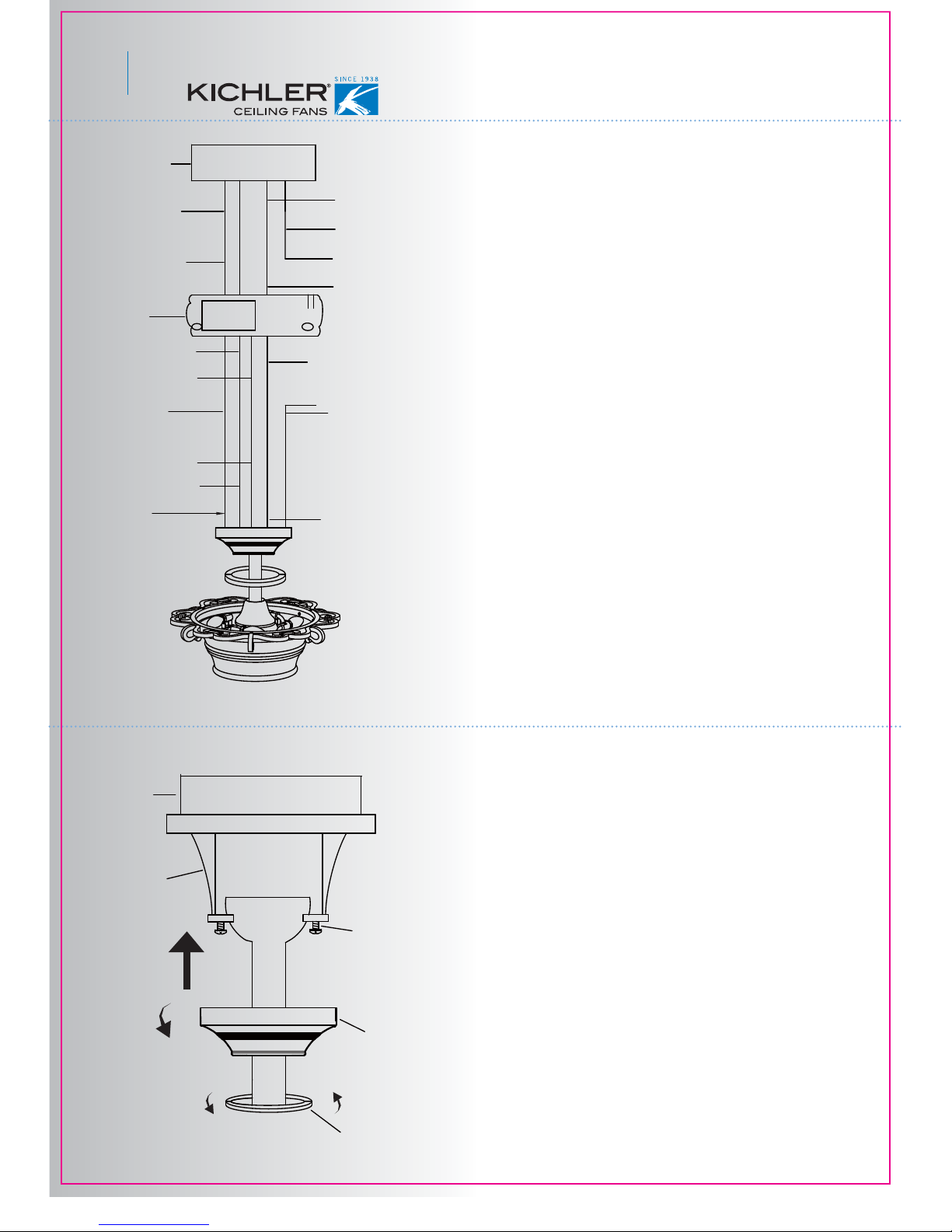

8. INSTALLING THE CEILING CANOPY

Step 2. Slide the canopy up to ceiling and

onto the two screws on hanger bracket.

Rotate the canopy clockwise and tighten both

screws.

Step 3. Remote Receiver to Outlet Box Electri-

cal Connections: Connect the black (hot) wire

from the ceiling to the black wire marked “AC in

L” from the receiver.

Connect the white (neutral) wire from the ceil-

ing to the white wire marked “AC in N” from the

Receiver. Secure the wire connections with the

plastic wire nuts provided. (Fig. 14)

Step 4. If your outlet box has a ground wire

(green or bare copper) connect it to the fan

ground wires; otherwise connect the hanging

bracket ground wire to the mounting bracket.

Secure the wire connection with a plastic nut

provided. After connecting the wires, spread

them apart so that the green and white wires

are on one side of the outlet box and black

and blue wires are on the other side.

Carefully tuck the wire connections up into

the outlet box. (Fig. 14)

Warning: Make sure the “Check Tab” at the

bottom of the hanger bracket is properly seated

in the “Registration Slot” on the side of the

hanger ball before attaching the canopy to the

bracket. Failure to properly seat the“Check Tab”

could damage the electrical wires when to ceiling

fan blade direction is changed while the fan is

running.

CAUTION: All set screws must be checked and

retightened where necessary.

Outlet box

Hanger bracket

Screw

Canopy ring

Blue (for bottom light)

(green) ground wire on

White("AC IN N")

Ground -(Connect to

White("to motor N")

Copper (ground)

Green or bare

White (neutral)

Black (motor)

Orange

(For upper light)

Blue (for ring light)

Black ("to motor L")

Receiver

Black("AC" IN L")

Black (hot)

Outlex box

white (neutral)

wire exists)

hanger bracket

if no house ground

white (neutral)

Orange

(For upper light)

Canopy

WiltonTM

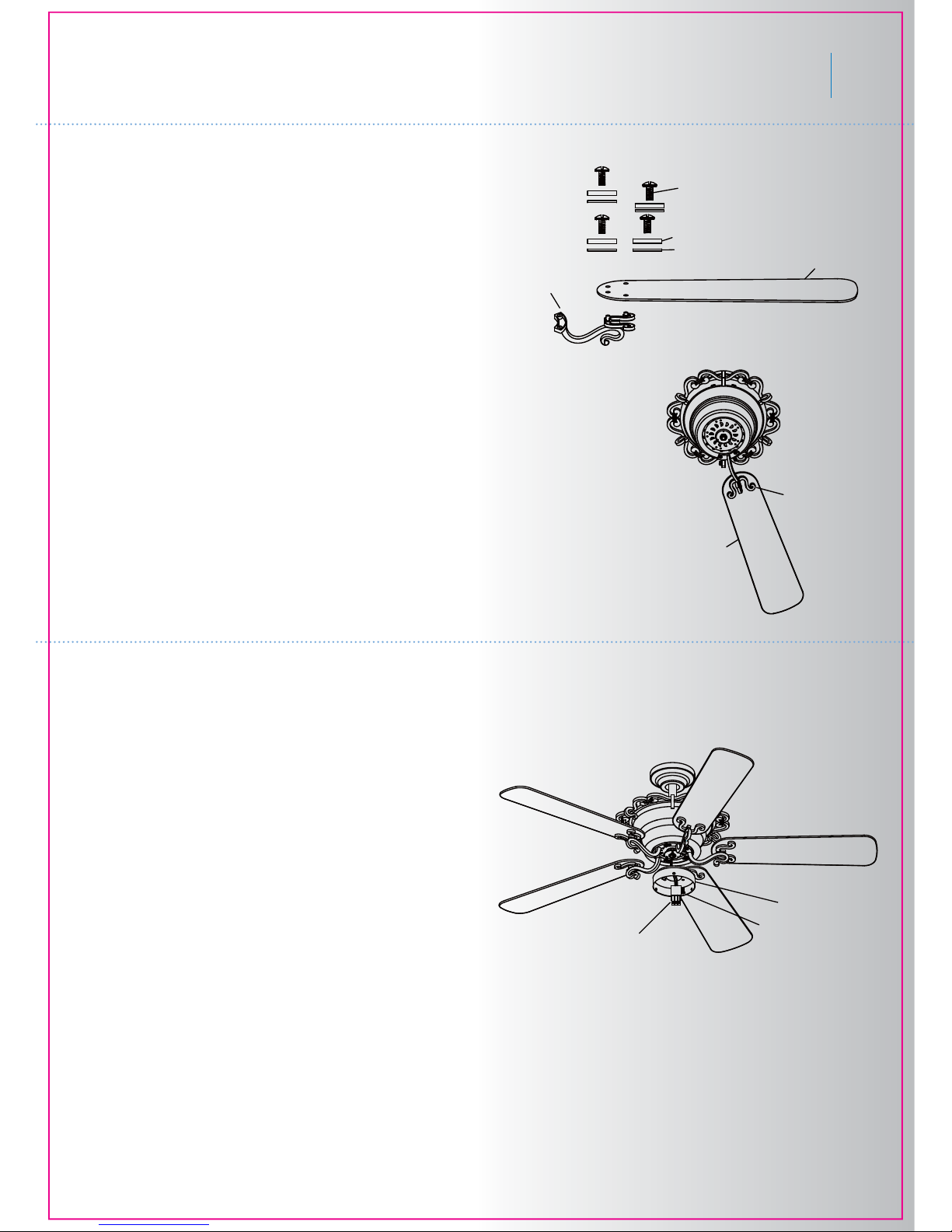

9. ATTACHING THE FAN BLADES

Fig. 16

Fig. 18

Fig. 17

10. INSTALLATING THE MOUNTING PLATE

Step 1 Attach the blade to the blade bracket

using the screws, washers and fiber washers

as shown in Figure 16. Start screw into

bracket. Repeat for the three remaining screws.

Step 2. Make sure the blade is straight and

tighten each screw.

Step 3. Fasten blade assembly to motor using

"pre-installed" mounting screws in the blade

bracket . (Fig. 17)

Blade

Blade bracket

Mounting plate

Mounting ring

Screw

Blade bracket

Screw

Silicon washer

Blade

Metal washer

Step 1. Remove 1 of the 3 screws in the

mounting ring and loosen the other 2 screws.

(Do not remove)

Step 2. Place the key holes on the mounting

plate over the 2 screws previously loosened

and turn the mounting plate until it locks in

place at the narrow section of the key holes.

Secure by tightening the 2 screws previously

loosened and reinstall the one removed.

(Fig. 18)

NOTE: If you would like to install the light

fixture that came with your ceiling fan, please

skip to Step 12 and continue. If you want you

ceiling fan installed WITHOUT the light

fixturek, follow Step 11 and then skip to Step

14.

Fig. 20

Fig. 19

Switch housing

Plastic nut

Hexnut

Metal washer

Molex connection

(small)

Lock washer

Molex connection

(big)

Switch housing

AMP connnection

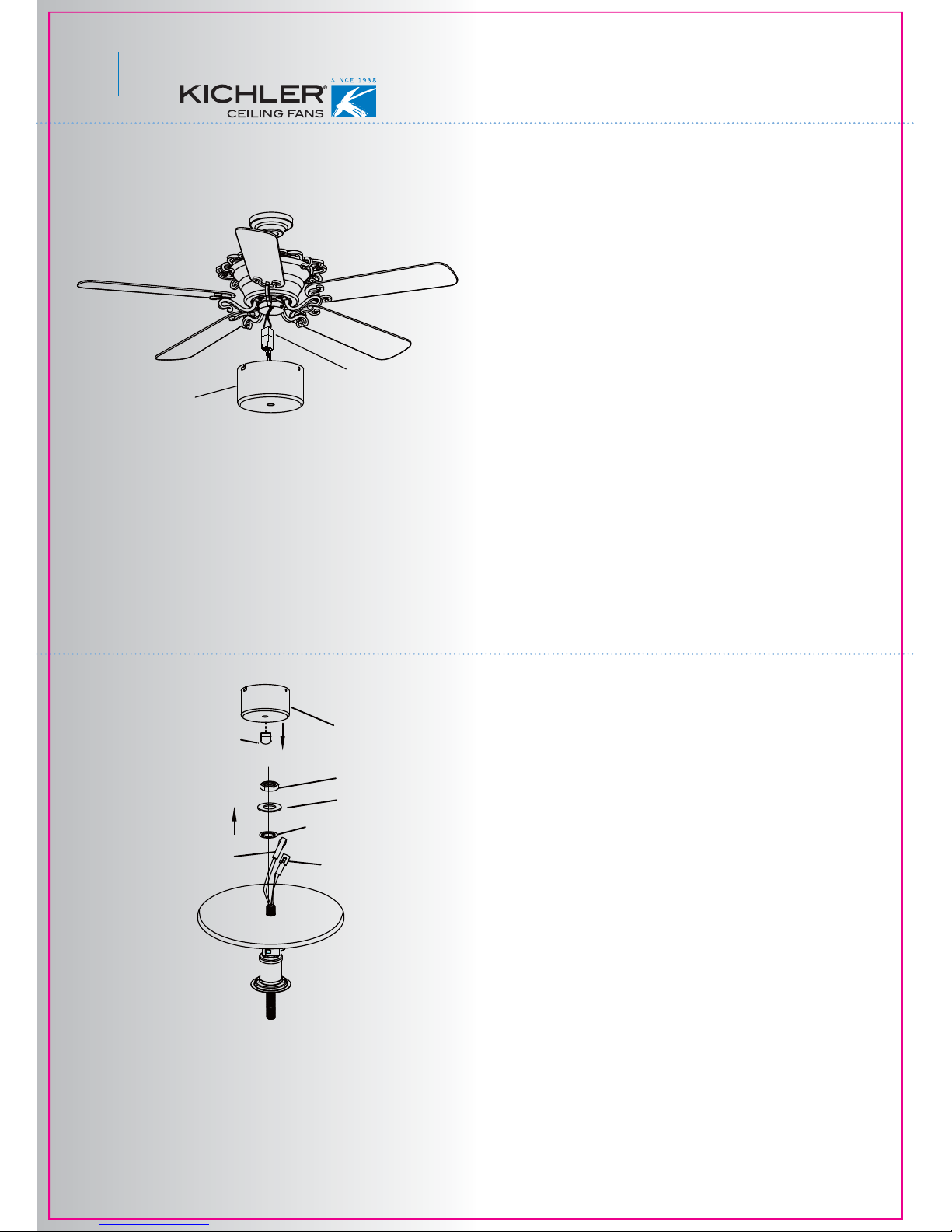

12. INSTALLING THE LIGHT KIT

11. INSTALLING THE SWITCH HOUSING

Step 1. Loosen the 3 screws on the switch

housing mounting plate.

Step 2. The square plastic wiring connector

from the ceiling fan and the switch housing

will only fit together one way. Match up the

color on the side of the connector, then push

them together until the snap engages.

Step 3. Tuck the connections neatly into the

switch housing. Align the key holes on the

switch housing with the screws on the

mounting plate. Turn the switch housing until

it locks in place at the narrow end of the key

holes. Tighten all 3 screws previously loos-

ened. (Fig. 19)

NOTE: The wire connectors in this step will

only fit together “One Way”. Make sure the

connectors are properly aligned.

Step 1. Locate the switch housing that came

with your ceiling fan, then push out the plastic

plug located in the center of the switch hous-

ing. See Fig 20.

Step 2. Remove the mounting nut / lock

washer / metal washer from the light fixture

mounting stem.

Step 3. Pass the molex connectors through

the bottom hole of switch housing (starting

with the larger connector first). Threaded the

light kit onto the switch housing and make it

snug. Add the nut / lock washer / metal

washer and tighten securely.

Step 4. Match the smaller connection of light

kit to the bigger one of switch housing and

push them together until the snap engages.

Follow the same procedure for the other

connector. (Fig. 20)

Indice

Altri manuali Kichler Lighting Fan

Kichler Lighting

Kichler Lighting Starkk 330180MWH Manuale utente

Kichler Lighting

Kichler Lighting Select Sutter Place Manuale utente

Kichler Lighting

Kichler Lighting Lacey Manuale utente

Kichler Lighting

Kichler Lighting Hatteras Bay Patio Manuale utente

Kichler Lighting

Kichler Lighting Maor 310136 Manuale utente

Kichler Lighting

Kichler Lighting Sterling Manor Patio Manuale utente

Kichler Lighting

Kichler Lighting Olympia Manuale utente

Kichler Lighting

Kichler Lighting 52" RENEW DESIGNER Manuale utente

Kichler Lighting

Kichler Lighting Canfield Select Manuale utente

Kichler Lighting

Kichler Lighting Crystal Bay Manuale utente

Kichler Lighting

Kichler Lighting Arkwet Patio Manuale utente

Kichler Lighting

Kichler Lighting Motu Manuale utente

Kichler Lighting

Kichler Lighting Lyndon 300120 Manuale utente

Kichler Lighting

Kichler Lighting Porters Lake Manuale utente

Kichler Lighting

Kichler Lighting Decor Kimberley Manuale utente

Kichler Lighting

Kichler Lighting Todo 330025 Manuale utente

Kichler Lighting

Kichler Lighting sterling manor select Manuale utente

Kichler Lighting

Kichler Lighting ERIS 337060 Manuale utente

Kichler Lighting

Kichler Lighting Fit Manuale utente

Kichler Lighting

Kichler Lighting Lehr II Manuale utente

Kichler Lighting

Kichler Lighting Tide Weather+ Manuale utente

Kichler Lighting

Kichler Lighting Monarch II Select Manuale utente

Kichler Lighting

Kichler Lighting Select Sutter Place Manuale utente

Kichler Lighting

Kichler Lighting Cadence Manuale utente

Manuali Fan popolari di altre marche

ELTA FANS

ELTA FANS H03VV-F Manuale utente

Hunter

Hunter 20714 Manuale di istruzioni

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manuale utente

Hunter

Hunter Caraway Manuale di istruzioni

Panasonic

Panasonic FV-15NLFS1 Manuale utente

Kompernass

Kompernass KH 1150 Manuale utente

VES

VES FALA100/12V/TR Manuale utente

Vertiv

Vertiv Liebert DCD Manuale utente

Westinghouse

Westinghouse GFP Series Manuale utente

Venmar

Venmar KUBIX HRV PLUS Series Manuale utente

Maico

Maico ECR 31 Manuale utente

Sonnenkonig

Sonnenkonig Dinky Manuale utente

S&P

S&P ECOWATT HXBR Manuale utente

Wider

Wider IMP03369BH Manuale utente

Panasonic

Panasonic F-60DHN Manuale utente

Hinkley

Hinkley HIGHLAND Manuale utente

Broan

Broan 766BN Manuale utente

Premium

Premium PFS16022 Istruzioni per il montaggio
