INSTRUCTION MANUAL
52" VASSARTM LED
Product images may vary slightly from actual product.
TABLE OF CONTENTS
SAFETY RULES......................................................... 4
5
5
6
7
10
11
13
14
14
TOOLS REQUIRED....................................................
PACKAGE CONTENTS .............................................
MOUNTING OPTIONS
...............................................
INSTALLATION OF S
AFETY SUPPORT...................
ELECTRICAL CONNECTIONS
..................................
FINISHING THE INSTALLATION................................
ATTACHING THE FAN BLADES
................................
HANGING THE FAN
..................................................
INSTALLING THE LIGHT PLATE...............................
INSTALLING THE LED LIGHT KIT
AND GLASS SHADE..................................................15
16
16
17
18
19
INSTALLING THE BATTERIES ...................................
OPERATING INSTRUCTIONS ....................................
INSTALLING THE WALL CONTROL
SYSTEM WALL PLATE .............................................
OPERATION INSTRUCTIONS ...................................
TROUBLESHOOTING................................................
52" VASSARTM LED | 3
20
20
SPECIFICATIONS......................................................
FCC.............................................................................
4 | KICHLER.COM
SAFETY RULES
1. To reduce the risk of electric shock, ensure electricity has been turned off at
the circuit breaker or fuse box before beginning.
2. All wiring must be in accordance with the National Electrical Code and local
electrical codes. Electrical installation should be performed by a qualified
licensed electrician.
3. WARNING: Not suitable for use with solid-state speed controls.
4. WARNING: To reduce the risk of fire, electric shock, or personal injury, mount
to outlet box marked "acceptable for fan support of 15.8 kg (35 lbs.) or less"
and use mounting screws provided with the outlet box. Most outlet boxes
commonly used for the support of light fixtures are not acceptable for fan
support and may need to be replaced. Due to the complexity of the installation
of this fan, a qualified licensed electrician is strongly recommended.
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR
PERSONAL INJURY, MOUNT FAN TO OUTLET BOX MARKED "ACCEPTABLE
FOR FAN SUPPORT".
5. The outlet box and support structure must be securely mounted and capable of
reliably supporting a minimum of 50 pounds. Use only CUL Listed outlet boxes
marked "FOR FAN SUPPORT".
6. The fan must be mounted with a minimum of 7 feet clearance from the trailing
edge of the blades to the floor.
7. Do not operate reversing switch while fan blades are in motion. Fan must be
turned off and blades stopped before reversing blade direction.
8. Avoid placing objects in the path of the blades.
9. To avoid personal injury or damage to the fan and other items, be cautious
when working around or cleaning the fan.
10. Do not use water or detergents when cleaning the fan or fan blades. A dry
dust cloth or lightly dampened cloth will be suitable for most cleaning.
11. After marking electrical connections, spliced conductors should be turned
upward and pushed carefully up into outlet box. The wires should be spread
apart with the grounded conductor and the equipment-grounding conductor on
one side of the outlet box.
12. Electrical diagrams are reference only. Light kits that are not packed with
the fan must be CUL Listed and marked suitable for use with the model fan you
are installing. Switches must be CUL General Use Switches. Refer to the
Instructions packaged with the light kits and switches for proper assembly.
WARNING: TO REDUCE THE RISK OF PERSONAL INJURY, DO
NOT BEND THE BLADE BRACKETS (ALSO REFERRED TO AS
FLANGES) DURING ASSEMBLY OR AFTER INSTALLATION. DO
NOT INSERT OBJECTS IN THE PATH OF THE BLADES.
Special Notice: This appliance is equipped with a "Wattage Limiting
Device" required by the United States Department of Energy. The device
has been installed at the factory and can not be removed.
Installing Lamps in excess of 190 total watts will disable the unit's light
fixture. If this should happen, you will need to reset the lighting fixture by
turning the power off to the ceiling fan and/or light fixture, reinstalling lamps
totaling less that 190 watts and then turning the power back on.
TOOLS REQUIRED
Philips screw driver
Blade screw driver
11 mm wrench
Step ladder
Wire cutters
PACKAGE CONTENTS
Unpack your fan and check the
contents. You should have the
following items:
a. Fan blades (3)
b. Canopy & Ceiling mounting
bracket
c. Ball/downrod assembly
d. Coupling cover
e. Fan motor assembly
1)
2)
3)
4)
Light plate
17W LED light kit
Glass shade
Decorative bottom cover
Receiver
Wall Transmitter
Part bag contents
Mounting hardware:
wood screws (2), flat washers (2),
star washers (2), wire nuts (3),
screws (2)
Blade attachment hardware:
screws (11), fiber washers (11)
Safety cable hardware:
wood screw, spring washer,
flat washer
Balance Kit
52" VASSARTM LED | 5
f.
g.
h.
i.
j.
k.
l.
a
b
c
g
h
d
e
f
i
j
k
l
6 | KICHLER.COM
MOUNTING OPTIONS
If there isn't an existing UL (cUL for Canadian Installation) listed
mounting box, then read the following instructions. Disconnect the
power by removing fuses or turning o circuit breakers.
Secure the outlet box directly to the building structure. Use
appropriate fasteners and building materials. The outlet box and its
support must be able to fully support the moving weight of the fan
(at least 50 lbs). Do not use plastic outlet boxes.
Figures 1, 2 and 3 are examples of different ways to mount the
outlet box.
NOTE: If you are installing the ceiling fan on a sloped (vaulted)
ceiling, you may need a longer downrod to maintain proper
clearance between the tip of the blade and the ceiling. A minimum
clearance of 12" is suggested for optimal operation.
NOTE: Depending on the location you have selected for installation,
you may need to purchase and install a "Joist Hanger" for the
support of the outlet box. Make sure the joist hanger you purchase
has been designed for use with ceiling fans. (Fig. 4)
Fig. 1
Outlet box
Outlet box
Fig. 2
Provide strong
support
Recessed
outlet box Ceiling
mounting
plate
Fig. 3
ANGLED CEILING
MAXIMUM 30° ANGLE
Outlet box
Fig. 4
52" VASSARTM LED | 7
HANGING THE FAN
REMEMBER to turn o the power before you begin.
To properly install your ceiling fan, follow the steps below.
Step 1. Remove the decorative canopy bottom cover from the canopy
by turning the cover counter clockwise. (Fig. 5)
Step 2. Remove the ceiling mounting bracket from the canopy by
removing (and save one of the two screws. Loosen the remaining screw
by a half turn. (Fig. 5)
Step 3. Pass the 120 volt supply wires from the ceiling outlet box
through the center of the ceiling mounting bracket. (Fig. 6)
Step 4. Attach the ceiling mounting bracket to the outlet box using the
screws and washers included with the outlet box. (Fig.6)
Fig. 5
Hanger bracket
Ceiling
canopy
Canopy
cover
Ceiling
mounting
bracket
Mounting screws
(supplied with
electrical box)
Fig. 6
CUL Listed
electrial
box
120V Wires
Washers
Hook
8 | KICHLER.COM
Fig. 7
Fig. 8
Downrod
Cross pin
Hanger
ball Set screw
HANGING THE FAN(continued)
Step 5. Remove the hanger ball from the downrod assembly by
loosening the set screw, unscrewing and removing removing the cross
pin and unscrewing the ball off the rod. (Fig. 7)
Step 6. Loosen the two set screws and remove the hitch pin and
retaining clip from the coupling on top of the motor assembly. (Fig. 8)
Step 7. Carefully feed the electrical lead wires from the fan up
through the downrod. Thread the downrod into the coupling until the
Hitch pin holes are aligned.
Next, replace the hitch pin and retaining clip. Tighten both set screws.
(Fig. 8)
Supply wires
Downrod
Hitch pin
Retaining clip Set screws
Set screws
Fig. 9
Fig. 10
HANGING THE FAN(continued)
Step 8. Slip the coupling cover , canopy cover and canopy onto the
downrod. (Fig. 9)
Thread the hanger ball onto the downrod, insert the cross pin through
the downrod and tighten. Now tighten the set screw. (Fig. 9)
Step 9. Lift the motor assembly into position and place the hanger ball
into the ceiling mounting bracket.
Rotate the entire assembly until the "Check Tab" has dropped into the
"Registration Slot" and seats firmly. (Fig. 10)
The entire motor assembly should not rotate (left or right) when seated
properly.
WARNING: Failure to reattach the cross pin and seat the "Check Tab"
can cause the fan to fall from the ceiling during operation. Take special
care to make sure this pin is reattached.
Registration slot
Downrod
Canopy
Canopy cover
Set screws
Hitch pin Retaining clip
Coupling cover
52" VASSARTM LED | 9
10 | KICHLER.COM
NOTE: Although the safety support cable is required for Canadian
installations only. It's a good idea to make the attachment with any
installation.
INSTALLATION OF SAFETY SUPPORT
(required for Canadian installation ONLY)
A safety support cable is provided to help prevent the ceiling fan from
falling. Please install it as follows:
Step 1. Attach the provided wood screw and washers to the ceiling joist
next to the mounting bracket but do not tighten. (Fig. 11)
Step 2. Adjust the length of the safety cable to reach the screw and
washers by pulling the extra cable through the cable clamp until the
overall length is correct, put the end of the cable back through the cable
clamp, forming a loop at the end of the cable. Tighten the cable clamp
securely. Now, put the loop in the end of the safety cable over the wood
screw and under the washer. Tighten the wood screw securely.

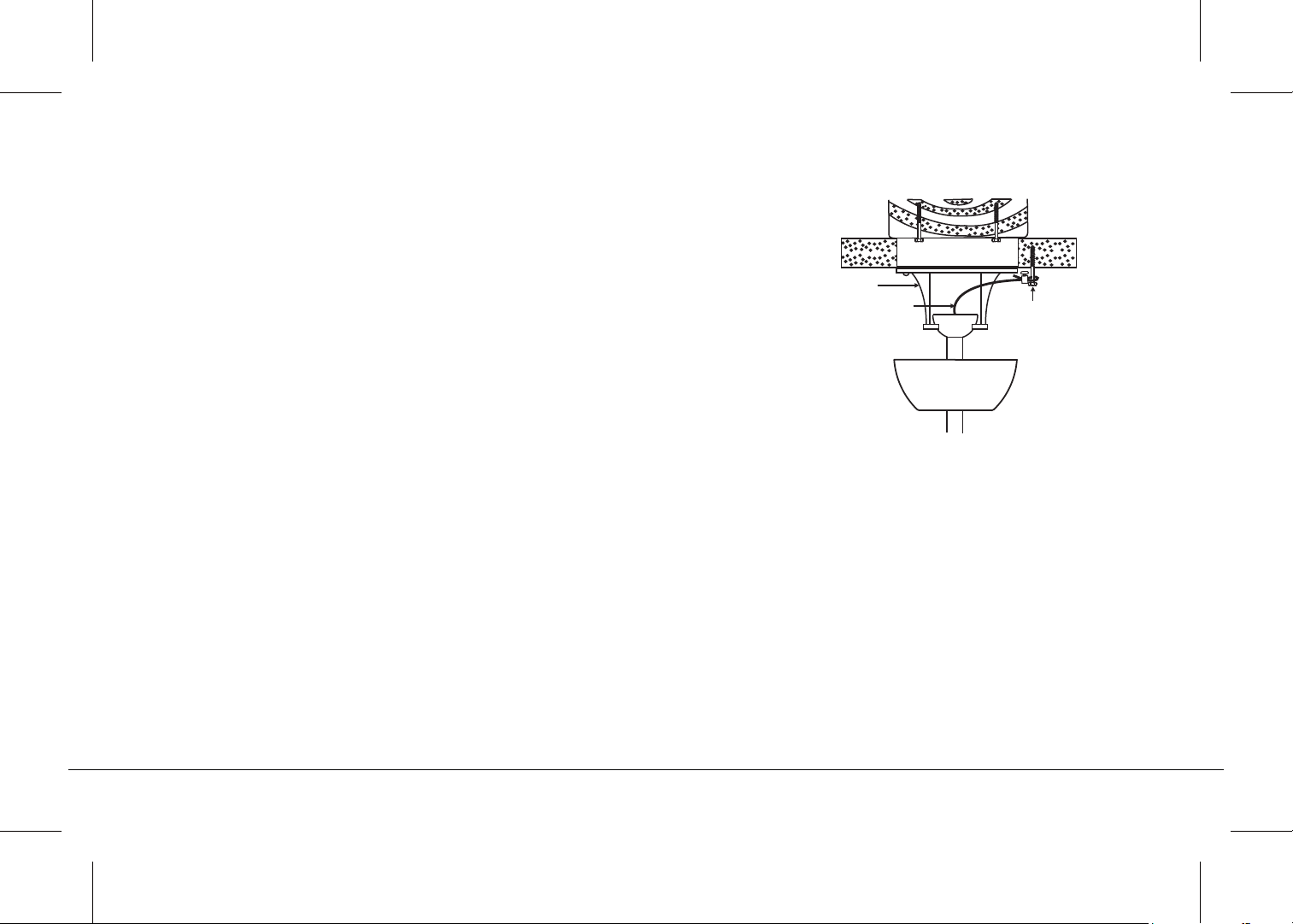

Fig. 11
Ceiling mounting bracket
Attach
safety cable
to ceiling joist
with screw and
washer
Safety support cable
Altri manuali per VASSAR
1
Questo manuale è adatto per i seguenti modelli
4
Indice
Lingue:
Altri manuali Kichler Lighting Fan
Kichler Lighting
Kichler Lighting Golden Iridescence Manuale utente
Kichler Lighting
Kichler Lighting Sterling Manor Manuale utente
Kichler Lighting
Kichler Lighting Cottage Grove Manuale utente
Kichler Lighting
Kichler Lighting Motu Manuale utente
Kichler Lighting
Kichler Lighting 310125 Manuale utente
Kichler Lighting
Kichler Lighting Canfield Select Manuale utente
Kichler Lighting
Kichler Lighting 300457 Manuale utente
Kichler Lighting
Kichler Lighting Imari 65 Manuale utente
Kichler Lighting
Kichler Lighting Select Canfield Climates Manuale utente
Kichler Lighting
Kichler Lighting Monarch II Select Manuale utente
Kichler Lighting
Kichler Lighting Crystal Bay Manuale utente
Kichler Lighting
Kichler Lighting 52" Canfield Pro Manuale utente
Kichler Lighting
Kichler Lighting 35166 Manuale utente
Kichler Lighting
Kichler Lighting Renew Select Patio Manuale utente
Kichler Lighting
Kichler Lighting RIDLEY2 KLF-RIDLEY2-52-NB Manuale utente
Kichler Lighting
Kichler Lighting HATTERAS BAY PATIOLED 60" Manuale utente
Kichler Lighting
Kichler Lighting BASICS PRO SELECT 330017MWH Manuale utente
Kichler Lighting
Kichler Lighting Decor InnesII 300130 Manuale utente
Kichler Lighting
Kichler Lighting 330163 Manuale utente
Kichler Lighting
Kichler Lighting Kittery Point Manuale utente
