INSTRUCTION MANUAL

Model#310254

Product images may vary slightly from actual product.

54" Fit

READ AND SAVE THESEINSTRUCTIONS

2| KICHLER.COM

TABLE OF CONTENTS

SAFETY RULES ....................................................................4

TOOLS REQUIRED .............................................................6

PACKAGE CONTENTS .....................................................6

MOUNTING OPTIONS ......................................................7

HANGING THE FAN ..........................................................8

INSTALLATION OF SAFETY SUPPORT ...................10

ELECTRICAL CONNECTIONS ......................................11

FINISHING THE MOTOR INSTALLATION ...............13

ATTACHING THE FAN BLADES ..................................14

INSTALLING THE DECORATIVE CAP.......................15

INSTALLING THE LIGHT KIT ........................................16

INSTALLING THE LIGHT KIT SHADE.........................18

OPERATING INSTRUCTIONS ......................................19

TROUBLESHOOTING ....................................................23

FCC INFORMATION .......................................................

54" Fit | 3

4 |KICHLER.COM

SAFETY RULES

1. CAUTION - RISK OF SHOCK: Disconnect Power at

the main circuit breaker panel or main fusebox before

starting and during the installation.

2. WARNING: All wiring must be in accordance with the

National Electrical Code “ANSI / NFPA70”and local

electrical codes. Electrical installation should be

performed by a qualified licensed electrician.

3. WARNING: To reduce the risk of electric shock, this

fan must be installed with a general-use, isolating

wall control / switch.

4. WARNING: Not suitable for use with solid-state speed

controls.

5. WARNING: To reduce the risk of fire, electric shock,

or personal injury, mount to outlet box marked

“acceptable for fan support of 15.9 kg (35 lbs.) or

less” and use mounting screws provided with the

outlet box. Most outlet boxes commonly used for

the support of light fixtures are not acceptable for

fan support and may need to be replaced. Due to the

complexity of the installation of this fan, a qualified

licensed electrician is strongly recommended.

6. The outlet box and support structure must be

securely mounted and capable of reliably supporting

a minimum of 15.9 kg (35 pounds). Use only cULus

Listed outlet boxes marked “Acceptable for Fan

Support of 15.9 kg (35 lbs) or less”.

7. The fan must be mounted with a minimum of 2.1m (7

feet) clearance from the trailing edge of the blades to

the floor.

8. To operate the reverse function on this fan, press the

“Reverse" button on the transmitter while fan is

running.

9. Avoid placing objects in the path of the blades.

10. WARNING: make sure the power is disconnected

before cleaning your fan.

WARNING: FOR CANADA, THIS FAN MUST BE SECURED DIRECTLY TO THE BUILDING STRUCTURE / CEILING JOIST.

DON'T SECURE THIS FAN TO AN OUTLET BOX.

54" Fit | 5

SAFETY RULES

11. To avoid personal injury or damage to the fan and

other items, be cautious when working around or

cleaning the fan.

12. Do not use water or detergents when cleaning the fan

or fan blades. A dry dust cloth or lightly dampened

cloth will be suitable for most cleaning.

13. After making electrical connections, spliced

conductors should be turned upward and pushed

carefully up into outlet box. The wires should be

spread apart with the grounded conductor and the

equipment-grounding conductor on one side of the

outlet box and the ungrounded conductor on the

other side of the outlet box.

14. Electrical diagrams are reference only. Light kits that

are not packed with the fan must be cULus Listed

and marked suitable for use with the model fan you

are installing. Switches must be cULus General Use

Switches. Refer to the Instructions packaged with the

light kits and switches for proper assembly.

15. All set screws must be checked, and retightened

where necessary, before installation.

16. N.W.6.3KGS(13.89 LBS) / G.W.7.4 KGS(16.31 LBS)

WARNING

TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND

THE BLADES DURING ASSEMBLY OR AFTER INSTALLATION.

DO NOT INSERT OBJECTS IN THE PATH OF THE BLADES.

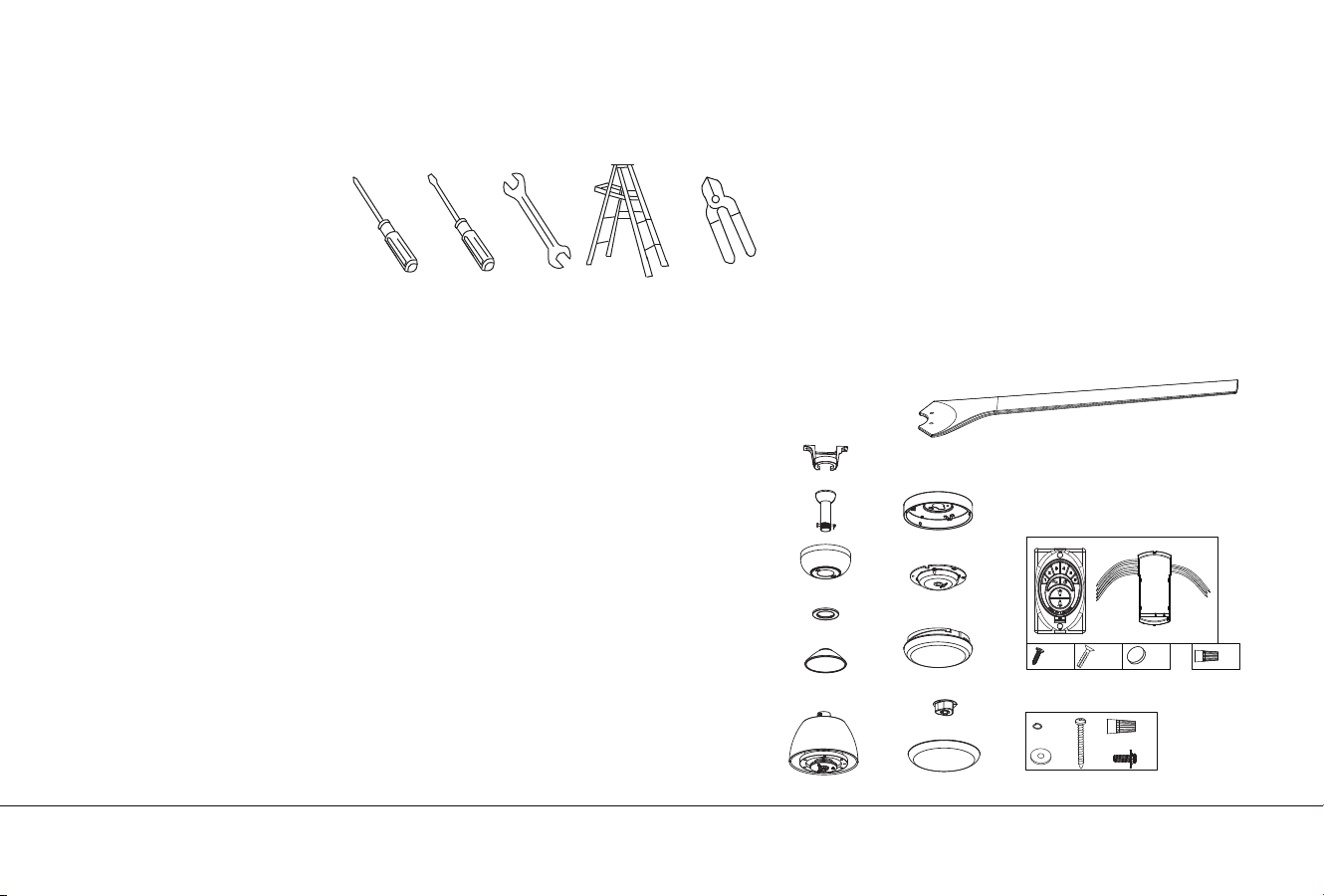

TOOLS AND MATERIALS REQUIRED

• Phillips Screwdriver

• Blade Screwdriver

• 11 mm Wrench

• Step Ladder

• Wire Cutters

PACKAGE CONTENTS

Unpack your fan and check the contents. You should have the following items:

A. Mounting Bracket

B. Ball / Downrod Assembly

C. Canopy

D. Canopy Trim Ring

E. Coupling Cover

F. Motor Body

G. Fan Blades (3)

H. Light Kit Housing

I. Light Kit

J. Light Kit Shade

K. Wire Cover

L. Decorative Cap

M. Transmitter

Transmitter (TRD250K3M) (1)

Receiver (1)

Batteries (2)

Wire Connectors (9)

N. Package Hardware

1)Mounting Hardware:

Wire Connectors (3)

2)Blade Attachment Hardware：

Fan Blade Mounting Screws

(and washers) (7)

3)Safety Cable Hardware:

Wood Screw (1), Spring Washer (1),

Flat Washer (1)

6| KICHLER.COM

x2 x2 x2

CR2032 3V

54" Fit | 7

Outlet box

Recessed

outlet box ceiling

mounting

plane

Provide strong

support

ANGLED CEILING

MAXIMUM 15° ANGLE

MOUNTING OPTIONS

lf there isn't an existing UL(cUL for Canadian Installation) listed

mounting box, then read the following instructions. Disconnect

the power by removing fuses or turning o circuit breakers.

Secure the outlet box directly to the building structure.

Use appropriate fasteners and building materials. The outlet box

and its support must be able to fully support the full weight of

the fan (up to 15.9 kg (35 pounds)). Do not use plastic outlet boxes.

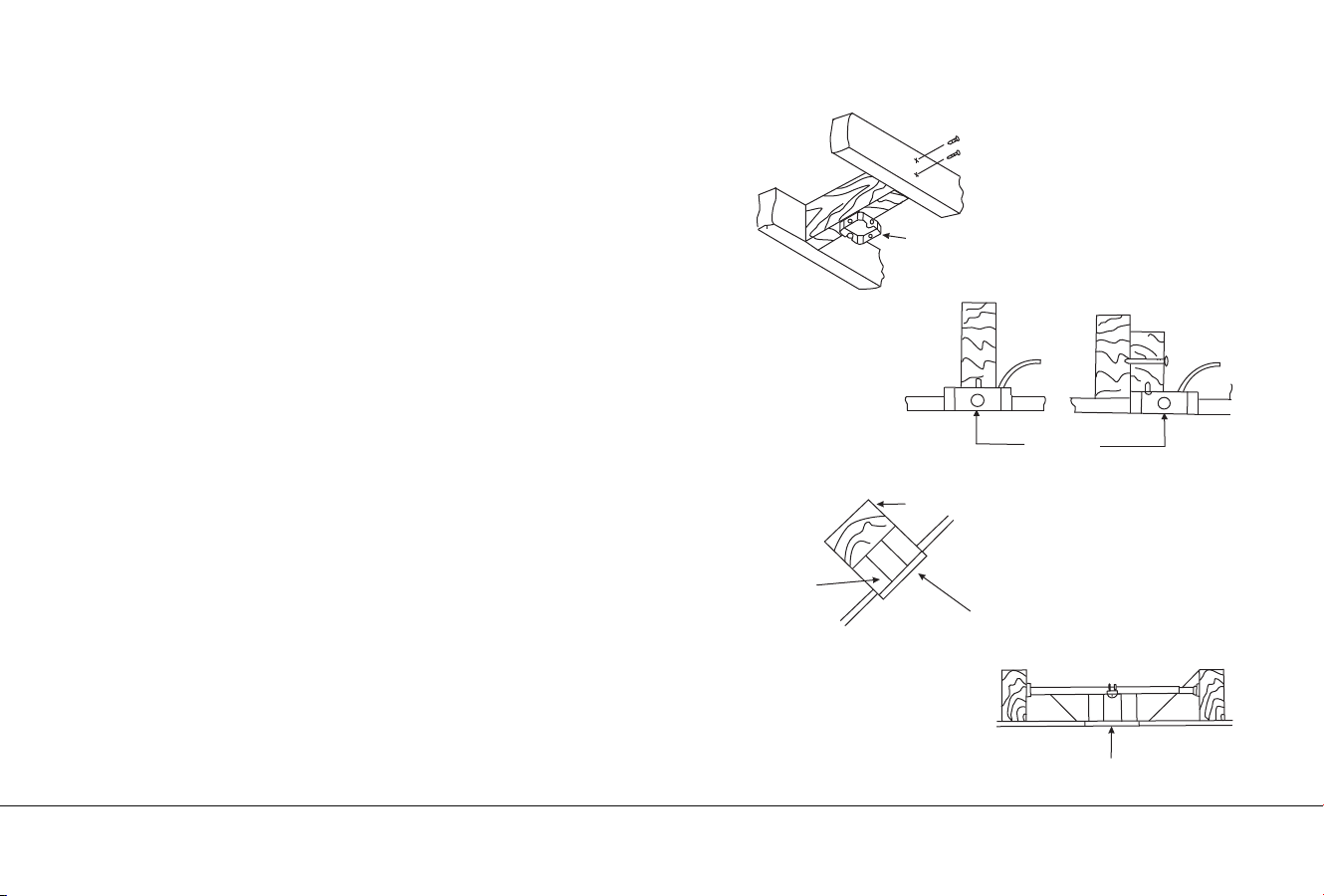

Figures 1, 2 and 3 are examples of dierent ways to mount the

outlet box.

NOTE: If you are installing the ceiling fan on a sloped (vaulted)

ceiling, you may need a longer downrod to maintain proper

clearance between the tip of the blade and the ceiling. A

minimum clearance of 12" is suggested for optimal operation.

NOTE: Depending on the location you have selected for

installation, you may need to purchase and install a “Joist

Hanger” for the support of the outlet box. Make sure the joist

hanger you purchase has been designed for use with ceiling

fans. (Fig. 4)

Fig. 1

Fig. 2

Fig. 3

Fig. 4

8| KICHLER.COM

Fig. 5

Screw (included

with outlet box)

Flat Washer(included

with outlet box)

Outlet Box

Mounting Bracket

Fig. 7

Set Screw

Motor Coupling

CAUTION: To avoid possible electrical shock, be sure you have turned

o the power at the main circuit panel.

REMEMBER to turn o the power before you begin installation. This is

necessary for your safety and also the proper programming of the

control system. To properly install your ceiling fan, follow the steps below.

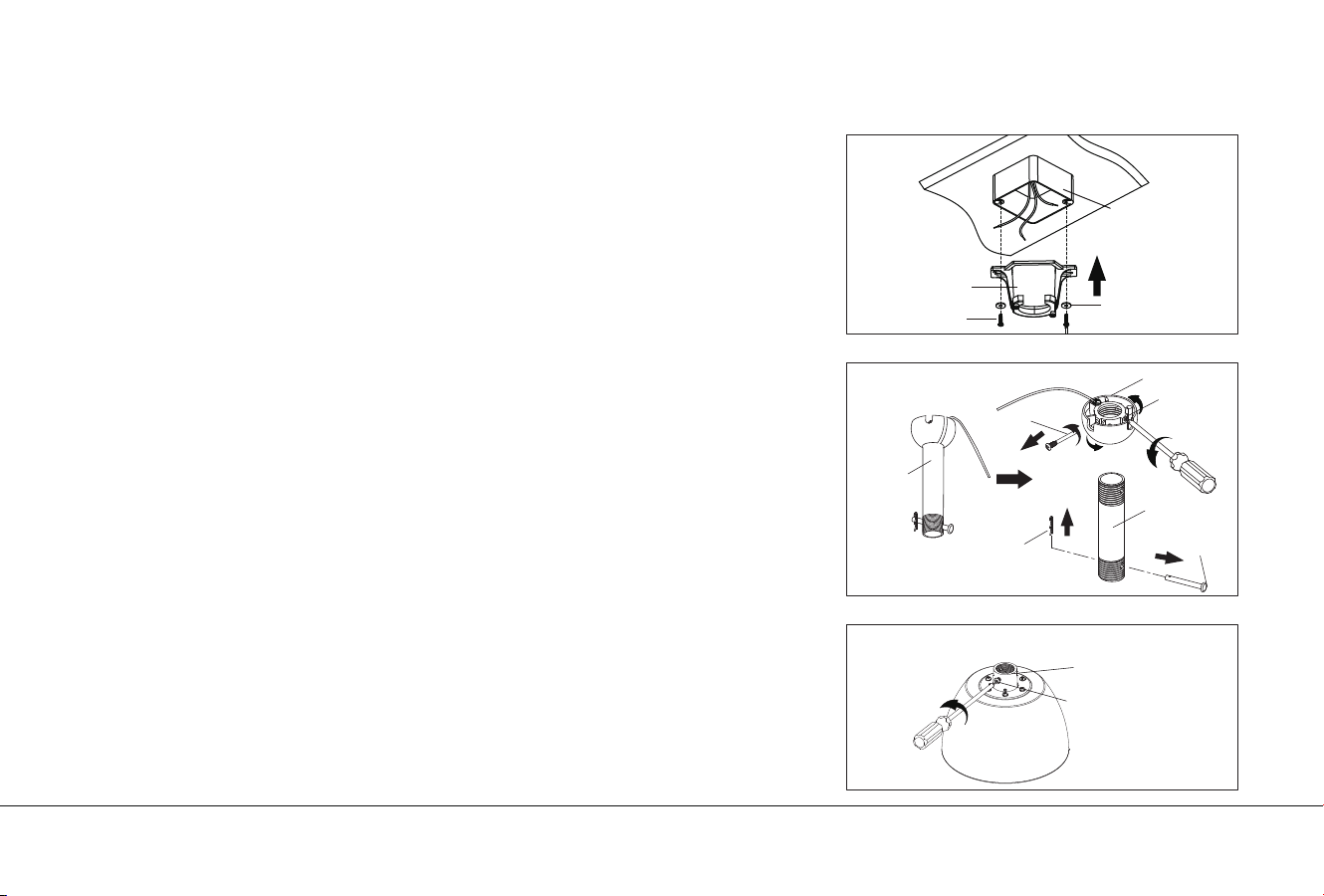

Step 1. Before attaching the fan to outlet box (not included), ensure the

outlet box is securely fastened to at least two points to a structural ceiling

member (a loose box will cause the fan to wobble). Pass the 120 volt

supply wires from the ceiling outlet box through the center of the ceiling

mounting bracket. Install mounting bracket to outlet box in ceiling using

the screws and washers included with the outlet box. (Fig. 5)

Step 2. Remove the retaining clip and hitch pin from the downrod assembly.

Remove the hanger ball from the downrod assembly by loosening the set

screw on the hanger ball (do not remove), unscrewing and removing the

cross pin, and unscrewing the hanger ball (counterclockwise) from the

downrod. (Fig. 6)

Step 3. Loosen the two set screws (do not remove) on the motor coupling.

(Fig. 7)

HANGING THE FAN

Retaining Clip

Cross Pin

Hitch Pin

Downrod

Assembly

Set Screw

Downrod

Hanger Ball

Fig. 6

54" Fit | 9

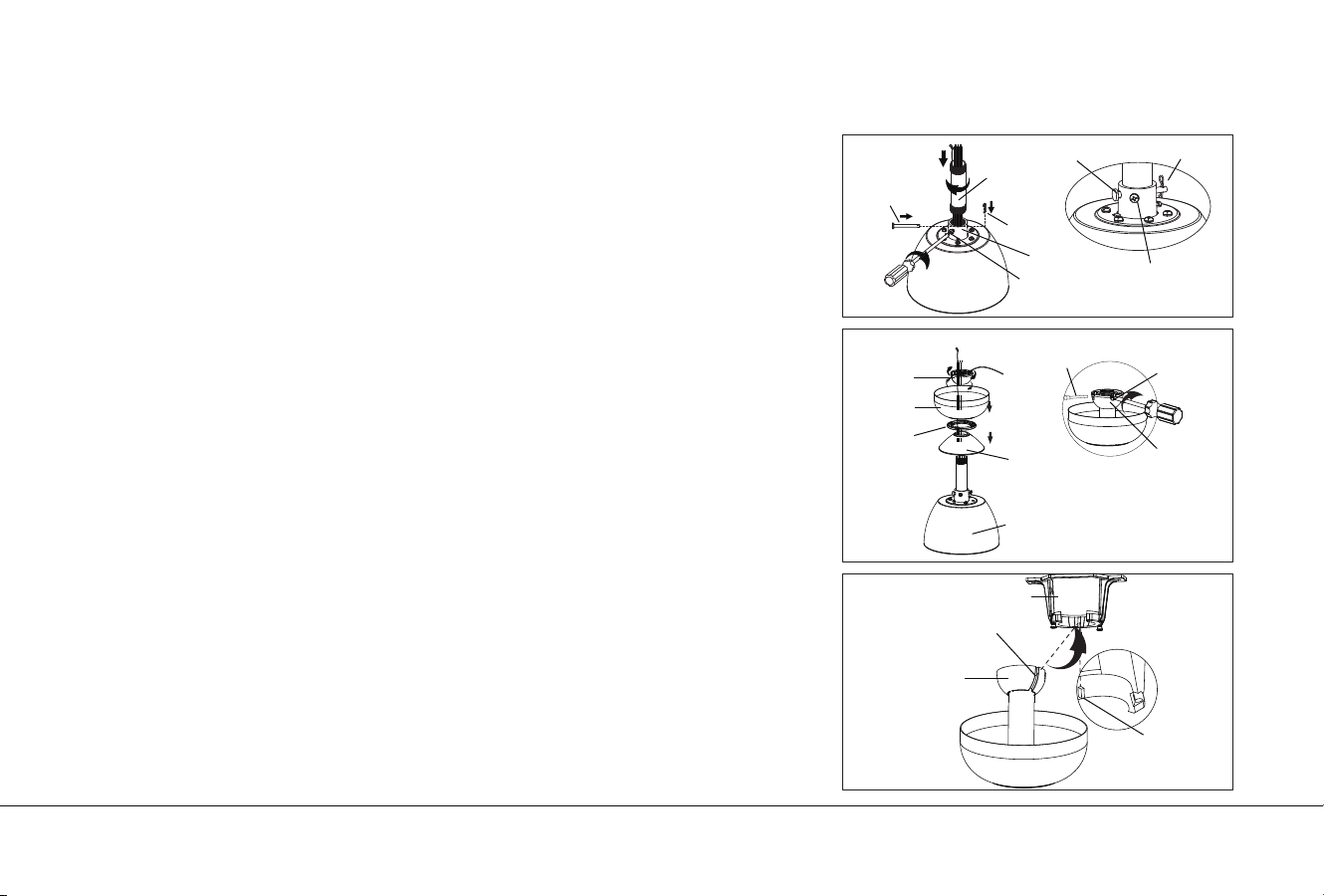

Step 4. Carefully feed fan wires and safety cable up through the downrod.

Thread the downrod into the motor coupling until the hitch pin holes are

aligned. Next, replace the hitch pin and retaining clip.

NOTE: Be careful not to jam the hitch pin against the wiring inside of

the downrod. Tighten both set screws. (Fig. 8)

Step 5. Slip the coupling cover, canopy trim ring (smooth finished side

facing motor body), and canopy onto the downrod. Carefully reinstall

the hanger ball onto the downrod. Carefully reinstall the cross pin

through the hanger ball and downrod.

NOTE: Be careful not to jam the cross pin against the wiring inside

of the downrod. Make sure the cross pin is in the correct position.

Tighten the cross pin. Tighten the set screw on the hanger ball.

Make sure the wires are not twisted. (Fig. 9)

Step 6. Lift the motor body into position and place the hanger ball into

the mounting bracket. Rotate the entire assembly until the “Check Tab”

has dropped into the “Registration Slot” and seats firmly. (Fig.10) The

entire motor body should not rotate if this is done correctly.

WARNING: Failure to reattach the cross pin and seat the “Check Tab” can

cause the fan to fall from the ceiling during operation. Take special care to

make sure this pin is reattached.

HANGING THE FAN (continued)

Retaining Clip

Set Screw

Motor Coupling

Downrod

Hitch Pin

Set Screw

Hitch Pin Retaining Clip

Fig. 8

Fig. 9

Motor Body

Hanger Ball

Canopy

Trim Ring

Coupling Cover Hanger Ball

Set Screw

Cross Pin

CheckTab

MountingBracket

Registration Slot

Hanger Ball

Fig. 10

10 | KICHLER.COM

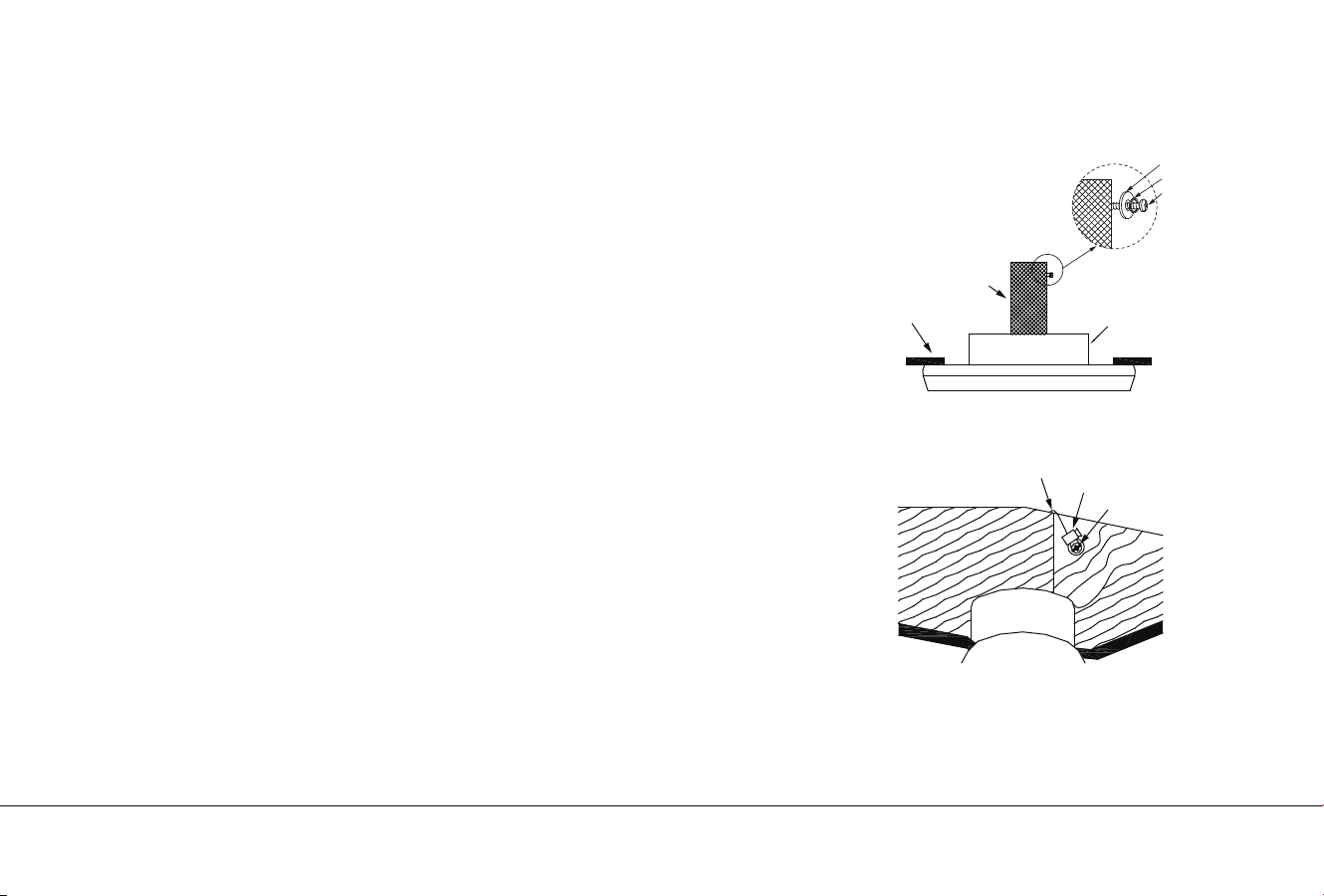

A safety support cable is provided to help prevent the ceiling fan from

falling, please install it as follows.

Step 1 . Slip the spring washer, then the flat washer onto the wood screw,

then drive the wood screw into the side of the brace that holds the outlet box.

Leave 3mm (1/8") of space between the support brace and the flat washer.

(Fig.11)

Step 2 . lnsert the safety cable through the mounting bracket and one of the

holes in the outlet box into the ceiling. Adjust the length of the safety cable to

reach the wood screw and flat washer by pulling the extra cable through the cable

clamp until the overall length is correct, put the end of the cable back through

the cable clamp, forming a loop at the end of the cable. Tighten the cable clamp

securely. Now, put the loop in the end of the safety cable over the wood screw

and under the flat washer. Tighten the wood screw securely. (Fig.12)

NOTE: Although the safety support cable is required for Canadian

installations only, it is a good idea to make the attachment with any

installation.

INSTALLATION OF SAFETY SUPPORT

(required for Canadian installation ONLY)

Fig. 11

Fig. 12

Safety Cable Cable Clamp

Wood Screw

Flat Washer

Spring Washer

Wood Screw

Support Brace

Ceiling Outlet Box

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali Kichler Lighting Fan

Kichler Lighting

Kichler Lighting 300457 Manuale utente

Kichler Lighting

Kichler Lighting XETY LED Manuale utente

Kichler Lighting

Kichler Lighting Select Sutter Place Manuale utente

Kichler Lighting

Kichler Lighting Surrey Climates 60 Manuale utente

Kichler Lighting

Kichler Lighting ZEUS KLF-ZEUS-60-WHT-BN Manuale utente

Kichler Lighting

Kichler Lighting PINION 60 Manuale utente

Kichler Lighting

Kichler Lighting 35162 Manuale utente

Kichler Lighting

Kichler Lighting Bentzen Manuale utente

Kichler Lighting

Kichler Lighting Kittery Point Manuale utente

Kichler Lighting

Kichler Lighting Golden Iridescence Manuale utente

Kichler Lighting

Kichler Lighting VASSAR Manuale utente

Kichler Lighting

Kichler Lighting 52 inch Colerne LED Manuale utente

Kichler Lighting

Kichler Lighting Hatteras Bay Patio Manuale utente

Kichler Lighting

Kichler Lighting Lehr II Manuale utente

Kichler Lighting

Kichler Lighting 52" RENEW ENERGY STAR Manuale utente

Kichler Lighting

Kichler Lighting Monarch II Select Manuale utente

Kichler Lighting

Kichler Lighting Golden Iridescence Manuale utente

Kichler Lighting

Kichler Lighting Bronson Manuale utente

Kichler Lighting

Kichler Lighting Kimberley Manuale utente

Kichler Lighting

Kichler Lighting 339211APP Manuale utente

Kichler Lighting

Kichler Lighting Decor Kimberley Manuale utente

Kichler Lighting

Kichler Lighting Crystal Bay Manuale utente

Kichler Lighting

Kichler Lighting 300395 Manuale utente

Kichler Lighting

Kichler Lighting Canfield Patio 310192 Manuale utente

Manuali Fan popolari di altre marche

ELTA FANS

ELTA FANS H03VV-F Manuale utente

Hunter

Hunter 20714 Manuale di istruzioni

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manuale utente

Hunter

Hunter Caraway Manuale di istruzioni

Panasonic

Panasonic FV-15NLFS1 Manuale utente

Kompernass

Kompernass KH 1150 Manuale utente

VES

VES FALA100/12V/TR Manuale utente

Vertiv

Vertiv Liebert DCD Manuale utente

Westinghouse

Westinghouse GFP Series Manuale utente

Venmar

Venmar KUBIX HRV PLUS Series Manuale utente

Maico

Maico ECR 31 Manuale utente

Sonnenkonig

Sonnenkonig Dinky Manuale utente

S&P

S&P ECOWATT HXBR Manuale utente

Wider

Wider IMP03369BH Manuale utente

Panasonic

Panasonic F-60DHN Manuale utente

Hinkley

Hinkley HIGHLAND Manuale utente

Broan

Broan 766BN Manuale utente

Premium

Premium PFS16022 Istruzioni per il montaggio
