Kincrome K7799 Manuale utente

TOOLS & ASSISTANCE NEEDED

2 People Lift 10mm Spanner

8 x Liners

Non-Locking

Swivel Castors (2)

Locking Swivel

Castors (2)

Trolley Handle x 1

Keys x 2 16 x 12mm Bolts

for Castors

4 x 10mm Bolts

for Handle

TOOL TROLLEY

7 DRAWER WIDE BODY

12mm Spanner

or 5mm Hex Key

Castor Handle

Operation Manual

Parts List

K7799

40kg+

This product requires a two person lift

- use proper lifting techniques

Bunnings Weight Icons (2676) 30/3/04 10:11 AM Page 3

Handle Installing

• Position the trolley side handle behind the

holes on the trolley.

• Attach with (4) bolts and washers and

tighten with an adjustable wrench.

Note: The side handle can be mounted

to either side of the trolley.

Castor Installing (If applicable)

• Be sure the drawers are locked and lay

the trolley on its side.

• Secure castors to the unit using the

12mm bolts provided.

• Tighten with a 12mm spanner or

5mm hex key.

• Repeat this process for the castors on

the opposite of the trolley.

• Return the trolley to its upright position.

Caution: Do not over tighten the bolts.

Caution: Both locking castors must be tted

to front of trolley.

Removing the Drawers

• Fully extend the empty drawer.

• Push up the right grey release lever while

pushing down the left grey release lever.

• Pull the drawer outward until it is released

from the drawer slide.

Re-Inserting The Drawers

• Extend the drawer slides.

• Insert the brackets on each side of the

drawer into the slots on the slides, being

careful that they are properly positioned.

• Once properly inserted, completely close

the drawer to set the slides in their proper

positions.

MAINTENANCE

• Periodically tighten all hardware

• Periodically lubricate castors

• Lubricate the slides twice a year

• Lubricate the lock with graphite annually

• Use a damp Microbre cloth to clean all surfaces

Assembly Instructions

Push up the

right grey release lever

Pull down the

left grey release lever

TOOL TROLLEY

7 DRAWER WIDE BODY

K7799

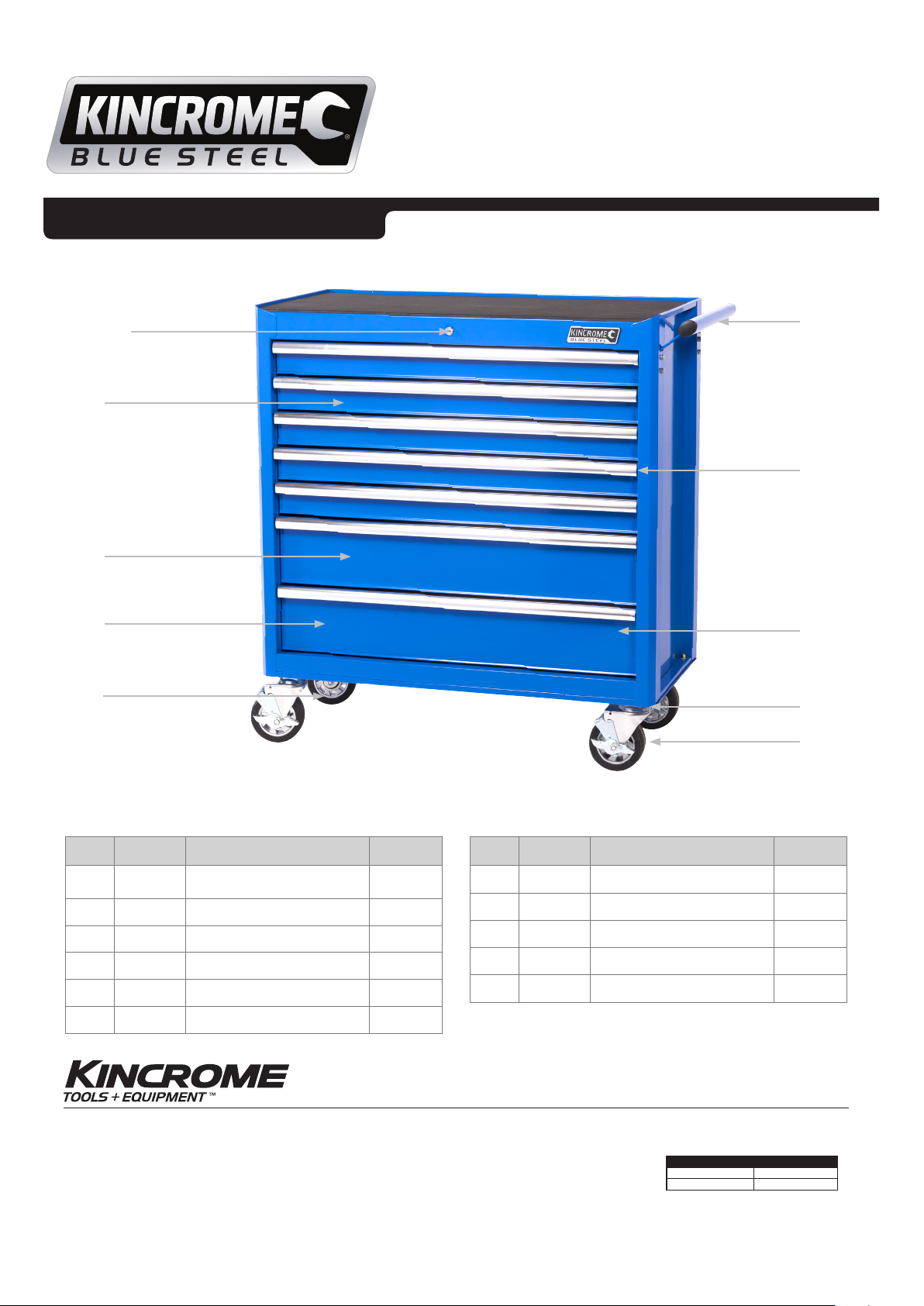

ITEM PART NO. DESCRIPTION QUANTITY

1K7888 Key Only (Specify Key

Number) X 1 1

2K7787-1 Lock & Key 1

3K7787-3 Trolley Handle 1

4K7787-4 Ball Bearing Slides (Pair) 7

5K7799 -1 Drawer Grip (Large) 7

6K7799-2 EVA Mat Pack 7 Piece 1

ITEM PART NO. DESCRIPTION QUANTITY

7K7799-3 Large Drawer (Shallow) 5

8K7799-4 Large Drawer (Deep) 2

9K7787-12 Castor Swivel X 1 2

10 K7787-10

Castor Swivel X 1 (Brake)

11 K7787-11 Castor Bolt Pack 1

1 & 2

Replacement Parts

National Head Office

National Distribution and Showroom

3 Lakeview Dve, Caribbean Business Park

Scoresby Victoria 3179 Australia

E enquiries@kincrome.com.au

W kincrome.com.au

Administration

T+61 3 9730 7100 F+ 61 3 9730 7199

ABN 41 007 185 006

Customer Service Centre

T1300 657 528 F1300 556 005

National Head Office

National Distribution and Showroom

3 Lakeview Dve, Caribbean Business Park

Scoresby Victoria 3179 Australia

E [email protected]

W kincrome.com.au

Administration

T+61 3 9730 7100 F+ 61 3 9730 7199

ABN 41 007 185 006

Customer Service Centre

T1300 657 528 F1300 556 005

Australia & Global UK & EU

www.kincrome.com.au www.kincrome.co.uk

enquiries@kincrome.com.au enquiries@kincrome.co.uk

Made to Kincrome Tools & Equipment Pty Ltd Global

specications and quality standards in China

Kincrome UK Ltd PO Box 646 EASTLEIGH SO50
