KingSlim D4 Manuale utente

USER MANUAL

KingSlim D4 Dash Cam

V1.0

What’s in the Box

Camera Overview

Installation

Formatting the microSD Card

Starting Video Recording

Icon Introduction

Setup Menu

Gestures

Switching Recording Display Modes

Using the “Roadcam” App

Speciﬁcations

Caution

CONTENTS

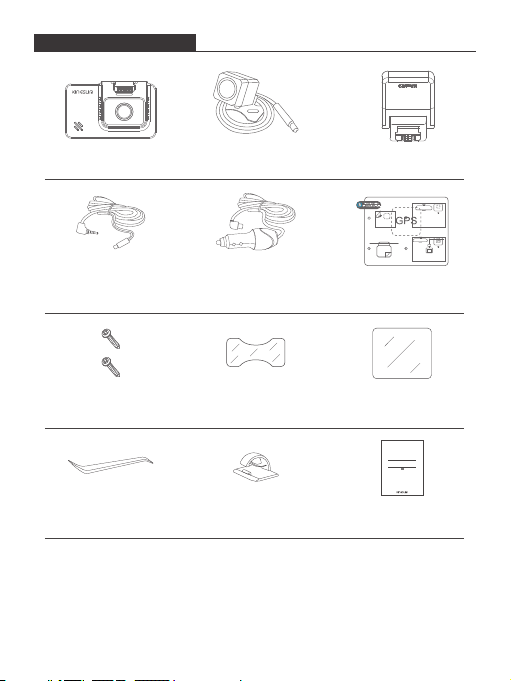

WHAT'S IN THE BOX

D4 Dual Dash Cam * 1 Waterproof

Rear Camera * 1

Car Charger with 3.5m

Power Cable * 1

7m Rear Camera

Extension Cable * 1

GPS Bracket * 1

Screws * 2

Car Crowbar * 1 Cable Clips * 5 Quick Start Guide * 1

Quick Start Guide

KingSlimD4 Dash Cam

V1.0

Double-sided Adhesive

Tape for Rear Camera * 4

Double-sided Adhesive

Tape for GPS * 2

Static Sticker *2

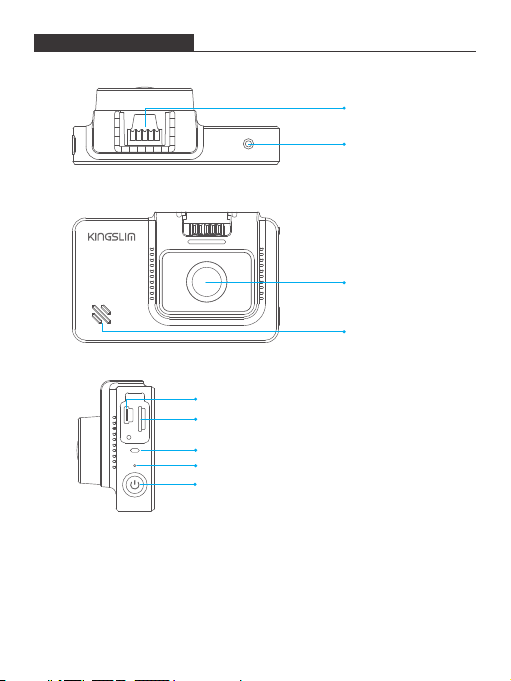

CAMERA OVERVIEW

RST

MicroSD Card Slot

Bracket Slot

Rear Camera IN

Power Button

Front Camera

Speaker

MIC

Working Indicator

Mini USB Power Port (for data transmission)

Screen

Vent

Mini USB Power Port

(for connecting GPS)

INSTALLATION

1. Insert the microSD card.

Warm Tips: A Class 10 or above microSD card is highly recommended for the D4

dash cam (microSD card is not included). D4 dash cam supports an up to 256GB

microSD card. Please format your card in the camera before using this dash cam.

Do not remove or insert the microSD card when the dash cam is turned on. This

may damage the microSD card.

microSD

2. Insert the bracket into the bracket slot.

3. Install the D4 dash cam on the windshield.

①Clean the windshield with a dry cloth.

② Take oﬀ the ﬁlm of the static sticker, apply the static sticker to the windshield

and make sure there is no air inside.

③ Peel oﬀ the ﬁlm on one side of the double-sided adhesive tape and apply the

adhesive tape to the D4 dash cam.

④ Peel oﬀ the other ﬁlm on the adhesive tape, press the D4 dash cam to secure

it on the static sticker. (If you want to remove the dash cam, please take oﬀ the

static sticker.)

Note: You can stick the dash cam on the windshield without the static sticker.

Cable Clip

Static Sticker

4. Adjust the viewing angle accordingly.

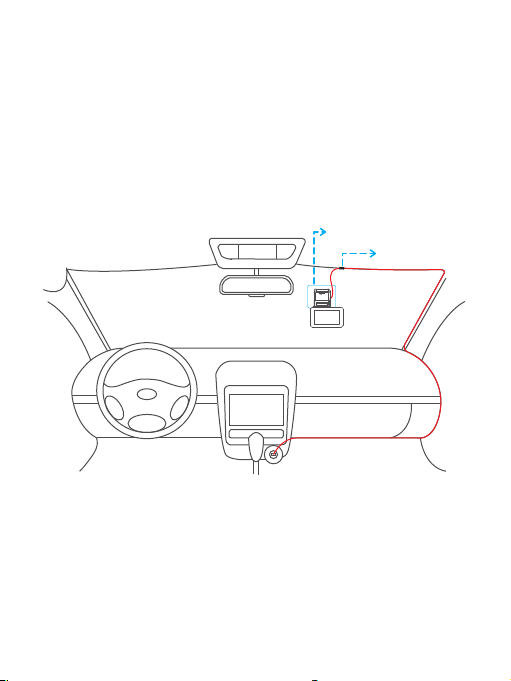

5. Connect the USB power cable into the USB power port of D4 Dash Cam, then

plug the car charger into the cigarette lighter of your car.

6. Connect the rear camera with the extension cable into D4 Dash Cam to

check whether the rear camera works well.

7. Install the Rear Camera.

Position 1: Install the rear camera on the rear windshield. The installation is easier.

Position 2: Install the rear camera near the license plate. Position 2 is highly

recommended. The rear image is crisp and clear for both rear viewing and

reversing guide.

To use the reversing function, please install the rear camera in position 2, then

connect the red trigger wire of the rear camera extension cable to the positive

lead of the vehicle reversing lamp.

Reversing Lamp Reversing Lamp Positive Lead

Rear

Rear Camera

Note:

① Pay attention to the connector position when connecting the rear camera with

the extension cable, please refer to the below details.

② Please clean the position to ensure the adhesive quality before installing the

rear camera.

③ Please clean the rear windshield regularly to ensure the image quality if you

choose the position 1.

④ If you choose the position 2, you can install the rear camera with the included

adhesive stickers or screws.

8. Use the crowbar to hide the cables.

FORMATTING THE MICROSD CARD

Please format your microSD card in the camera before using this dash cam and

use a high-speed microSD card of Class10 or higher.

1. Tap the setting icon to enter the Settings page.

2. Select "Format SD", then tap the "Conﬁrm" icon. Wait a few seconds to ﬁnish

the formatting and the system will exit automatically.

00:00:34 2020-07-17 13:47 Settings

Language

Format SD

Mirror

English

ICON INTRODUCTION

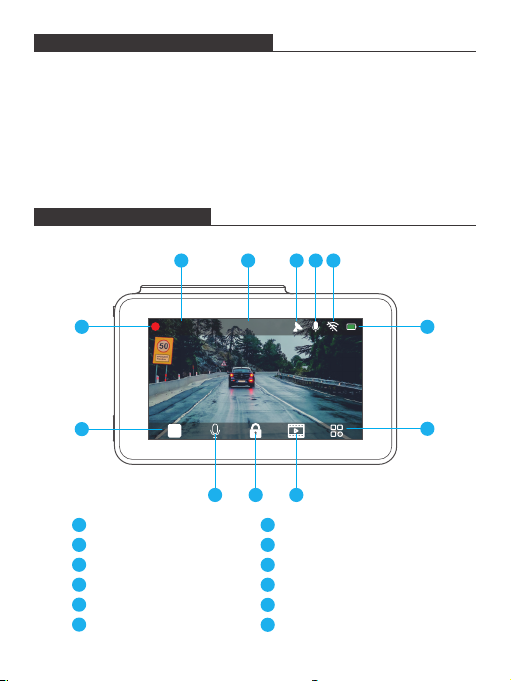

The main interface

00:00:34 2020-08-28 13:47

Recording indicator

Video time

Date/Time

GPS

Microphone indicator

Wiﬁ indicator

Power status

Settings

Album

Emergency recording/Wiﬁ

Audio Record (Mute/Unmute)

Stop/Start recording

234 5 6

1011

STARTING VIDEO RECORDING

1. After ﬁnishing formatting, connect a car charger and start the car engine, the

device will automatically turn on and begin recording.

2. Loop recording is already enabled on the D4 dash cam, the default setting is

3 mins.

3. G-sensor is already enabled on the D4 dash cam, the default setting is low. If an

impact or sudden braking is detected, it will automatically start recording and

save footage to either the “Front Urgent Album” or “Back Urgent Album” folder.
