KitchenAid KECC500WBL2 Manuale utente

c1992 KITCHENAID

30" ELECTRIC

BUILT−IN

COOKTOP

MODEL

BL−Black

WH−White

KECC500WBL2

Part No. 4174261

11−92 Litho in U.S.A.

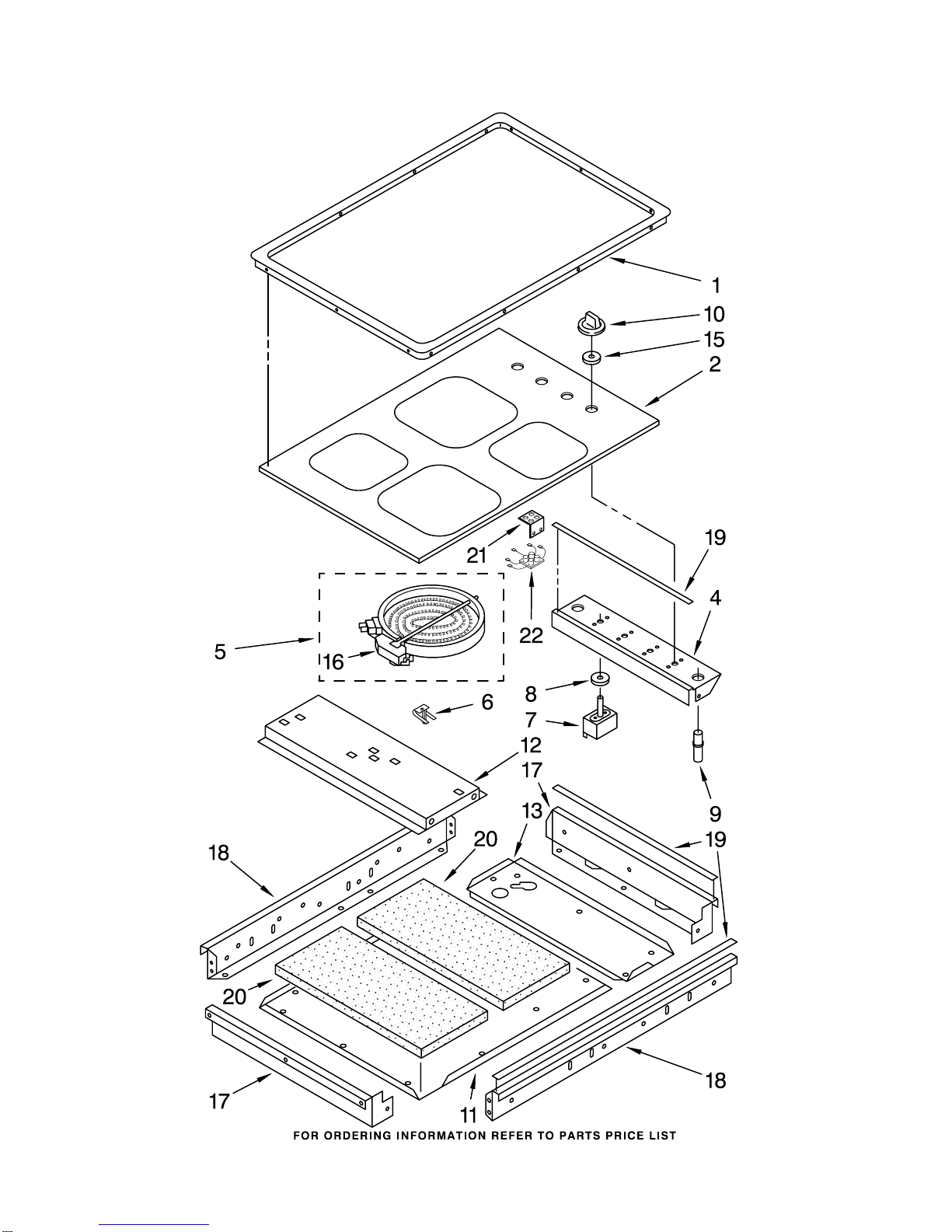

COOKTOP PARTS

(Black) (White)

For Model: KECC500WBL2, KECC500WWH2

4174261

COOKTOP PARTS

Illus. Part

No. No. DESCRIPTION

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

OPTIONAL PARTS (NOT INCLUDED)

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

FOLLOWING PARTS

NOT ILLUSTRATED

LITERATURE PARTS

Miscellaneous

SPLICING WIRES−−25FT.

LENGTH

242828 Wire, Black

12 Ga. 150 C

242820 Wire, Black

14 Ga. 150 C

242822 Wire, Blue

14 Ga. 150 C

242830 Wire, Brown

14 Ga. 200 C

242823 Wire, Green

14 Ga. 150 C

242824 Wire, Orange

14 Ga. 150 C

242829 Wire, Red

12 Ga. 150 C

242825 Wire, Red

14 Ga. 150 C

242831 Wire, Red

14 Ga. 200 C

242826 Wire, White

14 Ga. 150 C

242827 Wire, Yellow

14 Ga. 150 C

242832 Wire, Yellow

14 Ga. 200 C

ACCESSORY PARTS

(Black) (White)

For Model: KECC500WBL2, KECC500WWH2

4174261

1 Trim Ring, Cooktop

3150305 Black

3150306 White

4168863 Screw (14)

2 Cooktop, Glass

3185578 Black

3185579 White

4 3150328 Bracket, Switch

Mounting

5 Element, Surface

3183584 1400W Left Rear

3183200 1700W Right Front

3183201 2100W Right Rear

3183632 2400W Left Front

6 3149191 Spring Locator (8)

246119 Screw (8)

7 Switch, Infinite

3148949 Use W/1400W Left

Rear & 1700W Right

Front Burner

3148950 Use W/2100W Right

Rear Burner

3148965 Use W/2400W Left

Front Burner

311865 Screw (8)

8 309839 Seal, Switch Shaft

9 3149978 Light, Indicator

10 Knob, Control (4)

3150100 Black

3150096 White

11 3150317 Cover, Bottom

3148107 Screw (6)

12 3150316 Element Support (2)

3148107 Screw (4)

13 3150318 Cover, Service

3148107 Screw (5)

15 3182435 Seal, Switch (4)

16 Switch, Limiter

3149129 Use W/3183584

Element

3183972 Use W/3183200

Element

3149123 Use W/3183201

Element

3149124 Use W/3183632

Element

17 Rail, Side

3150325 Right Hand

3150326 Left Hand

18 3183380 Rail, Front & Rear

19 Seal, Silicone

3185589 Small (3)

3185590 Large (2)

20 3185294 Insulation,Ceramic

21 3150321 Bracket, Hot

Surface Indicator

22 3150304 Lamp, Hot

Surface Indicator

3148107 Screw (2)

LIT3181199 Installation

Instructions

3183176 Wiring Diagram

LIT3181198 Use & Care Guide

LIT4174261 Repair Parts List

Mounting Screws

258644 10A X 2 (2)

3150320 Clamp (2)

3184477 Cleaner, Glass

Illus. Part

No. No. DESCRIPTION

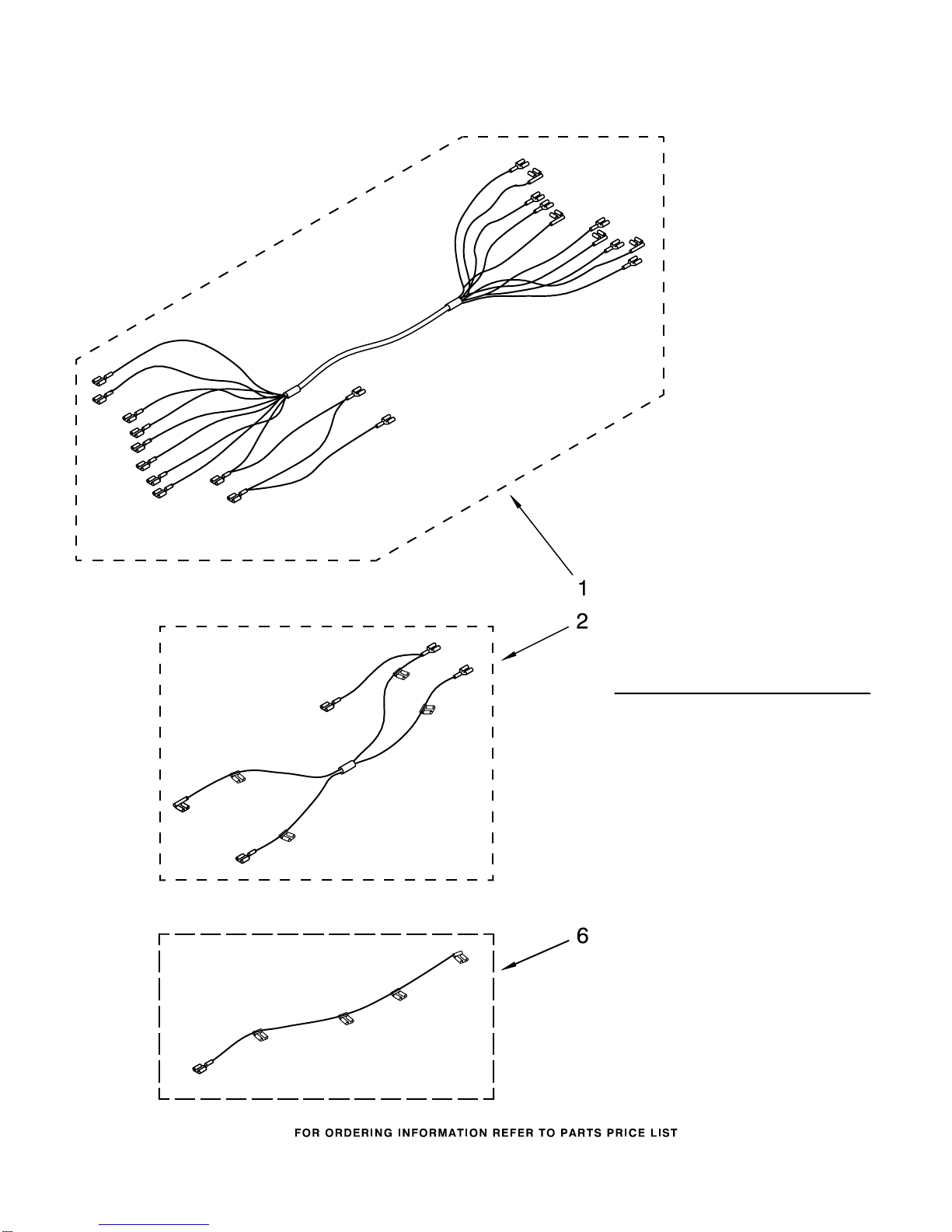

WIRING HARNESS PARTS

(Black) (White)

For Model: KECC500WBL2, KECC500WWH2

4174261

1 3181503 Wiring Harness

Surface Unit

2 3181502 Wiring Harness

Infinite Switch

3148107 Screw (4)

6 3149964 Jumper, Infinite

Switch
