COOKTOP, BURNER AND GRATE PARTS

For Model: KGCP483KSS02

(Stainless Steel)

12−03 Litho in U.S.A. (cre) Part No.8186162

48" Stainless Steel

Professional Cooktop

(with griddle)

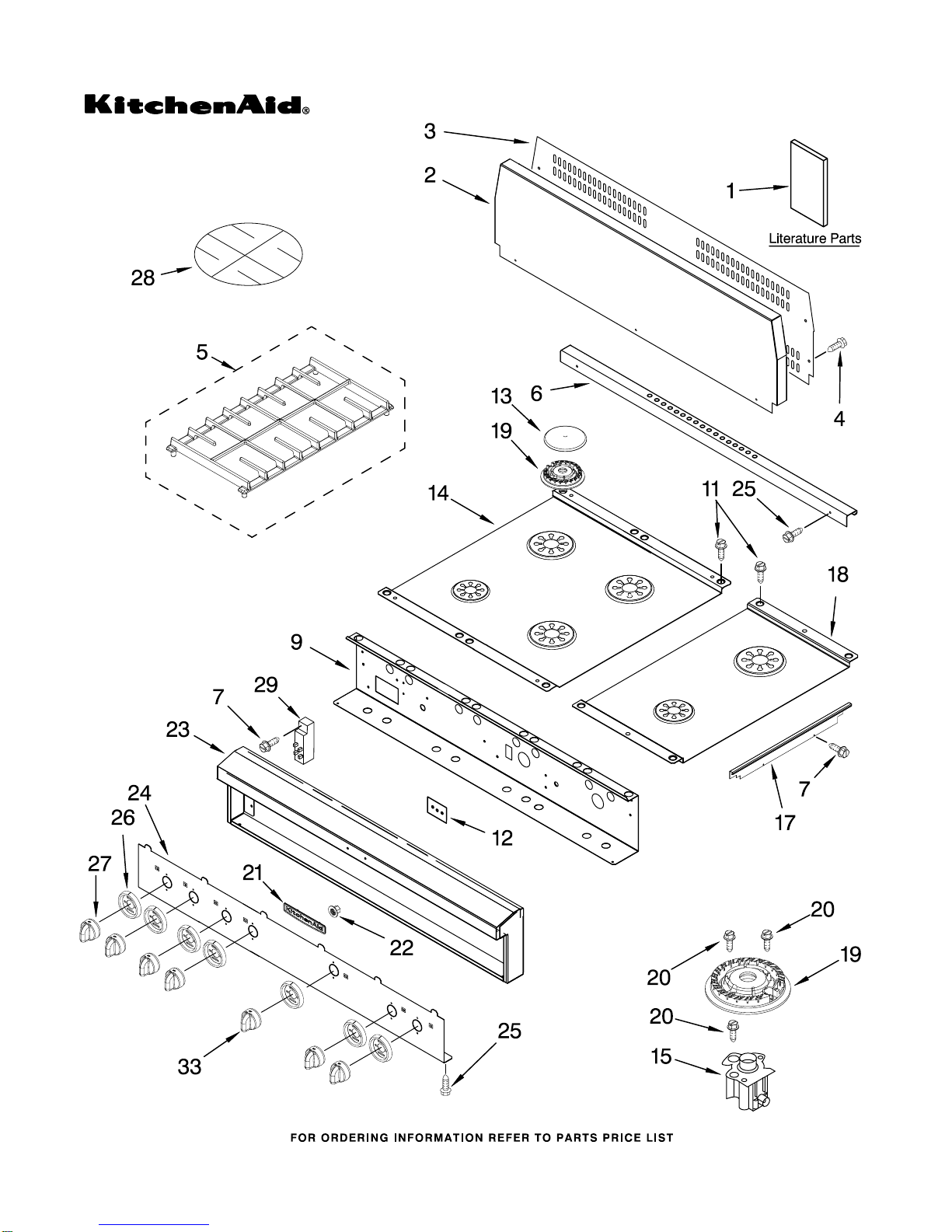

COOKTOP, BURNER AND GRATE PARTS

For Model: KGCP483KSS02

(Stainless Steel)

8186162

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

LIT8285498

Wiring Diagram

LIT8285588

Use & Care Guide

LIT8285479

Installation

Instructions

LIT8285589

Instructions,

LP Conversion

2 8284730 Backsplash

3 8284760 Support,Backsplash

4 3196537 Screw, 8−18 x 3/8

5 4454963 Grate, Burner

6 8284852 Trim, Island

7 3400843 Screw, 8−18 x 1/4

9 8285486 Support, Control

Panel

11 4449040 Screw

12 3192439 Seal

13 Cap, Burner

4455243 14K (2)

8284669 6K (2)

14 8284739 Cooktop (24")

15 Holder, Orifice

Includes Orifice

4456622 Turbo (4)

4456920 Auxillary (2)

17 Trim, Side

8285489 Right Hand

8285490 Left Hand

18 8284812 Cooktop (12")

19 Burner Head 14K

4455849 Turbo (2)

4455979 Auxillary (2)

20 3368921 Screw, 7−18 x 3/4

21 2005292 Nameplate

22 2004333 Palnut

23 8284939 Control Frame

24 8284799 Panel, Control

25 3196176 Screw, 8−18 x 1/2

26 4455192 Bezel, Knob

27 4454970 Knob, Burner

28 4455109 Plate, Simmer

29 8522424 Module, Spark

33 8284743 Knob, Griddle

BURNER BOX, GAS VALVES, AND SWITCHES

For Model: KGCP483KSS02

(Stainless Steel)

8186162

BURNER BOX, GAS VALVES, AND SWITCHES

PARTS NOT ILLUSTRATED

For Model: KGCP483KSS02

(Stainless Steel)

8186162

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4455040 Tubing, Gas

Burner − RF

2 4455041 Tubing, Gas

Burner − RR

3 4455151 Tubing, Gas

Burner − CF

4 4455152 Tubing, Gas

5 4455153 Tubing, Gas

Burner − CR

Burner − LF

6 4455154 Tubing, Gas

Burner − LR

7 8284737 Manifold

(Includes Items

#9 & #30)

8 4456818 Valve, Burner

(Turbo)

9 8523704 Bolt, Valve

10 4456907 Burner Switch &

Harness Assembly

3191387 Seal, Switch

11 4455157 Regulator,Pressure

12 4457095 Burner Box

13 8284805 Bracket, Griddle

Valve

14 8284788 Valve, Griddle

15 Side, Burner Box

8285487 Right Hand

8285488 Left Hand

16 8284947 Support, Rear

17 488130 Hex Nut

18 3192811 Bracket, Burner

19 3177991 Screw, 8−18 x 1/4

20 4456816 Valve, Burner

Auxillary

21 8284680 Cover Shelf

22 8284722 Bushing, Cover

Shelf

23 4449845 Bracket, Support

24 8285361 Cover, Panel

25 8285031 Box, Burner

Lower

27 3400843 Screw

28 8284975 Tube, Griddle

30 8284796 Plug, Manifold

(closed)

32 8284759 Module, Griddle

33 8284800 Bracket, Ignitor

34 8284941 Ignitor, Griddle

35 8285038 Cover, Burner

Spud

36 8285051 Log Burner,Griddle

37 8284993 Bracket, Thermo

38 8285569 Tray, Drip

40 8284804 Plug, Manifold

(open)

41 8284765 Griddle, Thermo

42 8285056 Enclosure,

Griddle

43 313382 Clip, Bulb

44 8284811 Bracket

Illus. Part

No. No. DESCRIPTION

WIRING HARNESS PARTS

8285527 Power Cord

FE02349 Bushing

4456628 Harness, Ign 42"

4456627 Harness, Ign 28"

4173634 Bushing, Electric

Miscellaneous

8284782 L.P. Orifice Spud

Pack
