COOKTOP PARTS

For Models: KECD806RBL05, KECD806RWW05

(Black) (White on White)

11−08 Litho in U.S.A. (amd) (eeb) Part No. W10240405 Rev. A

30" ELECTRIC

BUILT−IN

DOWNDRDAFT COOKTOP

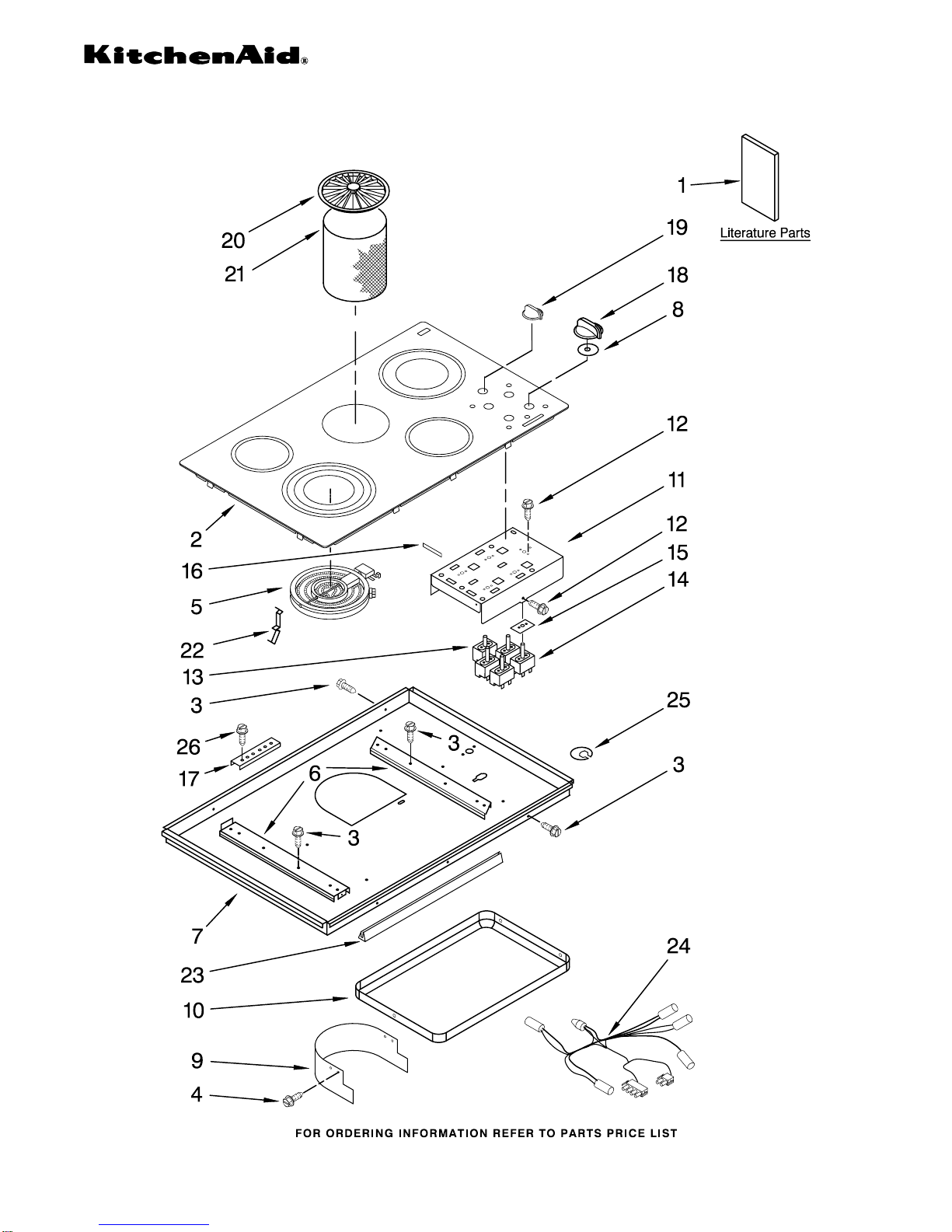

COOKTOP PARTS

For Models: KECD806RBL05, KECD806RWW05

(Black) (White on White)

W10240405

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8286240 Installation

Instructions

8286427 Wiring Diagram

W10162163

Use & Care Guide

Safe Cooking Tips

9762761 English

W10065852

French

2 Cooktop, Glass

8286948 Black

8286985 White

3 3196537 Screw

4 3177991 Screw

5 Element, Surface

8523698 LR 1200W

8285846 LF 900/1800/2500W

8285937 RR 1000/2000W

8523697 RF 1500W

6 Rail, Element

8285933 Right

8286054 Left

7 8285809 Box, Burner

8 Seal, Infinite

Switch (4)

8285469 Black

8286596 White

W10169758

Shield, Vent

10 3190656 Drip Bowl

11 4455354 Plate, Switch

Mounting

12 311865 Screw

13 4456836 Switch, Speed

Control

14 Switch, Infinite

3191049 LR/RF

8286070 LF

4456027 RR

15 3183956 Seal, Switch Cover

16 3192439 Seal, Limiter (4)

17 4455917 Bracket, Mounting

18 Knob, Control

8286096BL

Black

8286096WH

White

19 Knob, Blower

Switch

8286097BL

Black

8286097WH

White

20 Grille, Air

8285875 Black

8285826 White

21 3192530 Filter, Grease

22 9759094 Spring, Locator

W10137040

Gasket, Vent

Shield

24 8286055 Light, Hot Surface

Indicator

25 3193094 Plate, Cover

26 3400093 Screw

BLOWER UNIT PARTS

For Models: KECD806RBL05, KECD806RWW05

(Black) (White on White)

W10240405

Illus. Part

No. No. DESCRIPTION

W10169759

Bracket, Vent

Shield

2 3196537 Screw

3 3192403 Bracket, Blower

4 3367670 Screw (4)

5 488130 Nut (4)

6 9760484 Ring, Inlet

7 9760485 Screen, Inlet

8 9760483 Adapter, Vent

W10109930

Blower Motor

Assembly

(Includes Fan

Assembly)

FOLLOWING PARTS

NOT ILLUSTRATED

Miscellaneous

8286642 Tape, Foam

OPTIONAL PARTS

For Models: KECD806RBL05, KECD806RWW05

(Black) (White on White)

W10240405

Illus. Part

No. No. DESCRIPTION

FOLLOWING PARTS

NOT ILLUSTRATED

WIRING HARNESS PARTS

8286419 Harness, Ceran

Downdraft

4456859 Harness, Blower/

Switch

4456028 Harness, Jumper

98997 Clip

9760671 Strain Relief

8286423 Conduit, Downdraft

3400015 Screw
