KitchenAid KGCK366VSS00 Manuale utente

36"GASCOOKTOP

MODELS:

KGCK366VSS00(Stainless)

04/05/2013PartNo.W10172318Rev.B

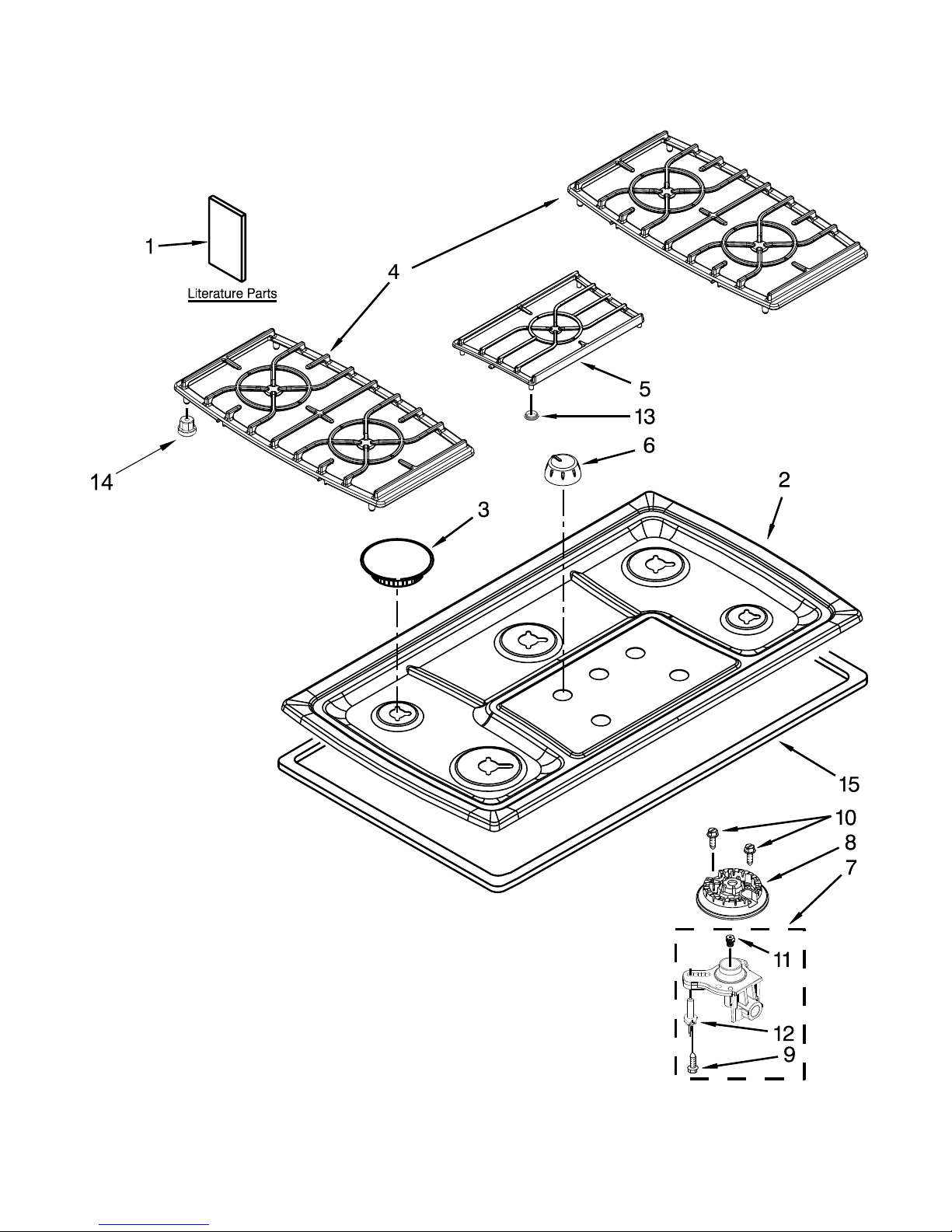

COOKTOP ,BURNERANDGRATEPARTS

04/05/20132PartNo.W10172318Rev.B

COOKTOP ,BURNERANDGRATEPARTS

Illus.

No.PartNo.Description

1LiteratureParts

W10131955InstallationInstructions

8304571Instructions,

Undercounter

W10169072Use&CareGuide

3191638SaferCookingTips

(English)

9759133SaferCookingTips

(French)

W10169218Instructions,LP

Conversion

2W10140186Cooktop

3Cap,Burner

8286153CBCoalBlack

(LeftRear&RightFront)

8286154CBCoalBlack

(Center)

8286155CBCoalBlack

(RightRear)

8286156CBCoalBlack

(LeftFront)

48285876CBGrate,Burner

58285878CBGrate,Center

6Assembly,Knob

8286094BLBlack

Illus.

No.PartNo.Description

7W10128448Assembly,OriceHolder

(LeftRear&RightFront)

W10128450Assembly,OriceHolder

(Center)

8287052Assembly,OriceHolder

(RightRear)

W10128445Assembly,OriceHolder

(LeftFront)

88286181BurnerHead,Auxiliary

(6K)

(LeftRear&RightFront)

8286184BurnerHead,Semi

Rapid(9K)

(Center)

8286182BurnerHead,Rapid

(12K)

(RightRear)

8286183BurnerHead,Ultra

Rapid(17K)

(LeftFront)

94449809Screw

103368921Screw

Illus.

No.PartNo.Description

113192529Orice

(LeftRear&RightFront)

3192523Orice

(Center)

8287051Orice

(RightRear)

8286474Orice

(LeftFront)

129782116Electrode

138286452Grommet,Grate

14W10185266Foot,Rubber

159760279Seal,Foam

04/05/20133PartNo.W10172318Rev.B

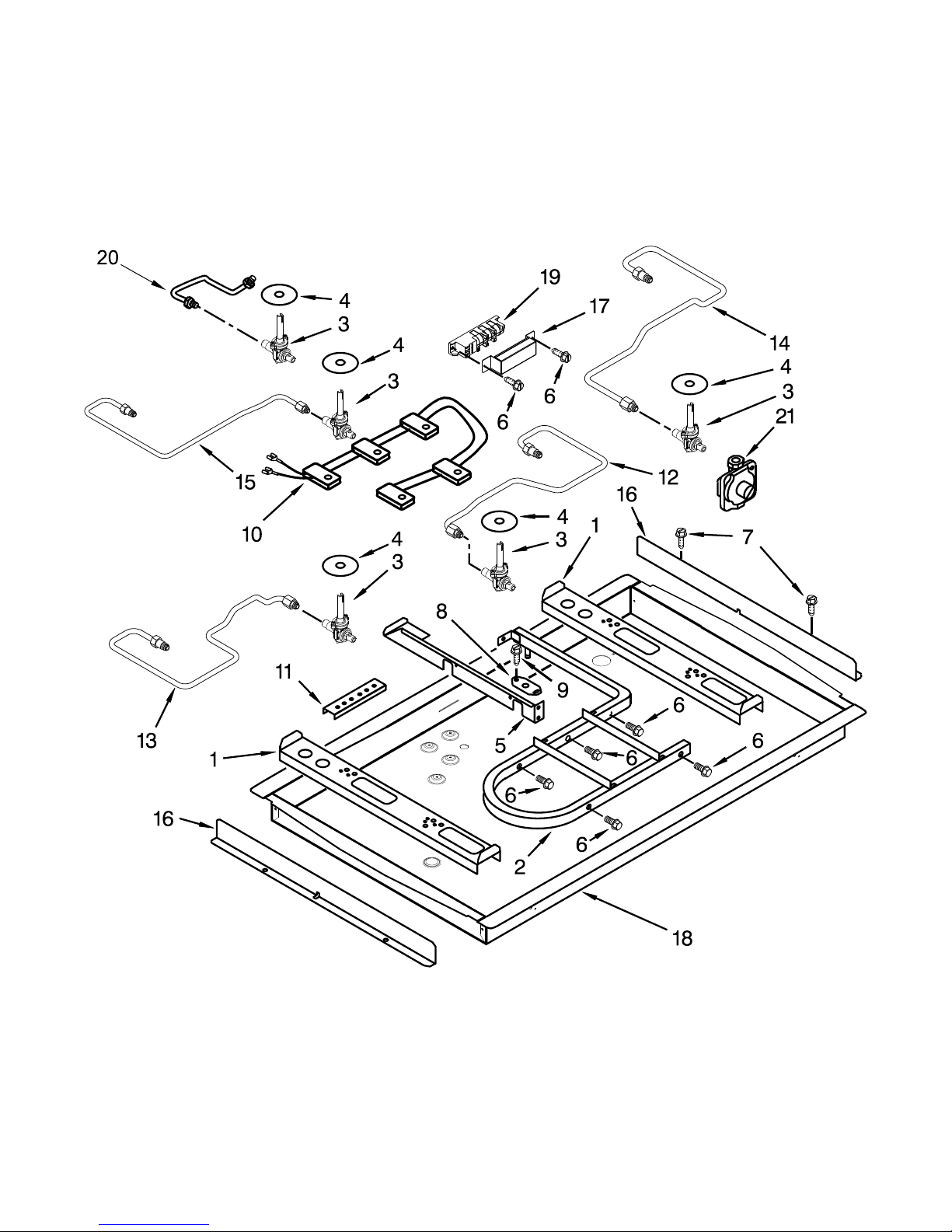

BURNERBOX,GASVALVESANDSWITCHES

04/05/20134PartNo.W10172318Rev.B

BURNERBOX,GASVALVESANDSWITCHES

Illus.

No.PartNo.Description

18285796Rail,Burner

28285751Pipe,Manifold

38286559Valve,GasBurner

(LeftRear)

4456817Valve,GasBurner

(Center)

8286560Valve,GasBurner

(RightRear)

8286559Valve,GasBurner

(RightFront)

8286561Valve,GasBurner

(LeftFront)

43191387Seal,Shaft

58285791Rail,Center

Illus.

No.PartNo.Description

68523704Screw

73400843Screw

83192491Bracket,Manifold

93196160Screw

104456901Switch,Harness

114455917Bracket,Mounting

128285768Tubing,GasBurner

(RightFront)

138285766Tubing,GasBurner

(LeftFront)

148285767Tubing,GasBurner

(RightRear)

158285769Tubing,GasBurner

(LeftRear)

Illus.

No.PartNo.Description

163191462Shield,Heat

178285789Shield,Heat

188286565Box,Burner

198522427Module,Spark

208285770Tubing,GasBurner

(Center)

21W10131956Regulator,Pressure

04/05/20135PartNo.W10172318Rev.B

OPTIONALPARTS(NOTINCLUDED)

FOLLOWINGPARTSNOT

ILLUSTRATED

Illus.

No.PartNo.Description

9763116Cord,Power

3177991Screw

MISCELLANEOUS

Illus.

No.PartNo.Description

8286320SpudKit

WIRINGHARNESSPARTS

Illus.

No.PartNo.Description

4456626Harness,Ignitor15"

4456627Harness,Ignition28"

8285402Wire,GroundJumper

04/05/20136PartNo.W10172318Rev.B
