KitchenAid KGCP484KSS05 Manuale utente

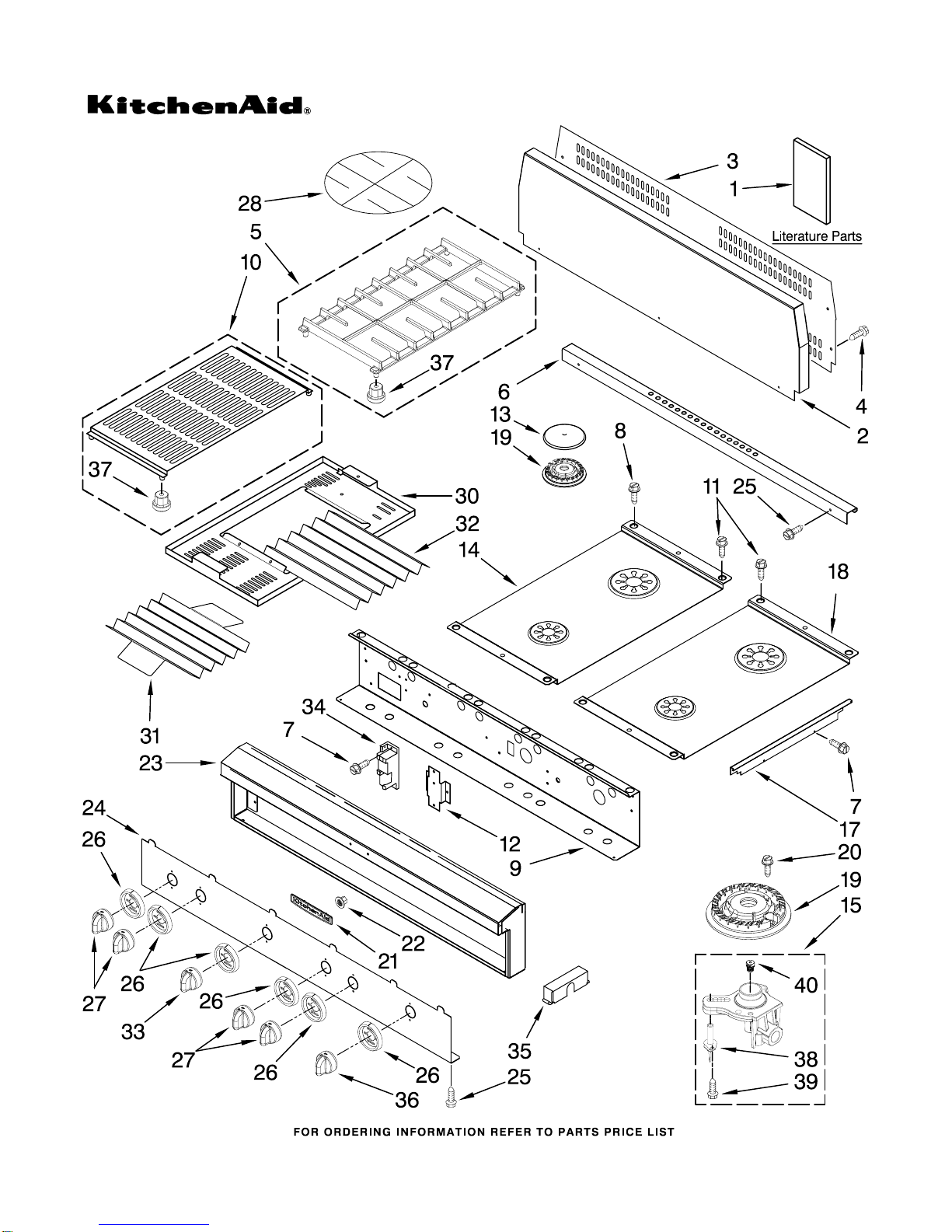

COOKTOP, BURNER AND GRATE PARTS

For Model: KGCP484KSS05

(Stainless)

1−11 Litho in U.S.A. (amd) (eeb) Part No.W10207230 Rev. A

48" STAINLESS

PROFESSIONAL COOKTOP

(WITH GRILL & GRIDDLE)

COOKTOP, BURNER AND GRATE PARTS

For Model: KGCP484KSS05

(Stainless)

W10207230

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8284959 Wiring Diagram

W10162189

Use & Care Guide

9759405 Installation

Instructions

9759442 Instructions,

LP Conversion

W10157546

Backsplash

3 8284760 Support,Backsplash

4 3196537 Screw

W10106670

Grate, Burner

W10157556

Trim, Island

7 3400843 Screw

8 4449743 Screw

9 8285486 Support, Control

Panel

10 4457151 Grate, Grill

11 4449040 Screw

12 4457260 Bracket, Spark

Module

13 Cap, Burner

4455243 14K

8284669 6K

14 9760867 Cooktop (12")

(Sm & Lg Burners)

15 Holder, Orifice

Includes Orifice

W10155786

Turbo (14K)

W10128449

Auxillary (6K)

17 Trim, Side

W10157562

Right

W10199959

Left

18 9760863 Cooktop (12")

(2 Lrg Burners)

19 Burner Head

4455849 Turbo

4455979 Auxillary

20 3368921 Screw

21 2005292 Nameplate

22 2004333 Palnut

W10157551

Control Frame

W10199066

Panel, Control

25 3196176 Screw

26 4455192 Bezel, Knob

W10078400

Knob, Burner

28 4455109 Plate, Simmer

W10157589

Frame, Wave Tray

W10157590

Plate, Wave

W10157588

Plate, Wave tray

3177991 Screw

W10078410

Knob, Grill

34 Module, Spark

35 8285038 Cover, Burner

Spud

36 8284743 Knob, Griddle

37 8286695 Bumper, Grate

38 9782116 Electrode

39 8273062 Screw,

Spark Electrode

40 Orifice

3192525 14K

8286473 6K

8522422

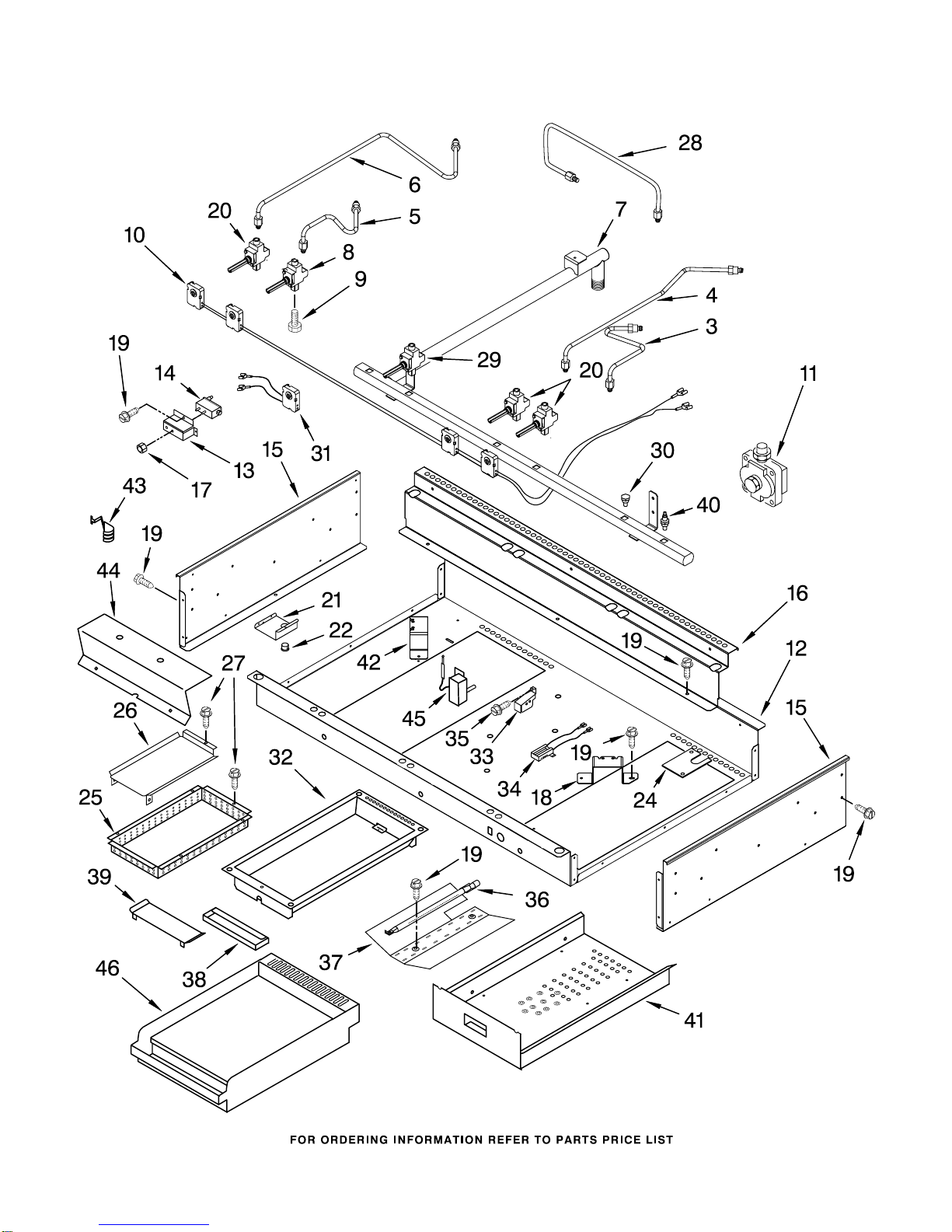

BURNER BOX, GAS VALVES, AND SWITCHES

For Model: KGCP484KSS05

(Stainless)

W10207230

BURNER BOX, GAS VALVES, AND SWITCHES

For Model: KGCP484KSS05

(Stainless)

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

3 4455151 Tubing, Gas

Burner − CF

4 4455152 Tubing, Gas

5 4455153 Tubing, Gas

Burner − CR

Burner − LF

6 4455154 Tubing, Gas

Burner − LR

7 8284737 Manifold

(Includes Items

#9 & #30)

8 4456816 Valve, Burner

Small (Red)

9 8523704 Bolt, Valve

10 4456908 Burner Switch &

Harness Assembly

3191387 Seal, Switch

11 9759091 Regulator,Pressure

12 4457096 Burner Box

13 Bracket,

9760835 Grill Valve

9760834 Griddle Valve

14 Valve,

8284858 Grill

8284788 Griddle

15 Side, Burner Box

8285487 Right

8285488 Left

16 9759138 Support, Rear

17 488130 Hex Nut

18 3192811 Bracket, Burner

19 3177991 Screw

20 4456818 Valve, Burner

Turbi (Bronze)

21 8284680 Cover Shelf

22 8284722 Bushing, Cover

Shelf

24 8285361 Cover, Panel

W10095290

Box, Burner

Lower

W10157552

Guard, Rear Spill

27 3400843 Screw

28 Tube,

8284790 Grill

8284966 Griddle

29 4456819 Valve, Gas Grill

30 8284796 Plug, Manifold

(Close)

31 9760882 Harness, Switch

Grill

W10120890

Module, Grill

33 Bracket, Ignitor

W10157553

Grill

W10157547

Griddle

34 8284941 Ignitor, Grill

35 3400855 Screw

36 Log Burner,

8285052 Grill

8285051 Griddle

W10157550

Deflector

38 Tray, Drip

W10157581

Grill

W10157582

Griddle

W10157554

Guard,

Front, Spill

40 8284804 Plug, Manifold

(open)

41 8285056 Enclosure,

Griddle

42 8284993 Bracket, Thermo

43 313382 Clip, Bulb

W10157545

Bracket,

Thermostat Bulb

45 8284765 Griddle, Thermo

W10115169

Module, Griddle

4W10207230

OPTIONAL PARTS

For Model: KGCP484KSS05

(Stainless)

W10207230

Illus. Part

No. No. DESCRIPTION

WIRING HARNESS PARTS

9763116 Power Cord

1129449 Bushing

FE02349 Bushing, Electric

8285047 Harness,

Spark Jmp Combo

8285048 Harness, Wire

Jumper (white)

8285000 Harness, Wire

Jumper (black)

8284847 Harness,

Jumper Valve

4456627 Harness,

Ignitor

Miscellaneous

8284782 L.P. Orifice Spud

Pack

3192439 Seal, Limiter
