COOKTOP PARTS

For Models: KECC560BBL2, KECC560BWH2, KECC560BAL2

(Black) (White) (Almond)

5−96 Litho in U.S.A. (rmb) Part No. 885214

36" ELECTRIC

BUILT−IN

COOKTOP

COOKTOP PARTS

For Models: KECC560BBL2, KECC560BWH2, KECC560BAL2

(Black) (White) (Almond)

885214

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

1 Trim Ring, Cooktop

3187820 Black

3187821 White

3187822 Almond

2 Cooktop, Glass

3187816 Black

3187817 White

3188897 Almond

4 3188308 Bracket, Switch

Mounting

6 3189165 Spring Locator (8)

246119 Screw (8)

7 Switch, Infinite

3188516 Use W/2400W

Left Rear Burner

3188516 Use W/2200W

Right Rear Burner

4454539 Use W/1400W

Right Front &

Center Rear Burner

4454539 Use W/1200 W

Left Front Burner

8 3183956 Seal, Switch Shaft

311865 Screw

9 4454437 Light, Indicator

10 Knob, Control (4)

9750372FF

Black

9750372FW

White

9750372FT

Almond

11 3188103 Box, Burner

13 3188533 Grommet

4159456 Screw

15 3182435 Seal, Switch (4)

16 Switch, Limiter

3190248 Use W/3196428

Element

3190253 Use W/3189894

Element

3190247 Use W/3189901

Element

3190441 Use W/3189899

Element

18 3189843 Plate, Backer

19 Seal, Silicone

3185589 Small (2)

3188854 Large (2)

20 3187753 Shield, Heat

(Element)

4159456 Screw

21 Seal, Silicone

3188852 8 in.

3188853 11 in.

22 3189756 Lamp, Hot

Surface Indicator

4168863 Screw

23 3189152 Bracket, Stiffening

4159456 Screw

24 Element, Surface

(Includes # 16)

3196428 1200W Left Front

3189894 1400W Right Front &

Center Rear

3189901 2200W/1000W

Right Rear

3189899 2400/1000W Left Rear

29 3188876 Shield, Heat Switch

4159456 Screw

30 3189175 Bracket, L

4159456 Screw

31 3188309 Shield, Heat Element

4159456 Screw

32 3188158 Plate, Interior

4159456 Screw

33 3189159 Plate, End

4159456 Screw

34 3189036 Plate Louver

4159456 Screw

35 3189273 Cover, Conduit

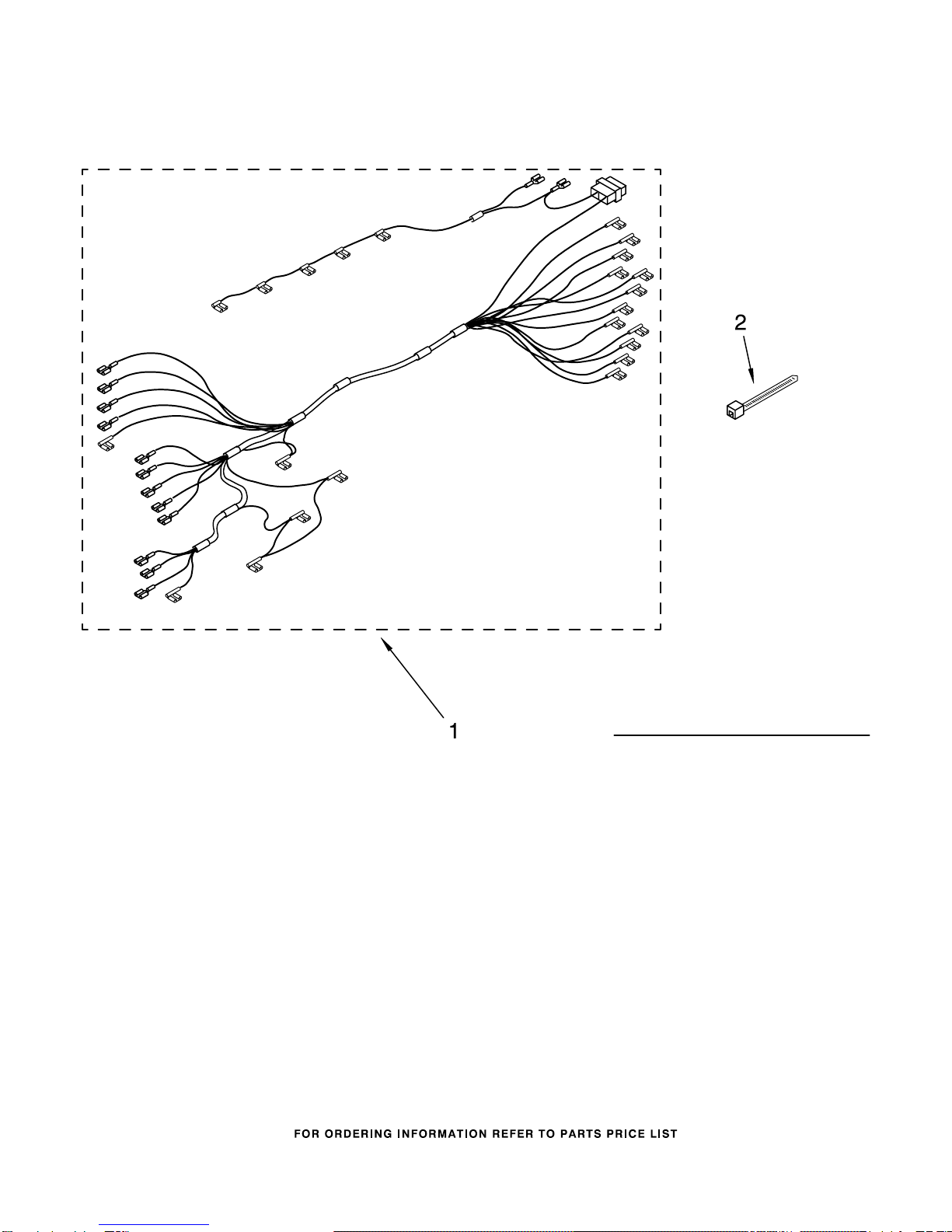

WIRING HARNESS PARTS

For Models: KECC560BBL2, KECC560BWH2, KECC560BAL2

(Black) (White) (Almond)

885214

Illus. Part

No. No. DESCRIPTION

1 3189755 Wiring Harness

Surface Unit

2 3179589 Wire, Tie

MISCELLANEOUS PARTS

For Models: KECC560BBL2, KECC560BWH2, KECC560BAL2

(Black) (White) (Almond)

885214

Illus. Part

No. No. DESCRIPTION

FOLLOWING PARTS

NOT ILLUSTRATED

LITERATURE PARTS

LIT3189330

Installation

Instructions

LIT3190376

Wiring Diagram

LIT4454475

Use & Care Guide

Miscellaneous

3172515 Mtg. Hardware Kit

FOLLOWING PARTS

NOT ILLUSTRATED

SPLICING WIRES−−25FT.

LENGTH

242828 Wire, Black

12 Ga. 150 C

242820 Wire, Black

14 Ga. 150 C

242822 Wire, Blue

14 Ga. 150 C

242830 Wire, Brown

14 Ga. 200 C

242823 Wire, Green

14 Ga. 150 C

242824 Wire, Orange

14 Ga. 150 C

242829 Wire, Red

12 Ga. 150 C

242825 Wire, Red

14 Ga. 150 C

242831 Wire, Red

14 Ga. 200 C

242826 Wire, White

14 Ga. 150 C

242827 Wire, Yellow

14 Ga. 150 C

242832 Wire, Yellow

14 Ga. 200 C

ACCESSORY PARTS

3184477 Cleaner, Glass

3183488 Scraper, Glass
