KitchenAid KFGU766VSS00 Manuale utente

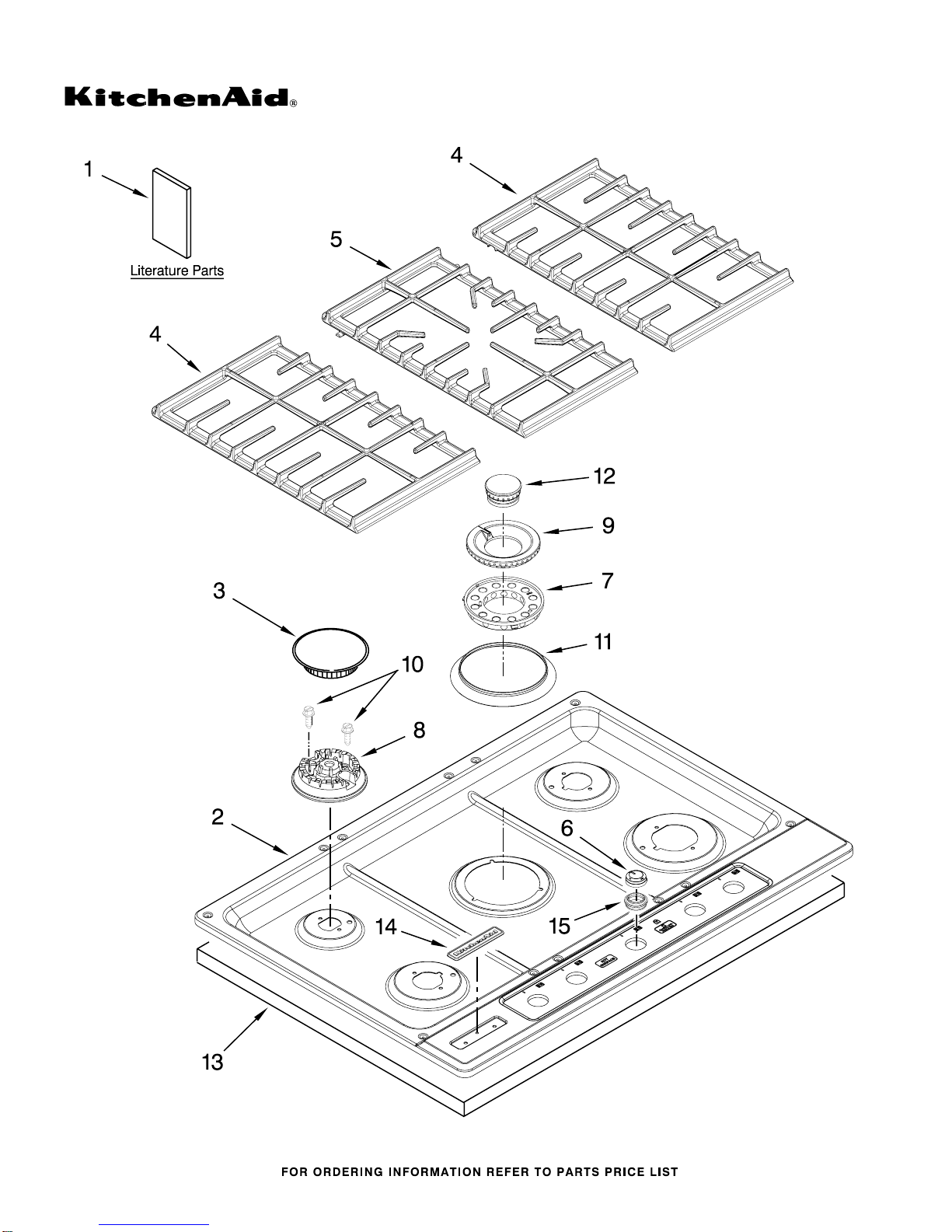

COOKTOP, BURNER AND GRATE PARTS

For Models: KFGU766VSS00

(Stainless)

4−12 Litho in U.S.A (amd) Part No. W10184100 Rev. B

36" GAS COOKTOP

COOKTOP, BURNER AND GRATE PARTS

For Models: KFGU766VSS00

(Stainless)

W10184100

Illus. Part

No. No. DESCRIPTION

1 LITERATURE PARTS

8286867 Installation

Instructions

8304571 Inst. Instruction

Undercounter

8286868 Use & Care Guide

8286697 Tech Sheet

Safe Cooking Tips

3191638 English

9759133 French

8287002 LP Conversion

Instructions

W10132149

Cooktop

3 Cap, Burner

8286818 LF,RF

8286817 RR

8286816 LR

4 Grate, Burner

8287314 Left

8286662 Right

5 8287049 Grate, Center

6 Knob

W10132174

Standard Brnr

W10132175

Special Brnr

7 8287072 Cross Ring,Ctr Brn

8 Head, Burner

8286815 LF,RF

8286814 RR

8286813 LR

W10153033

Outer Spreader

10 8287059 Screw

11 8287075 Beauty Ring,CtrBrn

W10163407

Inner Spreader

13 8286862 Insulation, Cktp

8304603SS

Nameplate

15 8286854 Grommet, Knob

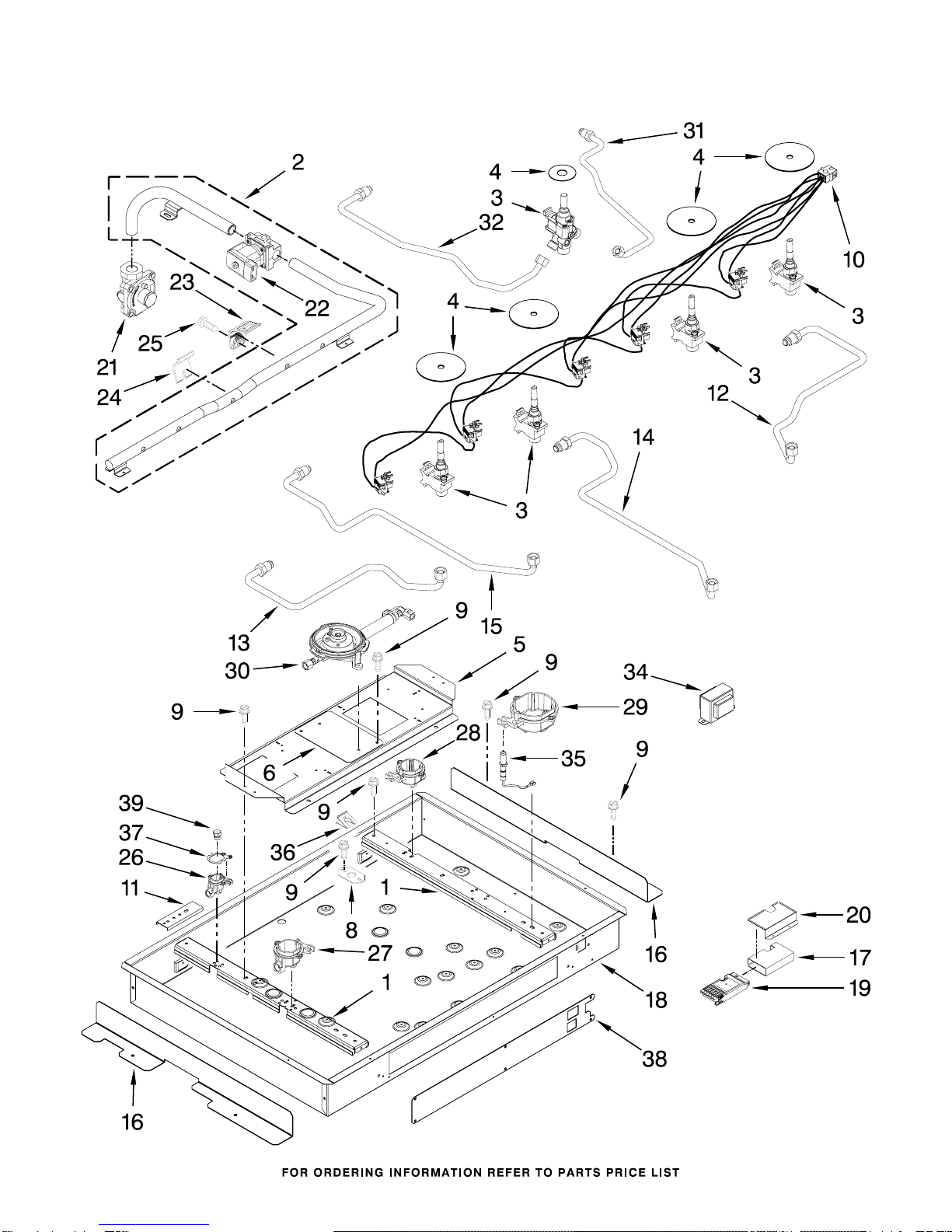

BURNER BOX, GAS VALVES, AND SWITCHES

For Models: KFGU766VSS00

(Stainless)

W10184100

BURNER BOX, GAS VALVES, AND SWITCHES

For Models: KFGU766VSS00

(Stainless)

W10184100

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Rail, Burner

8286753 Left

8286728 Right

2 8287312 Pipe, Manifold

3 Valve, Gas Burner

8286916 LR

8286919 LF,RR

8286920 RF

8287058 Center Dual

4 Seal, Shaft

W10140571

Single

W10140577

Dual

W10153621

Rail, Center

W10141511

Plate, Center Brnr

8 8286858 Bracket, Mainfold

9 3196160 Screw

10 8286687 Harness & Switches

11 4455917 Bracket, Mounting

12 8286737 Tubing, Gas

Burner (RF)

13 8286735 Tubing, Gas

Burner (LF)

14 8286738 Tubing, Gas

Burner (RR)

15 8286736 Tubing, Gas

Burner (LR)

16 8286771 Shield, Heat

17 8286829 Module,Reignition

18 8286751 Burner Box

19 8287103 Insulation,

Reignition Module

20 8286739 Cover,Reignit.Mdl.

W10132345

Regulator,

Pressure

22 8287076 Valve,Solenoid

Lock

23 8287055 Bracket,Single Vlv

24 8287056 Bracket,Dual Vlv

25 8287057 Screw, Brkt Vlv

26 8286820 Orifice Hldr 6K LR

W10140569

Orifice Hldr 7K LF

W10140570

Orifice Hld 10K RR

29 8286822 Orifice Hld 12K RF

30 8286936 Orific Hld 20K Ctr

31 8286729 Pipe,Ext. Crown

32 8286730 Pipe,Int. Crown

34 8286690 Transformer

35 Electrode

8286722 LF

8286723 LR

8286724 RF

8286725 RR

36 8286863 Spring,Electrode

37 Gasket, Orifice

8286930 LR

8286931 LF,RR

8286932 RF

38 8286740 Cover Plate

39 Orifice (NG)

W10151348

W10151350

W10151347

W10151346

W10151349

CTR

OPTIONAL PARTS (NOT INCLUDED)

For Models: KFGU766VSS00

(Stainless)

W10184100

Illus. Part

No. No. DESCRIPTION

Following Parts Not Illustrated

8286692 Cord, Power

3177991 Screw

W10163327

Bracket, Mounting

4173634 Bushing,Electric

W10140568

Connector, Adptr

(Burner Box)

3179776 Screw

Connector, Adptr

Miscellaneous

W10136725

Spud Kit

W10163349

Conv. Kit (LP)

W10163727

Conv. Kit (NG)

8537055 Stainless Cleaner

WIRING HARNESS PARTS

8286684 Harness,Main

8286987 Harness, UI

8286607 Grommet
