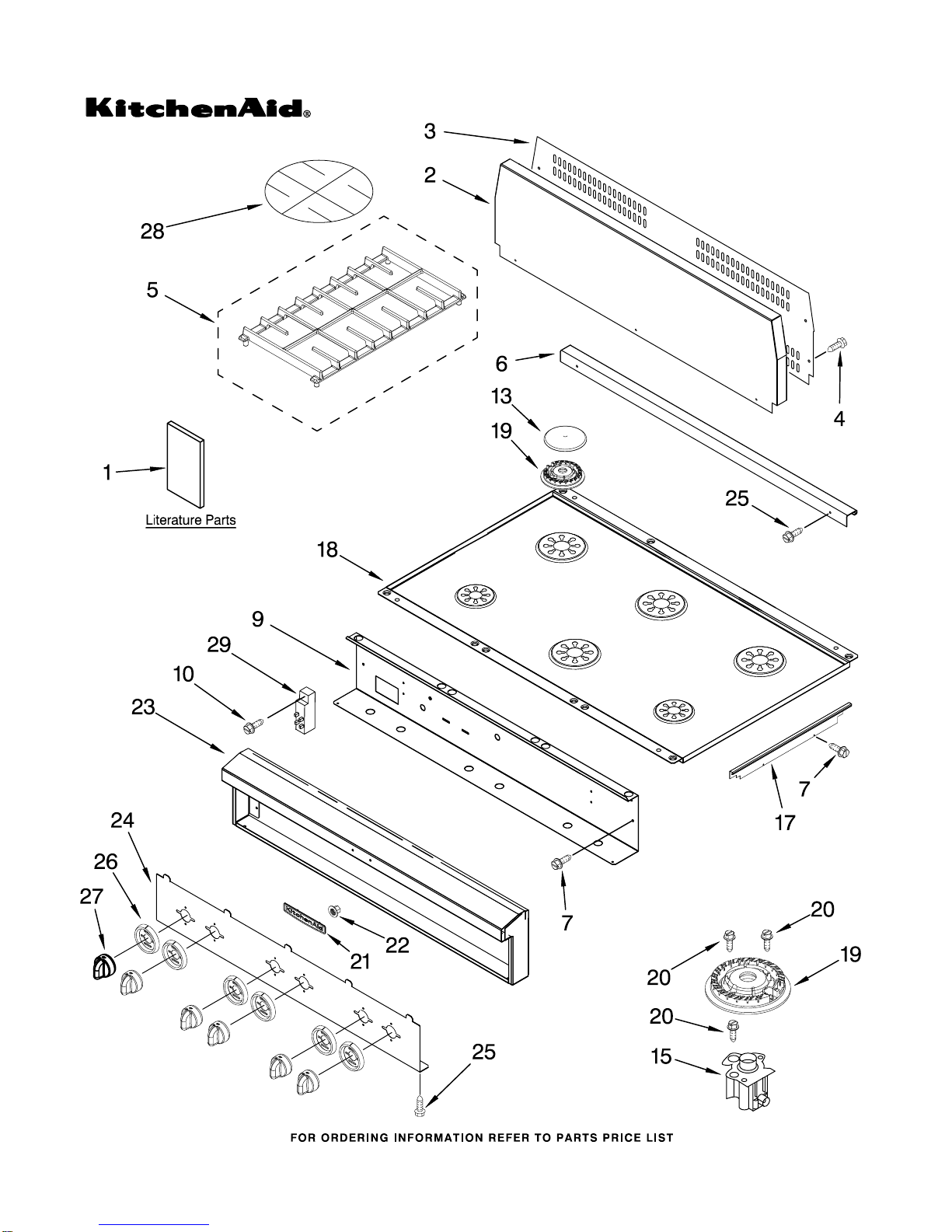

COOKTOP, BURNER AND GRATE PARTS

For Model: KGCP467JSS05

(Stainless Steel)

4−04 Litho in U.S.A. (cre) Part No.8186198

36" Professional

Cooktop

COOKTOP, BURNER AND GRATE PARTS

For Model: KGCP467JSS05

(Stainless Steel)

8186198

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

LIT4455062

Instructions,

Island Trim

LIT8285477

Wiring Diagram

LIT8285588

Use & Care Guide

LIT8285479

Installation

Instructions

LIT8285589

Instructions,

LP Conversion

2 4454960 Backsplash

3 8284712 Support,Backsplash

4 3196537 Screw, 8−18 x 3/8

5 4454963 Grate, Burner

6 4454962 Trim, Island

7 3177991 Screw, 8−18 x 1/4

9 8285478 Support, Control

Panel

10 3400843 Screw

13 Cap, Burner

4455243 (14K)

8284669 (6K)

15 Holder, Orifice

Includes Orifice

4456622 Turbo (4)

4456920 Auxillary (2)

17 Trim, Side

4457294 Right Hand

4457295 Left Hand

18 8284664 Cooktop, Black

19 Burner Head 14K

4455849 Turbo (4)

4455979 Auxillary (2)

20 3368921 Screw, 7−18 x 3/4

21 2005292 Nameplate

22 2004333 Palnut

23 4455217 Control Frame

24 4457156 Panel, Control

25 3196176 Screw, 8−18 x 1/2

26 4455192 Bezel, Knob

27 4454970 Knob, Burner

28 4455109 Plate, Simmer

29 8522424 Module, Spark

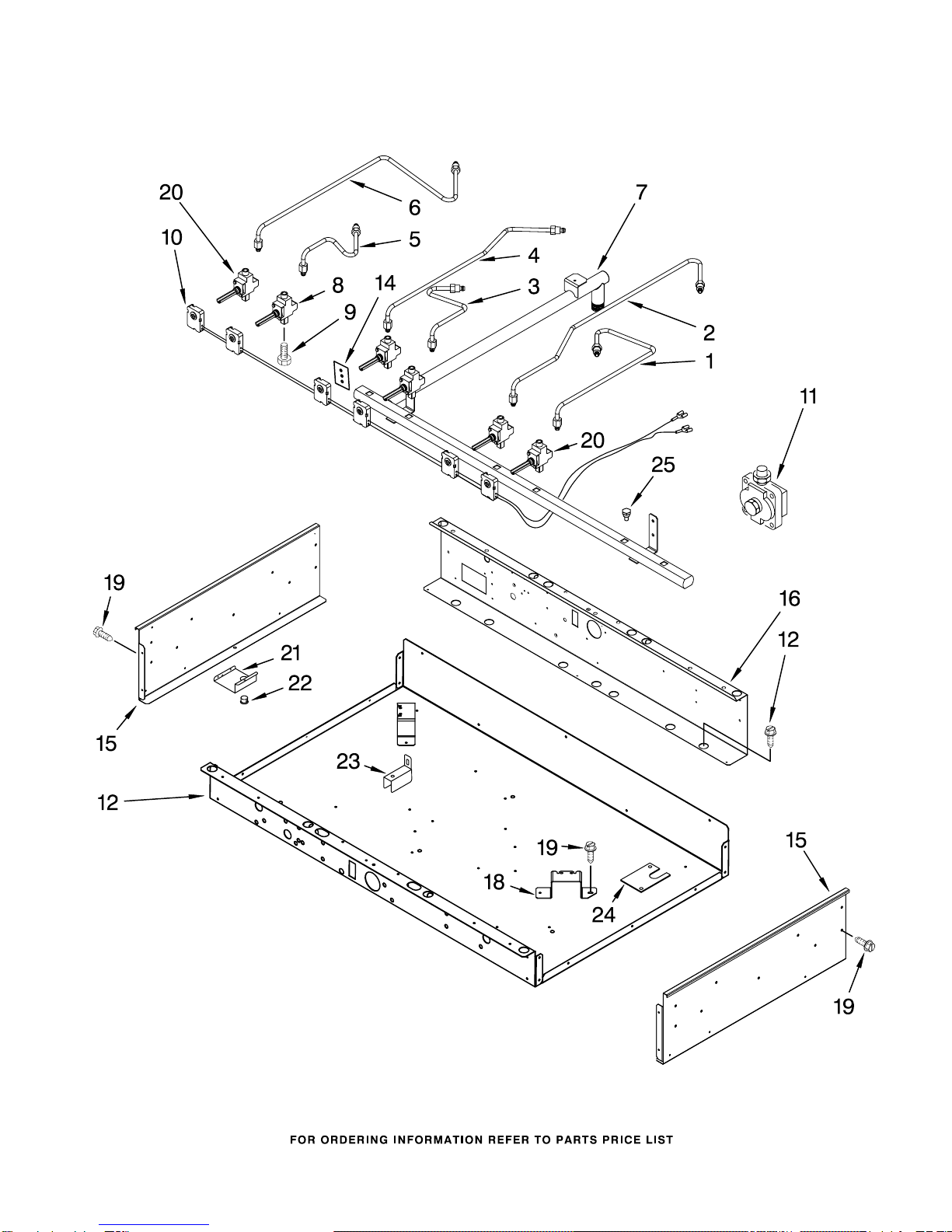

BURNER BOX, GAS VALVES, AND SWITCHES

For Model: KGCP467JSS05

(Stainless Steel)

8186198

BURNER BOX, GAS VALVES, AND SWITCHES

PARTS NOT ILLUSTRATED

For Model: KGCP467JSS05

(Stainless Steel)

8186198

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4455040 Tubing, Gas

Burner − RF

2 4455041 Tubing, Gas

Burner − RR

3 4455151 Tubing, Gas

Burner − CF

4 4455152 Tubing, Gas

Burner − CR

5 4455153 Tubing, Gas

Burner − LF

6 4455154 Tubing, Gas

Burner − LR

7 8284749 Manifold

8 4456818 Valve, Burner

(Turbo)

9 8523704 Bolt, Valve

10 4456910 Burner Switch &

Harness Assembly

11 4455157 Regulator,Pressure

12 4457094 Burner Box

14 3192439 Seal, Switch

15 Side, Burner Box

8285607 Right Hand

8285606 Left Hand

16 8285358 Support, Rear

18 3192811 Bracket, Burner

19 3177991 Screw, 8−18 x 1/4

20 4456816 Valve, Burner

Auxillary

21 8284680 Cover Shelf

22 8284722 Bushing, Cover

Shelf

23 4449845 Bracket, Support

24 8285361 Cover, Panel

25 8284796 Plug, Manifold

Illus. Part

No. No. DESCRIPTION

WIRING HARNESS PARTS

3192231 Power Cord

1129449 Bushing

4456628 Harness, Wire

Ignitor (42")

4456627 Harness, Wire

Ignitor (28")

Miscellaneous

8284782 L.P. Orifice Spud

Pack
