COOKTOP, BURNER AND GRATE PARTS

For Model: KGCP463KSS0

(Stainless Steel)

6−01 Litho in U.S.A. (cre) Part No.8185792

36" Stainless Steel

Professional Cooktop

COOKTOP, BURNER AND GRATE PARTS

For Model: KGCP463KSS0

(Stainless Steel)

8185792

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

LIT8284671

Wiring Diagram

LIT8284746

Use & Care Guide

LIT8284979

Installation

Instructions

LIT8284780

Instructions,

LP Conversion

2 4454960 Backsplash

3 8284712 Support,Backsplash

4 3196537 Screw, 8−18 x 3/8

5 4454963 Grate, Burner

6 8284851 Trim, Island

7 3400843 Screw, 8−18 x 1/4

9 8284972 Support, Control

Panel

13 Cap, Burner

4455243 14K (2)

8284669 6K (2)

15 Holder, Orifice

Includes Orifice

9754188 Turbo (4)

9754182 Auxillary (2)

16 4454974 Support Rail

R.H.& L.H.

17 Trim, Side

4454958 Right Hand

4455029 Left Hand

18 8284812 Cooktop, Black

19 Burner Head 14K

4455849 Turbo (2)

8273216 Auxillary (2)

20 3368921 Screw, 7−18 x 3/4

21 2005292 Nameplate

22 2004333 Palnut

23 4455217 Control Frame

24 8284798 Panel, Control

25 3196176 Screw, 8−18 x 1/2

26 4455192 Bezel, Knob

27 4454970 Knob, Burner

28 4455109 Plate, Simmer

29 8522423 Module, Spark

4−Burner

33 8284743 Knob, Griddle

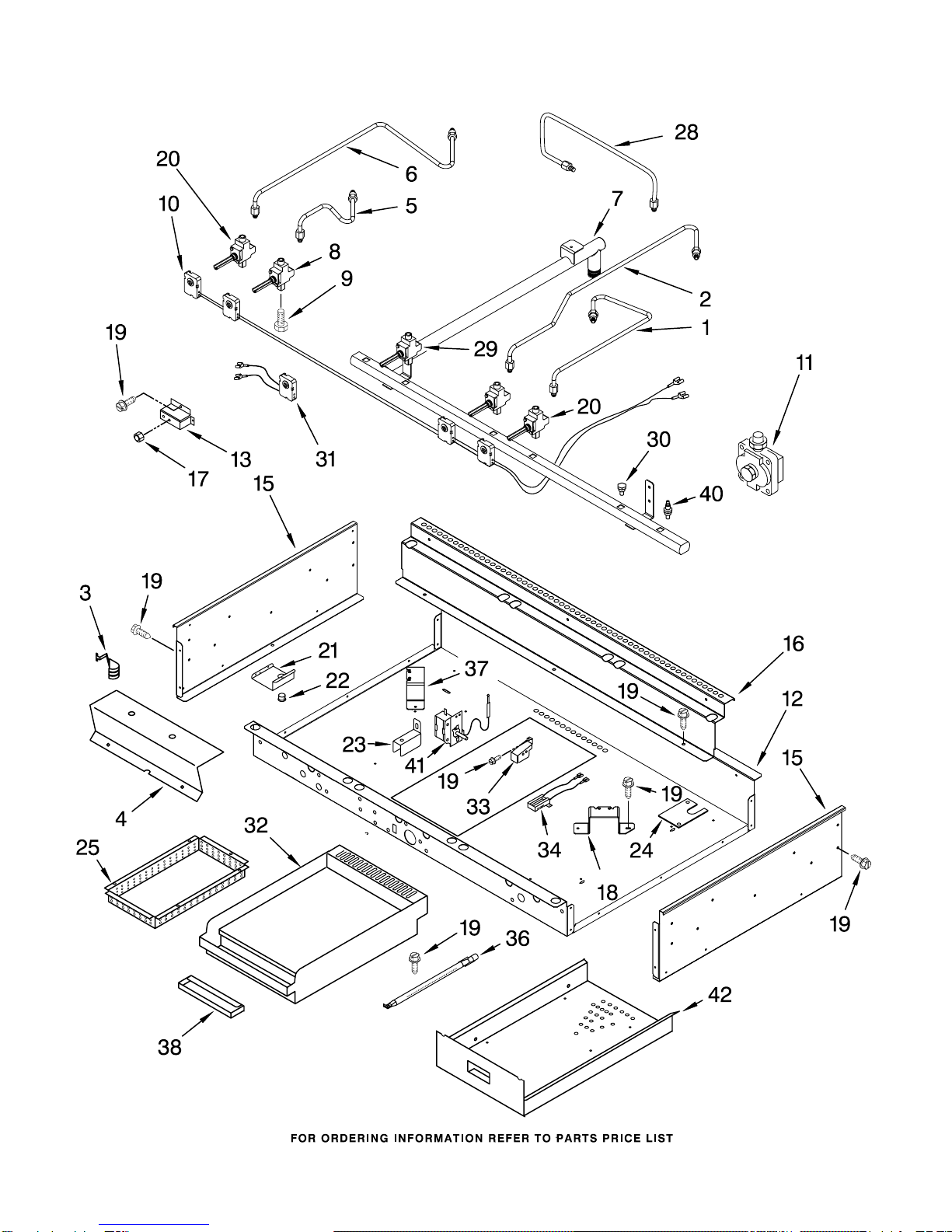

BURNER BOX, GAS VALVES, AND SWITCHES

For Model: KGCP463KSS0

(Stainless Steel)

8185792

BURNER BOX, GAS VALVES, AND SWITCHES

PARTS NOT ILLUSTRATED

For Model: KGCP463KSS0

(Stainless Steel)

8185792

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4455040 Tubing, Gas

Burner − RF

2 4455041 Tubing, Gas

Burner − RR

3 313382 Clip, Bulb

4 8284811 Bracket

5 4455153 Tubing, Gas

Burner − LF

6 4455154 Tubing, Gas

Burner − LR

7 8284749 Manifold

(Includes Items

#9 & #30)

8 3192157 Valve, Burner

(Turbo)

9 3185829 Bolt, Valve

10 8284779 Burner Switch &

Harness Assembly

3191387 Seal, Switch

11 4455157 Regulator,Pressure

12 8284970 Burner Box

13 8284805 Bracket, Griddle

Valve

15 Side, Burner Box

8284677 Right Hand

8284678 Left Hand

16 8284946 Support, Rear

17 488130 Hex Nut

18 3192811 Bracket, Burner

19 3177991 Screw, 8−18 x 1/4

20 3191292 Valve, Burner

Auxillary

21 8284680 Cover Shelf

22 8284722 Bushing, Cover

Shelf

23 4449845 Bracket, Support

24 4455139 Cover, Panel

25 8284854 Box, Burner

Lower

28 8284975 Tube, Griddle

29 8284788 Valve, Griddle

30 8284796 Plug, Manifold

(closed)

31 8284779 Harness, Switch

Griddle

32 8284759 Module, Griddle

33 8284800 Bracket, Ignitor

34 8284941 Ignitor, Grill

36 8284991 Log Burner,

griddle

3400805 Screw

37 8284993 Bracket, Thermo

38 8284763 Tray, Drip

40 8284804 Plug, Manifold

(open)

41 8284765 Griddle, Thermo

42 8284992 Enclosure,

Griddle

Illus. Part

No. No. DESCRIPTION

WIRING HARNESS PARTS

3192231 Power Cord

1129449 Bushing

4173634 Bushing, Electric

8284847 Harness, Wire

Jumper

8284849 Harrness, Wire

Jumper (white)

8284772 Harness, Wire

Ignitor

8284976 Harness, Wire

Jumper (yellow)

8284848 Harness, Wire

Jumper (black)

Miscellaneous

8284663 L.P. Orifice Spud

Pack
