COOKTOP, BURNER AND GRATE PARTS

36" Stainless Steel

Professional Cooktop

For Model: KGCP467HSS0

(Stainless Steel)

11−99 Litho in U.S.A. (RS) Part No.885498 Rev.A

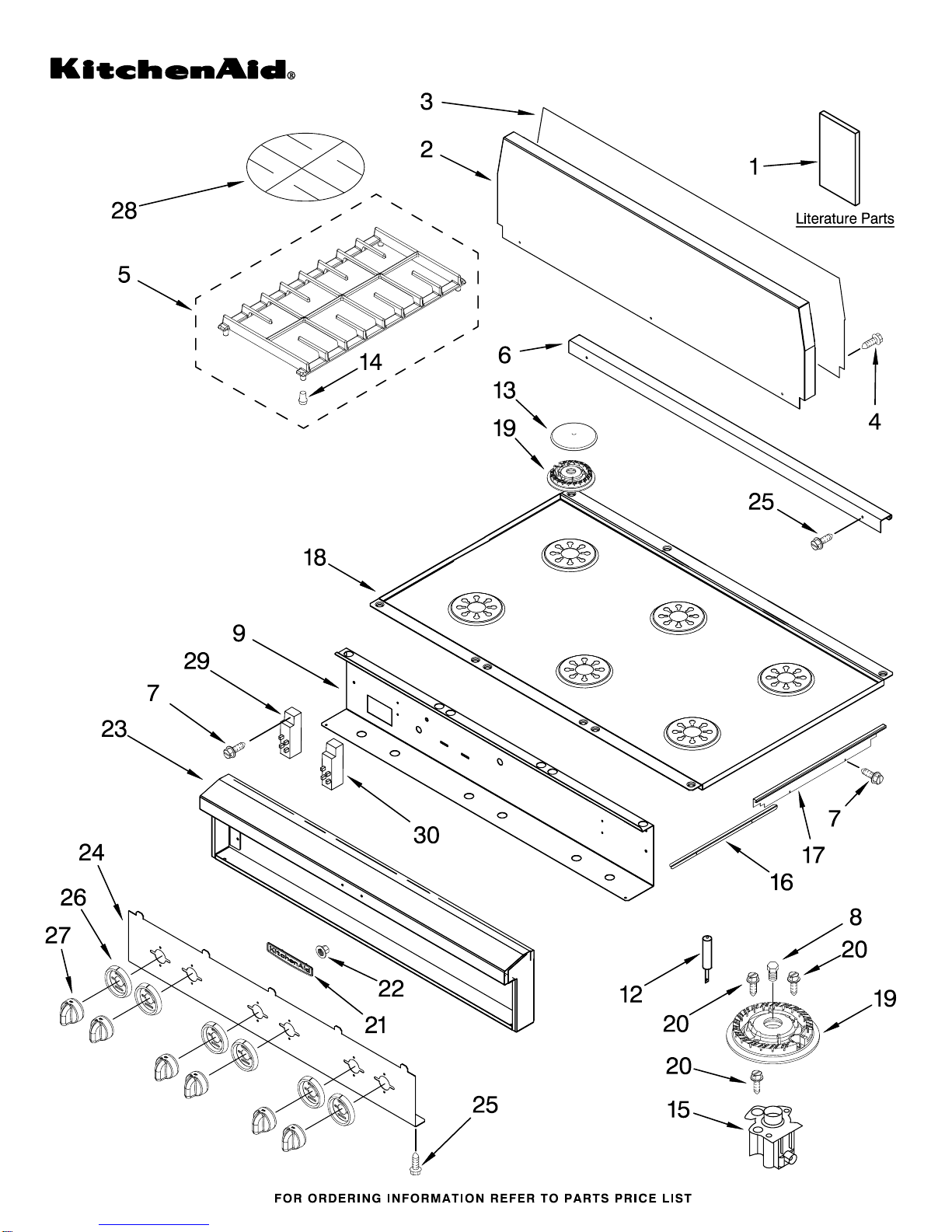

COOKTOP, BURNER AND GRATE PARTS

For Model: KGCP467HSS0

(Stainless Steel)

885498

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

LIT4455062

Instructions,

Island Trim

LIT3192100

Wiring Diagram

LIT4455045

Use & Care Guide

LIT4455046

Installation

Instructions

LIT4455110

Instructions,

LP Conversion

2 4454960 Backsplash

3 4455030 Support,Backsplash

4 3196537 Screw, 8−18 x 3/8

5 4454963 Grate, Burner

6 4454962 Trim, Island

7 3177991 Screw, 8−18 x 1/4

8 9753930 Orifice, Burner

9 4454955 Support, Control

Panel

12 3192527 Ignitor, Burner

13 4455243 Cap, Burner

14 3186678 Pad, Grate (4)

15 3191743 Base, Burner

Includes Orifice

16 4454974 Support Rail

R.H.& L.H.

17 Trim, Side

4454958 Right Hand

4455029 Left Hand

18 4455033 Cooktop, Black

19 9753111 Burner Head 14K

20 3368921 Screw, 7−18 x 3/4

21 2005292 Nameplate

22 2004333 Palnut

23 4455217 Control Frame

24 4455214 Panel, Control

25 3196176 Screw, 8−18 x 1/2

26 4455192 Bezel, Knob

27 4454970 Knob, Burner

28 4455109 Plate, Simmer

29 8053421 Module, Spark

2−Burner

30 8053420 Module, Spark

4−Burner

BURNER BOX, GAS VALVES, AND SWITCHES

For Model: KGCP467HSS0

(Stainless Steel)

885498

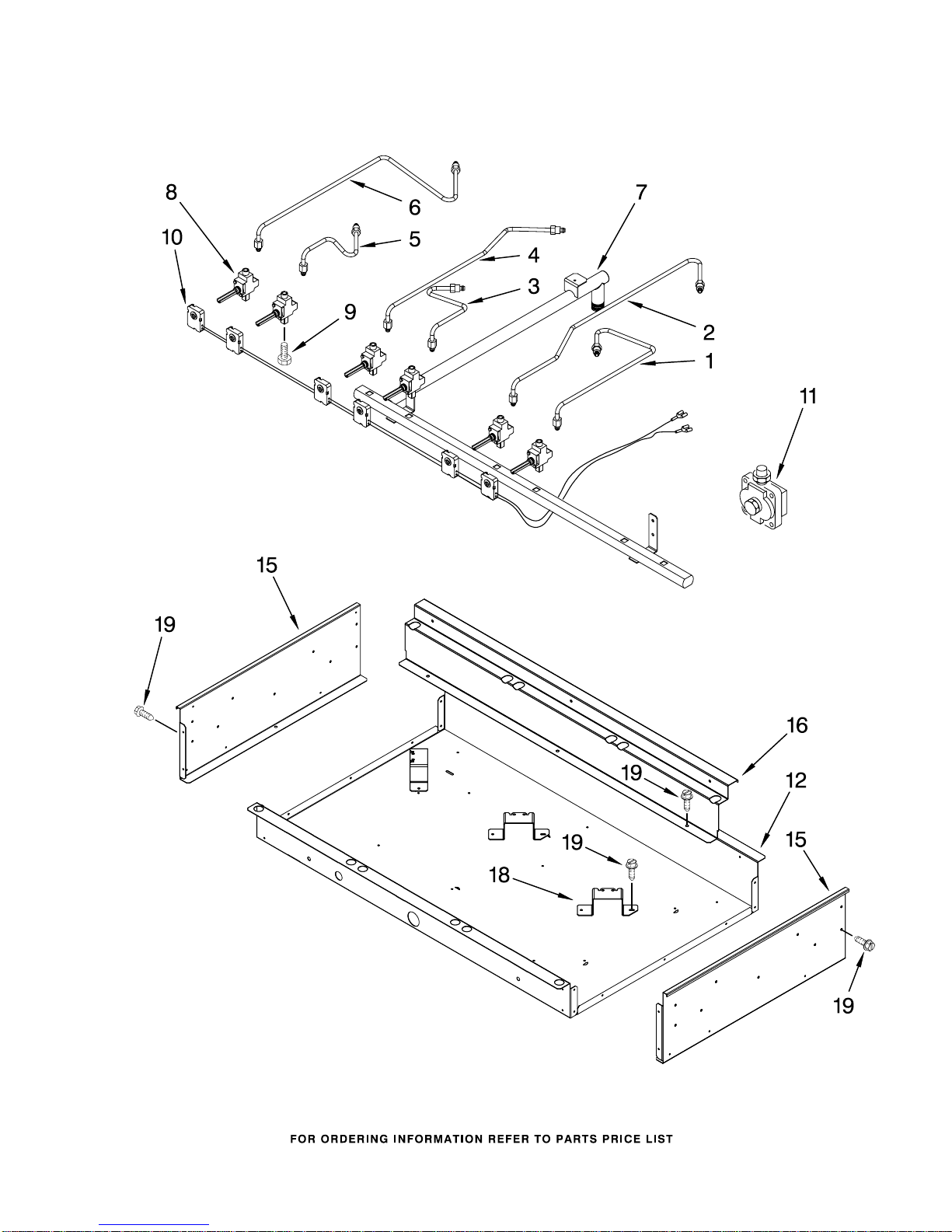

BURNER BOX, GAS VALVES, AND SWITCHES

PARTS NOT ILLUSTRATED

For Model: KGCP467HSS0

(Stainless Steel)

885498

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4455040 Tubing, Gas

Burner −RF

2 4455041 Tubing, Gas

Burner −RR

3 4455151 Tubing, Gas

Burner −CF

4 4455152 Tubing, Gas

Burner −CR

5 4455153 Tubing, Gas

Burner −LF

6 4455154 Tubing, Gas

Burner −LR

7 4454966 Manifold

8 3192157 Valve, Burner

9 307630 Bolt, Valve

10 4455155 Burner Switch &

Harness Assembly

11 4455157 Regulator,Pressure

12 4454952 Burner Box

15 Side, Burner Box

4454953 Right Hand

4454954 Left Hand

16 4455026 Support, Rear

18 3192811 Bracket, Burner

19 3177991 Screw, 8−18 x 1/4

Illus. Part

No. No. DESCRIPTION

WIRING HARNESS PARTS

3192231 Power Cord

1129449 Bushing

3191418 Harness, Wire

Jumper

3192230 Harness, Wire

Ignitor

Miscellaneous

4455353 L.P. Orifice Spud

Pack
